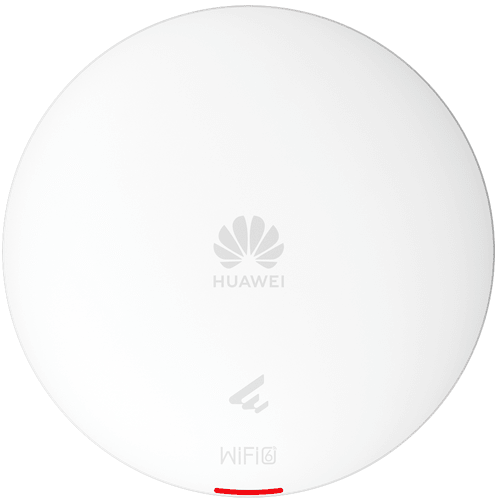

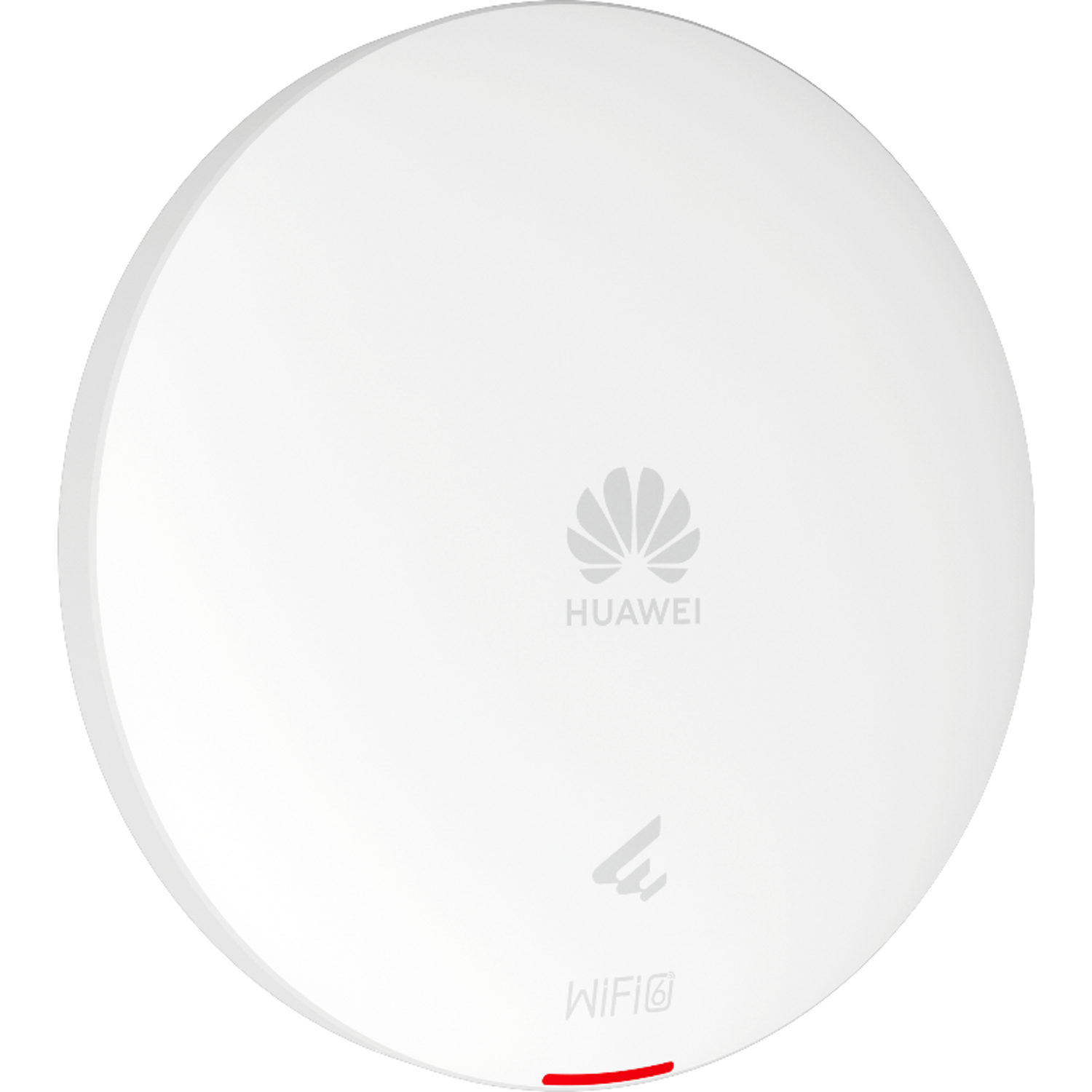

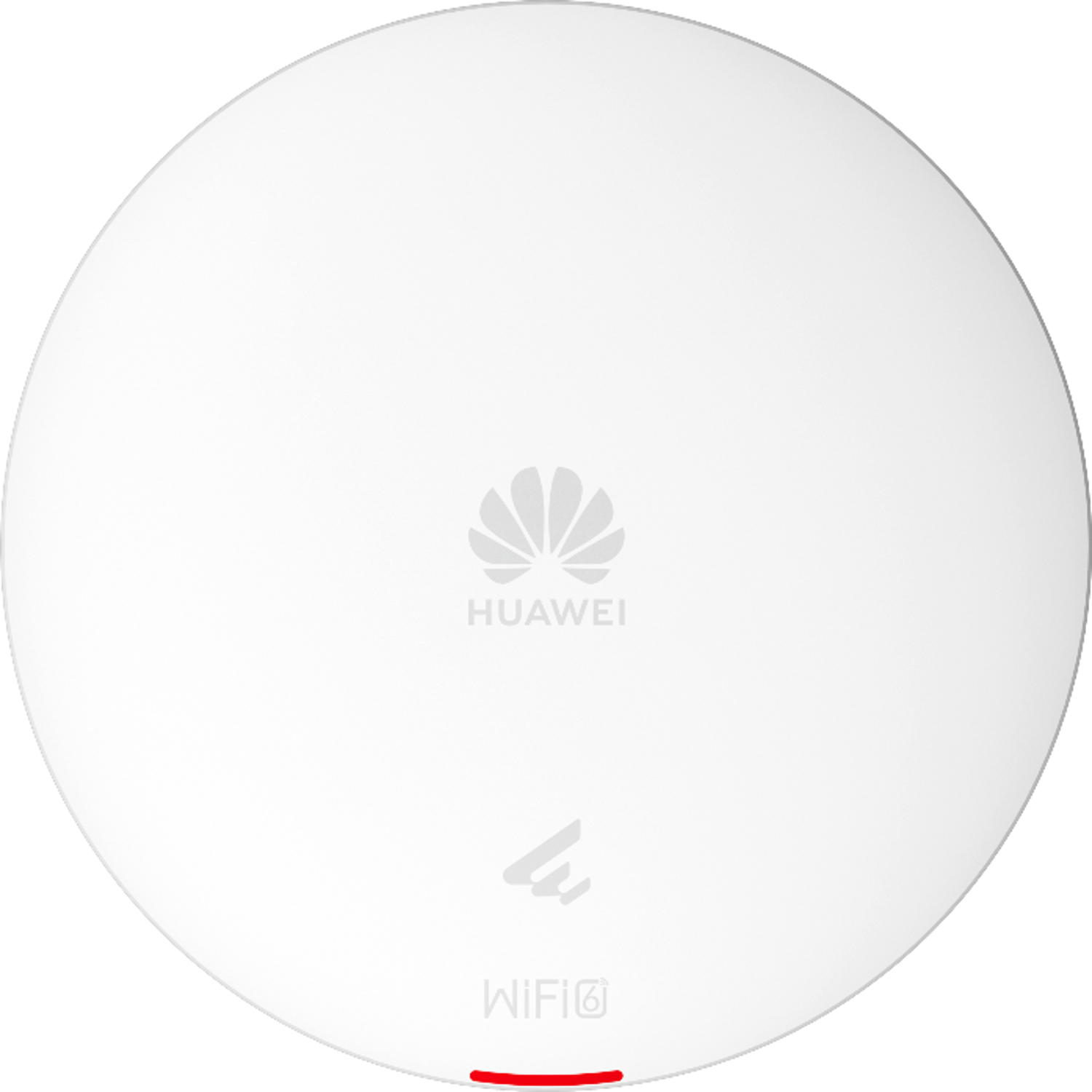

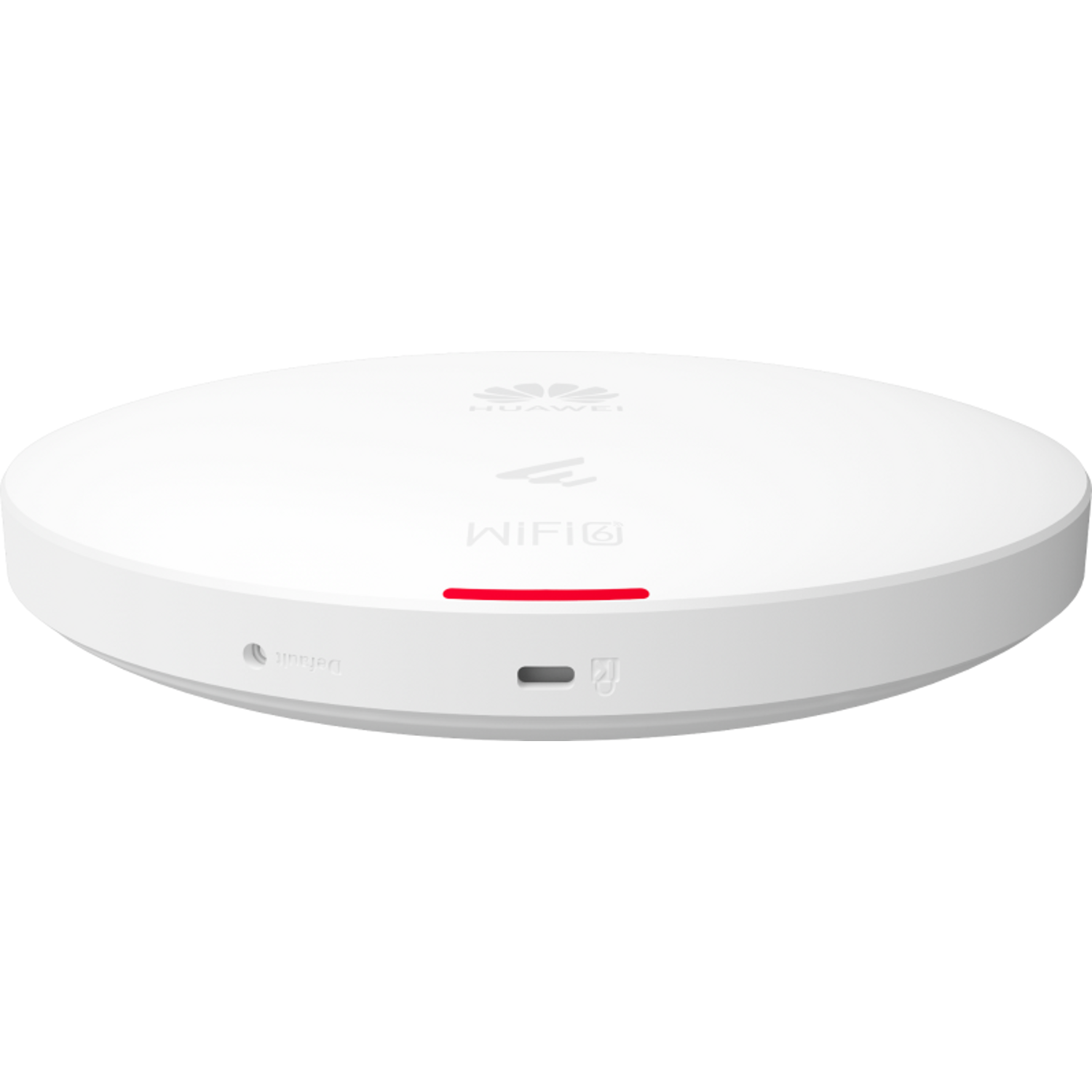

Huawei eKitEngine AP362 Wi-Fi 6 Indoor Access Point, Dual-Band 2.975 Gbps
PRODUCT DESCRIPTION
Huawei eKitEngine AP362 Wi-Fi 6 (802.11ax) Indoor Access Point (AP362) - 1 Year Local Warranty
Wi-Fi 6 for Small and Medium Offices
The Huawei eKitEngine AP362 is a compact indoor Wi-Fi 6 (802.11ax) access point from Huawei's eKit SME range. Two radios (2.4 GHz and 5 GHz), each 2x2 MIMO, deliver a combined device rate of up to 2.975 Gbps.
Built-in Smart Antennas
Huawei's built-in smart antennas focus coverage, with an optimal signal distance of 18 m per Huawei. Huawei recommends up to 80 users per AP, with a maximum of 256 access users.
Flexible Power and Mounting

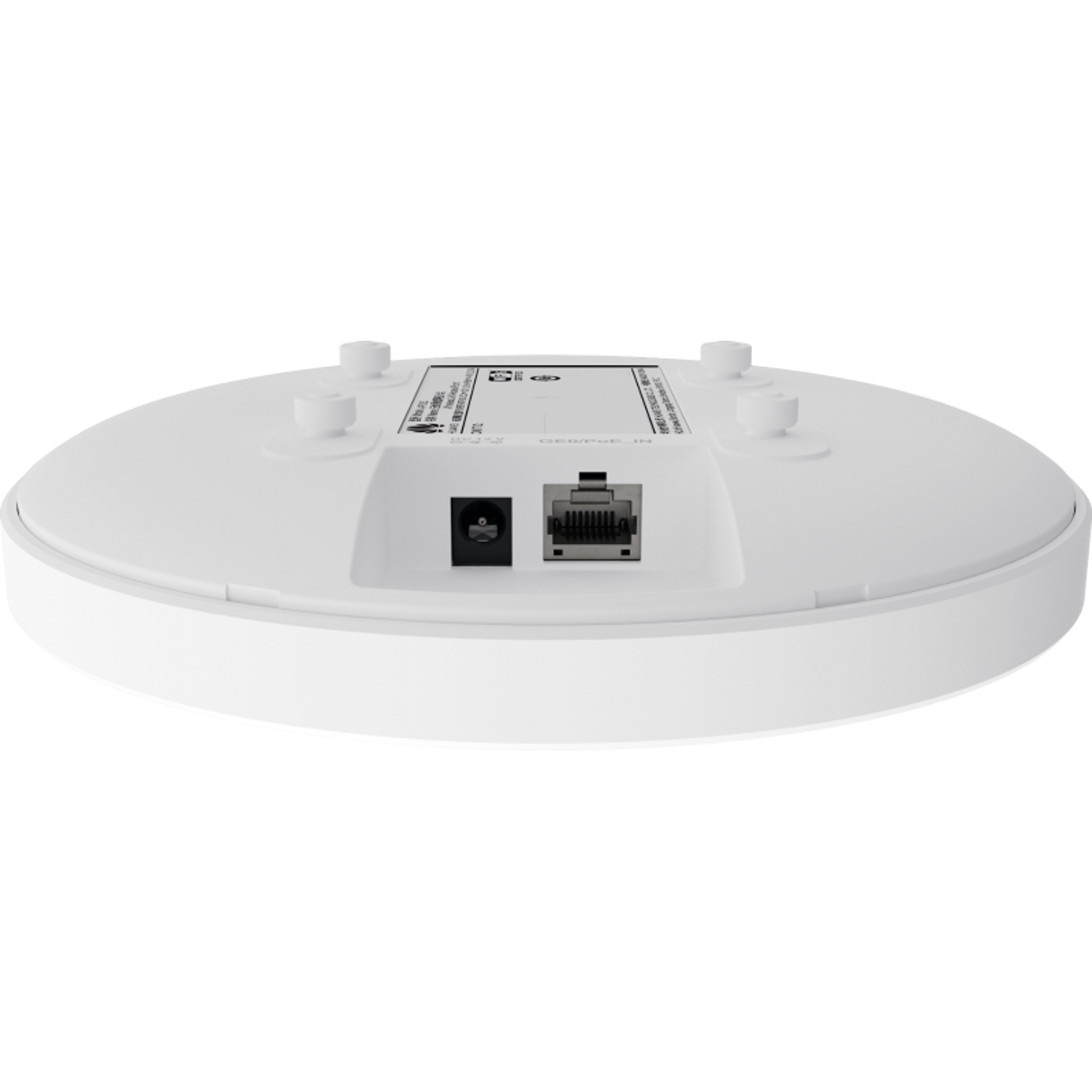

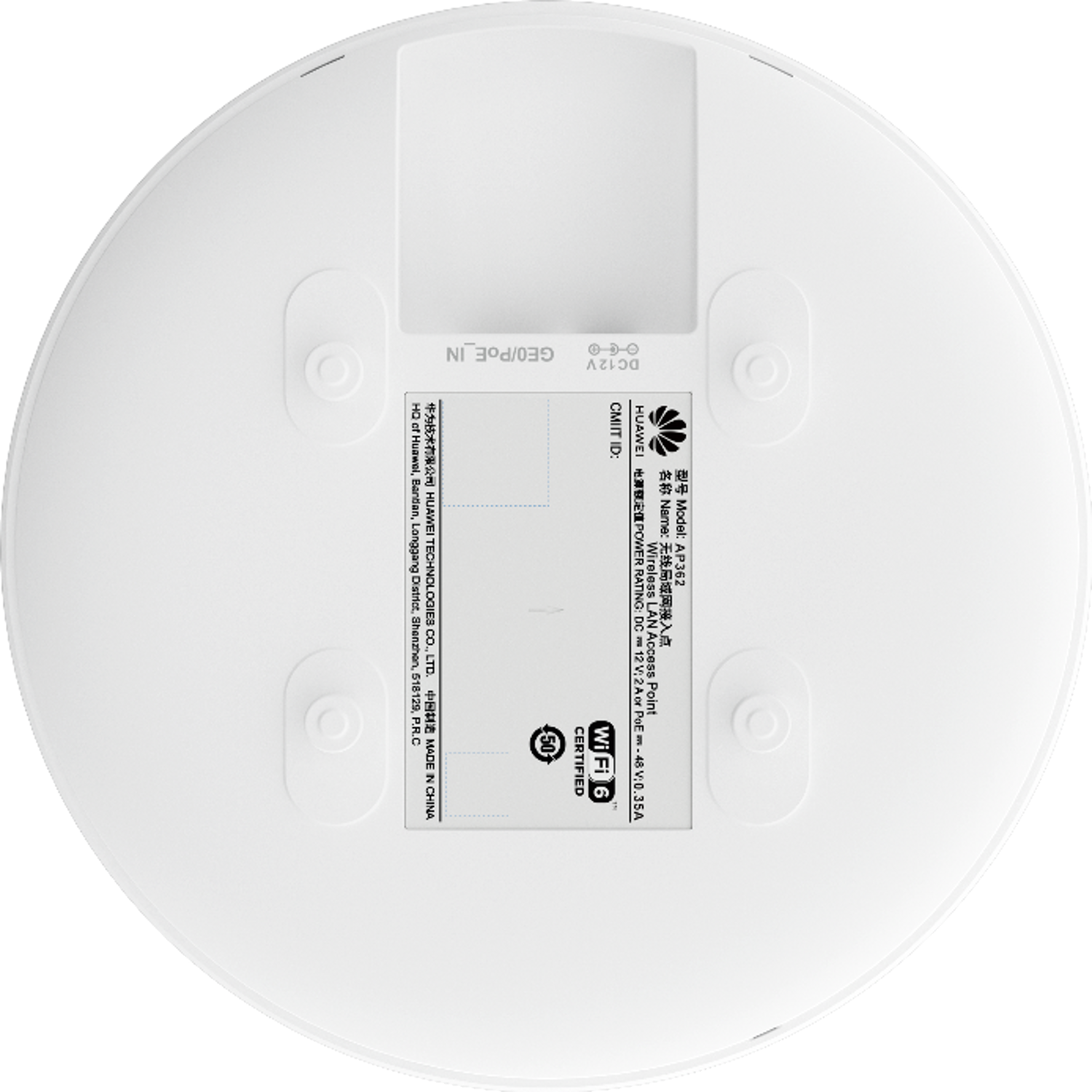

The AP362 has a single Gigabit RJ45 port and can be powered by IEEE 802.3af PoE or a 12 V DC input, drawing a maximum of 11.2 W. Its round 180 mm housing mounts on a wall or ceiling (solid wall, gypsum board, T-rail, channel rail, beam or threaded rod).
Managed with the eKit Ecosystem
Pair the AP362 with a Huawei AC650 wireless access controller or an eKitEngine S380 multi-service gateway (which has a built-in WAC) to manage multiple APs from one place.
Need help choosing? Email sales@sourceit.com.sg with your floor area, number of users and existing switch/PoE setup and we will size it for you.
Huawei AP362 Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine AP362 Wi-Fi 6 Indoor Access Point |
| Model | AP362 |
| Part Number | 50085706 |
| Type | Settled indoor AP (wall or ceiling) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radios | 2 (2.4 GHz + 5 GHz) |
| MIMO | 2x2 on 2.4 GHz and 2x2 on 5 GHz |
| Device Rate | Up to 2.975 Gbps |
| Max. Channel Bandwidth | 2.4 GHz: 40 MHz; 5 GHz: 160 MHz |
| Max. Transmit Power | 17 dBm per chain, 20 dBm combined (2.4 GHz and 5 GHz) |
| Antennas | Built-in smart antennas; 2.4 GHz 4 dBi/chain peak (2 dBi combined), 5 GHz 5 dBi/chain peak (3 dBi combined) |
| Users | Recommended 80; maximum 256 |
| Optimal Signal Distance | 18 m |
Interfaces & Power
| Ethernet | 1 x GE RJ45 (10/100/1000M auto-sensing) |
| Power Input | 12 V DC ±10% or PoE (IEEE 802.3af) |
| Max. Power Consumption | 11.2 W |
Physical & Environmental
| Dimensions | Ø180 x 35 mm |
| Weight | 0.46 kg (0.80 kg packed) |
| Installation | Wall or ceiling (solid wall, gypsum board, spring tee, flat-edge T-rail, channel rail, beam, threaded rod) |
| Operating Temperature | -10 to +50 °C (max. temperature derates 1 °C per 300 m above 1,800 m) |
| Operating Humidity | 5% to 95% RH, non-condensing |
Specifications from Huawei's official eKit product page for the AP362 (part number 50085706).
Compatibility & Software Support
Management
Works with Huawei eKit WLAN management: the AC650 wireless access controller and the eKitEngine S380 multi-service gateway (built-in WAC). Ask us to confirm firmware compatibility for your controller.
Powering the AP
Any IEEE 802.3af PoE switch port (e.g. Huawei eKitEngine S110 or S310 PoE switches) or a 12 V DC adapter.
Typical Use
Offices, meeting rooms, retail shops, clinics and classrooms needing Wi-Fi 6 coverage.
Package Contents & Huawei eKit WLAN Ordering Information
Huawei eKit WLAN Models
| Model | Type | Key Spec | Part No. |
| AP362 (this listing) | Wi-Fi 6 wall/ceiling AP | 2.975 Gbps, 1 x GE | AP362 |
| AP263 | Wi-Fi 6 wall-plate AP | 2.975 Gbps, 2 x GE, USB, BLE | AP263 |
| AC650-128AP | Wireless access controller | Manages up to 128 APs | AC650-128AP |
| AC650-256AP | Wireless access controller | Manages up to 256 APs | AC650-256AP |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included mounting bracket and accessories.
Datasheet & Downloads
| Huawei eKit product page | AP362 on ekit.huawei.com |
| Huawei datasheet | eKit Engine AP362 Access Point Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AP362.
Frequently Asked Questions — Huawei AP362
Is the AP362 a wall-plate AP?
No. The AP362 is a round settled AP for wall or ceiling mounting. If you need a wall-plate AP that fits a junction box, see the Huawei AP263.
Can it be powered by PoE?
Yes — IEEE 802.3af PoE, or a 12 V DC input. Maximum consumption is 11.2 W.
How many users can it handle?
Huawei recommends 80 users and supports a maximum of 256 access users.
Is the AP362 the same as the AP362E?
No. The AP362E (part number 50087148) is a different model with different power and transmit specifications. This listing is the AP362 (50085706).
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
