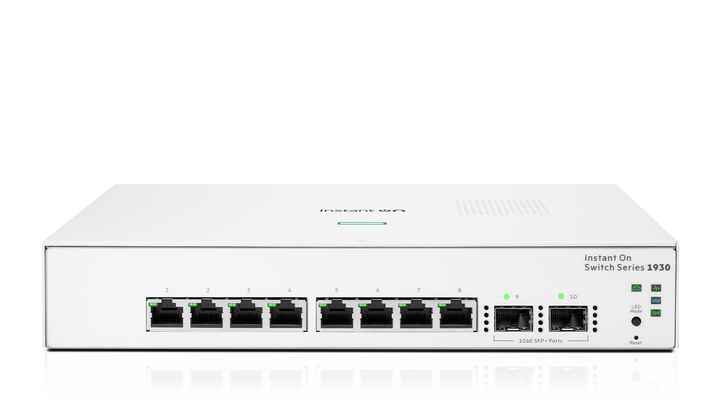

HPE Networking Instant On 1930 8-Port Gigabit Smart-Managed Switch with 2 SFP, Fanless
PRODUCT DESCRIPTION
HPE Networking Instant On 1930 8G 2SFP Switch (JL680A) - Limited Lifetime Local Warranty
Smart-Managed Gigabit Switching for Growing Small Businesses
The HPE Networking Instant On 1930 8G 2SFP Switch (JL680A) is a smart-managed Gigabit switch from HPE's Instant On range, the small-business line designed to be set up and run without a dedicated IT team. It provides 8 x 10/100/1000 RJ-45 + 2 x 1G SFP, with a switching capacity of 20 Gbps and throughput of 14.88 Mpps.
HPE describes the 1930 series as affordable, easy-to-deploy, smart-managed fixed-configuration Gigabit switches designed for today's bandwidth-heavy applications. It sits above the 1830 by adding Layer 3 IPv4 static routing, ACLs and, on the 24- and 48-port models, 10G SFP+ uplinks.
Manage It from the Instant On App, the Cloud Portal or a Local Web GUI
Instant On switches are set up and monitored from the HPE Networking Instant On mobile app or the cloud-hosted web portal, with no extra licence or subscription fee. If you prefer to keep management on-site, the switch can instead be run from its local web GUI.
The same app manages Instant On access points and Secure Gateways, so a small office can run its wired and wireless network from one place.
Compact 8-Port Design with SFP Uplinks
With 8 x 10/100/1000 RJ-45 + 2 x 1G SFP, the 8G 2SFP suits a small office, shop or meeting room, using the two SFP ports for a fibre or copper uplink back to a core switch.
This model is fanless, so it runs silently in an open office, classroom or retail space.
Layer 2+ Features with Static Routing
HPE lists VLANs, IPv4 static routing, STP, RSTP and MSTP, link aggregation, IEEE 802.1X access control with RADIUS, ACLs, automatic denial-of-service protection and Energy Efficient Ethernet with automatic port shutdown.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the 1930 series locally with a GST invoice. HPE covers Instant On switches with its Limited Lifetime warranty, including 24x7 phone support for the first 90 days and chat support for the whole warranty period.
Need help choosing between the 1830, 1930 and 1960? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
HPE Instant On 1930 JL680A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Switch 1930 8G 2SFP |
| Part Number | JL680A |
| Series | HPE Networking Instant On 1930 (smart-managed, Layer 2+ with static routing) |
| Manufacturer Warranty | Limited Lifetime (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 8 x 10/100/1000 RJ-45 + 2 x 1G SFP |
| PoE | None |
Performance
| Switching Capacity | 20 Gbps |
| Throughput | 14.88 Mpps |
| MAC Address Table | 8,000 entries |
| CPU / Memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash |
Power
| Power Supply | External power adapter (included) |
| Input Voltage | 100–240 VAC |
| Max Power Rating | 11.0 W |
Physical & Environmental
| Dimensions | 254 (W) x 159.5 (D) x 43.9 (H) mm |
| Weight | 1.16 kg |
| Acoustics | Fanless |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
Management
| Options | HPE Networking Instant On mobile app, Instant On cloud portal, or local web GUI |
| Licensing | No extra licence or subscription fees |
Compatibility & Software Support
What It Is Suited To
Small and medium offices, shops, clinics, classrooms and branch sites that need a managed Gigabit switch. It pairs naturally with HPE Networking Instant On access points and Secure Gateways, which are managed from the same app.
Management Software
Set up and manage with the free HPE Networking Instant On app (iOS and Android) or the Instant On web portal, with no subscription. Alternatively, run the switch stand-alone from its local web GUI.
SFP Uplinks
The uplink ports are 1G SFP. Ask us to confirm a compatible HPE transceiver or DAC cable for your uplink distance before ordering.
Package Contents & 1930 Series Ordering Information
In the Box
HPE Networking Instant On Switch 1930 8G 2SFP and documentation, with external power adapter. HPE's QuickSpecs do not list the full carton contents, so confirm the power cord type and mounting hardware with us before ordering if it matters to your installation.
HPE Networking Instant On 1930 Series — Ordering Information
| Instant On 1930 8G 2SFP (this listing) | 8 x 10/100/1000 RJ-45 + 2 x 1G SFP | None | JL680A |
| Instant On 1930 8G Class4 PoE 2SFP 124W | 8 x 10/100/1000 RJ-45 + 2 x 1G SFP | Class 4 PoE on all 8 RJ-45 ports, 124 W budget | JL681A |
| Instant On 1930 24G 4SFP/SFP+ | 24 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+ | None | JL682A |
| Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W | 24 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+ | Class 4 PoE on all 24 RJ-45 ports, 195 W budget | JL683B |
| Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W | 24 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+ | Class 4 PoE on all 24 RJ-45 ports, 370 W budget | JL684B |
| Instant On 1930 48G 4SFP/SFP+ | 48 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+ | None | JL685A |
| Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W | 48 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+ | Class 4 PoE on all 48 RJ-45 ports, 370 W budget | JL686B |
Warranty Upgrade
HPE offers extended support services for Instant On switches. Ask us to quote one with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Switch 1930 QuickSpecs |
| HPE data sheet | HPE Networking Instant On Switch Series 1930 Data Sheet |
| Series overview | HPE Networking Instant On 1930 Switch Series |
| Installation guide | HPE Networking Instant On 1930 Installation and Getting Started Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JL680A.
Frequently Asked Questions — HPE Instant On 1930 JL680A
Is this a managed switch?
Yes. It is a smart-managed switch with VLANs, link aggregation, spanning tree, 802.1X, ACLs and IPv4 static routing, managed through the Instant On app, cloud portal or local web GUI.
Is there a subscription fee for cloud management?
No. HPE states there are no extra licensing or subscription fees for Instant On management.
How much PoE does it provide?
It does not supply PoE. Choose the JL681A (8-port, 124 W) if you need to power access points or cameras.
Is it fanless?
Yes, this model is fanless.
What warranty do I get?
HPE Limited Lifetime warranty, supplied by SourceIT with local support and a GST invoice.
