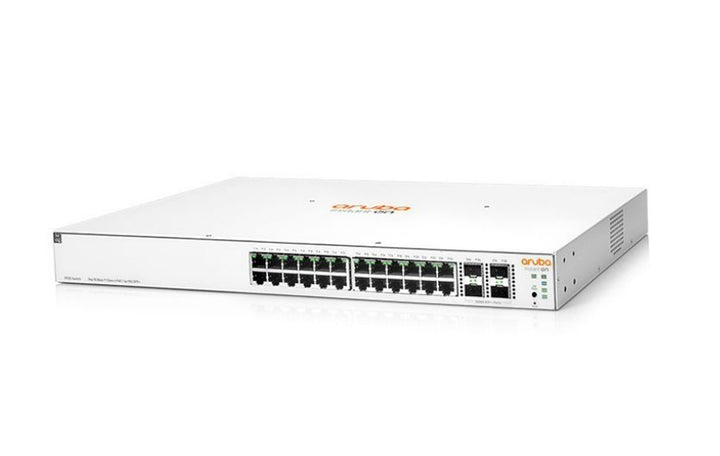

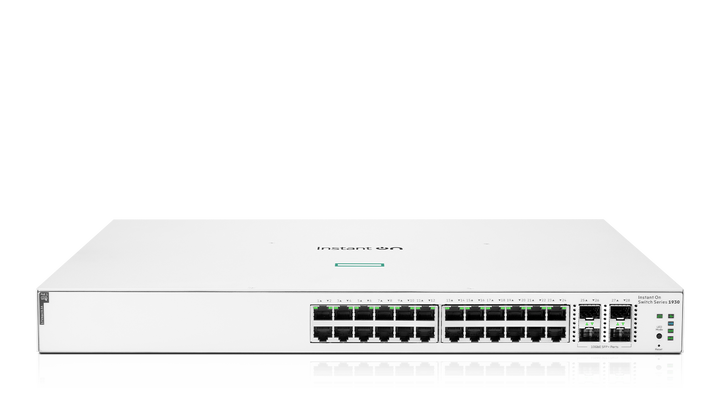

HPE Networking Instant On 1930 24-Port Gigabit Class 4 PoE+ Smart-Managed Switch with 4 SFP+ 10G, 370W

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684B) - Limited Lifetime Local Warranty

Smart-Managed Gigabit Switching for Growing Small Businesses

The HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684B) is a smart-managed Gigabit switch from HPE's Instant On range, the small-business line designed to be set up and run without a dedicated IT team. It provides 24 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+, with a switching capacity of 128 Gbps and throughput of 95.23 Mpps.

HPE describes the 1930 series as affordable, easy-to-deploy, smart-managed fixed-configuration Gigabit switches designed for today's bandwidth-heavy applications. It sits above the 1830 by adding Layer 3 IPv4 static routing, ACLs and, on the 24- and 48-port models, 10G SFP+ uplinks.

Manage It from the Instant On App, the Cloud Portal or a Local Web GUI

Instant On switches are set up and monitored from the HPE Networking Instant On mobile app or the cloud-hosted web portal, with no extra licence or subscription fee. If you prefer to keep management on-site, the switch can instead be run from its local web GUI.

The same app manages Instant On access points and Secure Gateways, so a small office can run its wired and wireless network from one place.

Gigabit Access with 10G SFP+ Uplinks

With 24 x 10/100/1000 RJ-45 + 4 x 1/10G SFP+, the 24G Class4 PoE 4SFP/SFP+ 370W connects desktops, printers and servers at Gigabit speed and uses the four SFP+ ports for 10G uplinks to a core switch, a NAS or a server.

All RJ-45 ports deliver Class 4 PoE from a 370 W budget, enough to power Wi-Fi access points, IP phones and cameras without separate adapters. PoE scheduling lets you switch power to devices on or off by day and time.

Layer 2+ Features with Static Routing

HPE lists VLANs, IPv4 static routing, STP, RSTP and MSTP, link aggregation, IEEE 802.1X access control with RADIUS, ACLs, automatic denial-of-service protection and Energy Efficient Ethernet with automatic port shutdown.

Supplied in Singapore with a Limited Lifetime Warranty

SourceIT supplies the 1930 series locally with a GST invoice. HPE covers Instant On switches with its Limited Lifetime warranty, including 24x7 phone support for the first 90 days and chat support for the whole warranty period.

Need help choosing between the 1830, 1930 and 1960? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
