HP Series 5 Pro 524pf 23.8-inch FHD Monitor
PRODUCT DESCRIPTION
HP Series 5 Pro 23.8-inch FHD Monitor 524pf (9D9L6UT) - 3 Years Local Warranty
23.8-inch Full HD at 100 Hz
The HP Series 5 Pro 524pf pairs a 23.8-inch 1920 x 1080 IPS panel with a 100 Hz refresh rate for smoother scrolling. HP rates it at 350 nits brightness, 1500:1 contrast and 100% sRGB, behind an anti-glare surface.
Fully Adjustable, Easy on the Eyes

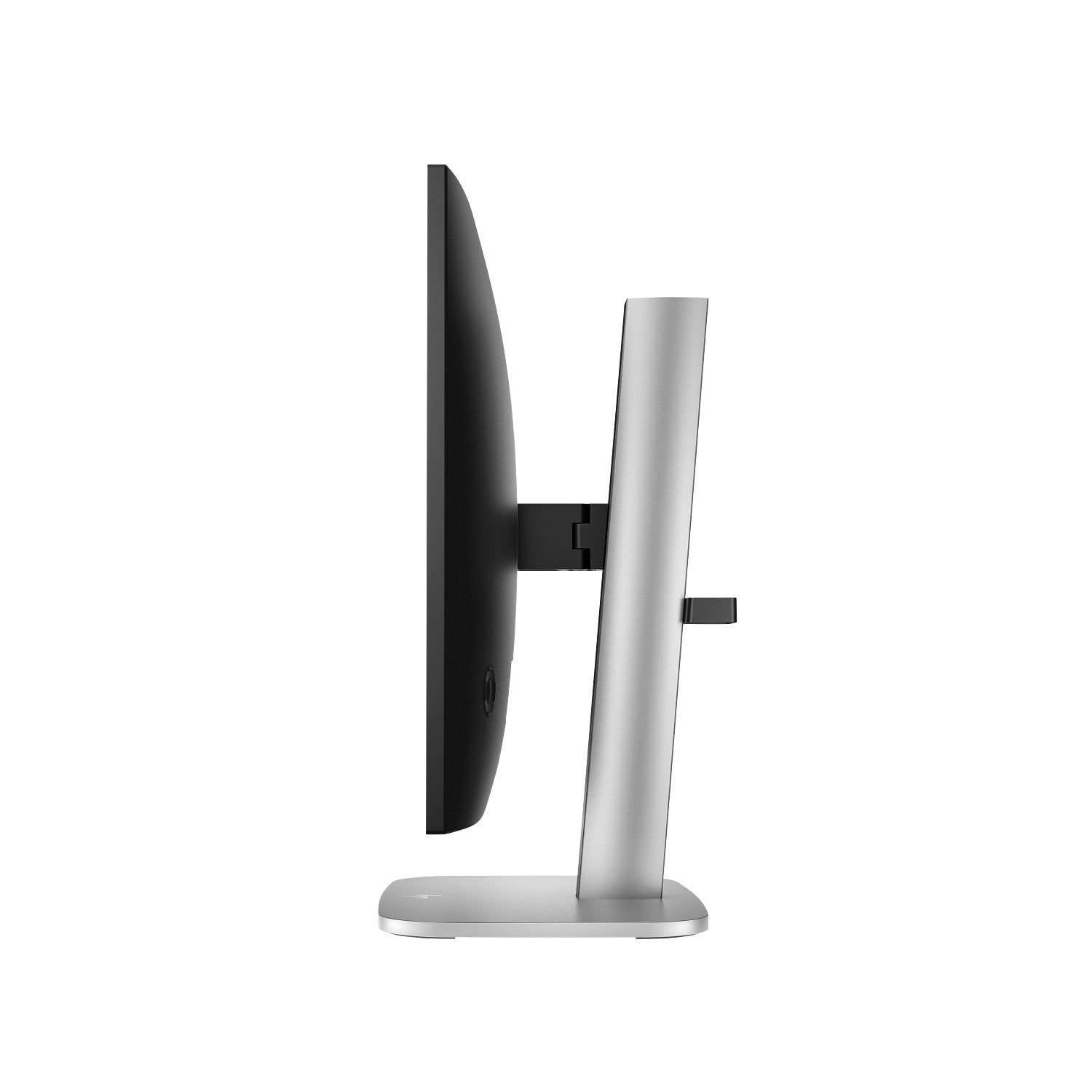

The stand offers 150 mm of height adjustment with tilt, swivel and 90° pivot. HP Eye Ease, a TÜV-certified hardware low blue light filter, is always on, and the backlight is flicker-free.
USB Hub at the Screen
DisplayPort 1.2 and HDMI 1.4 inputs are joined by four USB-A 5Gbps ports (one charging), enabled through a USB-B upstream connection. HP Display Center and the HP Client Management Script Library support set-up across a fleet.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 524pf Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 23.8 inch FHD Monitor - 524pf |
| Model | 524pf |
| HP Part Number | 9D9L6UT |
| Product Line | HP Series 5 Pro |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 60.5 cm (23.8") diagonal, 16:9 |
| Panel Technology | IPS; LCD |
| Native Resolution | FHD (1920 x 1080) |
| Maximum Resolution | FHD (1920 x 1080 @ 100 Hz) |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Colour Gamut | 100% sRGB |
| Panel Bit Depth | 8 bit (6 bit + FRC) |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.28 x 0.28 mm / 93 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit; WLED |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free |
| Bezel | 3-sided borderless with micro-edge bezel |
Connectivity
| DisplayPort | 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI 1.4 |
| USB Upstream | 1 x USB-B (hub enablement) |
| USB-A Downstream | 4 x USB Type-A 5Gbps (1 charging) |
| HDCP | Yes, DisplayPort and HDMI |
| Camera | No integrated camera |
Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +23° |
| Swivel | ±45° |
| Pivot | ±90° |
| VESA Mount | 100 x 100 mm |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 58 W (maximum), 22 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 53.94 x 18.95 x 50.32 cm |
| Dimensions without Stand (W x D x H) | 53.94 x 4.72 x 31.43 cm |
| Weight | 4.9 kg (with stand); 3.4 kg (without stand) |
| Package | 62.1 x 14 x 39.3 cm; 7.2 kg |
Compatibility & Software Support
PC Connection
Any desktop or notebook with a DisplayPort or HDMI output can drive the 524pf. Connect the USB-B upstream cable to the PC to activate the four USB-A ports on the monitor.
Software
HP Display Center handles display settings and screen partitioning; the HP Client Management Script Library supports remote management by IT.
Typical Use
Everyday office productivity, dual-monitor desks and fleet standardisation where USB-C docking is not required.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, DisplayPort cable, HDMI cable, USB Type-B to A cable, AC power cord, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf (this listing) | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP QuickSpecs | HP Series 5 Pro 524pf QuickSpecs |
| HP product page | HP Series 5 Pro 524pf on hp.com Singapore |
| Manuals & drivers | HP Customer Support Singapore (search 9D9L6UT) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9D9L6UT.
Frequently Asked Questions — HP 524pf
What refresh rate does the 524pf support?
Up to 100 Hz at 1920 x 1080.
Does it have USB-C?
No. Inputs are DisplayPort 1.2 and HDMI 1.4 with a USB-B upstream port for the hub. For single-cable USB-C with 100 W charging see the 524pu.
Can the screen rotate to portrait?
Yes, the stand pivots ±90° and also adjusts for height (150 mm), tilt and swivel.
Can it be wall- or arm-mounted?
Yes, it has a 100 x 100 mm VESA pattern.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
