HP Series 5 Pro 534pm 34-inch WQHD Curved USB-C Conferencing Monitor
PRODUCT DESCRIPTION
HP Series 5 Pro 34-inch WQHD USB-C Conferencing Monitor 534pm (9E0Z2UT) - 3 Years Local Warranty

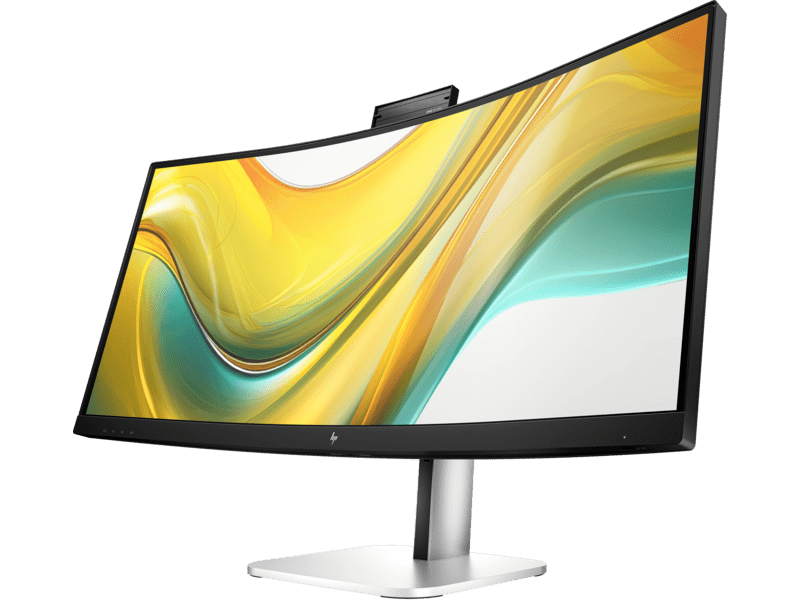

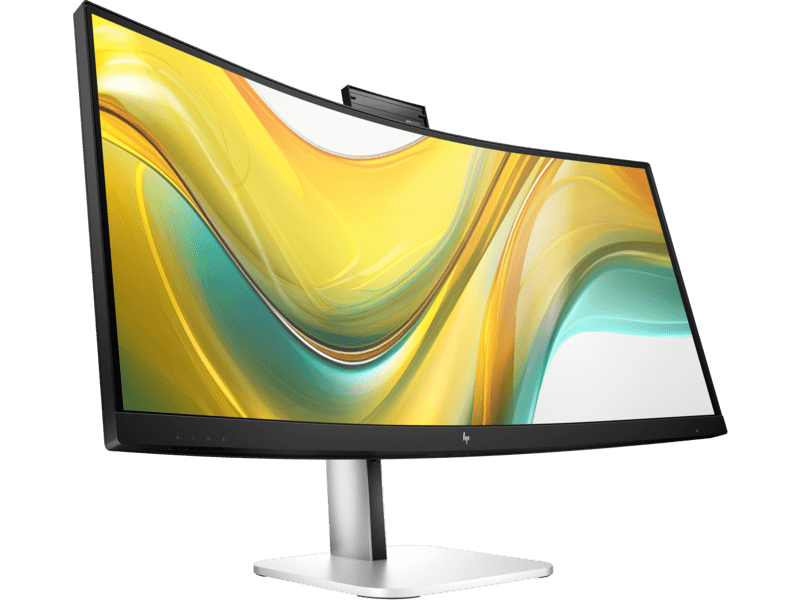

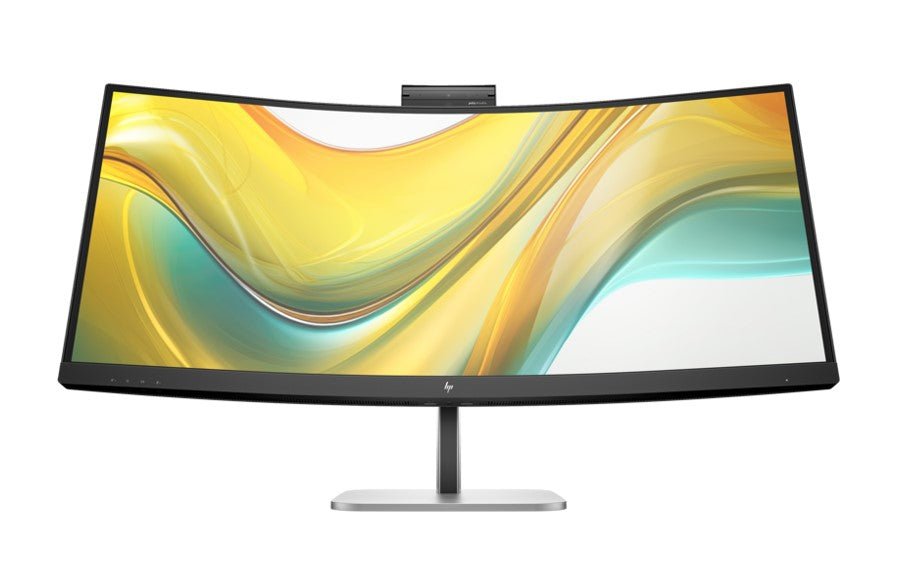

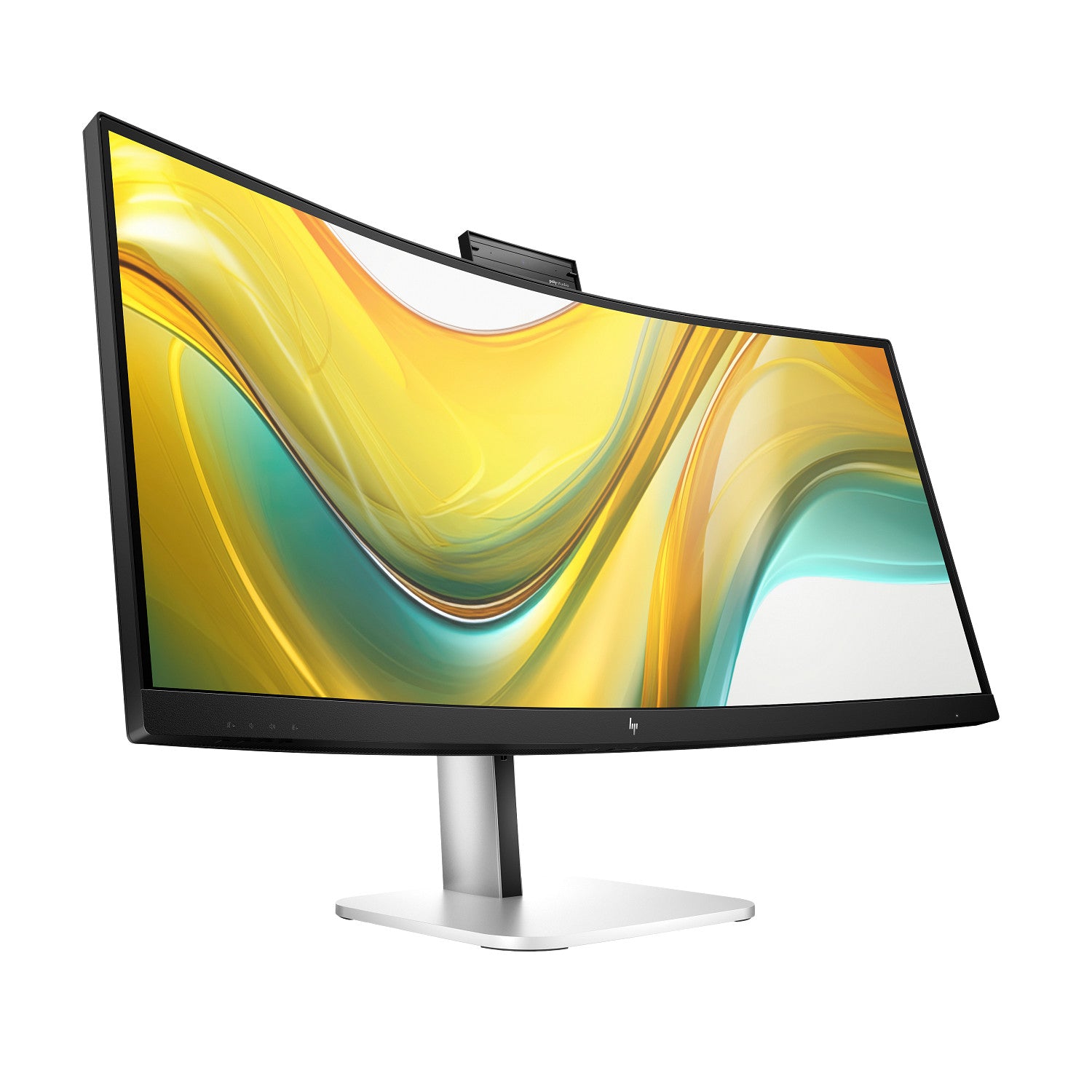

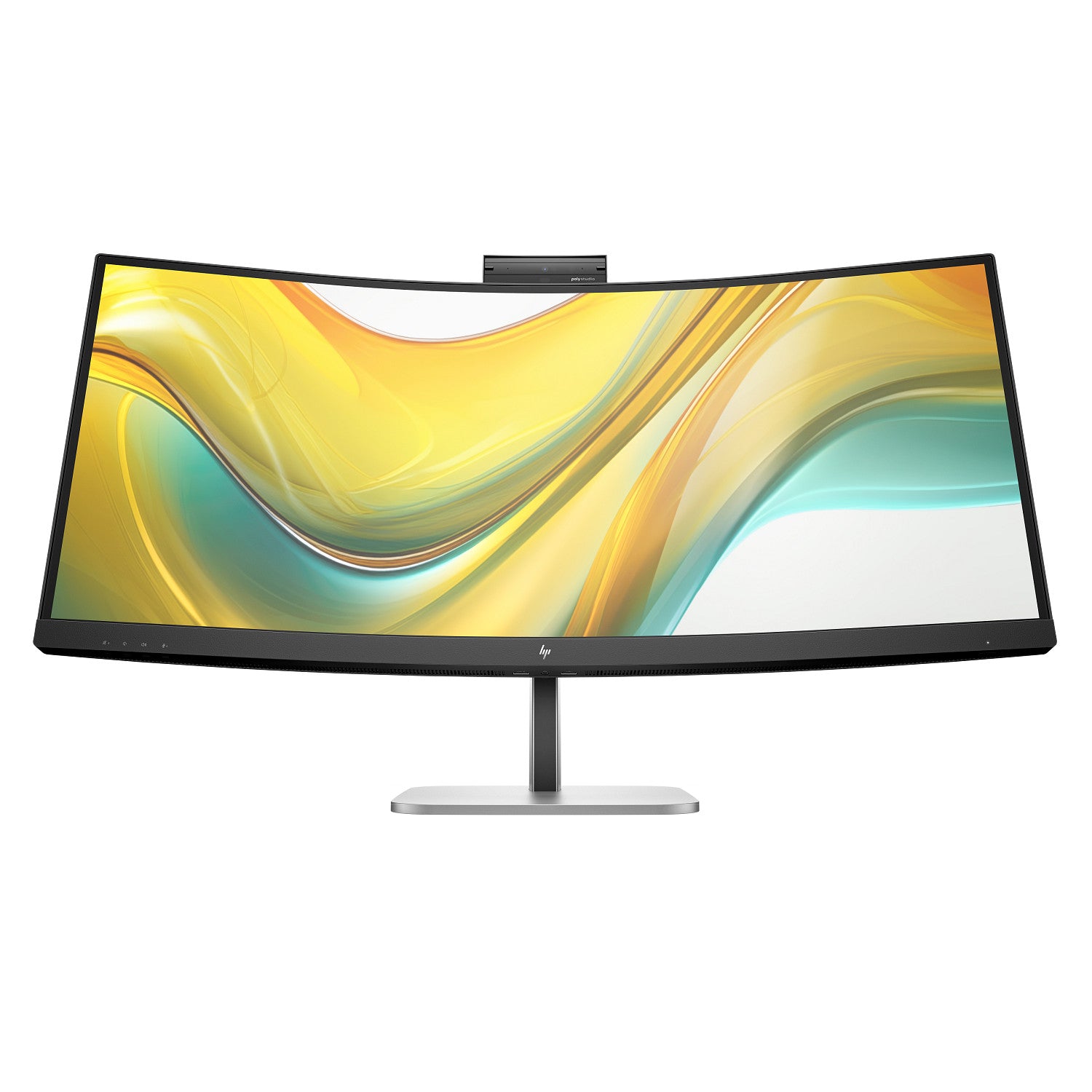

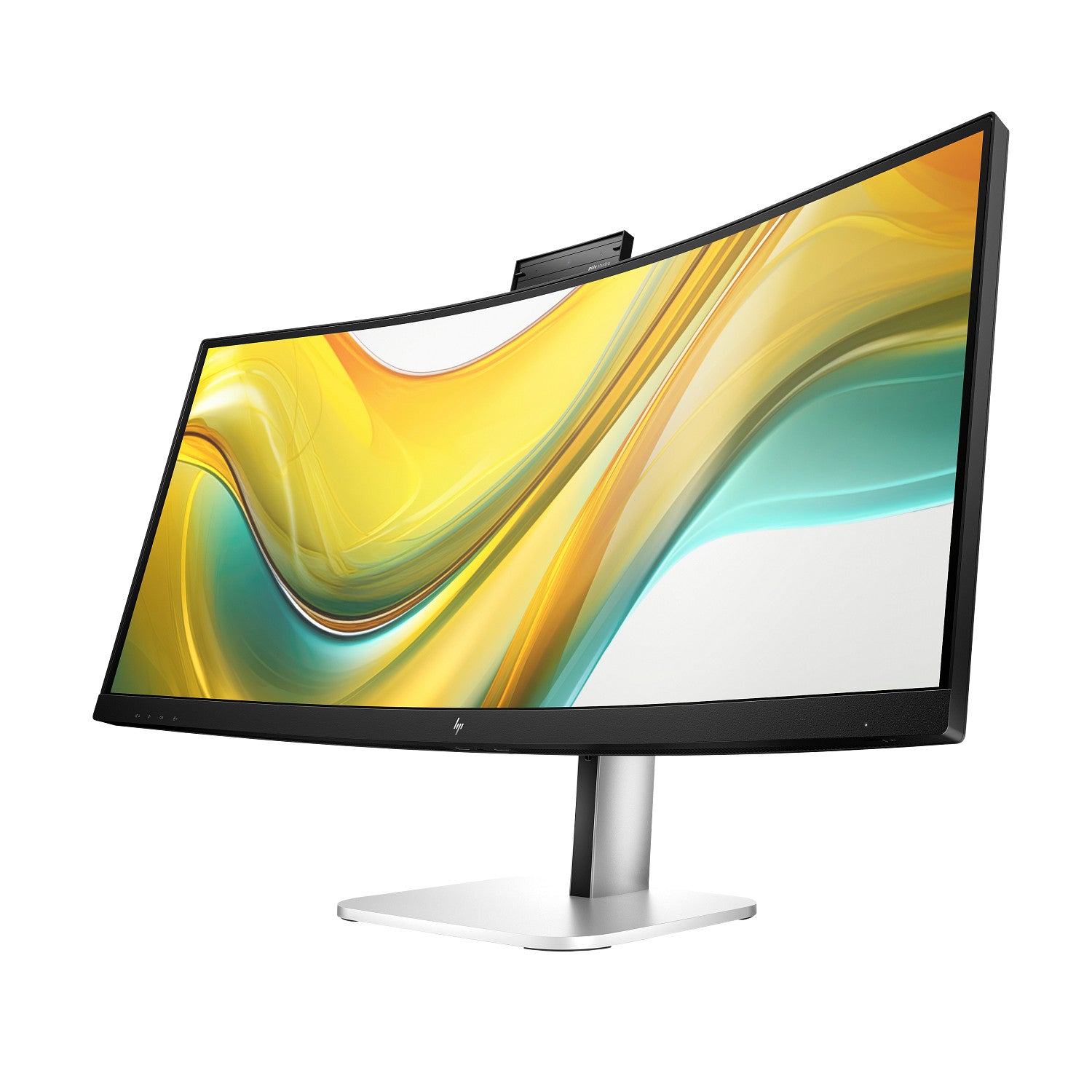

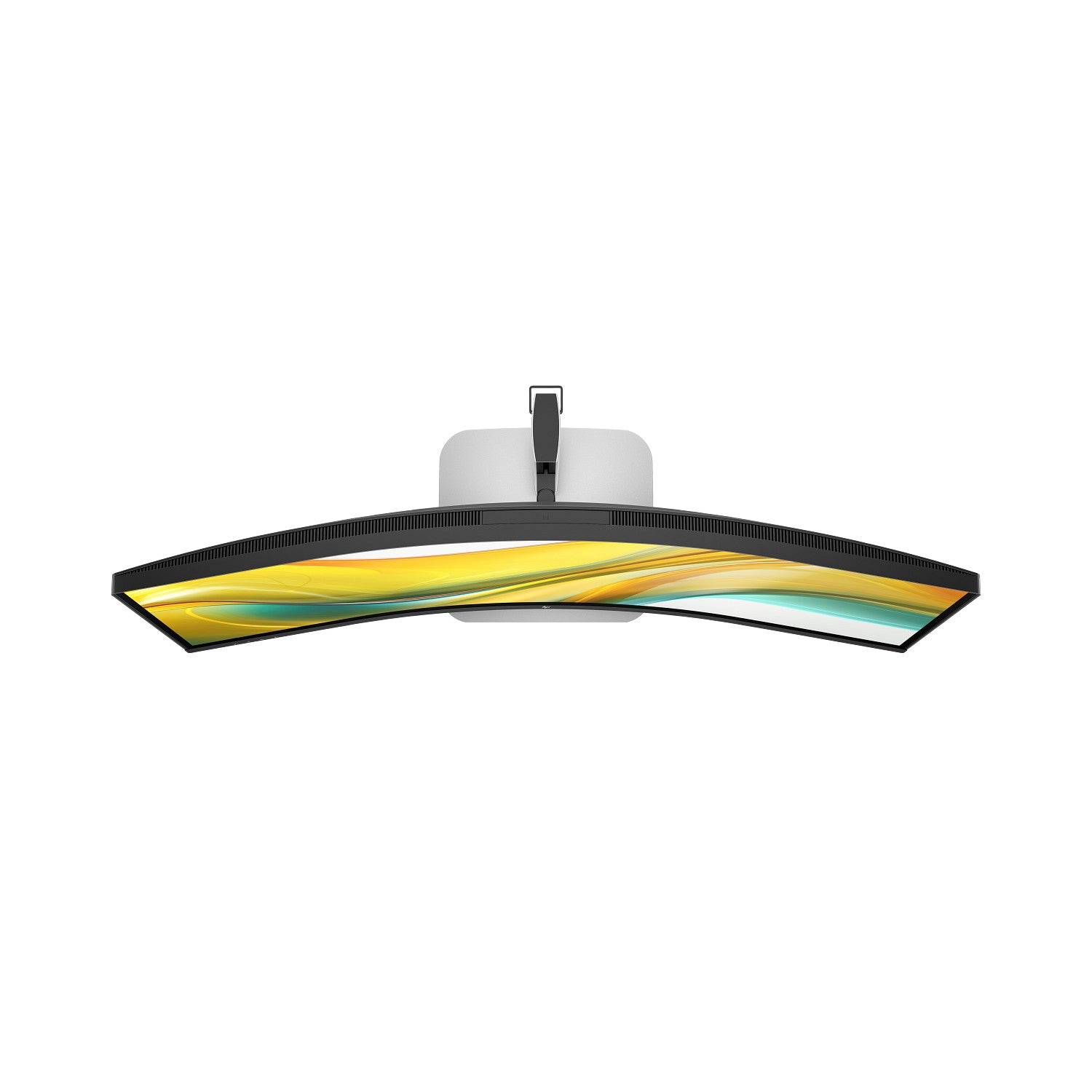

34-inch Curved Ultrawide
The HP Series 5 Pro 534pm is a 34-inch 21:9 curved (1500R) VA display with 3440 x 1440 resolution at up to 100 Hz. HP rates it at 400 nits brightness, 4000:1 contrast and 99% sRGB with true 8-bit colour, giving room for several windows side by side without a bezel in the middle.
Camera, Microphones and Speakers Built In
A 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers are integrated, so the desk is ready for video calls without separate conferencing accessories.
One USB-C Cable, Up to 100 W
The USB-C upstream port carries DisplayPort 1.4 Alt Mode video, data and up to 100 W of power delivery. RJ-45 Gigabit Ethernet, three USB-A 5Gbps ports and a 15 W USB-C data port make the monitor a desk dock.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 534pm Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 34 inch WQHD USB-C Conferencing Monitor - 534pm |
| Model | 534pm |
| HP Part Number | 9E0Z2UT |
| Product Line | HP Series 5 Pro (conferencing / docking monitor) |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 86.4 cm (34") diagonal, 21:9 |
| Panel Technology | VA; LCD |
| Curvature | 1500R |
| Native Resolution | WQHD (3440 x 1440) |
| Maximum Resolution | WQHD (3440 x 1440 @ 100 Hz) |
| Brightness | 400 nits |
| Contrast Ratio | 4000:1 |
| Colour Gamut | 99% sRGB |
| Panel Bit Depth | True 8 bit |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.23 x 0.23 mm / 110 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit; WLED |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free (TÜV certified) |
| Bezel | 3-sided borderless |
Conferencing
| Camera | 5 MP camera |
| Microphone | Dual microphones with DNN noise reduction |
| Speakers | Built-in, down-firing; 4 x 3 W |
| Audio Port | 1 x 3.5 mm audio jack (audio in/out combo) |

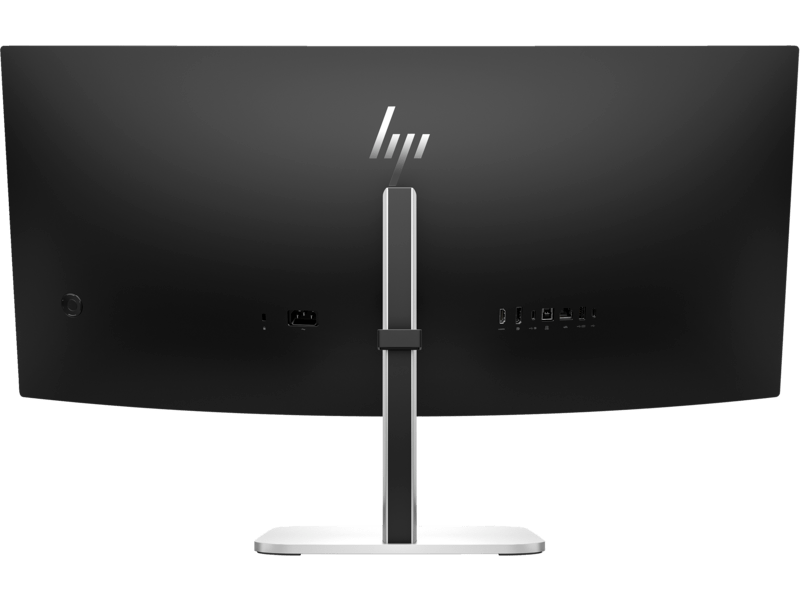

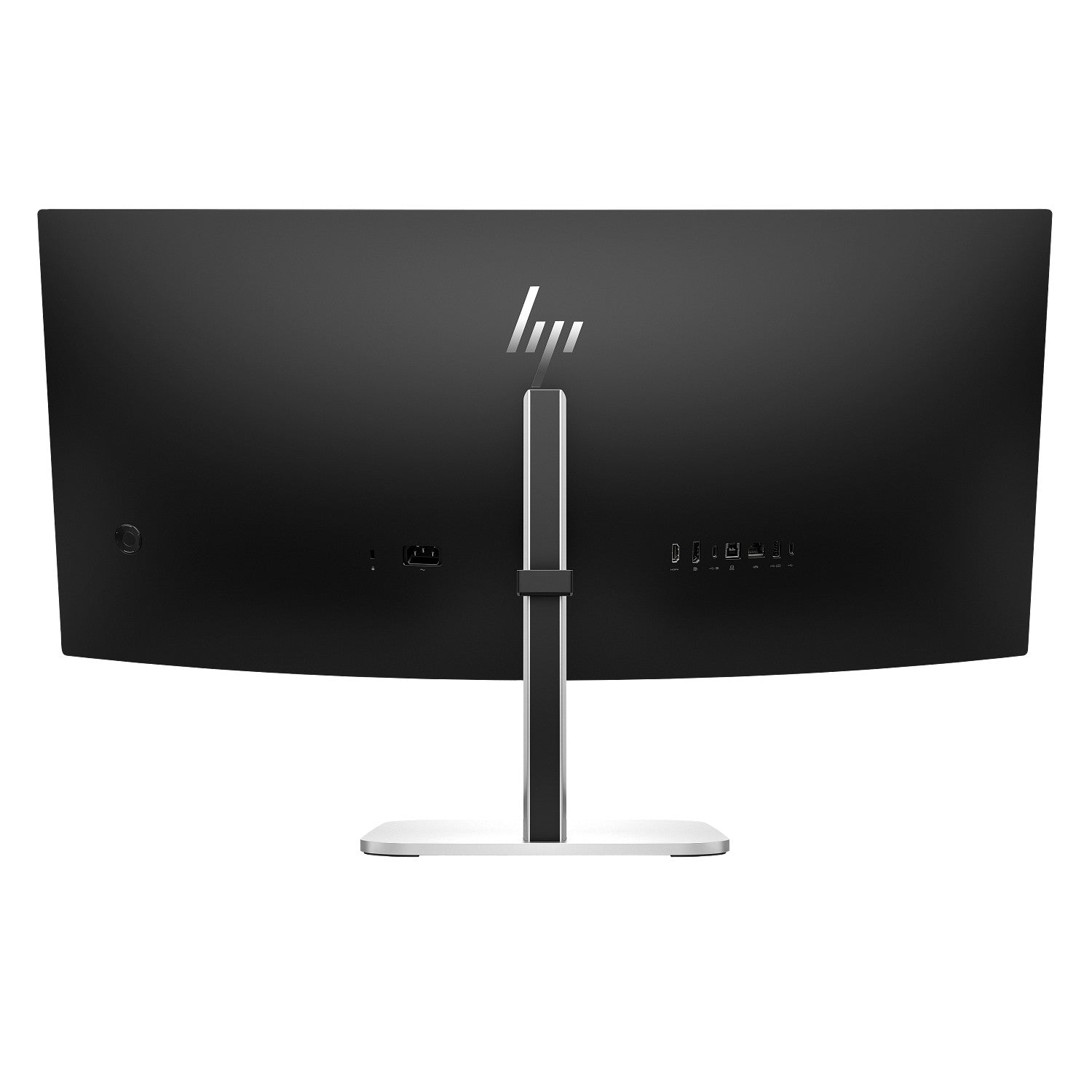

Connectivity
| USB-C Upstream (video) | 1 x USB Type-C 5Gbps (up to 100 W USB Power Delivery, Alt Mode DisplayPort 1.4) |
| USB-C Data | 1 x USB Type-C 5Gbps (up to 15 W USB Power Delivery) |
| USB-A Downstream | 3 x USB Type-A 5Gbps (1 charging) |
| USB-B Upstream | 1 x USB-B (hub enablement) |
| DisplayPort | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.0 |
| Ethernet | 1 x RJ-45 (10/100/1000 Mbps) |
| HDCP | Yes, DisplayPort, HDMI and USB Type-C |
Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +20° |
| Swivel | ±30° |
| VESA Mount | 100 x 100 mm (VESA mount adapter included); detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 265 W (maximum), 45 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 80.79 x 26.96 x 54.71 cm |
| Weight | 11.46 kg (with stand); 8.68 kg (without stand) |
| Package | 91.1 x 22.5 x 46.5 cm; 17.6 kg |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt Mode can drive the 534pm over one cable, which also carries the camera, audio, Ethernet and USB hub and charges the notebook at up to 100 W. PCs without USB-C connect video over DisplayPort 1.4 or HDMI 2.0 and use the USB-B upstream port for the camera and hub.
Software
HP Display Center handles display settings and screen partitioning, which is useful for dividing the ultrawide panel into zones; the HP Client Management Script Library supports remote management by IT.
Typical Use
Executive and analyst desks, trading and dashboard work, and meeting-heavy roles that want one wide screen in place of two.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, 1 x USB Type-C to Type-C cable, DisplayPort cable, USB Type-A to B cable, AC power cord, VESA mount adapter, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm (this listing) | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP QuickSpecs | HP Series 5 Pro 534pm QuickSpecs |
| HP product page | HP Series 5 Pro 534pm on hp.com Singapore |
| Manuals & drivers | HP Customer Support Singapore (search 9E0Z2UT) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E0Z2UT.
Frequently Asked Questions — HP 534pm
Is the 534pm curved?
Yes, it is a 1500R curved 21:9 VA panel with 3440 x 1440 resolution at up to 100 Hz.
What conferencing hardware is built in?
A 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers.
Can one USB-C cable power my laptop?
Yes. The USB-C upstream port delivers up to 100 W while carrying video, data, camera and audio.
Can it be arm- or wall-mounted?
Yes. It supports 100 x 100 mm VESA mounting and a VESA mount adapter is included.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
