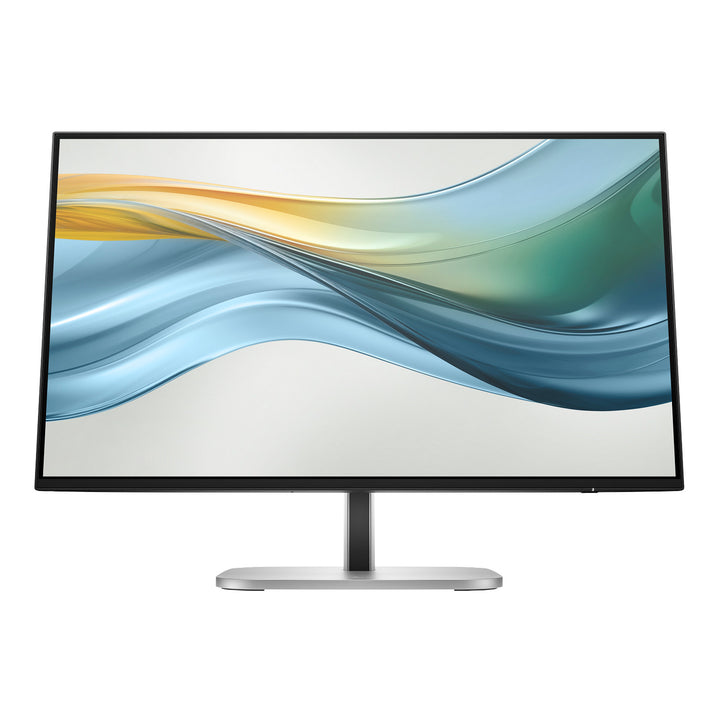

HP Series 5 Pro 524pu 23.8-inch FHD USB-C Monitor
PRODUCT DESCRIPTION
HP Series 5 Pro 23.8-inch FHD USB-C Monitor 524pu (9D9V7AA) - 3 Years Local Warranty
One USB-C Cable, Up to 100 W
The HP Series 5 Pro 524pu is a docking monitor: its USB-C upstream port carries DisplayPort 1.4 Alt Mode video, data and up to 100 W of power delivery, so one cable connects and charges the notebook.
Dock Ports Built In
An RJ-45 Gigabit Ethernet port, three USB-A 5Gbps ports, a 15 W USB-C data port and a DisplayPort 1.4 output for a second screen sit alongside DisplayPort 1.4 and HDMI 2.0 inputs.
23.8-inch Full HD at 100 Hz
The 1920 x 1080 IPS panel runs at up to 100 Hz with 350 nits brightness, 1500:1 contrast and 100% sRGB. HP Eye Ease always-on low blue light, a flicker-free backlight and a height, tilt, swivel and pivot stand look after comfort.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 524pu Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu |
| Model | 524pu |
| HP Part Number | 9D9V7AA |
| Product Line | HP Series 5 Pro (docking monitor) |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 60.5 cm (23.8") diagonal, 16:9 |
| Panel Technology | IPS; LCD |
| Native Resolution | FHD (1920 x 1080) |
| Maximum Resolution | FHD (1920 x 1080 @ 100 Hz) |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Colour Gamut | 100% sRGB |
| Panel Bit Depth | 8 bit (6 bit + FRC) |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.28 x 0.28 mm / 93 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit; WLED |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free |
| Bezel | 3-sided borderless with micro-edge bezel |
Connectivity
| USB-C Upstream (video) | 1 x USB Type-C 5Gbps (up to 100 W USB Power Delivery, Alt Mode DisplayPort 1.4) |
| USB-C Data | 1 x USB Type-C 5Gbps (up to 15 W USB Power Delivery) |
| USB-A Downstream | 3 x USB Type-A 5Gbps (1 charging) |
| DisplayPort In | 1 x DisplayPort 1.4 |
| DisplayPort Out | 1 x DisplayPort 1.4-out |
| HDMI | 1 x HDMI 2.0 |
| Ethernet | 1 x RJ-45 (10/100/1000 Mbps) |
| HDCP | Yes, DisplayPort, HDMI and USB Type-C |
| Camera | No integrated camera |
Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +23° |
| Swivel | ±45° |
| Pivot | ±90° |
| VESA Mount | 100 x 100 mm; detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 198 W (maximum), 22 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 53.94 x 18.95 x 50.32 cm |
| Dimensions without Stand (W x D x H) | 53.94 x 4.72 x 31.43 cm |
| Weight | 5.93 kg (with stand) |
| Package | 62.1 x 14 x 39.3 cm; 8.42 kg |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt Mode can drive the 524pu over one cable; notebooks that charge over USB-C receive up to 100 W. PCs without USB-C connect over DisplayPort 1.4 or HDMI 2.0.
Second Display
The DisplayPort 1.4 output lets a second monitor be connected from the 524pu.
Software
HP Display Center handles display settings and screen partitioning; the HP Client Management Script Library supports remote management by IT.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, 1 x USB Type-C to Type-C cable, AC power cable, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu (this listing) | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP product page | HP Series 5 Pro 524pu on hp.com Singapore |
| Specifications | HP 524pu full specifications |
| Manuals & drivers | HP Customer Support Singapore (search 9D9V7AA) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9D9V7AA.
Frequently Asked Questions — HP 524pu
Can one USB-C cable power my laptop?
Yes. The USB-C upstream port delivers up to 100 W while carrying video and data, and a USB-C to USB-C cable is in the box.
Can I connect a second monitor through it?
Yes, the 524pu has a DisplayPort 1.4 output.
Does it have a wired network port?
Yes, an RJ-45 Gigabit Ethernet port.
Does it have a webcam?
No. For a built-in 5 MP camera see the 524pm conferencing monitor.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
