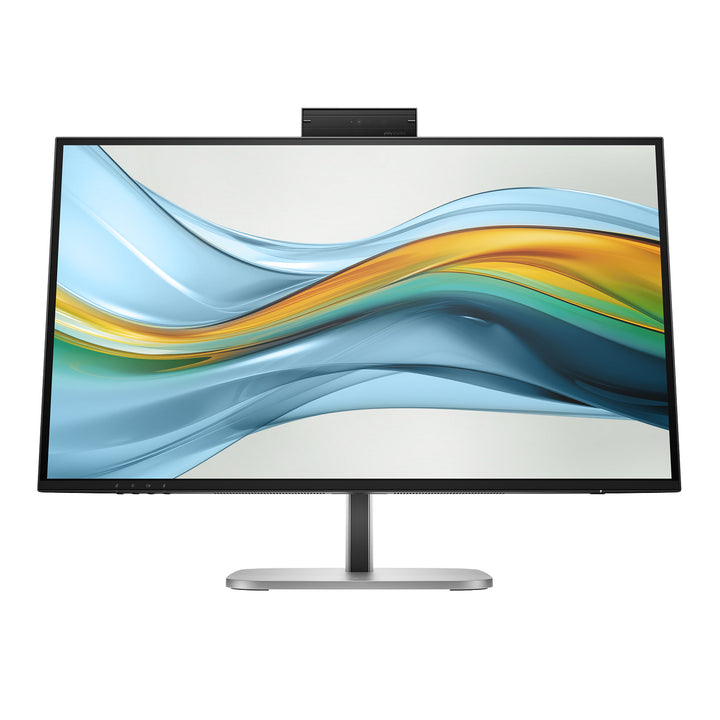

HP Series 5 Pro 527pm 27-inch QHD USB-C Conferencing Monitor
PRODUCT DESCRIPTION
HP Series 5 Pro 27-inch QHD USB-C Conferencing Monitor 527pm (9E0Y9UT) - 3 Years Local Warranty
Camera, Microphones and Speakers Built In
The HP Series 5 Pro 527pm combines a 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers, so the desk is ready for video calls without separate conferencing accessories.
One USB-C Cable, Up to 100 W
The USB-C upstream port carries DisplayPort 1.4 Alt Mode video, data and up to 100 W of power delivery. RJ-45 Gigabit Ethernet, three USB-A 5Gbps ports, a 15 W USB-C data port and a DisplayPort 1.4 output complete the built-in dock.
27-inch QHD at 100 Hz
The 2560 x 1440 IPS panel runs at up to 100 Hz with 350 nits brightness, 1500:1 contrast, 100% sRGB and true 8-bit colour. HP Eye Ease always-on low blue light, a TÜV-certified flicker-free backlight and a height, tilt, swivel and pivot stand look after comfort.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 527pm Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 27 inch QHD USB-C Conferencing Monitor - 527pm |
| Model | 527pm |
| HP Part Number | 9E0Y9UT |
| Product Line | HP Series 5 Pro (conferencing / docking monitor) |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 68.6 cm (27") diagonal, 16:9 |
| Panel Technology | IPS; LCD |
| Native Resolution | QHD (2560 x 1440) |
| Maximum Resolution | QHD (2560 x 1440 @ 100 Hz) |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Colour Gamut | 100% sRGB |
| Panel Bit Depth | True 8 bit |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.23 x 0.23 mm / 109 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit; WLED |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free (TÜV certified) |
| Bezel | 3-sided borderless with micro-edge bezel |
Conferencing
| Camera | 5 MP camera |
| Microphone | Dual microphones with DNN noise reduction |
| Speakers | Built-in, down-firing; 4 x 3 W |
| Audio Port | 1 x 3.5 mm audio jack (audio in/out combo) |
Connectivity
| USB-C Upstream (video) | 1 x USB Type-C 5Gbps (up to 100 W USB Power Delivery, Alt Mode DisplayPort 1.4) |
| USB-C Data | 1 x USB Type-C 5Gbps (up to 15 W USB Power Delivery) |
| USB-A Downstream | 3 x USB Type-A 5Gbps (1 charging) |
| USB-B Upstream | 1 x USB-B (hub enablement) |
| DisplayPort In | 1 x DisplayPort 1.4 |
| DisplayPort Out | 1 x DisplayPort 1.4-out |
| HDMI | 1 x HDMI 2.0 |
| Ethernet | 1 x RJ-45 (10/100/1000 Mbps) |
| HDCP | Yes, DisplayPort, HDMI and USB Type-C |
Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +20° |
| Swivel | ±45° |
| Pivot | ±90° |
| VESA Mount | 100 x 100 mm; detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 235 W (maximum), 39 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 61.34 x 20.7 x 54.38 cm |
| Weight | 7.88 kg (with stand); 6.18 kg (without stand) |
| Package | 69.9 x 16 x 44.6 cm; 11.27 kg |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt Mode can drive the 527pm over one cable, which also carries the camera, audio, Ethernet and USB hub and charges the notebook at up to 100 W. PCs without USB-C connect video over DisplayPort 1.4 or HDMI 2.0 and use the USB-B upstream port for the camera and hub.
Second Display
The DisplayPort 1.4 output lets a second monitor be connected from the 527pm.
Software
HP Display Center handles display settings and screen partitioning; the HP Client Management Script Library supports remote management by IT.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, 1 x USB Type-C to Type-C cable, DisplayPort cable, USB Type-A to B cable, AC power cord, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm (this listing) | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP product page | HP Series 5 Pro 527pm on hp.com Singapore |
| Specifications | HP 527pm full specifications |
| Manuals & drivers | HP Customer Support Singapore (search 9E0Y9UT) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E0Y9UT.
Frequently Asked Questions — HP 527pm
What conferencing hardware is built in?
A 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers.
Can one USB-C cable power my laptop?
Yes. The USB-C upstream port delivers up to 100 W while carrying video, data, camera and audio.
Can I connect a second monitor through it?
Yes, the 527pm has a DisplayPort 1.4 output.
Does it have a wired network port?
Yes, an RJ-45 Gigabit Ethernet port.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
