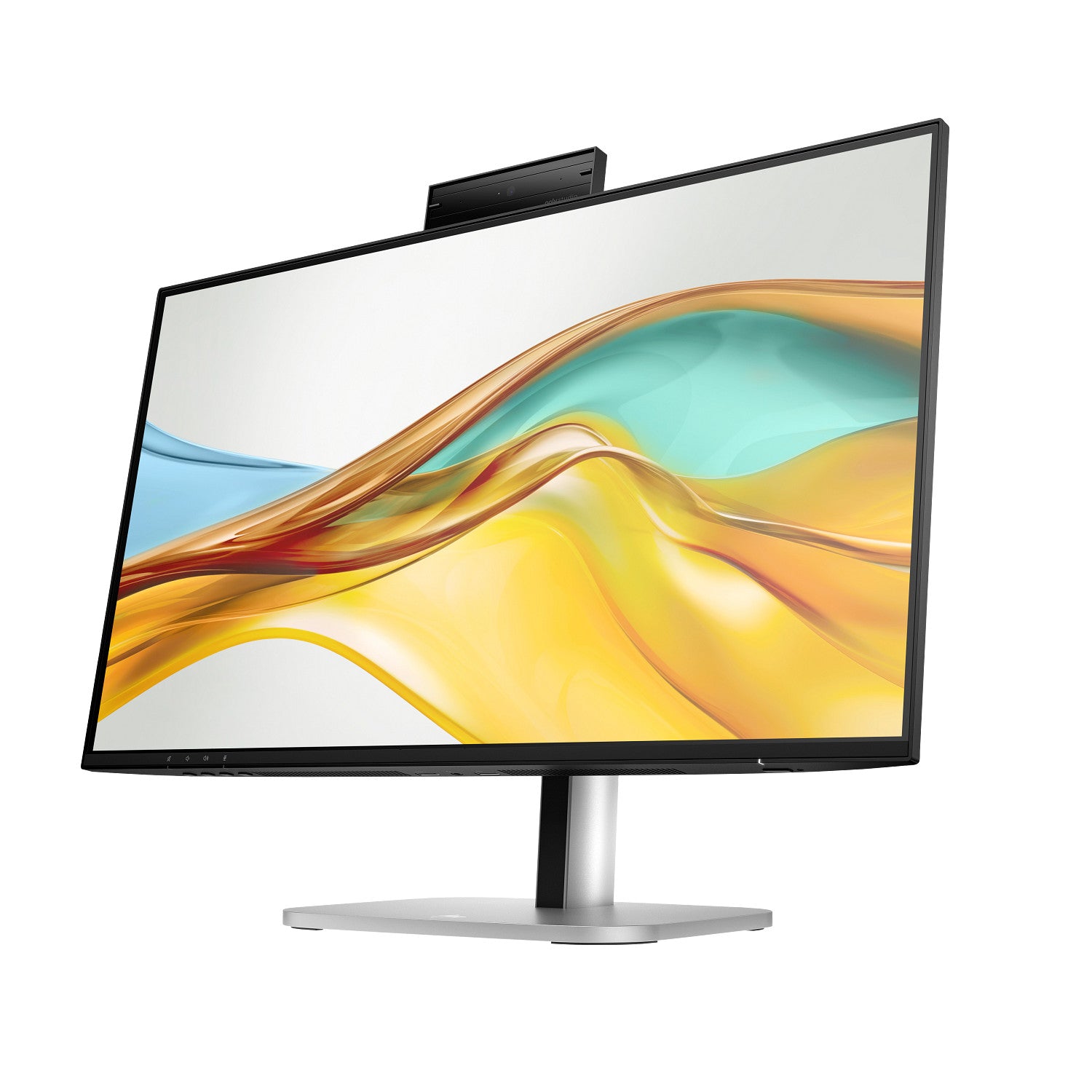

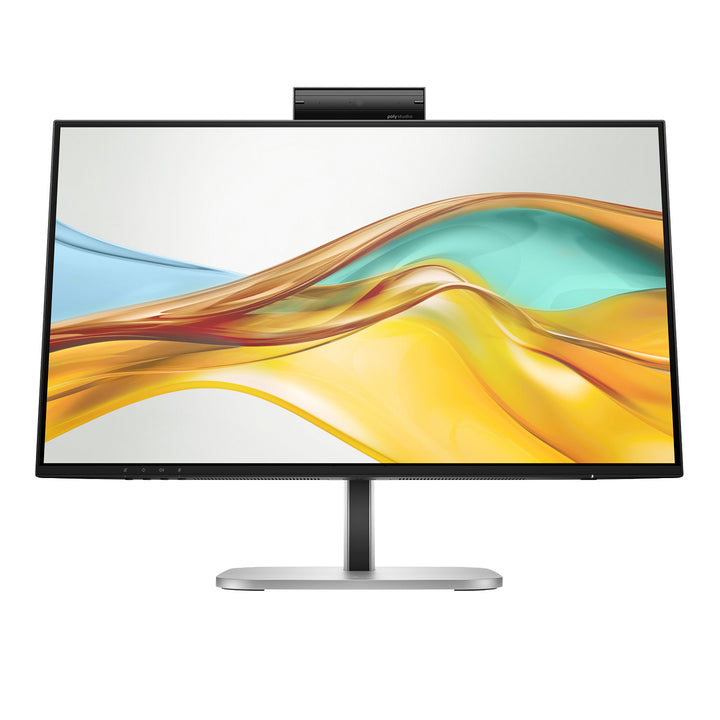

HP Series 5 Pro 524pm 23.8-inch FHD USB-C Conferencing Monitor
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
HP Series 5 Pro 23.8-inch FHD USB-C Conferencing Monitor 524pm (9E0G9UT) - 3 Years Local Warranty

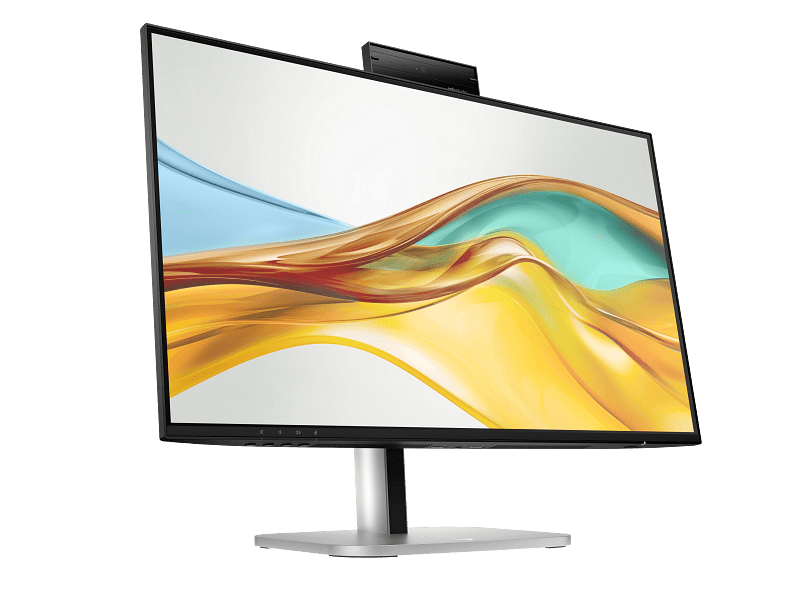

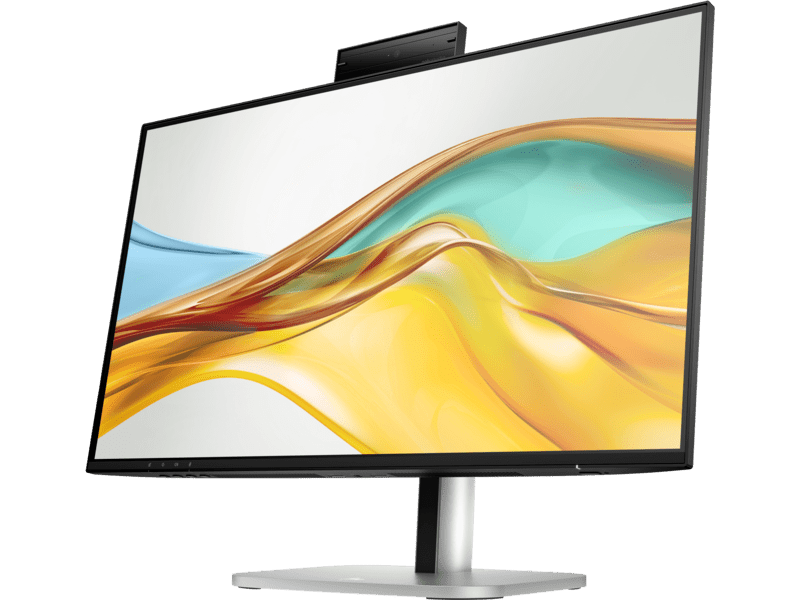

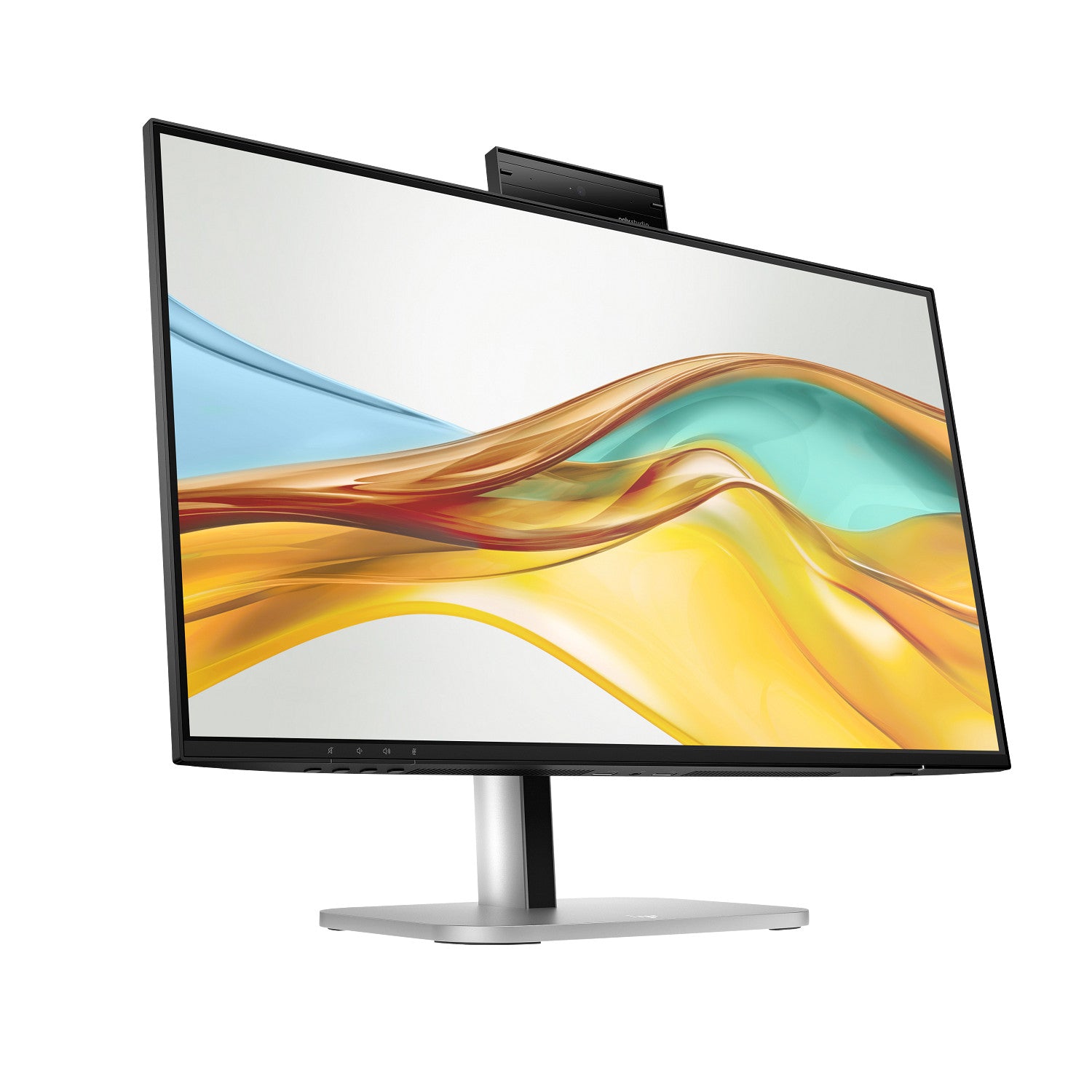

Camera, Microphones and Speakers Built In
The HP Series 5 Pro 524pm combines a 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers, so the desk is ready for video calls without separate conferencing accessories.
One USB-C Cable, Up to 100 W
The USB-C upstream port carries DisplayPort 1.4 Alt Mode video, data and up to 100 W of power delivery. RJ-45 Gigabit Ethernet, three USB-A 5Gbps ports, a 15 W USB-C data port and a DisplayPort 1.4 output complete the built-in dock.

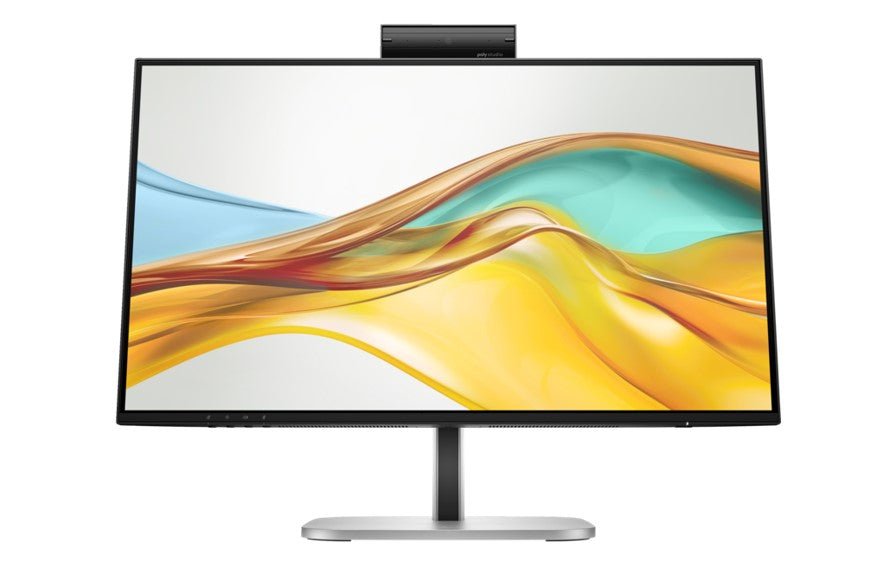

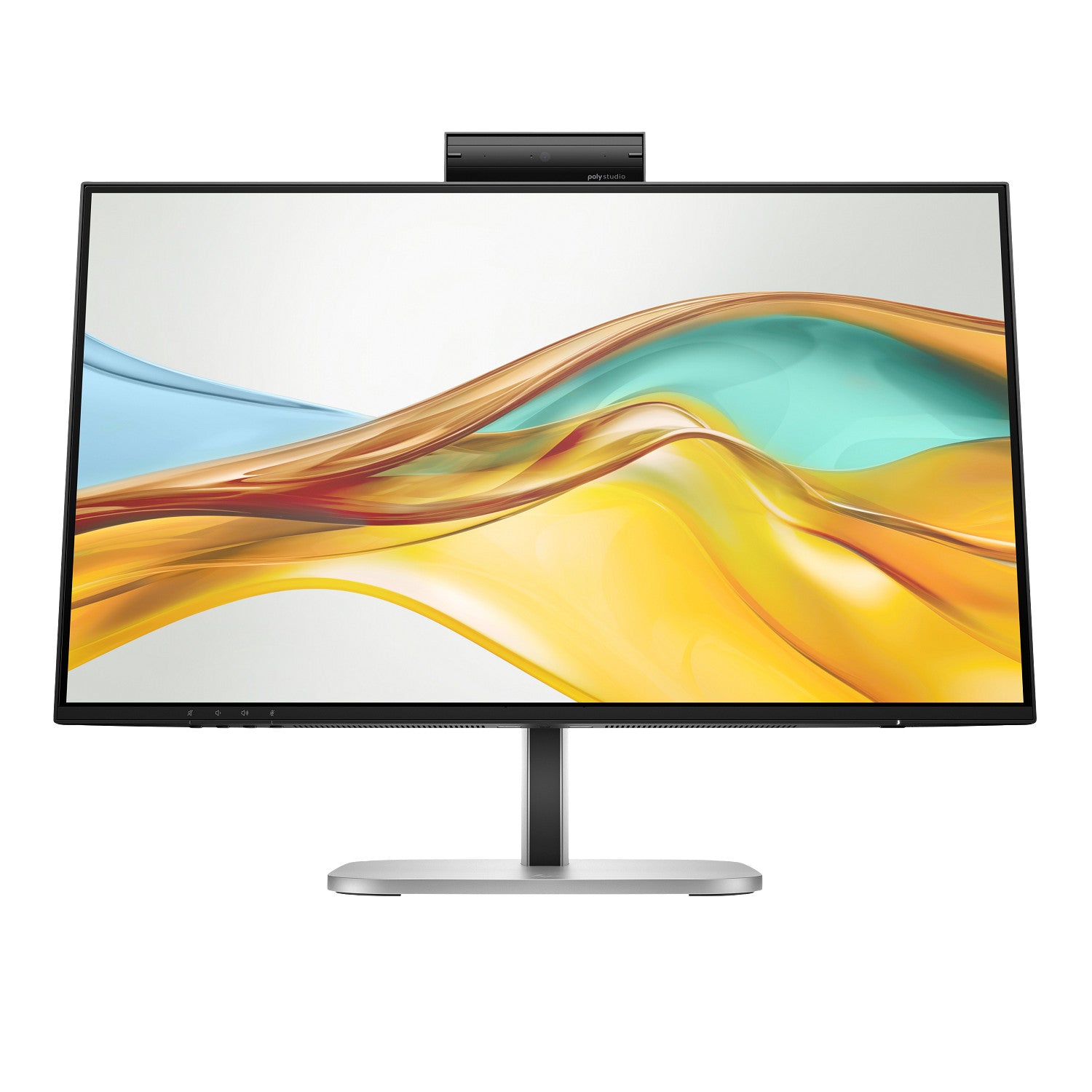

23.8-inch Full HD at 100 Hz
The 1920 x 1080 IPS panel runs at up to 100 Hz with 350 nits brightness, 1500:1 contrast and 100% sRGB. HP Eye Ease always-on low blue light, a TÜV-certified flicker-free backlight and a height, tilt, swivel and pivot stand look after comfort.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP 524pm Datasheet — Technical Specifications
General
| Product Name | HP Series 5 Pro 23.8 inch FHD USB-C Conferencing Monitor - 524pm |
| Model | 524pm |
| HP Part Number | 9E0G9UT |
| Product Line | HP Series 5 Pro (conferencing / docking monitor) |
| Local Warranty (Singapore) | 3 years HP limited warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 60.5 cm (23.8") diagonal, 16:9 |
| Panel Technology | IPS; LCD |
| Native Resolution | FHD (1920 x 1080) |
| Maximum Resolution | FHD (1920 x 1080 @ 100 Hz) |
| Brightness | 350 nits |
| Contrast Ratio | 1500:1 |
| Colour Gamut | 100% sRGB |
| Panel Bit Depth | 8 bit (6 bit + FRC) |
| Response Time | 5 ms GtG (with overdrive) |
| Pixel Pitch / Density | 0.27 x 0.27 mm / 93 ppi |
| Viewing Angle | 178° horizontal / 178° vertical |
| Backlight | Edge-lit; WLED |
| Screen Treatment | Anti-glare, 3H hardness |
| Eye Comfort | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified); flicker-free (TÜV certified) |
| Bezel | 3-sided borderless with micro-edge bezel |
Conferencing
| Camera | 5 MP camera |
| Microphone | Dual microphones with DNN noise reduction |
| Speakers | Built-in, down-firing; 4 x 3 W |
| Audio Port | 1 x 3.5 mm audio jack (audio in/out combo) |

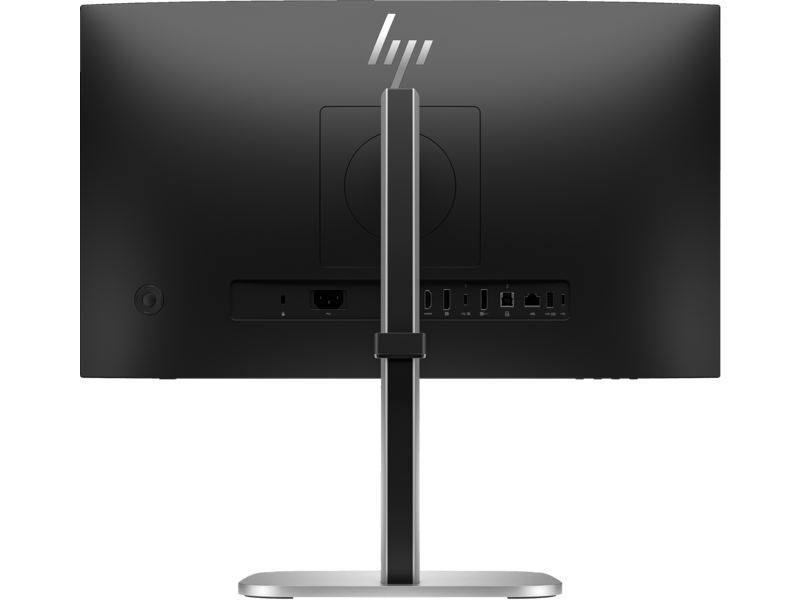

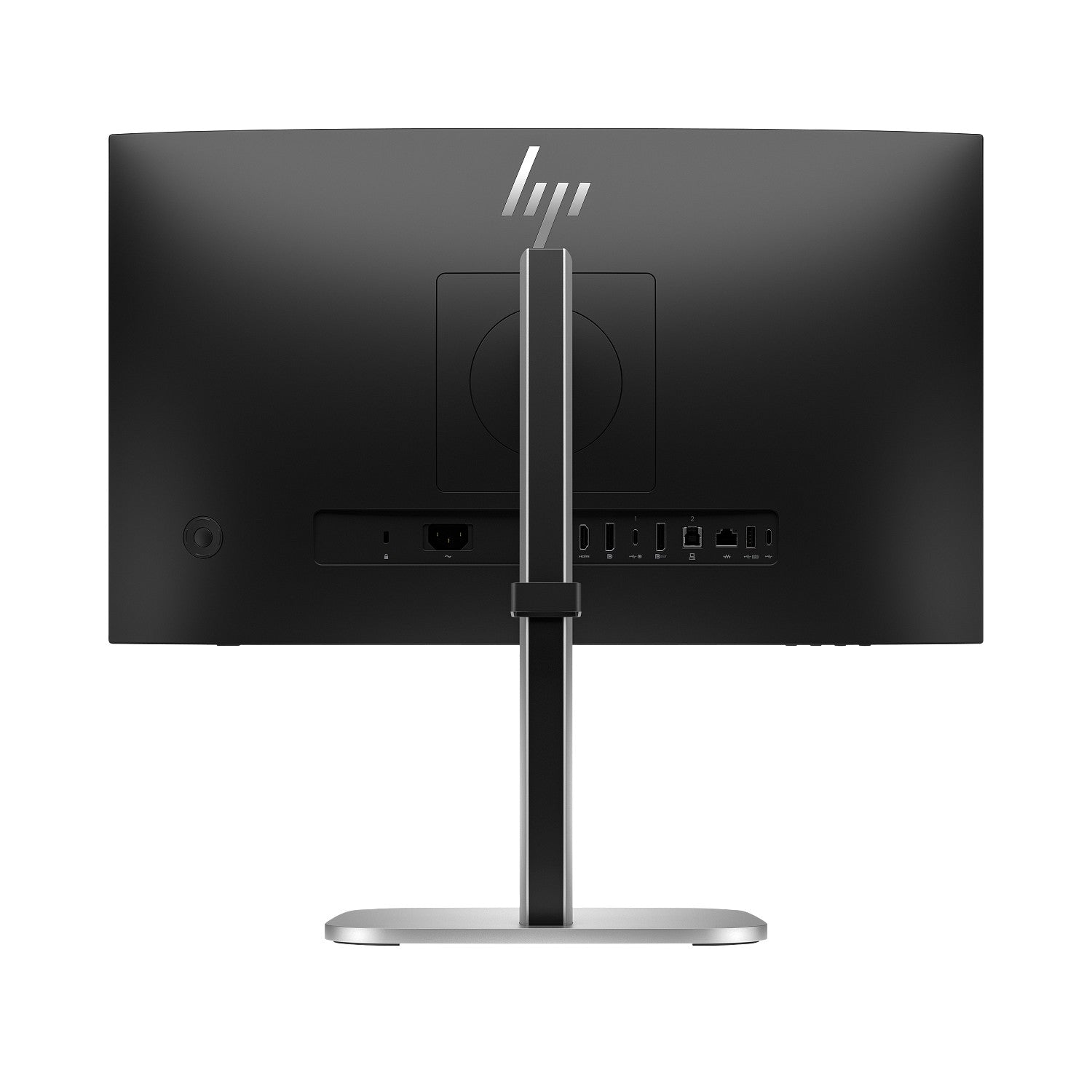

Connectivity
| USB-C Upstream (video) | 1 x USB Type-C 5Gbps (up to 100 W USB Power Delivery, Alt Mode DisplayPort 1.4) |
| USB-C Data | 1 x USB Type-C 5Gbps (up to 15 W USB Power Delivery) |
| USB-A Downstream | 3 x USB Type-A 5Gbps (1 charging) |
| USB-B Upstream | 1 x USB-B (hub enablement) |
| DisplayPort In | 1 x DisplayPort 1.4 |
| DisplayPort Out | 1 x DisplayPort 1.4-out |
| HDMI | 1 x HDMI 2.0 |
| Ethernet | 1 x RJ-45 (10/100/1000 Mbps) |
| HDCP | Yes, DisplayPort, HDMI and USB Type-C |

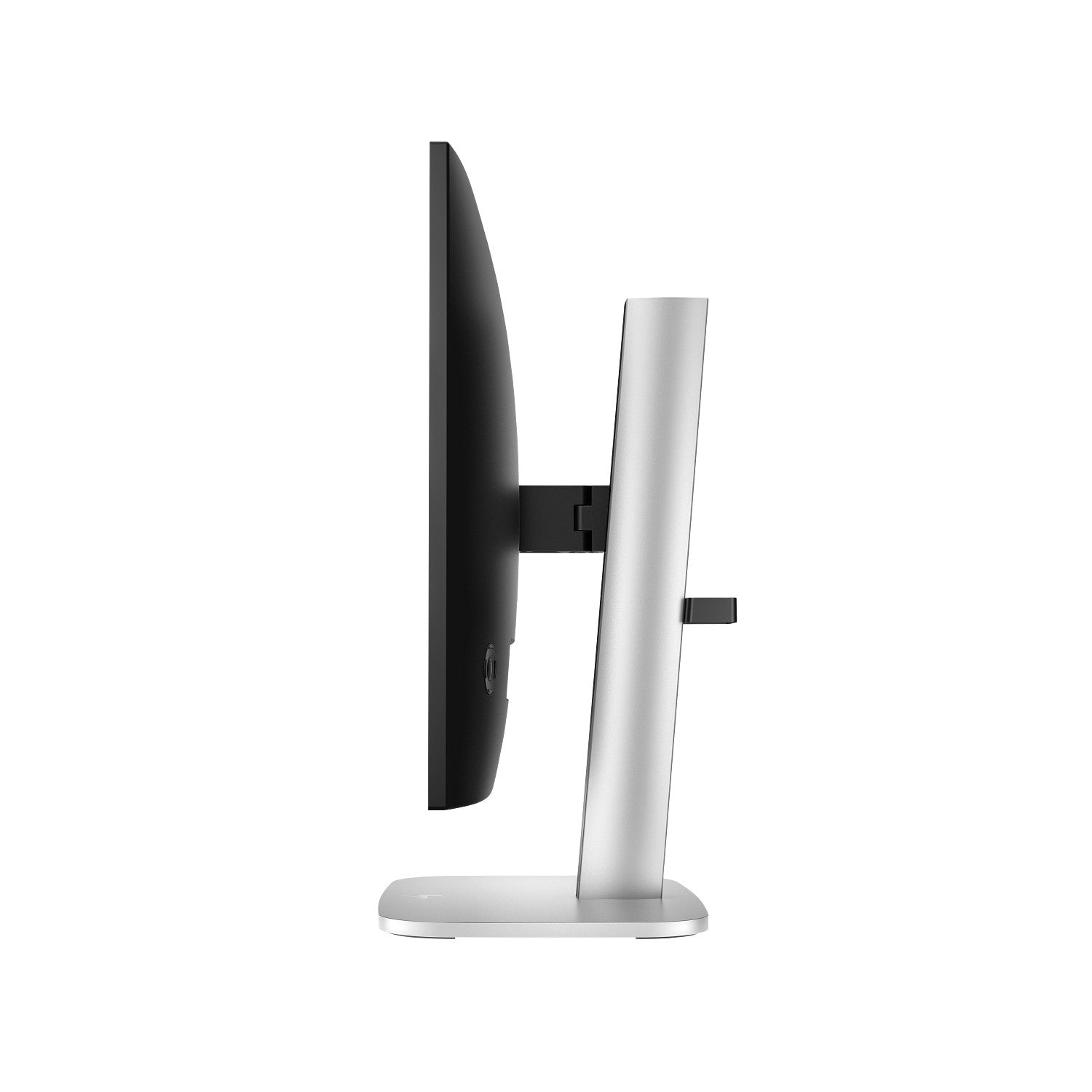

Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5 to +23° |
| Swivel | ±45° |
| Pivot | ±90° |
| VESA Mount | 100 x 100 mm; detachable stand |
| Physical Security | Standard lock slot |
Power & Environmental
| Power Supply | Internal, 100 - 240 VAC 50/60 Hz |
| Power Consumption | 223 W (maximum), 33 W (typical), 0.5 W (standby) |
| Operating Temperature | 5 to 35°C |
| Operating Humidity | 20 to 80% RH (non-condensing) |
Physical
| Dimensions with Stand (W x D x H) | 53.94 x 18.95 x 50.32 cm |
| Weight without Stand | 4.99 kg |
| Package | 62.1 x 14 x 39.3 cm; 9.5 kg |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt Mode can drive the 524pm over one cable, which also carries the camera, audio, Ethernet and USB hub and charges the notebook at up to 100 W. PCs without USB-C connect video over DisplayPort 1.4 or HDMI 2.0 and use the USB-B upstream port for the camera and hub.
Second Display
The DisplayPort 1.4 output lets a second monitor be connected from the 524pm.
Software
HP Display Center handles display settings and screen partitioning; the HP Client Management Script Library supports remote management by IT.
Package Contents & HP Series 5 Pro Ordering Information
In the Box
Monitor, 1 x USB Type-C to Type-C cable, DisplayPort cable, USB Type-A to B cable, AC power cord, warranty card, quick setup poster.
HP Series 5 Pro Monitors
| Model | Key feature |
| 524pf | 23.8" FHD, 100 Hz |
| 524pn | 24" WUXGA 16:10, 100 Hz |
| 527pf | 27" FHD, 120 Hz |
| 527pq | 27" QHD, 100 Hz |
| 524pu | 23.8" FHD, USB-C 100 W, RJ-45 |
| 527pu | 27" QHD, USB-C 100 W, RJ-45 |
| 527fd G2 | 27" FHD 120 Hz, USB-C 100 W, RJ-45 |
| 524pm (this listing) | 23.8" FHD, USB-C 100 W, 5 MP camera |
| 527pm | 27" QHD, USB-C 100 W, 5 MP camera |
| 534pm | 34" WQHD curved, USB-C 100 W, 5 MP camera |
| 549pm | 49" DQHD curved, USB-C 140 W, 5 MP camera |
Datasheet & Downloads
| HP product page | HP Series 5 Pro 524pm on hp.com Singapore |
| Specifications | HP 524pm full specifications |
| Manuals & drivers | HP Customer Support Singapore (search 9E0G9UT) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E0G9UT.
Frequently Asked Questions — HP 524pm
What conferencing hardware is built in?
A 5 MP camera, dual microphones with DNN noise reduction and four 3 W down-firing speakers.
Can one USB-C cable power my laptop?
Yes. The USB-C upstream port delivers up to 100 W while carrying video, data, camera and audio.
Can I connect a second monitor through it?
Yes, the 524pm has a DisplayPort 1.4 output.
Does it have a wired network port?
Yes, an RJ-45 Gigabit Ethernet port.
What warranty do I get?
3 years HP limited warranty, supplied locally by SourceIT with a GST invoice.
