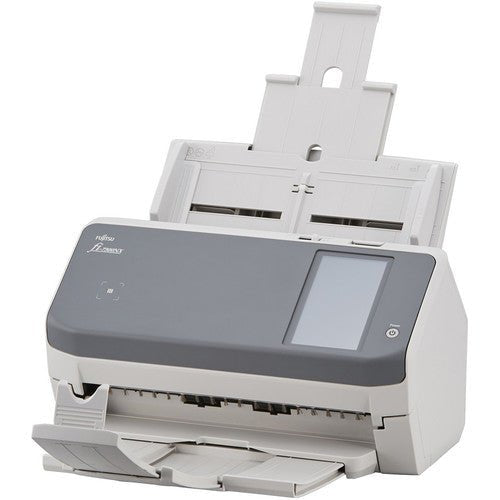

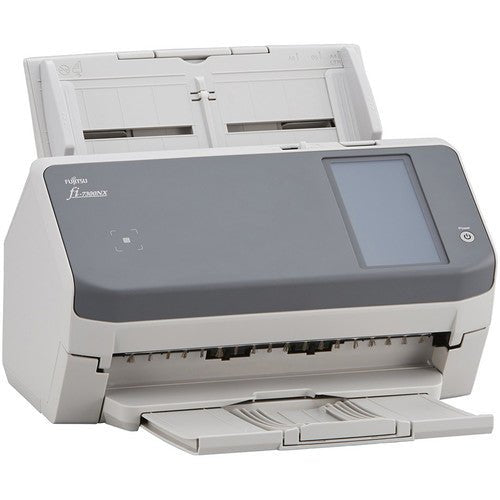

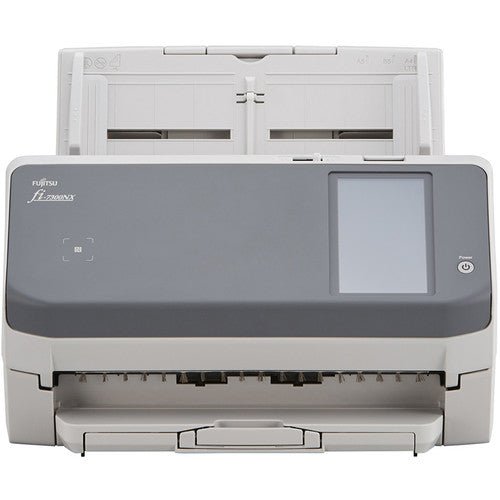

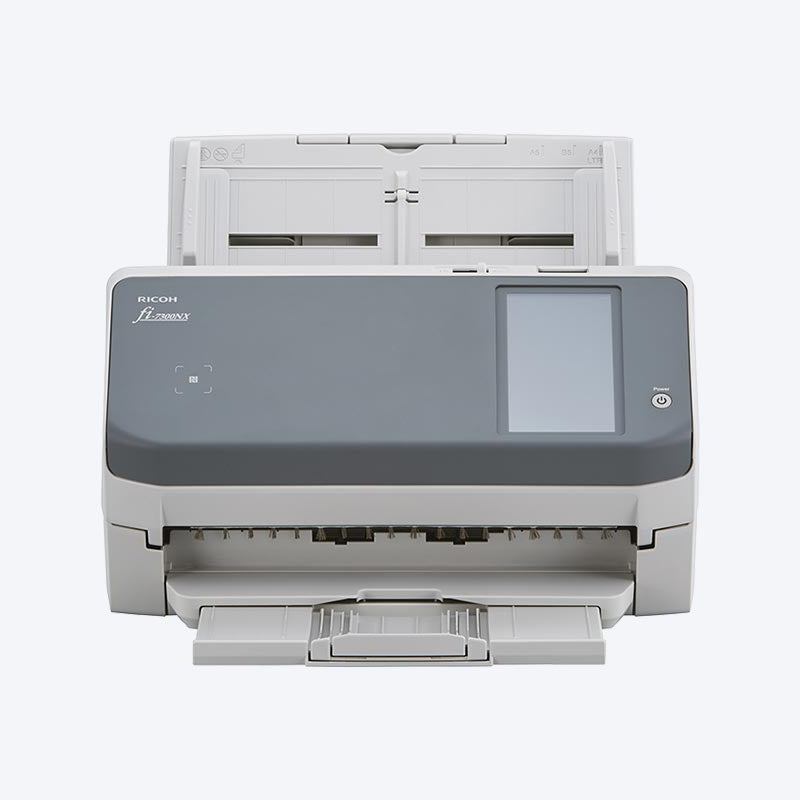

Ricoh fi-7300NX A4 Duplex Network Scanner
PRODUCT DESCRIPTION
Ricoh fi-7300NX A4 Duplex Network Scanner, 60 ppm / 120 ipm, Wi-Fi, Gigabit Ethernet & 4.3" Touch Screen (PA03768-B001) - 1 Year Local Warranty

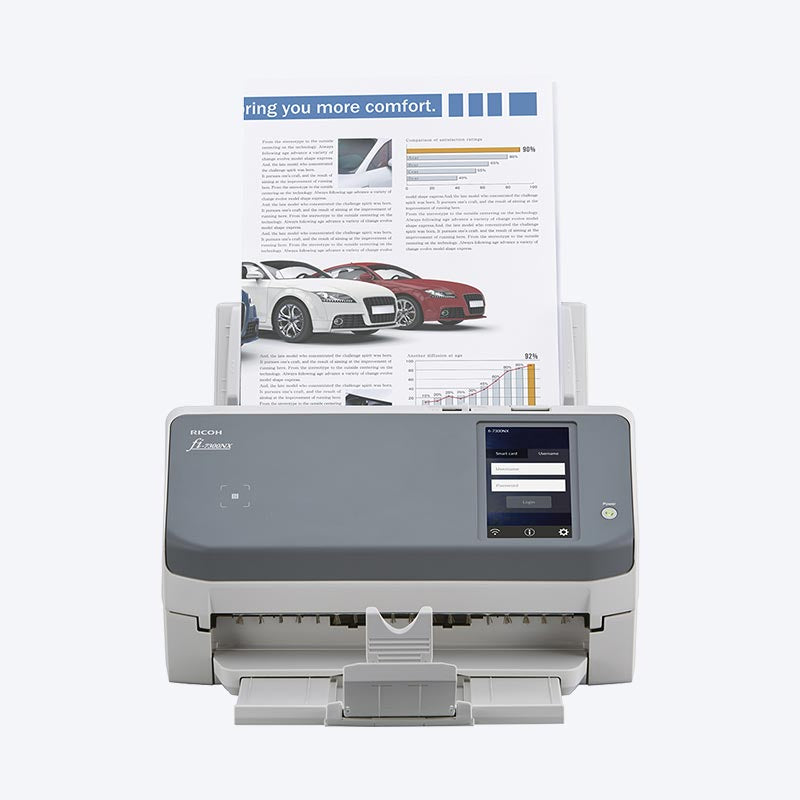

60 ppm Duplex with an 80-Sheet ADF
The Ricoh fi-7300NX scans A4 at 60 pages per minute simplex and 120 images per minute duplex (200/300 dpi). It holds 80 sheets in the ADF and is rated by Ricoh for an expected daily volume of 9,000 sheets.

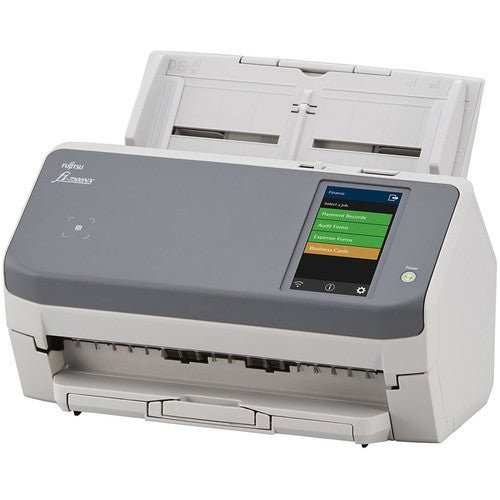

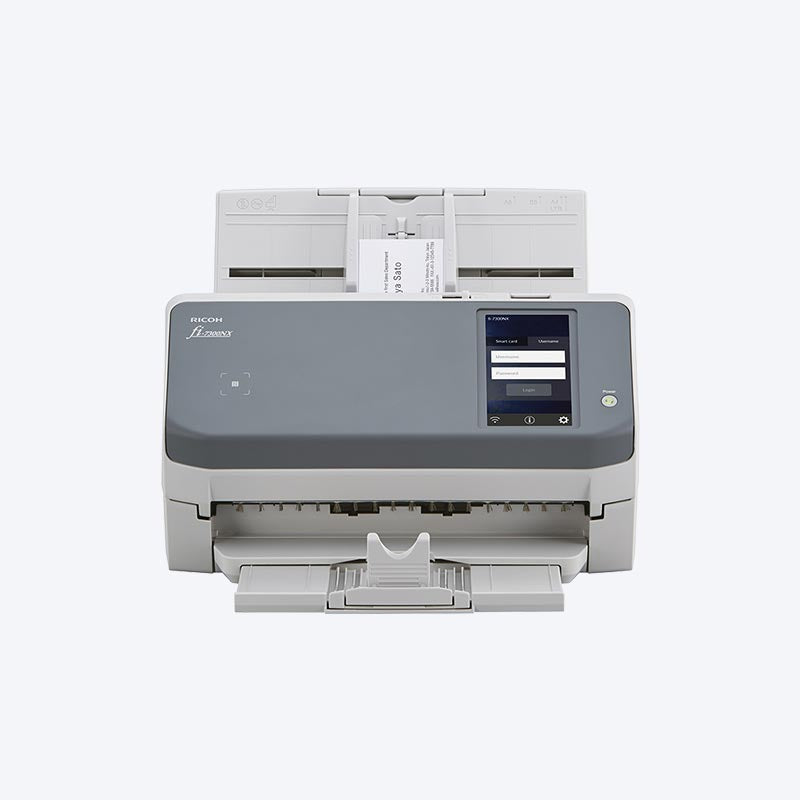

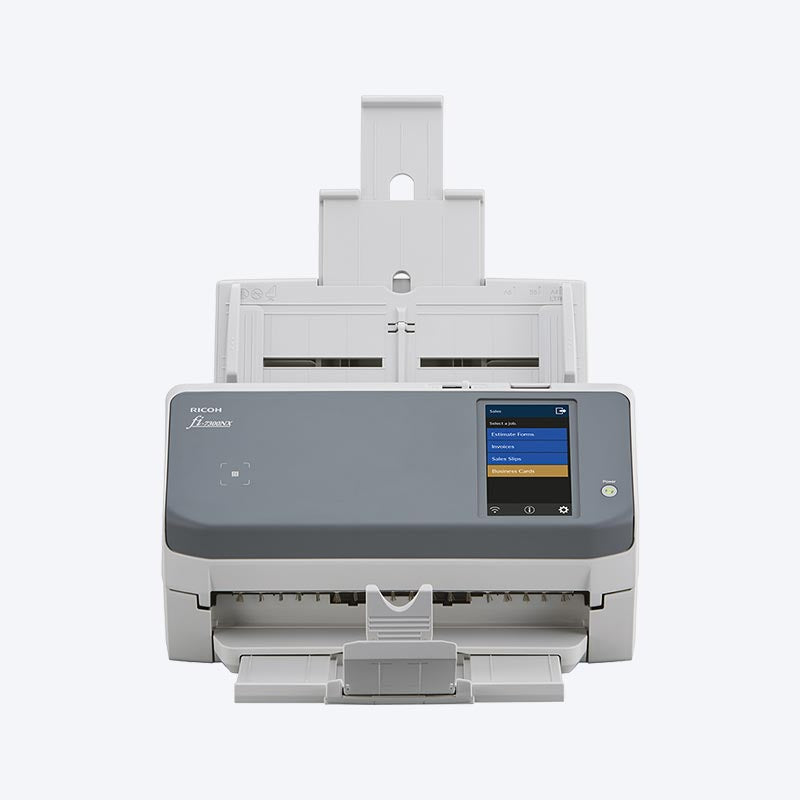

4.3-inch Touch Screen and NFC
A 4.3-inch colour touch screen with configurable job buttons makes the scanner easy to share without training. Users can sign in with the on-screen keyboard or the built-in NFC reader.
USB, Gigabit Ethernet and Wi-Fi
Connect by USB 3.1 Gen1, wired 10/100/1000BASE-T Ethernet or dual-band Wi-Fi (IEEE 802.11a/b/g/n/ac, 2.4 / 5 GHz). With PaperStream IP Net the scanner connects over the network to your existing scanning software.
PC-less Scanning and Central Management
With the optional PaperStream NX Manager, several users can share the scanner and scan to network and cloud destinations without a PC. Together with Scanner Central Admin, user authentication, job menus and scan settings can be managed centrally for up to 1,000 scanners. EdgeXperience is also available as an option.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and network setup and we will size it for you.
Ricoh fi-7300NX Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-7300NX Image Scanner |
| Part Number | PA03768-B001 |
| Series | Ricoh fi series (A4 network ADF) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Colour CCD x 2 (front x 1, back x 1) |
| Light Source | White LED array x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait) | Simplex 60 ppm / Duplex 120 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White / Black (selectable) |
Paper Handling
| Maximum Document Size | 216 x 355.6 mm (8.5 x 14 in) |
| Minimum Document Size | 50.8 x 54 mm (2 x 2.1 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight | 27 to 413 g/m² (7.2 to 110 lb) |
| Plastic Cards | 1.4 mm or less |
| ADF Capacity | 80 sheets (A4 80 g/m²) |
| Expected Daily Volume | 9,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Sound detection (iSOP) |
Connectivity, Display & Power
| USB | USB 3.1 Gen1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T / 100BASE-TX / 1000BASE-T |
| Wi-Fi | IEEE 802.11a/b/g/n/ac, 2.4 GHz / 5 GHz |
| Operation Panel | 4.3-inch TFT colour touch screen |
| Authentication | On-screen keyboard, NFC |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 42 W or less; Power Saving 2.4 W or less; Power Off 0.35 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 300 x 202 x 170 mm |
| Weight | 4.9 kg (10.8 lb) or less |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10 and Windows Server 2025 / 2022 / 2019 / 2016, per Ricoh's fi-7300NX datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver; PaperStream IP Net for network scanning from your capture software.
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel and Network Setup Tool are included. PaperStream NX Manager and EdgeXperience are optional server-management solutions — ask us for details.
Central Management
With PaperStream NX Manager and Scanner Central Admin, user authentication, job menus and scan settings can be managed on up to 1,000 scanners.
Package Contents & fi Series Ordering Information
In the Box (per Ricoh)
fi-7300NX scanner, chute unit, AC cable, AC adapter, USB cable and setup DVD-ROM.
Compact A4 Network Scanners
| Model | Speed (ppm / ipm) | Interface | Part No. |
| fi-7300NX (this listing) | 60 / 120 | USB + Ethernet + Wi-Fi, touch screen | PA03768-B001 |
| fi-8150 | 50 / 100 | USB + Ethernet | PA03810-B101 |
| fi-8170 | 70 / 140 | USB + Ethernet | PA03810-B051 |
| fi-8190 | 90 / 180 | USB + Ethernet | PA03810-B001 |
The fi-7300NX is the model in this group with Wi-Fi and its own touch screen for PC-less scanning.
Datasheet & Downloads
| Ricoh datasheet | fi-7300NX Datasheet (PDF) |
| Ricoh product page | fi-7300NX on pfu-asia.ricoh.com |
| Drivers & software | fi-7300NX downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03768-B001.
Frequently Asked Questions — Ricoh fi-7300NX
How fast is the fi-7300NX?
60 ppm simplex and 120 ipm duplex on A4 portrait at 200/300 dpi.
Can it scan without a PC?
Yes, with the optional PaperStream NX Manager. Users pick a job on the 4.3-inch touch screen and scan to network and cloud destinations without a PC.
Does it support Wi-Fi?
Yes. It has dual-band Wi-Fi (IEEE 802.11a/b/g/n/ac, 2.4 / 5 GHz) as well as Gigabit Ethernet and USB 3.1 Gen1.
Which operating systems are supported?
Ricoh's datasheet lists Windows 11, Windows 10 and Windows Server 2025 / 2022 / 2019 / 2016.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
