Ergotron MXV Desk Dual Monitor Arm White
PRODUCT DESCRIPTION
Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp White (45-518-216) - 10 Years Local Warranty
Two Screens on a Clean Under-Desk C-Clamp Fixing

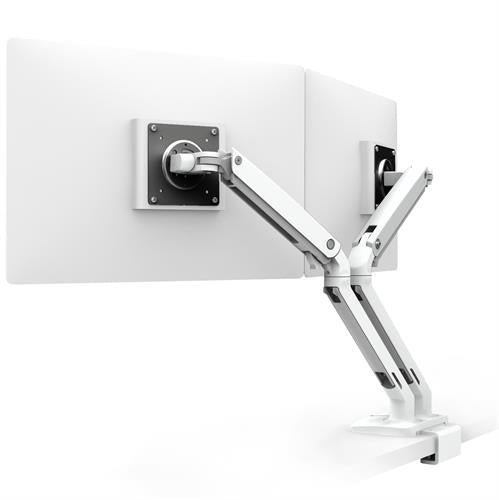

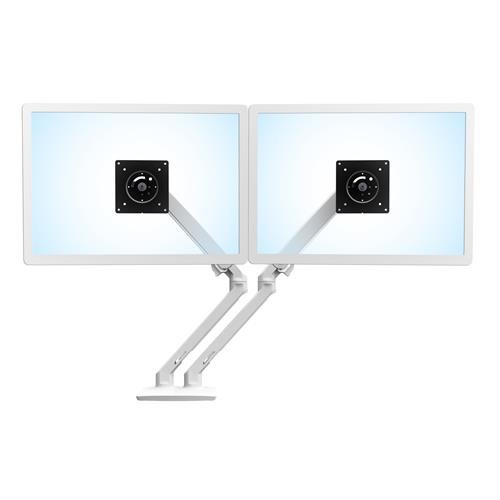

The Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp (45-518-216) carries two displays up to 24″ each, 7–20 lbs (3.2–9.1 kg) per screen, fixed from underneath the worksurface rather than gripped over the desk edge. The top edge of the desk stays completely clear — a tidier result for open-plan benches, client-facing desks and any installation where a conventional clamp head would be visible or in the way.
Check Your Desk Thickness: 25 to 35 mm

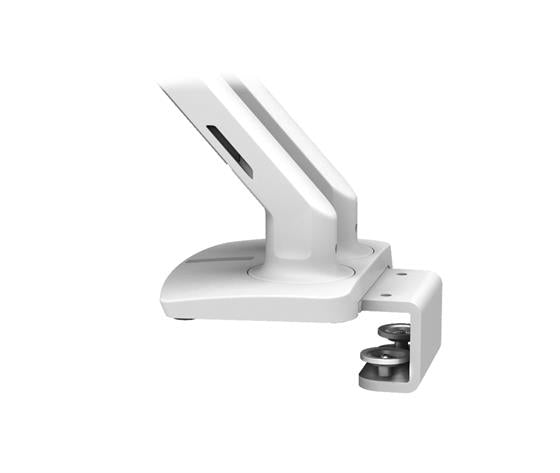

The under-mount C-clamp is specified for worksurfaces 0.98″–1.38″ (25–35 mm) thick. That is a narrower window than a top-mounted clamp, so measure before ordering — most standard office bench tops fall inside it, but thicker solid or laminated tops may not. Desks outside the range take the standard-clamp version of the same arm instead.
13 Inches of Constant Force Lift and Independent Arms
Ergotron's patented Constant Force™ technology gives 13″ (33 cm) of one-touch height adjustment per arm, with no tools and no gas struts. Each screen sits on its own arm rather than a shared crossbar, so the two can be set at different heights and angles — and a full 180° of tilt with 360° rotation covers portrait working and sharing a screen across the desk.
Frees the Desk and Keeps Cables Out of Sight
Two factory stands come off the desk and the deepest strip of worksurface comes back — valuable on the 600–700 mm bench desks common in Singapore offices. Integrated cable routing runs the leads along the arms rather than across the desk, and with the fixing hidden underneath, the finished installation looks deliberately designed rather than bolted on.
Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp Datasheet — Technical Specifications
General
| Product Name | Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp |
| Part Number | 45-518-216 (White) |
| Product Type | Dual-monitor desk mount arm |
| Number of Screens | 2 |
| Lift Technology | Ergotron Constant Force™ |
| Mounting Type | Under-mount C-clamp (included, factory fitted) |
| Assembly | Ships fully assembled |
| Manufacturer Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with GST invoice |
Display Compatibility
| Weight Capacity Per Monitor | 7–20 lbs (3.2–9.1 kg) |
| Maximum Screen Size | Up to 24″ per display |
| VESA Pattern | VESA MIS-D (100 x 100 mm and 75 x 75 mm hole pattern) |
Adjustment & Motion
| Vertical Lift | 13″ (33 cm) |
| Tilt | 180° total — 90° up / 90° down |
| Pan | 180° / 360° |
| Rotation | 360° — portrait or landscape |
| Extension / Reach | Up to 22.2″ (56 cm) |
| Cable Management | Integrated cable routing along the arms |
Design & Durability
| Finish | White |
| Construction | Aluminium |
| Desk Thickness (C-clamp) | 0.98″–1.38″ (25–35 mm) |
| Product Weight | 10.1 lbs (4.9 kg) |
| Shipping Dimensions | 32.8″ x 12.6″ x 7.6″ (83 x 32 x 19 cm) |
| Shipping Weight | 15.1 lbs (6.9 kg) |
Compatibility & Fit
The MXV Desk Dual Monitor Arm carries two screens from a single desk fixing. Note the 24″ per-display size limit — it is tighter than the 34″ the single-screen MXV allows, and it is the specification most often missed when ordering.
| VESA Pattern | VESA MIS-D — 100 x 100 mm and 75 x 75 mm |
| Screen Size | Up to 24″ per display |
| Weight Per Screen | 7–20 lbs (3.2–9.1 kg) — measured without the factory stand |
| Number of Screens | Two |
| Mounting Type | Under-mount C-clamp, supplied fitted |
| Desk Thickness | 0.98″–1.38″ (25–35 mm) — measure before ordering |
| Standard Clamp Version | See the MXV Desk Dual Monitor Arm (45-496) for the two-piece top clamp |
| Wall Mounting | Not applicable — for a wall-mounted MXV see the MXV Wall Monitor Arm (45-505) |
The size limit is the one to check. Two 24″ panels are the design case. If your standard build is 27″ or 32″ screens, this is not the right arm — use the HX Dual Monitor Desk Arm (45-476), which takes two displays up to 32″ each.
Ultrawide and curved screens: outside this arm's envelope. For one large curved ultrawide use the HX Desk Monitor Arm with HD Pivot; for a single 34″ panel, the MXV Desk Monitor Arm (45-486).
Measure your desk before ordering this version. The under-mount C-clamp fits worksurfaces 0.98″–1.38″ (25–35 mm) thick — a narrower window than a conventional top clamp. Desks outside that range need the standard MXV Desk Dual Monitor Arm (45-496) instead.
Package Contents & MXV Ordering Information
In the Box
- Fully assembled MXV dual arm
- Under-mount C-clamp (fitted)
- Monitor mounting hardware
- Instruction manual
MXV Desk Dual Monitor Arm — Finishes & Mounting Options
| 45-496-026 | Polished Aluminium — two-piece desk clamp |
| 45-496-216 | White — two-piece desk clamp |
| 45-496-224 | Matte Black — two-piece desk clamp — not stocked; available to order |
| 45-518-216 | White — under-mount C-clamp (this listing) |
Other MXV Arms in the SourceIT Catalogue
| 45-486-216 | MXV Desk Monitor Arm, White — single screen up to 34″ |
| 45-496-026 / 45-496-216 | MXV Desk Dual Monitor Arm — two screens up to 24″ |
| 45-518-216 | MXV Desk Dual Monitor Arm with Under Mount C-Clamp |
| 45-505-026 / 45-505-216 | MXV Wall Monitor Arm — single screen up to 34″ |
Heavier-Duty Alternatives
| 45-475-026 / 216 / 224 | HX Desk Monitor Arm — up to 49″ and 42 lbs |
| 45-478-026 / 45-478-216 | HX Wall Monitor Arm — up to 49″ and 42 lbs |
| 45-241-026 | LX Desk Mount Monitor Arm — 7–25 lbs, full motion |
Datasheet & Downloads
- Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp official product page (ergotron.com)
- Official Ergotron MXV Desk Monitor Arm datasheet (PDF)
Need the datasheet emailed as a PDF for a tender or quotation? Contact SourceIT Pte Ltd at sales@sourceit.com.sg.
Frequently Asked Questions — Ergotron MXV Desk Dual Monitor Arm with Under Mount C-Clamp
What finishes does the MXV Desk Dual Monitor Arm come in?
Ergotron publishes polished aluminium (45-496-026), white (45-496-216) and matte black (45-496-224) for the standard clamp version, and white (45-518-216) for the under-mount C-clamp version. Capacity, lift, reach and VESA support are identical — only the finish and the mounting method differ.
What monitor size and weight does it support?
Two displays up to 24″ each, weighing 7–20 lbs (3.2–9.1 kg) per screen, measured without the factory stands. The 24″ limit is tighter than the 34″ the single-screen MXV allows — check your panels against it before ordering.
Why is the size limit lower than the single-screen MXV arm?
Because two screens side by side put far more leverage on one desk fixing than a single screen does. The single-screen MXV Desk Monitor Arm (45-486) carries one display up to 34″; the dual is rated to 24″ per screen. For two larger panels, the HX Dual Monitor Desk Arm (45-476) takes 32″ each.
What is an under-mount C-clamp, and will it fit my desk?
It fixes from underneath the worksurface rather than gripping over the desk edge, which gives a cleaner look and leaves the top edge of the desk completely clear. It fits desks 0.98″–1.38″ (25–35 mm) thick — measure yours first, because that is a narrower window than a conventional clamp. Desks outside the range need the standard MXV Desk Dual Monitor Arm (45-496).
Do I need a VESA adapter?
Not for standard displays — VESA MIS-D covers 100 x 100 mm and 75 x 75 mm. Screens with a larger or proprietary pattern need the display manufacturer's own adapter plate.
Can I set one screen to portrait?
Yes. Each arm rotates 360°, so either screen can run portrait for code, logs or long documents alongside a landscape primary display — a common arrangement on development and service desks.
Does it help with sit-stand or ergonomic setup?
It gives 13″ (33 cm) of Constant Force lift and a full 180° of tilt, which is ample for setting both screens to a correct seated eye line and for use on a height-adjustable desk. For moving screens between seated and standing heights on a fixed desk, the LX Sit-Stand Desk Arm gives 20″ (51 cm) of travel, though only for a single display.
Does it come with a Singapore warranty?
Yes. Every Ergotron MXV Desk Dual Monitor Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the MXV Desk Dual Monitor Arm with a 10-year manufacturer warranty.
