Ergotron MXV Wall Monitor Arm Polished Aluminum
PRODUCT DESCRIPTION
Ergotron MXV Wall Monitor Arm for Displays up to 34" Polished Aluminum (45-505-026) - 10 Years Local Warranty
MXV Wall Monitor Arm — Verified Datasheet Specifications

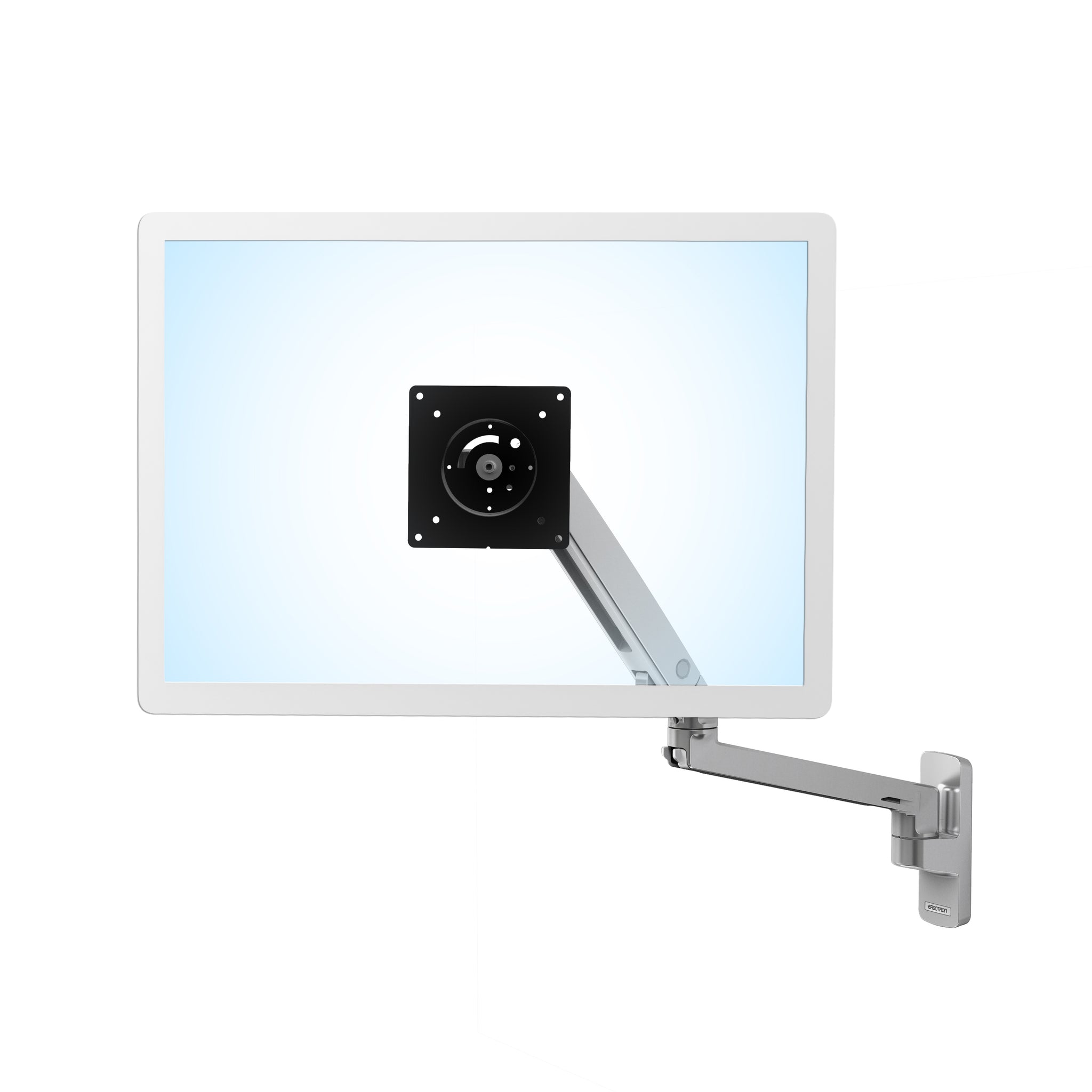

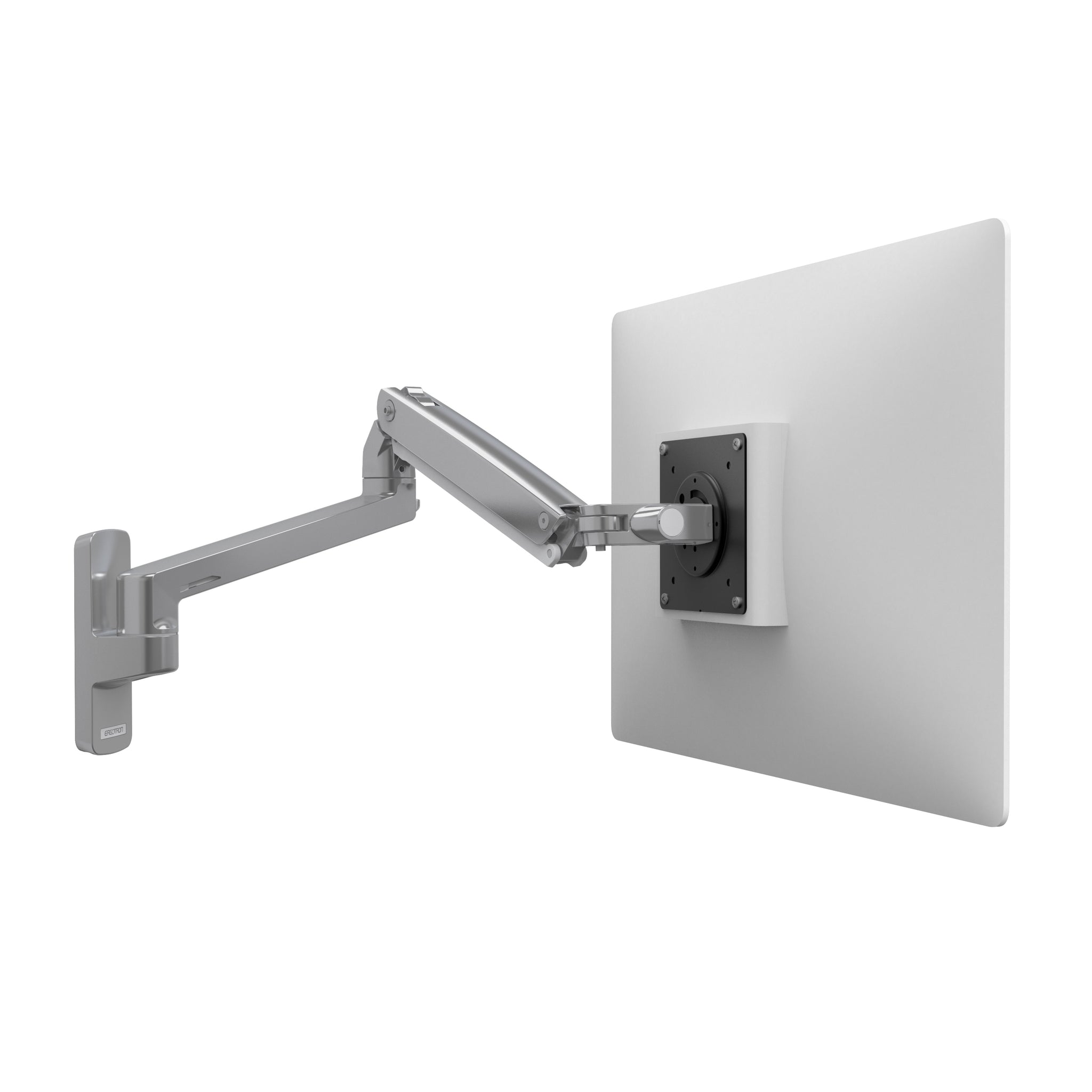

The Ergotron MXV Wall Monitor Arm (Polished Aluminum, 45-505-026) mounts a single display of up to 34 inches to the wall and moves it on Ergotron’s patented Constant Force™ lift. The datasheet rates it for monitors of 7–20 lbs (3.2–9.1 kg) on a VESA MIS-D pattern.
24.6″ of Reach and 13″ of Height Adjustment
The arm extends up to 24.6″ (63 cm) from the wall and offers 13″ (33 cm) of height adjustment, 180° tilt (↑90° / ↓90°), 180°/360° pan and 360° rotation between portrait and landscape — then folds back flat against the wall when the screen is not in use.

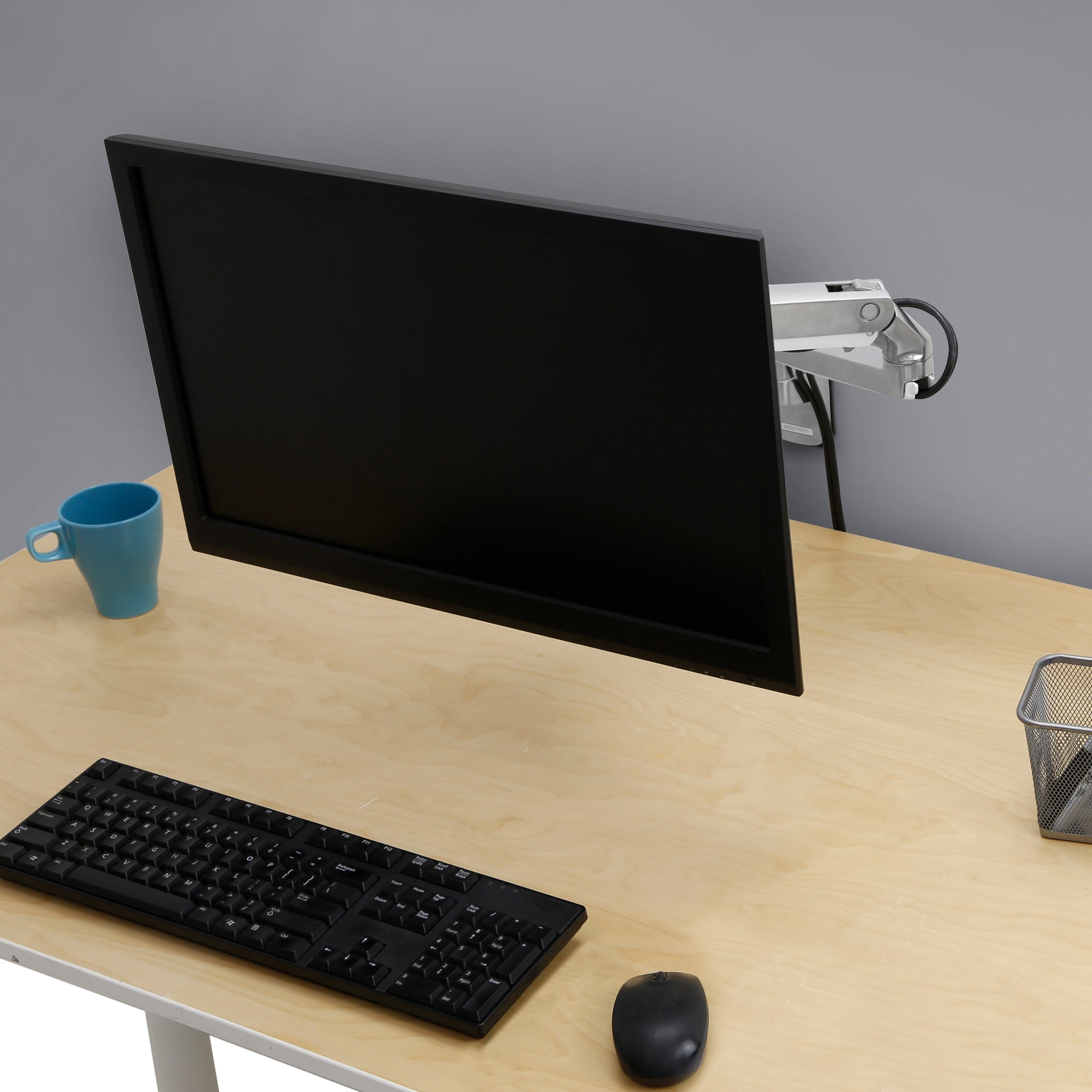

Zero Desk Footprint for Compact Singapore Workspaces
Because nothing clamps to the desk, the MXV Wall arm suits reception counters, clinical bays, retail back-of-house, meeting-room displays and hot-desks where the worksurface must stay completely clear. A removable base rotation stop limits swing to 180° where a wall or partition restricts movement.
Ships Fully Assembled with Wall Bracket
The arm arrives fully assembled with its wall mounting bracket and monitor mounting hardware at 6.4 lbs (2.9 kg), so installation is a single-person job onto a suitably rated wall structure.
10-Year Ergotron Warranty, Local Singapore Support
Ergotron backs the MXV Wall Monitor Arm with a 10-year manufacturer warranty. Bought from SourceIT it ships with local Singapore warranty support and a GST invoice.
Ergotron MXV Wall Monitor Arm Datasheet — Technical Specifications
General
| Part Number | 45-505-026 |
| Finish | Polished Aluminum |
| Product Name | Ergotron MXV Wall Monitor Arm |
| Number of Screens | 1 |
| Mounting Type | Wall — wall mounting bracket included |
| Lift Technology | Patented Ergotron Constant Force™ |
| Product Weight | 6.4 lbs (2.9 kg) |
| Shipping Weight | 7.3 lbs (3.3 kg) |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with local warranty and GST invoice |
Display Compatibility
| Typical LCD Size | Up to 34″ (≤ 34″ diagonal) |
| Weight Capacity | 7–20 lbs (3.2–9.1 kg) |
| VESA Pattern | VESA MIS-D (75 x 75 mm / 100 x 100 mm) |
Adjustment & Motion
| Height Adjustment (Lift) | 13″ (33 cm) |
| Tilt | 180° (↑90° / ↓90°) |
| Pan | 180° / 360° |
| Rotation | 360° — portrait or landscape |
| Extension / Reach | Up to 24.6″ (63 cm) from the wall |
| Rotation Stop | Removable base rotation stop limits the range to 180° |
Design & Durability
| Design | V-shaped, slim-profile wall monitor arm |
| Lift Mechanism | Constant Force™ — tool-free repositioning that holds its set position |
| Assembly | Ships fully assembled |
| Shipping Dimensions | 34.4″ x 9.4″ x 6.3″ (87.5 x 23.8 x 16 cm) |
Compatibility & Fit
Fit and compatibility for the Ergotron MXV Wall Monitor Arm (45-505-026):
| VESA Pattern | VESA MIS-D — 75 x 75 mm and 100 x 100 mm hole patterns |
| Monitor Size | Typical LCD size up to 34″ diagonal |
| Monitor Weight | 7–20 lbs (3.2–9.1 kg) |
| Number of Screens | One |
| Mounting | Wall only — wall mounting bracket supplied; this arm does not clamp to a desk or grommet |
| Wall Structure | Fix into a wall structure rated for the combined arm and display weight; concrete, solid masonry or a correctly located stud |
| Ultrawide & Curved Displays | A 34″ ultrawide is within the stated typical LCD size — confirm the panel weighs 7–20 lbs (3.2–9.1 kg) |
| Non-VESA Monitors | Displays without a VESA pattern need the monitor manufacturer’s VESA adapter plate |
If you need to clamp to a desk instead, see the MXV Desk Monitor Arm.
Package Contents & MXV Series Ordering Information
In the box
- Fully assembled MXV wall arm
- Wall mounting bracket
- Monitor mounting hardware
- Installation instructions
MXV Wall Monitor Arm — finishes and part numbers
| MXV Wall Monitor Arm — Polished Aluminum (this listing) | 45-505-026 |

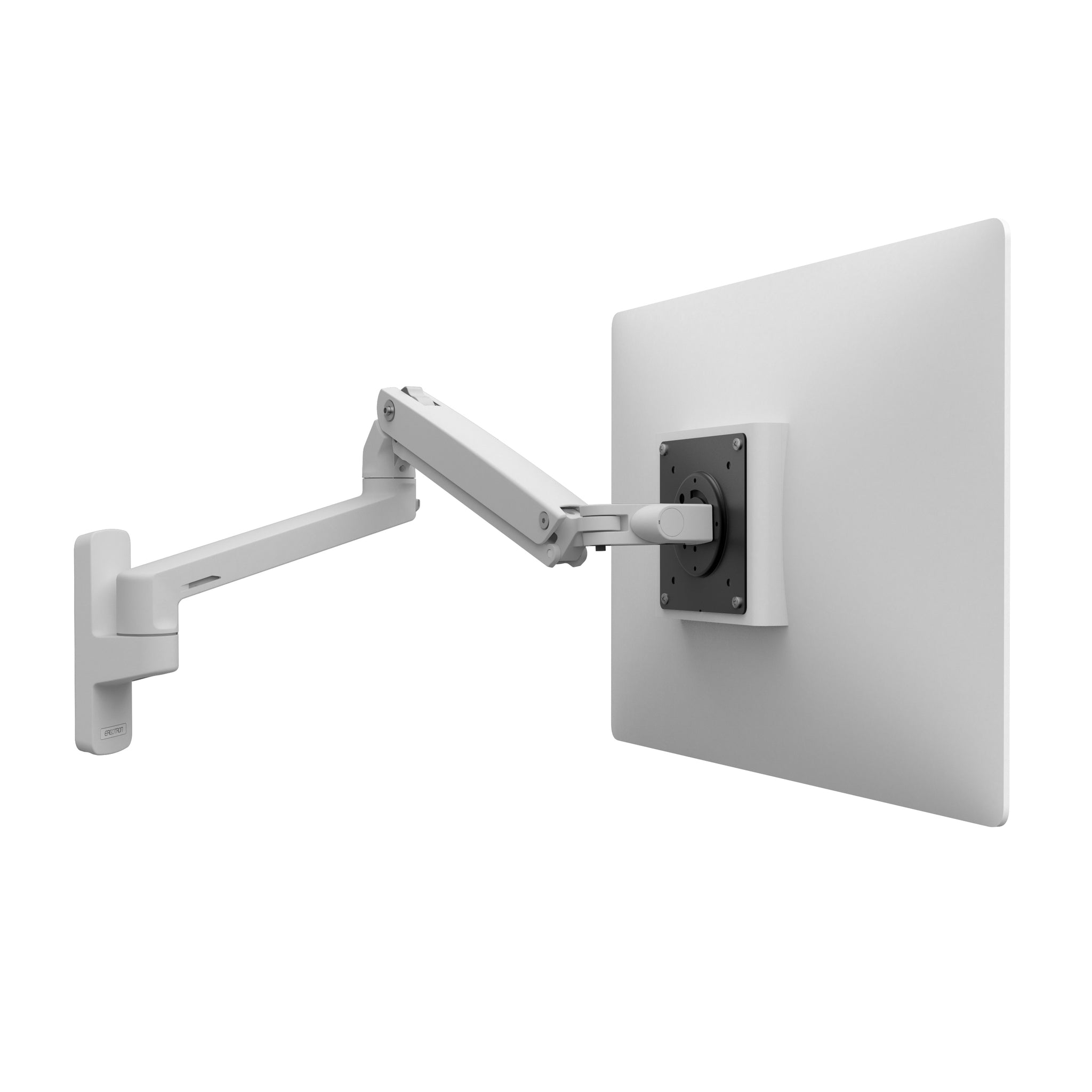

| MXV Wall Monitor Arm — White | 45-505-216 |
Related Ergotron desk and wall arms at SourceIT:
| MXV Desk Monitor Arm (single) | 45-486 series |
| MXV Desk Dual Monitor Arm | 45-496 / 45-518 series |
| MXV Wall Monitor Arm | 45-505 series |
| LX Desk Mount Monitor Arm | 45-241 / 45-490 series |
| HX Desk Monitor Arm (heavy-duty) | 45-475 series |
Datasheet & Downloads
Official Ergotron documentation for this model:
SourceIT can also supply a quotation, GST invoice and delivery/installation details for Singapore customers on request.
Frequently Asked Questions — Ergotron MXV Wall Monitor Arm
What is the difference between the MXV Wall finishes?
Function is identical between polished aluminium (45-505-026) and white (45-505-216) — only the finish changes. Both carry 7–20 lbs (3.2–9.1 kg) and the same 10-year warranty.
What monitor size and weight does the MXV Wall arm support?
Ergotron rates it for a typical LCD size of up to 34″ and a display weight of 7–20 lbs (3.2–9.1 kg).
How far does it extend from the wall?
Up to 24.6″ (63 cm), and it folds back close to the wall when retracted.
Can it hold two monitors?
No — it is a single-screen wall arm. For two wall-mounted screens see the HX Wall Dual Monitor Arm.
What wall can I mount it on?
Fix into a structure rated for the combined weight of the arm and display — concrete, solid masonry or a correctly located stud. Ergotron supplies the wall mounting bracket; anchors appropriate to your wall type may be needed.
What VESA pattern do I need?
VESA MIS-D — 75 x 75 mm or 100 x 100 mm. Monitors without a VESA pattern require the manufacturer’s adapter plate.
How does it compare with the HX Wall Monitor Arm?
The HX Wall Monitor Arm is the heavy-duty option — 20–42 lbs (9–19 kg) and displays up to 49″. The MXV Wall is the slimmer arm for mainstream monitors up to 34″.
Does this Ergotron MXV Wall Monitor Arm come with a Singapore warranty?
Yes. Every Ergotron MXV Wall Monitor Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the MXV Wall Monitor Arm with a 10-year manufacturer warranty.
