Ergotron HX Wall Monitor Arm Polished Aluminum (45-478-026)
Ergotron HX Wall Monitor Arm Polished Aluminum (45-478-026) - 10 Year Local Warranty
Choose a monitor arm that’s as adaptable as you. With the HX Wall Monitor Arm, you can reposition large monitors weighing 20 to 42 lbs (9.1 to 19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.
- GTIN: 00698833060980
- Part Number: 45-478-026
- Product Weight: 11.9 lbs
- Shipping Weight: 14.0 lbs
- Description: HX Wall Mount Monitor Arm
- Includes arm, extension, monitor pivot, wall mount, mounting hardware
- Mounting Considerations: Attaches directly to solid vertical surfaces. When attaching to a wall stud, a Wall Track accessory is required (31-016-182, 31-017-182, 31-018-182 or 31-039-182). To attach an HX arm to Wall Track, also order the Track Mount Bracket (97-091)
- Portrait/landscape rotation with lockout
- Streamlined cable management routes cables under arm and within extension

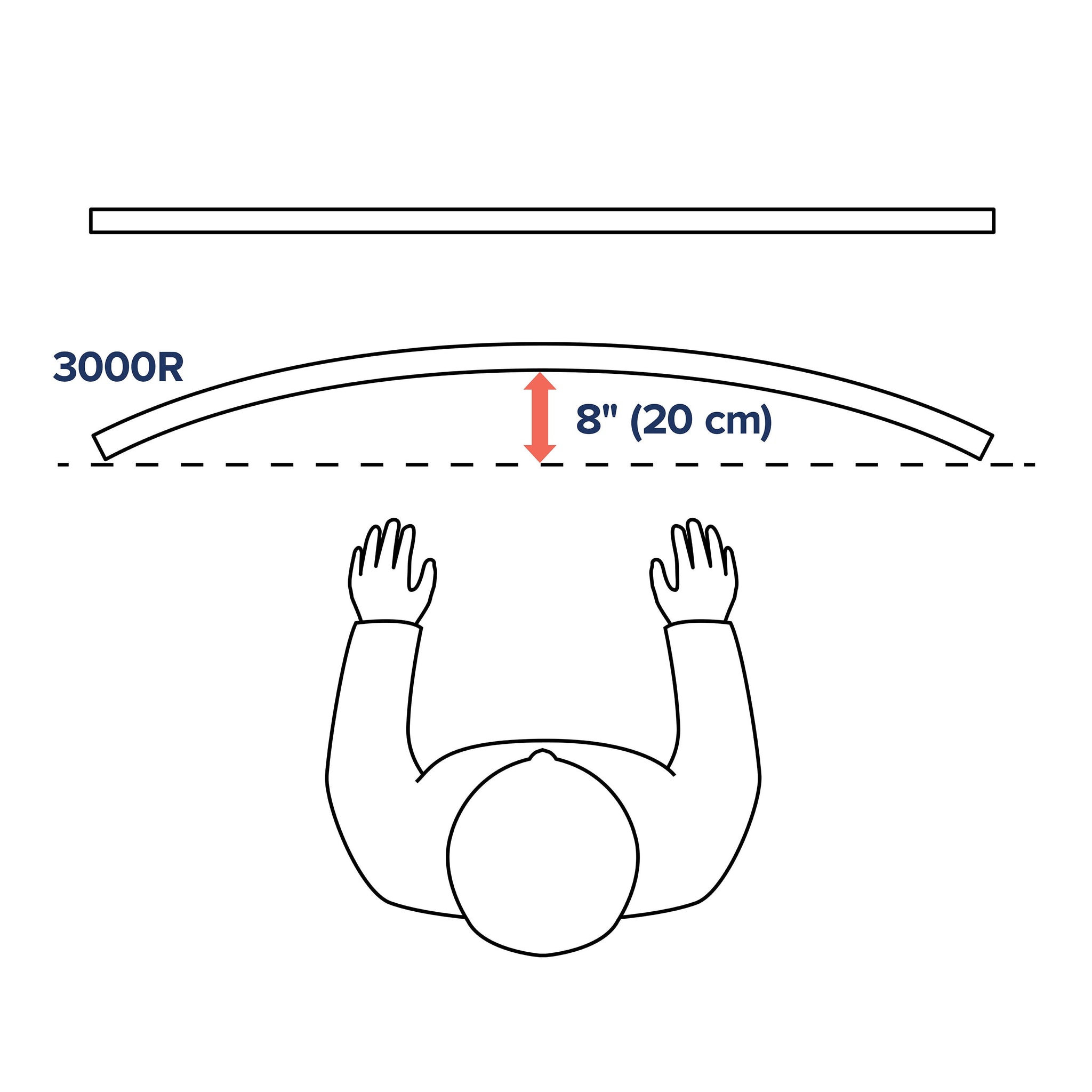

- § Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required
- To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

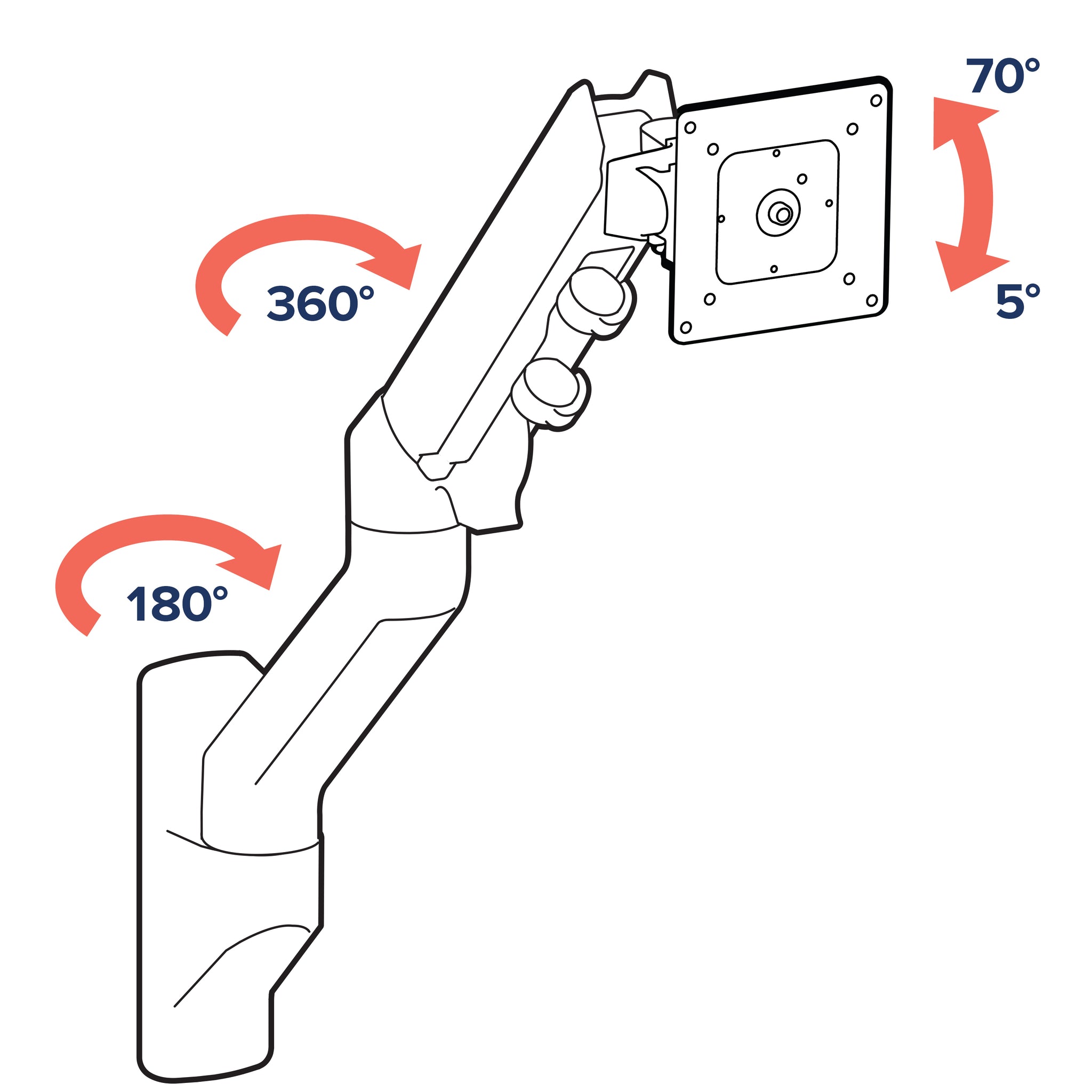

- * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
- ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
- † Tilt Range: 70° backward, 5° forward
- Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
- Warranty: Ten years
