Ergotron HX Desk Monitor Arm for Displays up to 19kg Polished Aluminum (45-475-026)
Ergotron HX Desk Monitor Arm for Displays up to 19kg Polished Aluminum (45-475-026) - 10 Years Local Singapore Warranty

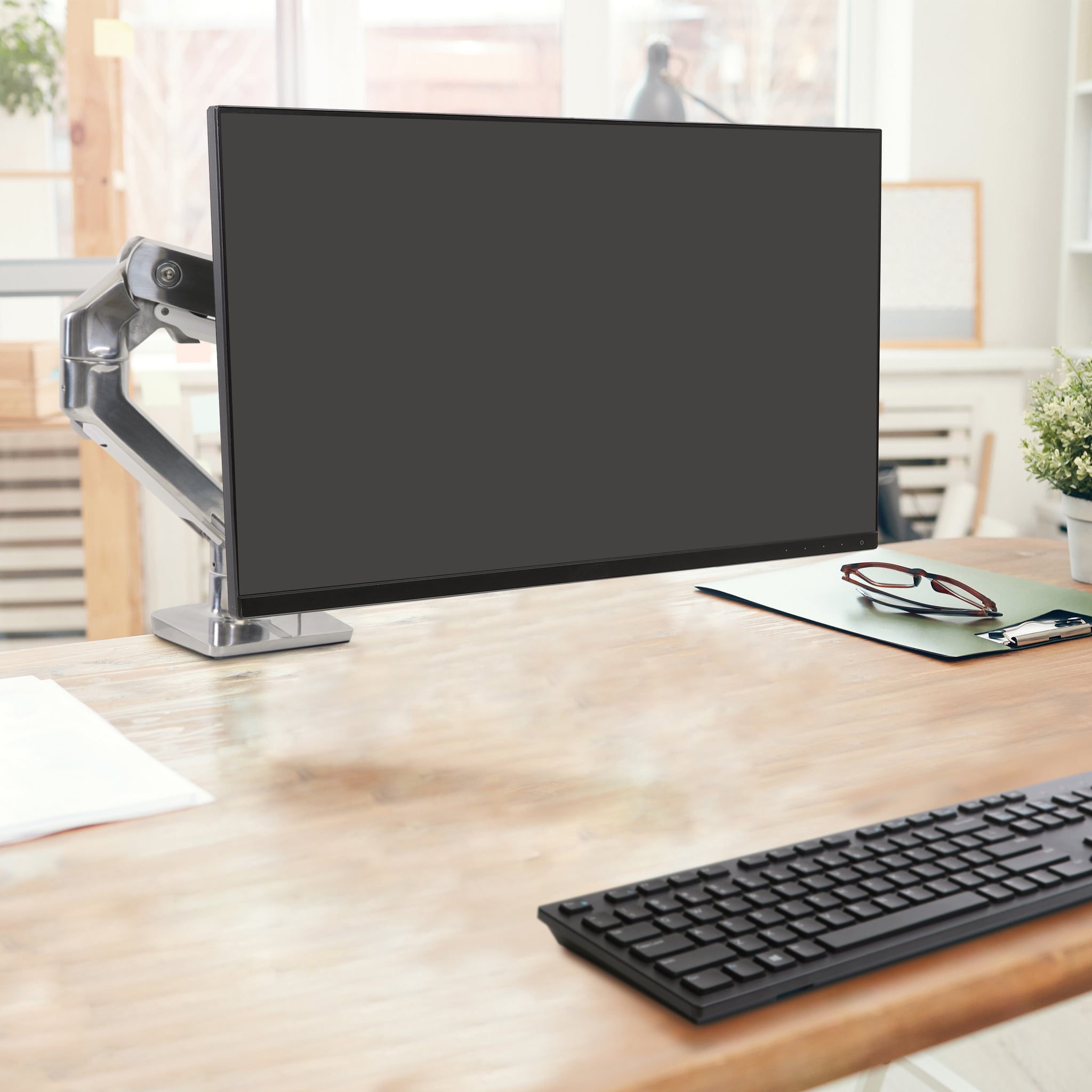

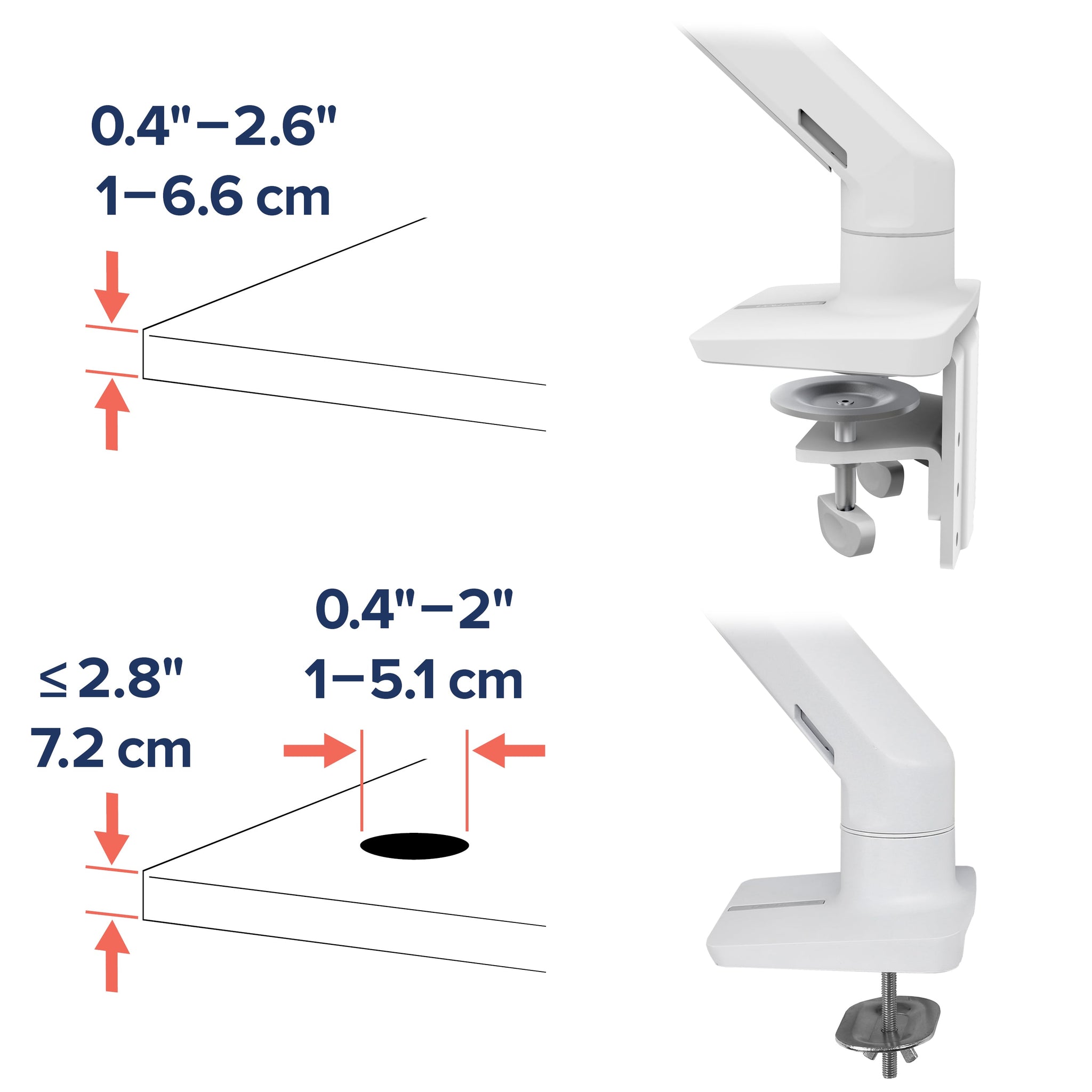

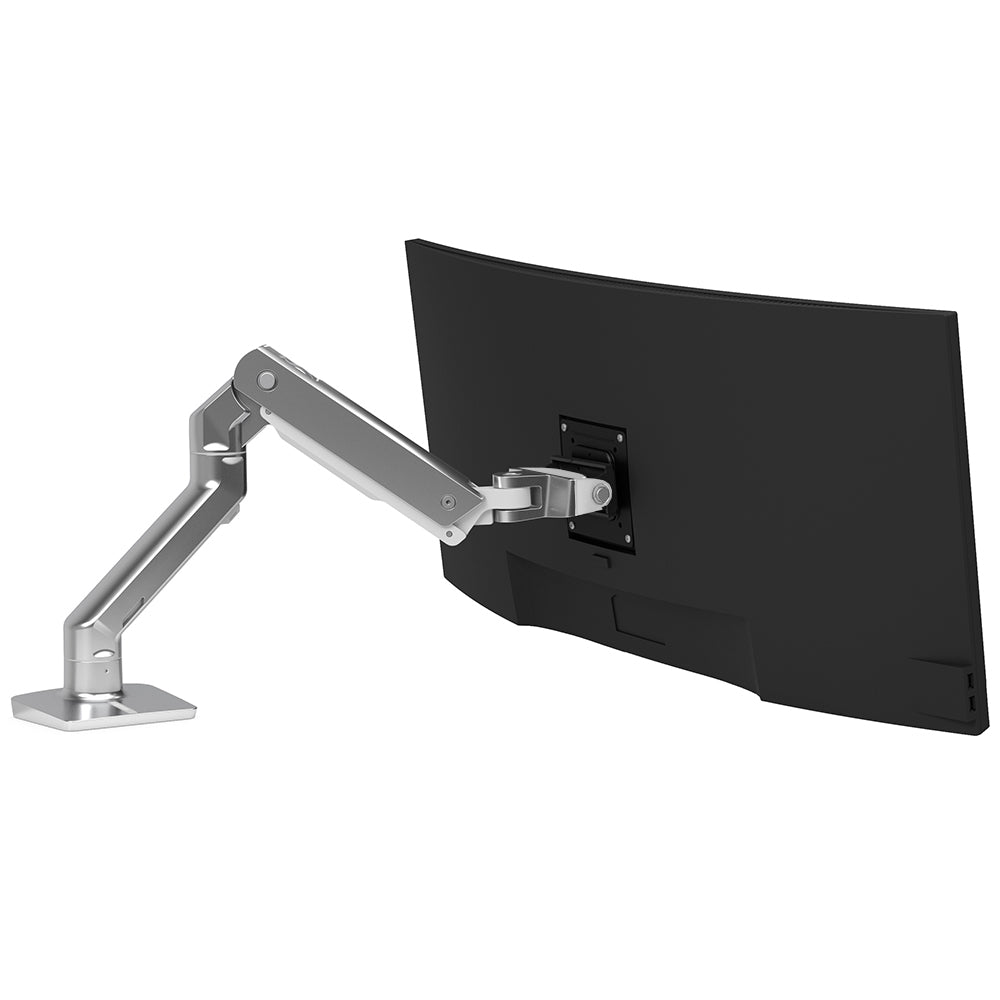

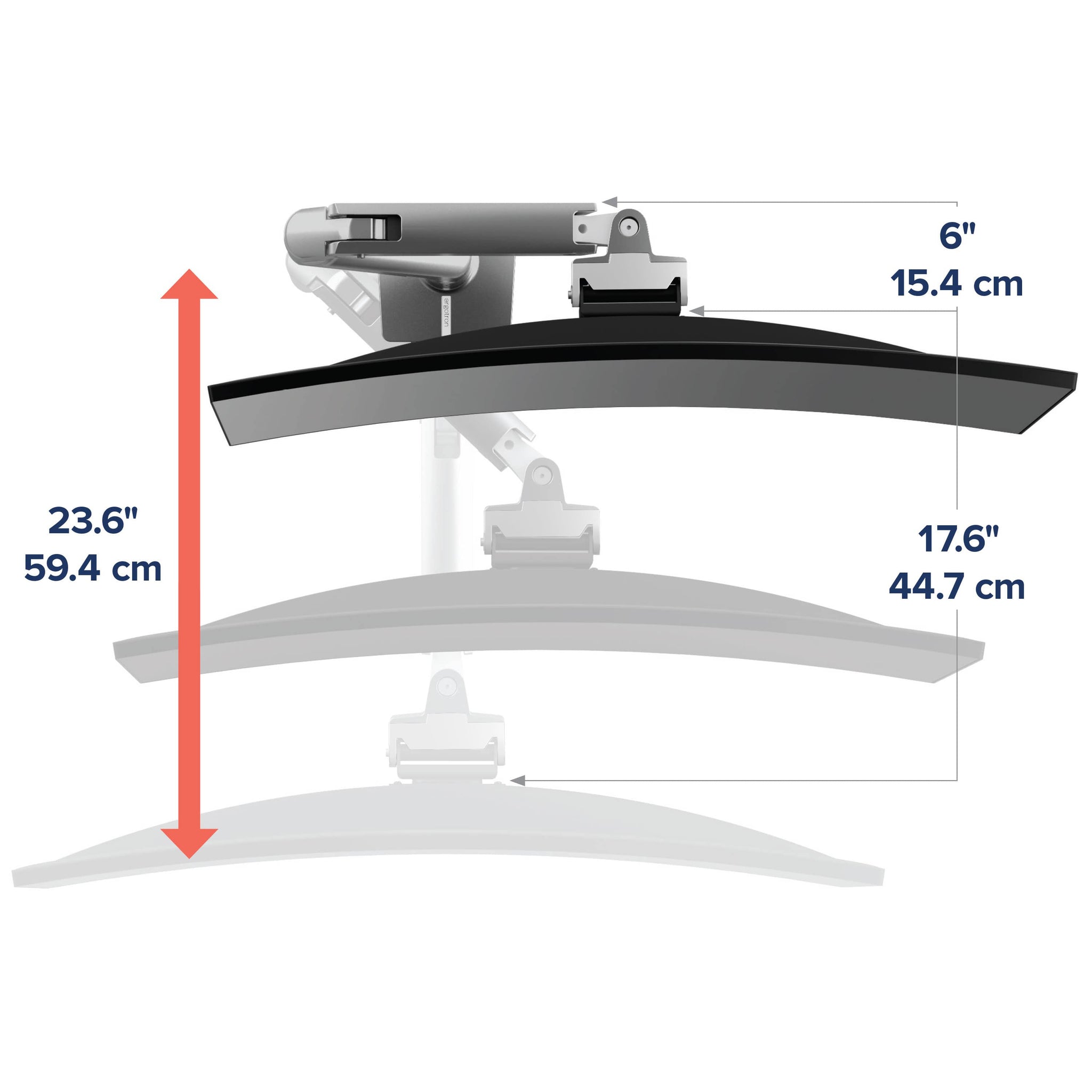

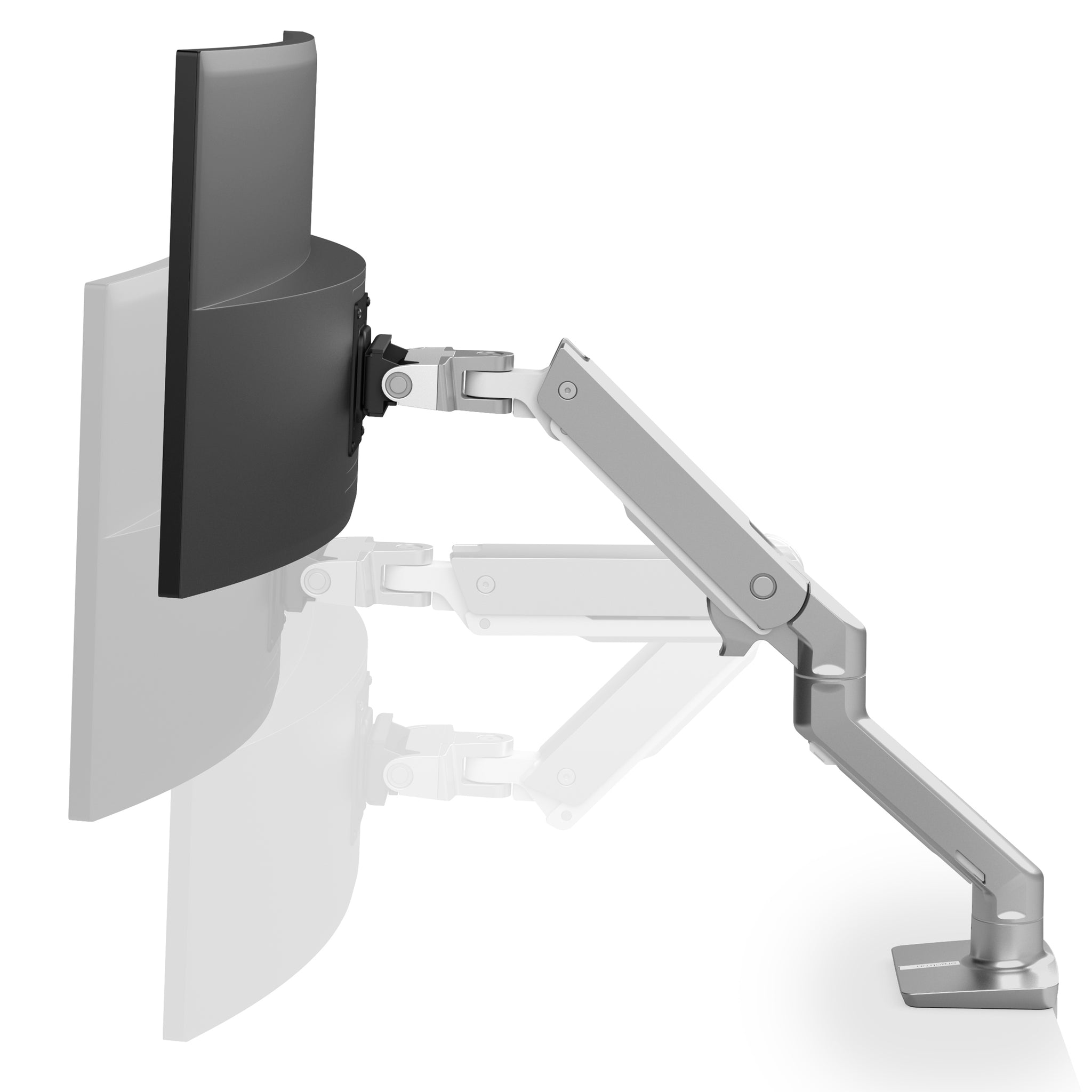

Mount your 20 to 42 lb display to your desktop with the polished aluminum Ergotron HX Desk Monitor Arm. It supports displays up to 42" with 75 x 75 to 200 x 200mm VESA patterns and will connect via the included edge-of-desk clamp or the included grommet mount. It provides -5 to 70° of tilt adjustment and 360° of pan and rotation adjustment. Your display's center-height can be adjusted from 6.3 to 17.8" from your desktop. Integrated cable management will help keep your wiring safe and neat.
- Designed to increase viewing comfort by helping to reduce eye, back, and neck strain
- CF motion technology engineered to provide simple display adjustment
- Cable management feature routes cables under the arm and through the extension, out of the way
- Lets you rotate the screen for portrait viewing of photos or documents
- Rotation stop on base limits range to 180° and prevents monitor from making contact with the wall
- Folding arm helps free up space in constrained areas and allows you to tuck your monitor under storage shelves or cabinets
- Portrait/landscape rotation with lockout
- Clamp base helps provide enhanced stability of display and arm
- Monitor can be rotated 360° at connection point of arm and extension; rotation restricted to 180° at connection point of extension and base
- Maximum screen size determined by monitor weight
- Certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to the emissions of VOC (volatile organic compounds)
- Expandable with optional equipment to support up to three monitors
Ergotron HX Desk Arm Specification
Manufacturer Part Number: |
45-475-216 (white) GTIN: 698833054491 45-475-224 (matte black) GTIN: 698833084474 45-475-026 (aluminum) GTIN: 698833060942 |
Typical LCD Size: |
≤ 49″ |

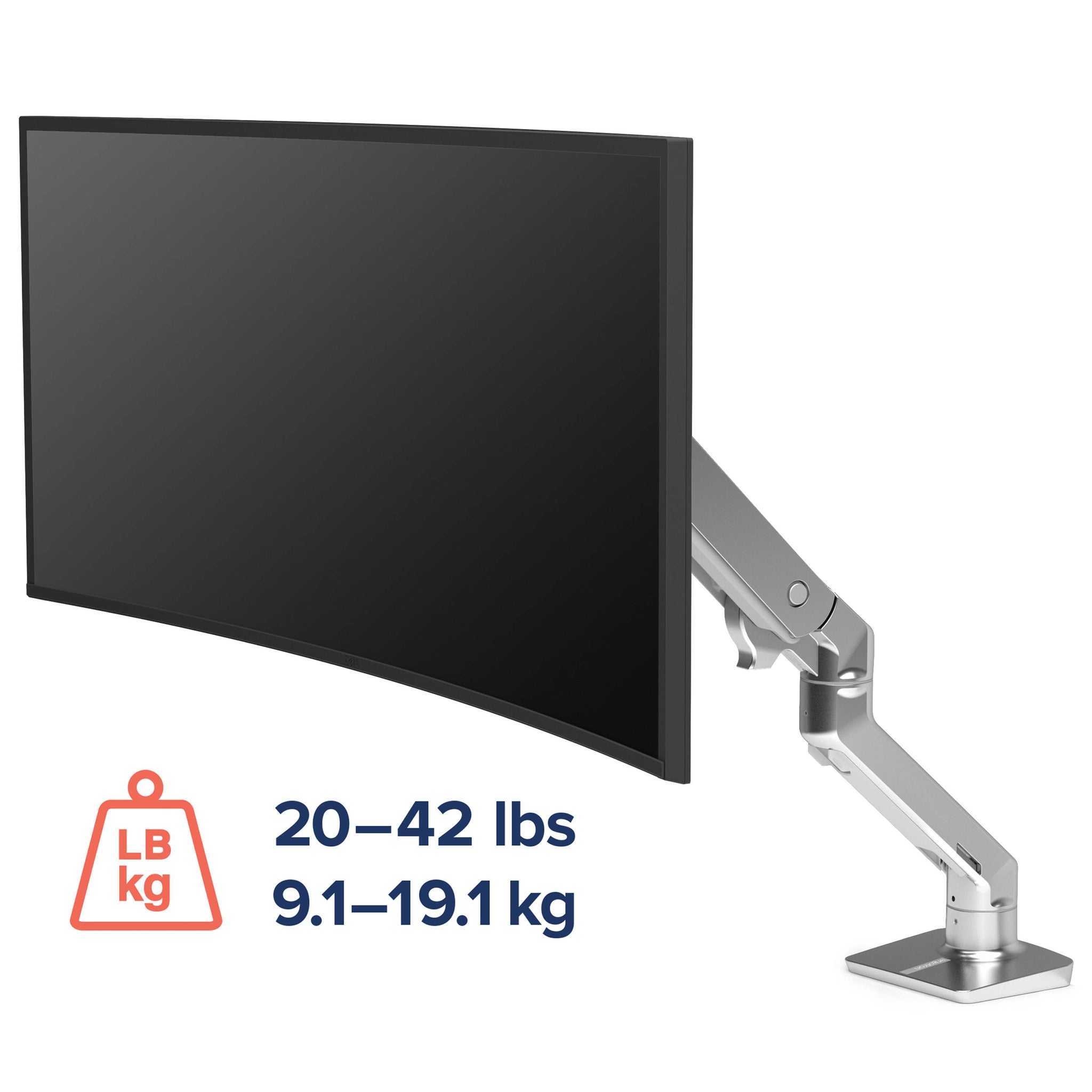

Weight Capacity: |
9–19 kg per monitor; use HX tilt accessory (98-540-216) for monitor depth > 6″ (15 cm) and weight >(12.7 kg) |

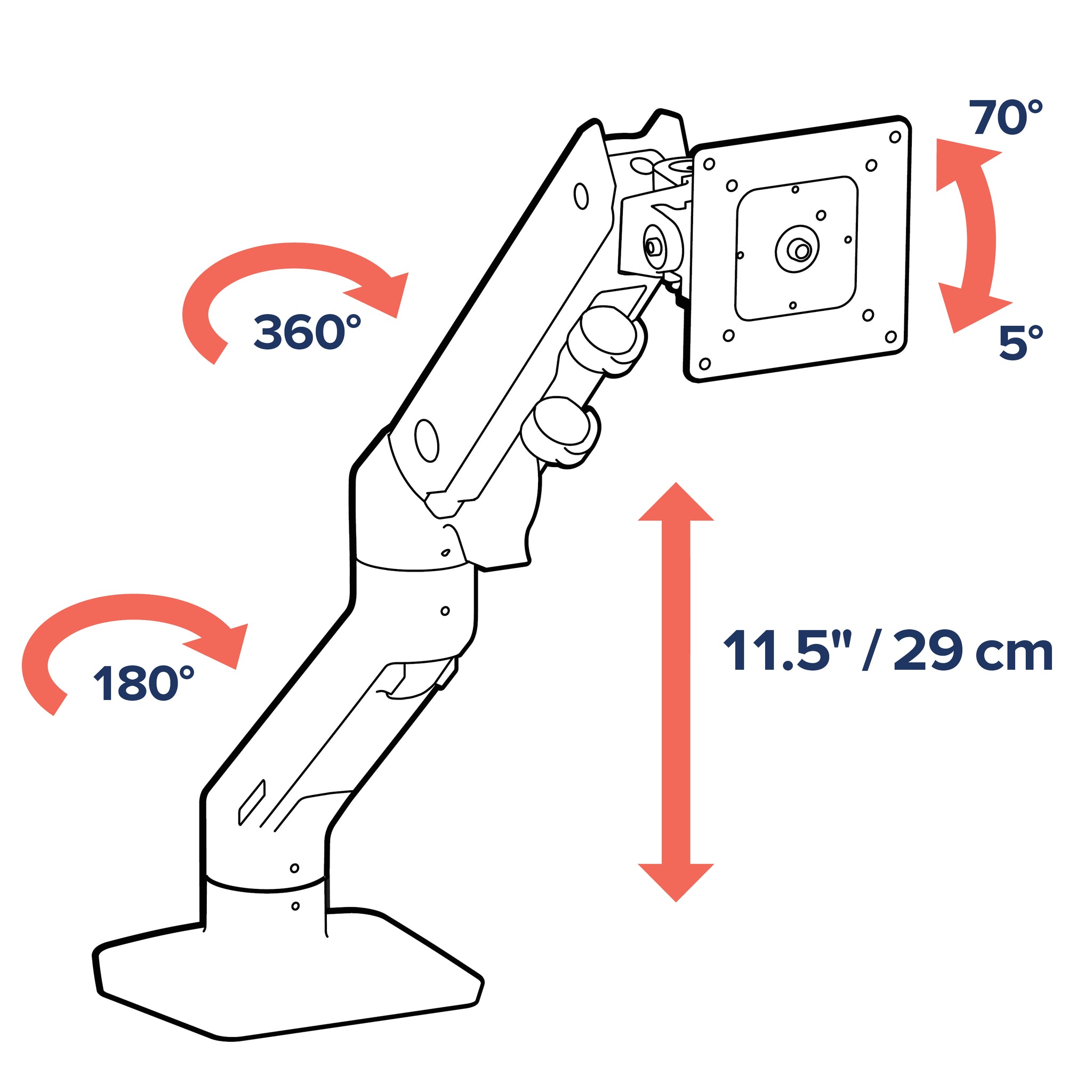

Lift: |
11.5″ (29,2 cm) |
Tilt: |
70° backward, 5° forward |
Extension Pan: |
360° |
Base Rotation: |
180° |
VESA |
VESA FDMI MIS-D, 100/75, C (100 x 100 mm & 75 x 75 mm hole pattern); HX Single also includes 200 x 200 mm |
Extension: | ≤ 25″ (60 cm) |
Shipping Weight: | 8.3 kg |
Shipping Dimensions: | 12.0″ x 19.2″ x 7.0″ (30.5 x 48.8 x 17.8 cm) |
Manufacturer's Warranty: |
10 Years Local Singapore Carry-In |
Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility.
For a display weighing (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required.
