Ergotron MXV Desk Dual Monitor Arm Polished Aluminum
PRODUCT DESCRIPTION
Ergotron MXV Desk Dual Monitor Arm Polished Aluminum (45-496-026) - 10 Years Local Warranty
Two Screens on One Desk Fixing, Fully Assembled Out of the Box
The Ergotron MXV Desk Dual Monitor Arm (45-496-026) carries two displays up to 24″ each, weighing 7–20 lbs (3.2–9.1 kg) per screen, from a single two-piece desk clamp that arrives already fitted. For Singapore service desks, development benches, accounts teams and dealing positions running the standard dual-24″ build, it replaces two factory stands with one clean, quick installation.
13 Inches of Constant Force Lift Across Both Arms
Ergotron's patented Constant Force™ technology gives 13″ (33 cm) of one-touch height adjustment on each arm, so both screens can be set to a correct eye line with a fingertip — no tools, no tension knobs, no gas struts to lose pressure. On hot-desked and shift-based positions the next user resets the whole workstation in seconds.
Independent Arms, 180 Degrees of Tilt and Portrait Rotation
Each screen sits on its own arm rather than a shared crossbar, so the two can be set at different heights, angles and depths — useful when one user prefers a lower secondary screen, or when one panel needs to face a colleague. A full 180° of tilt, 360° rotation and 180°/360° of pan cover portrait working and quick screen-sharing across the desk.
Recovers the Desk Space Two Monitor Stands Occupy
Removing two factory stands and floating both panels frees the deepest, most useful part of the worksurface — a genuine gain on the 600–700 mm bench desks standard in Singapore offices — and integrated cable routing keeps four or more leads off the desk instead of pooling behind it.
Ergotron MXV Desk Dual Monitor Arm Datasheet — Technical Specifications
General
| Product Name | Ergotron MXV Desk Dual Monitor Arm |
| Part Number | 45-496-026 (Polished Aluminium) |
| Product Type | Dual-monitor desk mount arm |
| Number of Screens | 2 |
| Lift Technology | Ergotron Constant Force™ |
| Mounting Type | Two-piece desk mounting clamp (included, factory fitted) |
| Assembly | Ships fully assembled |
| Manufacturer Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with GST invoice |
Display Compatibility
| Weight Capacity Per Monitor | 7–20 lbs (3.2–9.1 kg) |
| Maximum Screen Size | Up to 24″ per display |
| VESA Pattern | VESA MIS-D (100 x 100 mm and 75 x 75 mm hole pattern) |

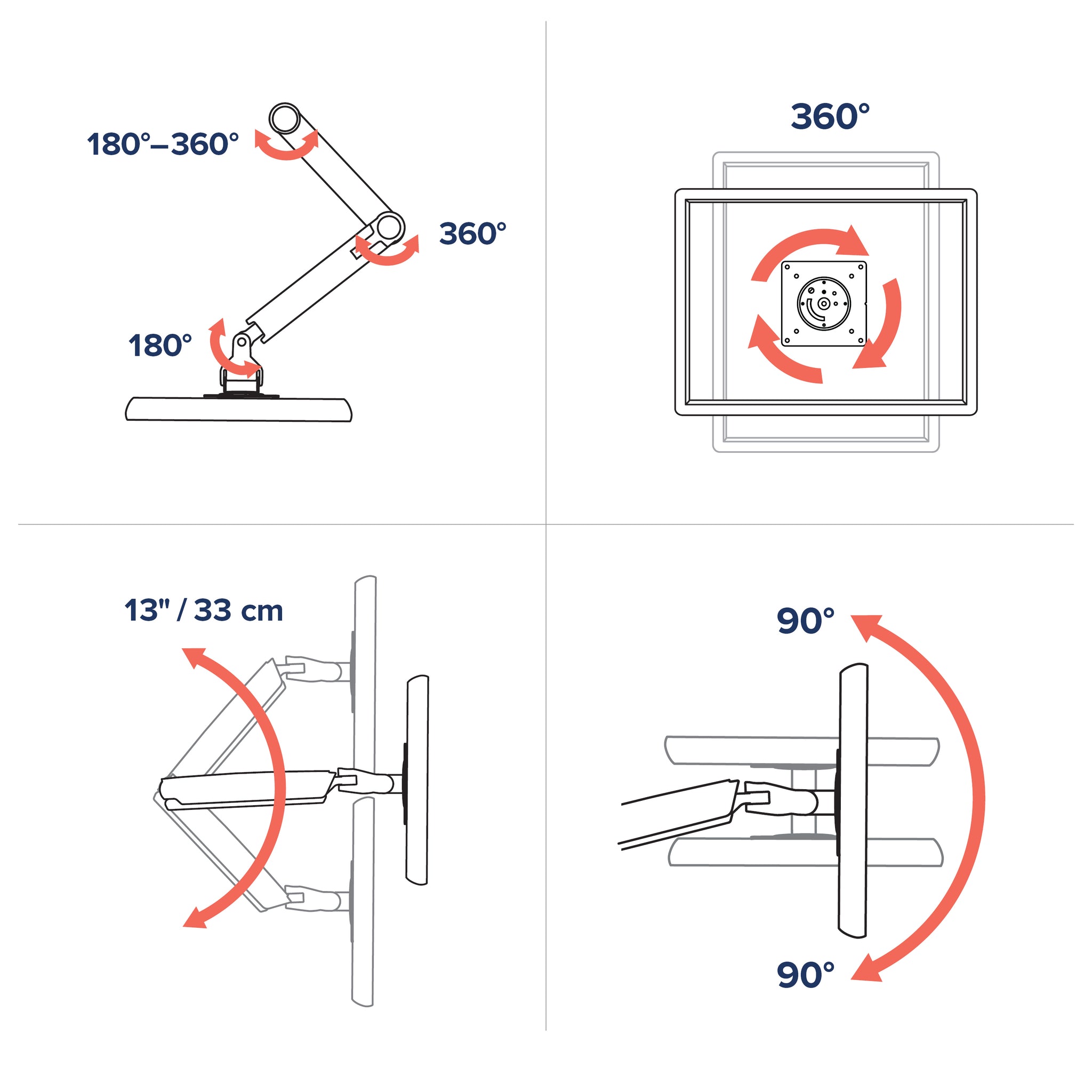

Adjustment & Motion
| Vertical Lift | 13″ (33 cm) |
| Tilt | 180° total — 90° up / 90° down |
| Pan | 180° / 360° |
| Rotation | 360° — portrait or landscape |
| Extension / Reach | Up to 22.2″ (56 cm) |
| Cable Management | Integrated cable routing along the arms |
Design & Durability
| Finish | Polished Aluminium |
| Construction | Aluminium |
| Product Weight | 10.1 lbs (4.9 kg) |
| Shipping Dimensions | 32.8″ x 12.6″ x 7.6″ (83 x 32 x 19 cm) |
| Shipping Weight | 15.1 lbs (6.9 kg) |
Compatibility & Fit
The MXV Desk Dual Monitor Arm carries two screens from a single desk fixing. Note the 24″ per-display size limit — it is tighter than the 34″ the single-screen MXV allows, and it is the specification most often missed when ordering.
| VESA Pattern | VESA MIS-D — 100 x 100 mm and 75 x 75 mm |
| Screen Size | Up to 24″ per display |
| Weight Per Screen | 7–20 lbs (3.2–9.1 kg) — measured without the factory stand |
| Number of Screens | Two |
| Mounting Type | Two-piece desk clamp, supplied fitted |
| C-Clamp Version | See the MXV Desk Dual Monitor Arm with Under Mount C-Clamp (45-518-216) |
| Wall Mounting | Not applicable — for a wall-mounted MXV see the MXV Wall Monitor Arm (45-505) |
The size limit is the one to check. Two 24″ panels are the design case. If your standard build is 27″ or 32″ screens, this is not the right arm — use the HX Dual Monitor Desk Arm (45-476), which takes two displays up to 32″ each.
Ultrawide and curved screens: outside this arm's envelope. For one large curved ultrawide use the HX Desk Monitor Arm with HD Pivot; for a single 34″ panel, the MXV Desk Monitor Arm (45-486).
Package Contents & MXV Ordering Information

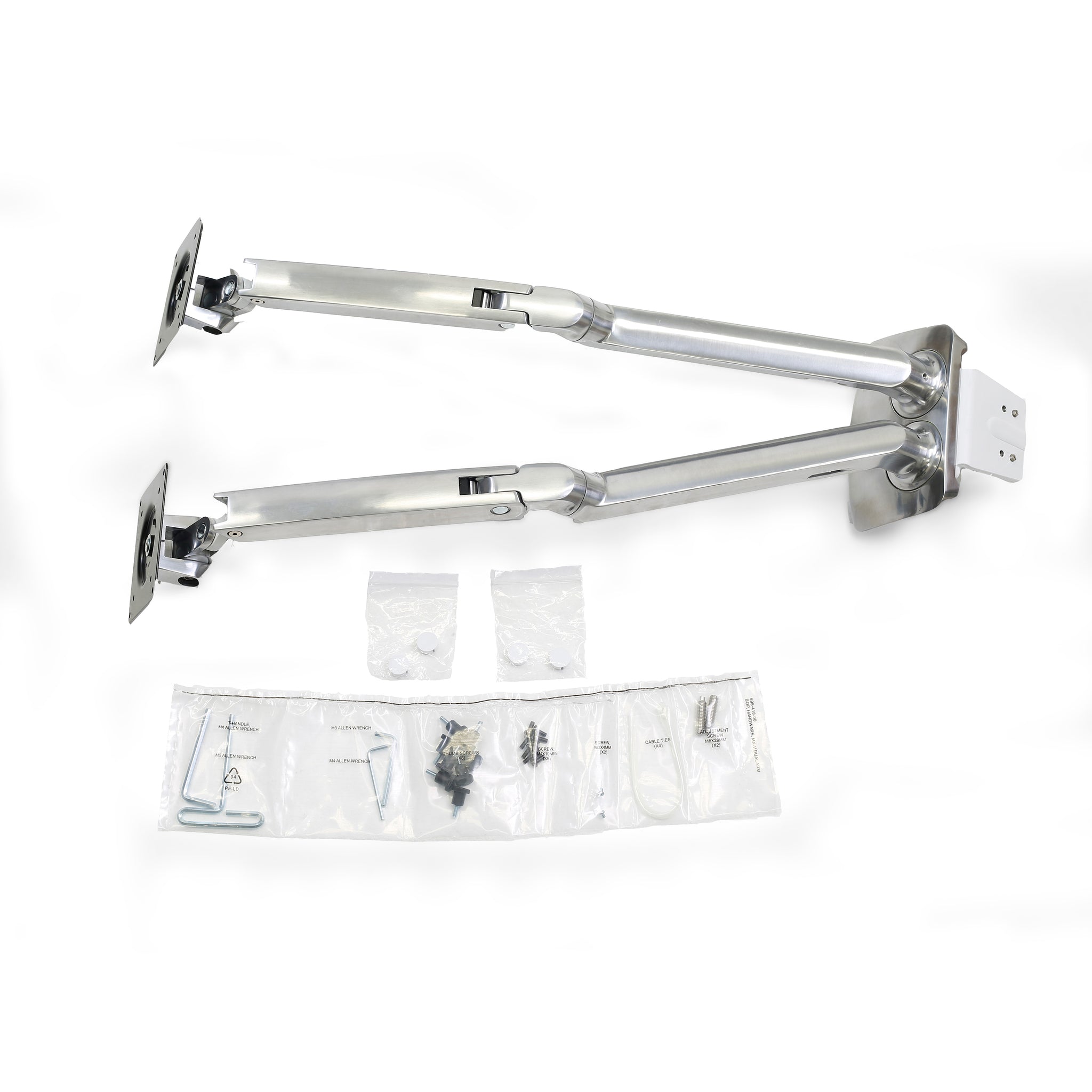

In the Box
- Fully assembled MXV dual arm
- Two-piece desk mounting clamp (fitted)
- Monitor mounting hardware
- Instruction manual
MXV Desk Dual Monitor Arm — Finishes & Mounting Options
| 45-496-026 | Polished Aluminium — two-piece desk clamp (this listing) |
| 45-496-216 | White — two-piece desk clamp |
| 45-496-224 | Matte Black — two-piece desk clamp — not stocked; available to order |
| 45-518-216 | White — under-mount C-clamp |
Other MXV Arms in the SourceIT Catalogue
| 45-486-216 | MXV Desk Monitor Arm, White — single screen up to 34″ |
| 45-496-026 / 45-496-216 | MXV Desk Dual Monitor Arm — two screens up to 24″ |
| 45-518-216 | MXV Desk Dual Monitor Arm with Under Mount C-Clamp |
| 45-505-026 / 45-505-216 | MXV Wall Monitor Arm — single screen up to 34″ |
Heavier-Duty Alternatives
| 45-475-026 / 216 / 224 | HX Desk Monitor Arm — up to 49″ and 42 lbs |
| 45-478-026 / 45-478-216 | HX Wall Monitor Arm — up to 49″ and 42 lbs |
| 45-241-026 | LX Desk Mount Monitor Arm — 7–25 lbs, full motion |
Datasheet & Downloads
- Ergotron MXV Desk Dual Monitor Arm official product page (ergotron.com)
- Official Ergotron MXV Desk Monitor Arm datasheet (PDF)
Need the datasheet emailed as a PDF for a tender or quotation? Contact SourceIT Pte Ltd at sales@sourceit.com.sg.
Frequently Asked Questions — Ergotron MXV Desk Dual Monitor Arm
What finishes does the MXV Desk Dual Monitor Arm come in?
Ergotron publishes polished aluminium (45-496-026), white (45-496-216) and matte black (45-496-224) for the standard clamp version, and white (45-518-216) for the under-mount C-clamp version. Capacity, lift, reach and VESA support are identical — only the finish and the mounting method differ.
What monitor size and weight does it support?
Two displays up to 24″ each, weighing 7–20 lbs (3.2–9.1 kg) per screen, measured without the factory stands. The 24″ limit is tighter than the 34″ the single-screen MXV allows — check your panels against it before ordering.
Why is the size limit lower than the single-screen MXV arm?
Because two screens side by side put far more leverage on one desk fixing than a single screen does. The single-screen MXV Desk Monitor Arm (45-486) carries one display up to 34″; the dual is rated to 24″ per screen. For two larger panels, the HX Dual Monitor Desk Arm (45-476) takes 32″ each.
How does it mount, and is there an under-desk option?
It ships with a two-piece desk mounting clamp already fitted, gripping the desk edge with no drilling required. If you prefer a fixing from underneath the worksurface, Ergotron builds that as a separate model — the MXV Desk Dual Monitor Arm with Under Mount C-Clamp (45-518-216), which fits desks 0.98″–1.38″ (25–35 mm) thick.
Do I need a VESA adapter?
Not for standard displays — VESA MIS-D covers 100 x 100 mm and 75 x 75 mm. Screens with a larger or proprietary pattern need the display manufacturer's own adapter plate.
Can I set one screen to portrait?
Yes. Each arm rotates 360°, so either screen can run portrait for code, logs or long documents alongside a landscape primary display — a common arrangement on development and service desks.
Does it help with sit-stand or ergonomic setup?
It gives 13″ (33 cm) of Constant Force lift and a full 180° of tilt, which is ample for setting both screens to a correct seated eye line and for use on a height-adjustable desk. For moving screens between seated and standing heights on a fixed desk, the LX Sit-Stand Desk Arm gives 20″ (51 cm) of travel, though only for a single display.
Does it come with a Singapore warranty?
Yes. Every Ergotron MXV Desk Dual Monitor Arm sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the MXV Desk Dual Monitor Arm with a 10-year manufacturer warranty.
