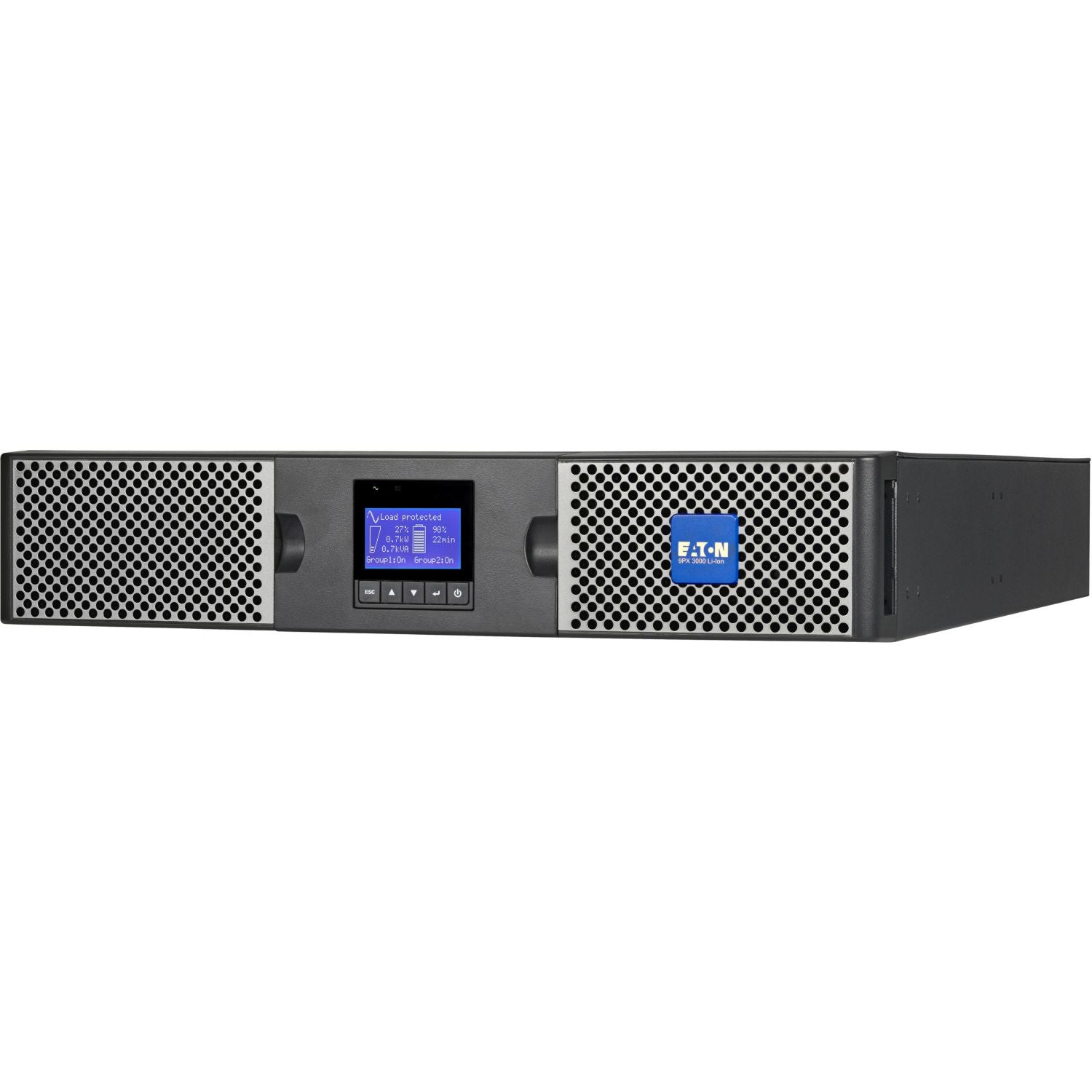

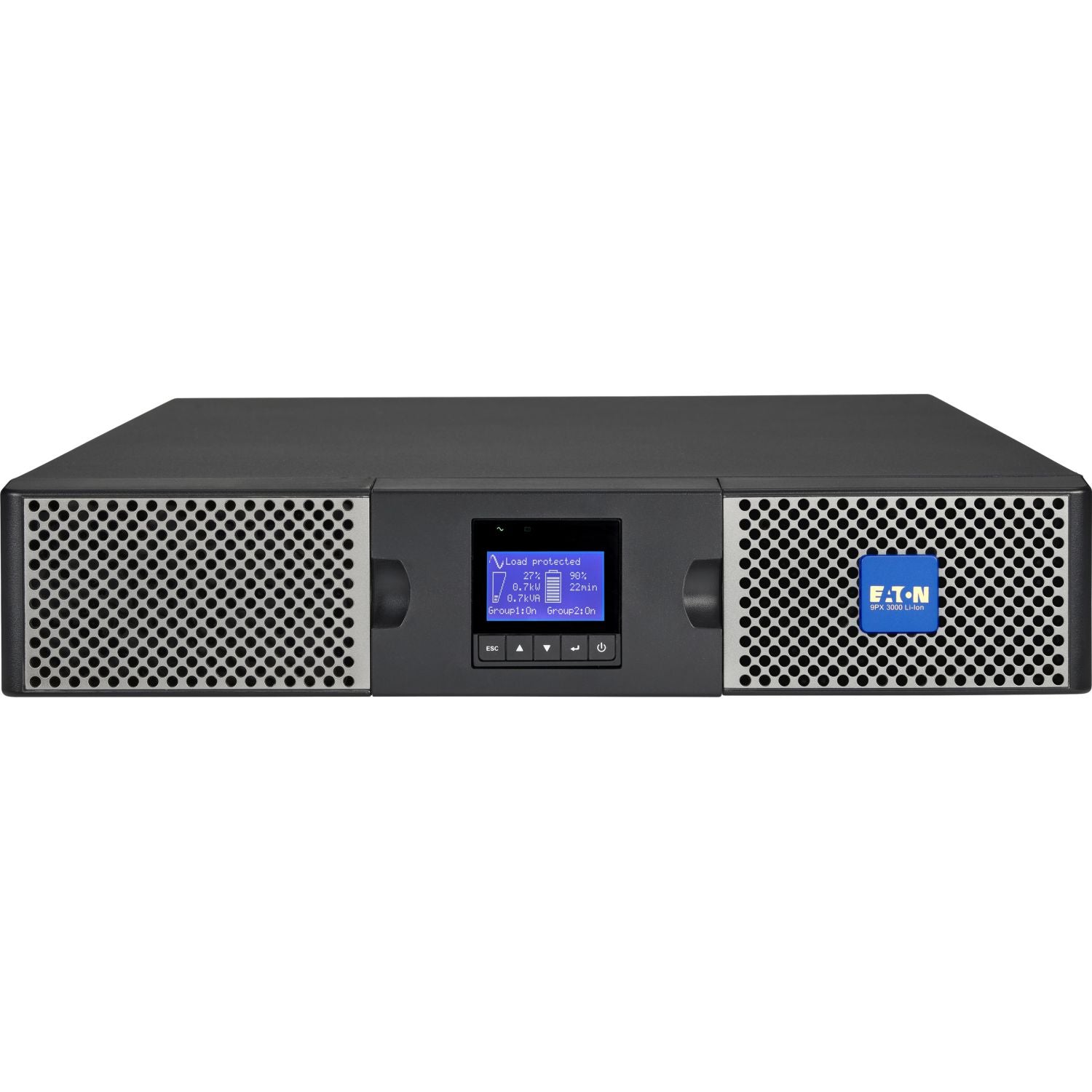

Eaton 9PX Lithium-ion 3000VA 2400W Online Rack/Tower 2U UPS, 8x C13 + 2x C19
PRODUCT DESCRIPTION
Eaton 9PX Lithium-ion 3000VA/2400W RT2U UPS (9PX3000IRT2U-L, 9103-LB83988) - 5 Years Local Warranty
Online Double-Conversion Protection with an 8–10 Year Lithium Battery
The Eaton 9PX3000IRT2U-L is the largest model in the 9PX Lithium-ion 1000–3000 VA range: a 3000 VA online double-conversion UPS in a 2U rack/tower chassis with lithium iron phosphate (LFP) batteries. For Singapore server rooms, network cabinets and edge sites it delivers clean, regulated power continuously, and Eaton rates the battery for 8–10 years of service life.
Fewer battery replacements over the life of the UPS mean lower total cost of ownership and fewer site visits to unmanned cabinets and branch offices.
3000 VA / 2400 W, Rising to 3000 W with a Battery Module
Eaton rates the 9PX3000IRT2U-L at 3000 VA / 2400 W on its own and 3000 VA / 3000 W when an extended battery module (EBM) is connected. Power is delivered through 8 IEC C13 and 2 IEC C19 outlets in 2 switchable groups, with efficiency of up to 94% online and up to 98% in high-efficiency mode. The input accepts 176–276 V without derating (100–276 V with derating).
Scalable Runtime with 1U Lithium Battery Modules
Up to four 9PXEBM72RT1U-L battery modules, each only 1U, can be added. Eaton publishes 10.5 minutes at 2400 W on the internal battery, 28 minutes with one EBM and 78 minutes with four.
Managed and Rack-Ready
USB and RS232, a mini-terminal block for remote ON/OFF and remote power off, and an output relay are standard, with a slot for an Eaton Gigabit Network card for SNMP/web monitoring and network shutdown.
Supplied Locally with GST Invoice and 5-Year Warranty
SourceIT supplies the 9PX Lithium in Singapore with a full GST invoice and local warranty support. Eaton's East Asia datasheet lists a 5-year full warranty covering the electronics, internal batteries and EBM, and Eaton's Singapore price list confirms 5 years.
Need runtime sized for your rack? Email sales@sourceit.com.sg with your load in watts.
Eaton 9PX3000IRT2U-L Datasheet — Technical Specifications
General
| Product Name | Eaton 9PX Lithium-ion 3000VA RT2U |
| Catalogue Number | 9PX3000IRT2U-L |
| Part Number (SKU) | 9103-LB83988 |
| Range | Eaton 9PX Lithium-ion 1000–3000 VA |
| Topology | Online double conversion |
| Form Factor | Rack/tower 2U (RT2U) |
| Manufacturer Warranty | 5 years full warranty (electronics, internal batteries and EBM) — Eaton East Asia datasheet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Input
| Input Voltage Range | 176–276 V without derating (up to 100–276 V with derating) |
| Frequency | 40–70 Hz, 50/60 Hz auto-selection, frequency converter mode |
| Input Connection | 1 x IEC C20 (16 A) |
Output
| Rated Power | 3000 VA / 2400 W (3000 VA / 3000 W with EBM) |
| Output Outlets | 8 x IEC C13 (10 A) + 2 x IEC C19 (16 A) |
| Switchable Outlet Groups | 2 |
| Efficiency | Up to 94% online; up to 98% high-efficiency mode |
Battery & Runtime (Eaton published)
| Battery Type | Lithium-ion (LFP) |
| Battery Service Life | 8–10 years |
| Internal Battery | 300 W: 68 min; 500 W: 46 min; 800 W: 30 min; 1200 W: 21 min; 1800 W: 14 min; 2400 W: 10.5 min |
| With 1 EBM | 300 W: 184 min; 500 W: 120 min; 800 W: 80 min; 1200 W: 54 min; 1800 W: 37 min; 2400 W: 28 min |
| With 4 EBM | 300 W: 516 min; 500 W: 320 min; 800 W: 215 min; 1200 W: 153 min; 1800 W: 104 min; 2400 W: 78 min |
| Compatible EBM | 9PXEBM72RT1U-L (up to 4) |
Communications
| Standard Ports | 1 x USB, 1 x RS232, mini-terminal block for remote ON/OFF, remote power off and output relay |
| Card Slot | 1 (Eaton Gigabit Network card) |
Physical & Environmental
| Dimensions (H x W x D) | 86.5 x 440 x 605 mm |
| Weight | 22.8 kg |
| Noise Level | 40 dB |
| Operating Temperature | 0–40 °C |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
Compatibility & Software Support
What It Is Suited To
The 9PX3000IRT2U-L suits a rack of servers, switches, firewalls and storage up to 2400 W (3000 W with an EBM connected). The input is an IEC C20 (16 A) inlet, so plan for a 16 A supply or a C19-equipped PDU upstream.
Monitoring and Shutdown
Use USB or RS232 for a single host, or add an Eaton Gigabit Network card for SNMP/web monitoring and orderly multi-server or virtualised shutdown with Eaton Intelligent Power Manager.
Outlets
8 x IEC C13 and 2 x IEC C19. Equipment with BS 1363 (Type G) plugs needs an IEC lead or an IEC-input power strip.
Package Contents & 9PX Lithium Ordering Information
In the Box
Eaton 9PX Lithium-ion UPS with user documentation. Eaton's datasheet does not list the carton contents, so confirm rail kit and cables with us before ordering.
Eaton 9PX Lithium-ion 1000–3000 VA — Ordering Information
| 9PX1000IRT2U-L | 1000 VA / 1000 W | 9103-LB53924 |
| 9PX1500IRT2U-L | 1500 VA / 1500 W | 9103-LB63163 |
| 9PX2200IRT2U-L | 2200 VA / 2200 W | 9103-LB73949 |
| 9PX3000IRT2U-L (this listing) | 3000 VA / 2400 W (3000 W with EBM) | 9103-LB83988 |
Eaton notes on the Singapore price list that 9PX Lithium order quantities must be in multiples of the MOQ; ask us for current availability.
Extended Warranty
The 9PX Lithium already carries a 5-year warranty. Ask us about service options beyond that.
Datasheet & Downloads
| Eaton datasheet | Eaton 9PX Lithium-ion UPS 1000–3000VA Datasheet — East Asia (PDF) |
| Eaton user guide | Eaton 9PX Lithium-ion Advanced User's Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9PX3000IRT2U-L.
Frequently Asked Questions — Eaton 9PX3000IRT2U-L
Is it 3000 W or 2400 W?
Eaton rates the 9PX3000IRT2U-L at 3000 VA / 2400 W on its internal battery and 3000 VA / 3000 W when an EBM is connected. Size your load against 2400 W unless you are adding a 9PXEBM72RT1U-L.
How long will it run on battery?
Eaton publishes 68 min at 300 W and 10.5 min at 2400 W on the internal battery, extendable to 78 min at 2400 W with four EBMs.
How is the battery pack replaced?
Eaton's video below shows the battery pack replacement for the 9PX 2200–3000 RT2U Li-ion models.
What warranty do I get?
5 years on the UPS electronics, internal batteries and EBM, supplied by SourceIT with local Singapore support and a GST invoice.
