Eaton 5P650IRG2-L 650i Rack 1U Lithium-ion G2 UPS

Eaton 5P650IRG2-L 650i Rack 1U Lithium-ion G2 UPS (9210-LB3300) - 3 Years Local Warranty

Enterprise-Class Power Protection for Critical IT Systems

The Eaton 5P650IRG2-L 650i Rack 1U Lithium-ion G2 UPS is designed to provide reliable backup power and advanced power conditioning for servers, network switches, storage systems, and edge computing environments. Built for mission-critical applications, this compact rackmount UPS helps protect connected equipment against power outages, voltage fluctuations, and electrical disturbances while maintaining business continuity.

Long-Life Lithium-ion Battery Technology

Unlike conventional UPS systems that use traditional lead-acid batteries, the Eaton 5P650IRG2-L utilizes advanced Lithium-ion battery technology, offering a significantly longer service life, reduced maintenance requirements, faster recharge times, and a lower total cost of ownership. This makes it an excellent choice for organizations seeking a modern, energy-efficient UPS solution for long-term deployment.

Pure Sine Wave Output with Advanced Power Management

Delivering 650VA / 520W of power capacity, the Eaton 5P650IRG2-L features line-interactive topology with Automatic Voltage Regulation (AVR) and pure sine wave output. This ensures maximum compatibility with modern servers, virtualization platforms, storage devices, and networking equipment. Intelligent energy metering, remote outlet management, and Eaton's advanced battery management technology further enhance reliability and operational efficiency.

Compact 1U Rack Design for Modern Data Centers

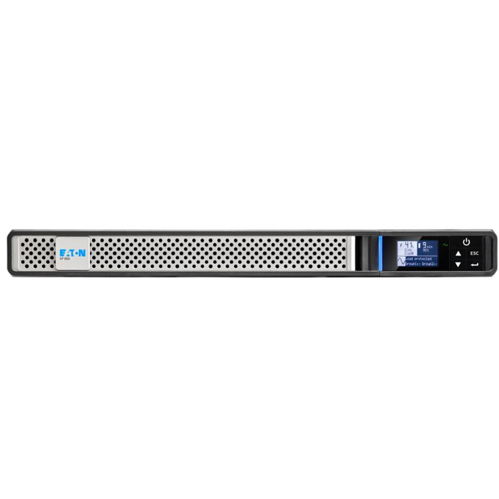

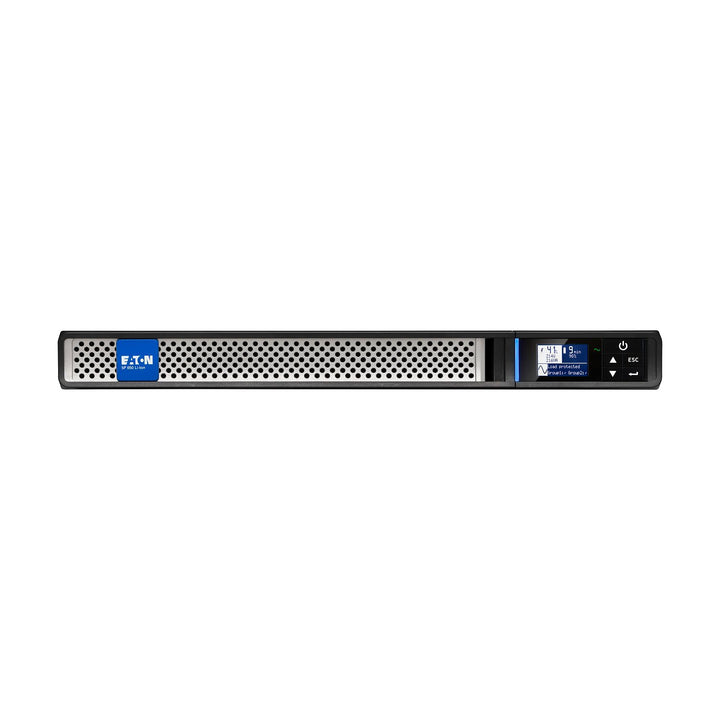

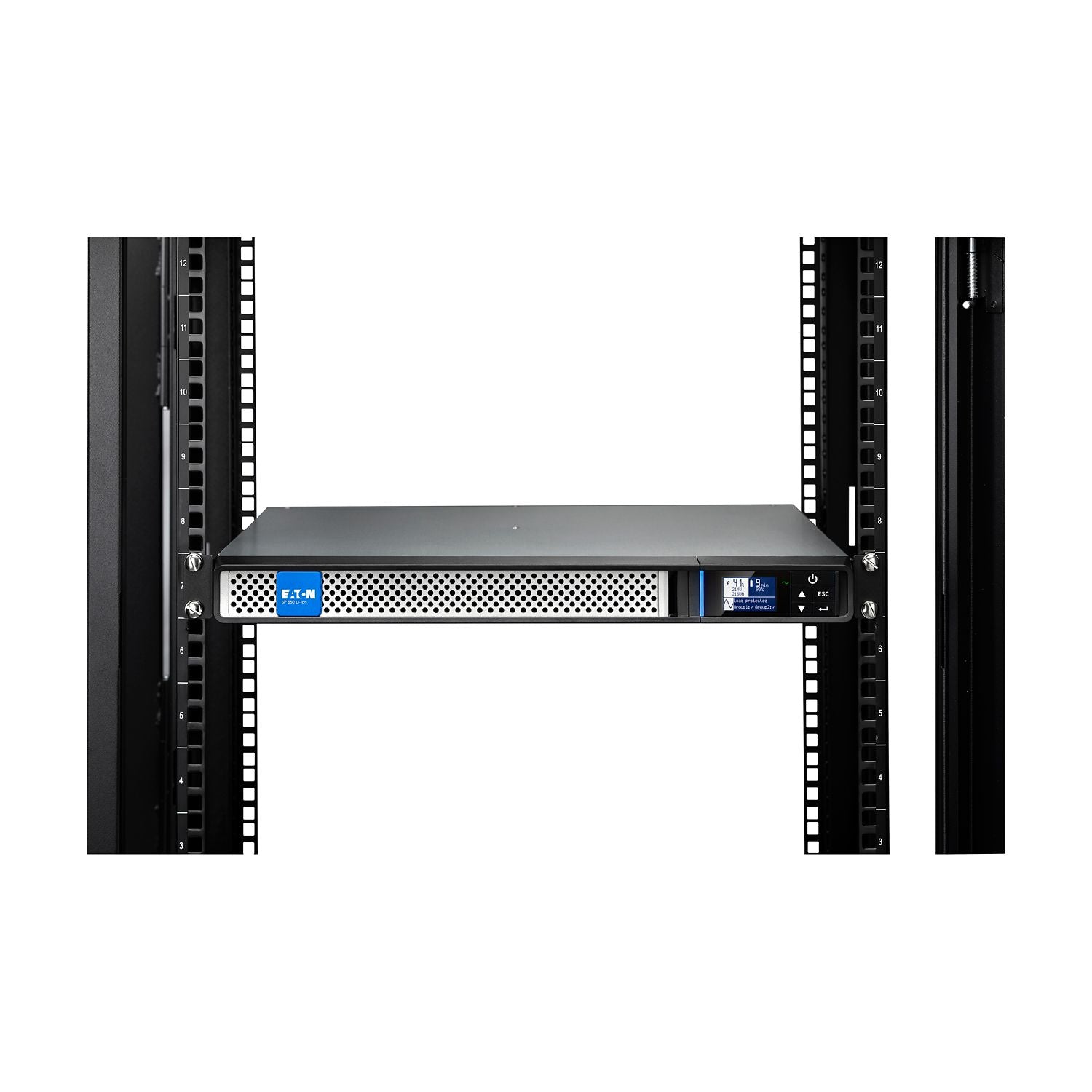

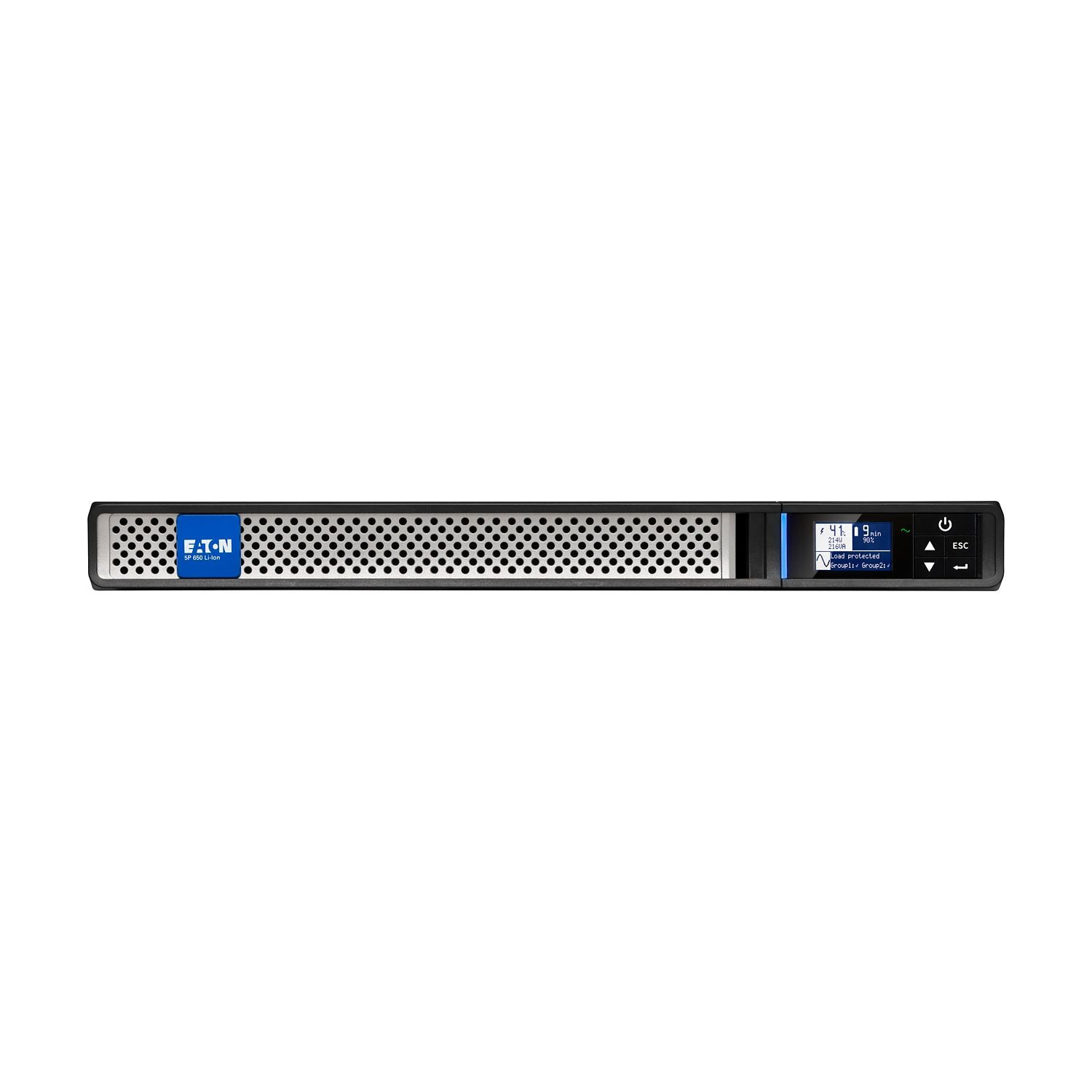

The space-saving 1U rackmount form factor allows the UPS to fit easily into standard 19-inch server racks. The multilingual LCD display provides real-time monitoring of power conditions, battery status, and system performance. Hot-swappable battery support minimizes downtime during maintenance, making it ideal for enterprise server rooms, branch offices, and edge infrastructure deployments.

Technical Specifications

General
Model: 5P650IRG2-L
Part Number: 9210-LB3300
Product Name: Eaton 5P650IRG2-L 650i Rack 1U Lithium-ion G2 UPS
Manufacturer: Eaton
Product Type: Line-Interactive UPS (Uninterruptible Power Supply)
Series: Eaton 5P Gen2 Lithium-ion Series
Form Factor: Rack Mount
Rack Height: 1U
Topology: Line-Interactive with AVR
Deployment: Edge IT, Network Closets, Servers, Storage Systems, Telecom Equipment
Battery Technology: Lithium-Ion (Li-ion)
Display Type: Graphical LCD Display with Blue Backlight
Warranty: 5 Years Warranty (Region Dependent)
Management Platform: Eaton Brightlayer Software Suite Compatible
Remote Management: Optional Network Management Card Support
Target Environment: Enterprise IT, Healthcare, Retail, Education, Industrial Edge Computing

Power Specifications
Power Capacity: 650 VA
Power Rating: 520 Watts
UPS Topology: Line-Interactive
Waveform Type: Pure Sine Wave Output
Automatic Voltage Regulation (AVR): Supported
Input Voltage: 230V Default (Selectable 200V / 208V / 220V / 230V / 240V)
Output Voltage: 230V Default (Selectable)
Nominal Frequency: 50/60 Hz
Input Frequency Range: 47 Hz – 70 Hz
Transfer Time: Typical 2–10 ms
Energy Efficiency: Up to 97%
Power Factor: Optimized for Modern IT Equipment

Battery Specifications
Battery Technology: Lithium-Ion (Li-ion)
Battery Management: Intelligent Battery Monitoring
Battery Life Expectancy: Up to 8–10 Years (Typical)
Recharge Time: Fast Recharge Technology
Battery Replacement: User Replaceable
Hot-Swappable Battery: Supported
Battery Monitoring: Real-Time Status Monitoring
Deep Discharge Protection: Supported
Automatic Battery Test: Supported
Battery Health Prediction: Supported
Extended Battery Modules: Not Supported on 650VA Model

Output Connections
Output Receptacles: 4 × IEC C13
Manageable Load Segments: 2 Groups
Remote Reboot Capability: Supported
Load Shedding: Supported
Critical Load Prioritization: Supported
Outlet Energy Metering: Supported

Input Specifications
Input Connection: IEC C14
Input Voltage Range: 160V – 294V
Adjustable Input Range: 150V – 294V
Input Current: 3.1A
Input Frequency: 50/60Hz Auto-Sensing
Surge Protection: Supported

Communication Interfaces
USB Port: 1 × HID-Compliant USB
Serial Port: 1 × RS-232
Dry Contact Interface: Supported
Remote Power Off (RPO): Supported
Remote On/Off Control: Supported
Expansion Slot: 1 × Communication Card Slot
Network Management Card: Optional
Relay Card Support: Supported
Industrial Gateway Card Support: Supported
Ethernet Interface: Optional via Expansion Card

Management Features
Graphical LCD Display: Supported
Multilingual Interface: Supported
Power Consumption Monitoring: Supported
Energy Metering: Supported
Load Monitoring: Supported
Battery Runtime Monitoring: Supported
Event Logging: Supported
Alarm Management: Supported
Remote Configuration: Supported with Optional Network Card
Remote Firmware Updates: Supported
Virtualization Integration: VMware, Hyper-V, Citrix XenServer Support

Protection Features
Power Failure Protection: Supported
Brownout Protection: Supported
Overvoltage Protection: Supported
Undervoltage Protection: Supported
Surge Protection: Supported
Short Circuit Protection: Supported
Overload Protection: Supported
Battery Deep Discharge Protection: Supported
Automatic Restart: Supported
Pure Sine Wave Output: Supported

Software Compatibility
Eaton Brightlayer Software Suite: Supported
Shutdown Software: Included
Remote Monitoring: Supported
Virtualization Platforms: Supported
VMware Compatibility: Supported
Microsoft Hyper-V Compatibility: Supported
Citrix XenServer Compatibility: Supported
Linux Compatibility: Supported
Windows Compatibility: Supported

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Relative Humidity: 0% to 90% Non-Condensing
Maximum Operating Altitude: 3000 m
Noise Level: Less Than 35 dB at 1 Meter

Design & Construction
Form Factor: Rack Mount
Rack Size: 19-Inch Standard Rack
Rack Height: 1U
Color: Black / Silver
Construction: Enterprise-Class Metal Chassis
Rack Mount Kit: Included
Cable Locking System: Included
High-Density Design: Optimized for Shallow Racks and Network Cabinets

Physical Specifications
Dimensions (D × W × H): 361 × 438 × 43.2 mm
Rack Height: 1U
Weight: 8.6 kg
Color: Black / Silver

Package Contents
Eaton 5P650IRG2-L Lithium-ion UPS
Rack Mounting Kit
Cable Locking System
USB Communication Cable
2 × IEC Power Cables
Quick Start Guide
Safety Documentation

Key Features
Lithium-Ion Battery Technology
650VA / 520W Power Protection
1U High-Density Rack Design
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
97% Energy Efficiency
Hot-Swappable Batteries
Graphical LCD Display
Energy Metering Functionality
2 Manageable Load Segments
USB and Serial Connectivity
Optional Network Management Card Support
Remote Monitoring and Management
Virtualization Platform Compatibility
Enterprise-Grade Power Protection

Performance & Features
Designed for critical edge computing and distributed IT environments
Lithium-ion batteries offer longer lifespan and lower maintenance compared to traditional VRLA batteries
Provides clean sine wave power for servers, switches, storage arrays, and networking equipment
Supports remote reboot and runtime optimization through manageable outlet groups
Energy metering helps monitor and optimize power consumption
Advanced battery analytics improve battery life prediction and reliability
Compact 1U chassis ideal for shallow racks and space-constrained deployments
High efficiency design reduces power and cooling costs
Suitable for always-on business-critical infrastructure and edge computing applications

Typical Use Cases
Network Closets
Server Rooms
Edge Computing Deployments
Telecommunications Equipment
Firewall and Security Appliances
Storage Systems
Retail IT Infrastructure
Healthcare IT Systems
Industrial Edge Environments
Branch Office Infrastructure
Managed Service Provider Deployments
Enterprise Rack Cabinets
Critical Business Systems
Virtualized IT Environments
