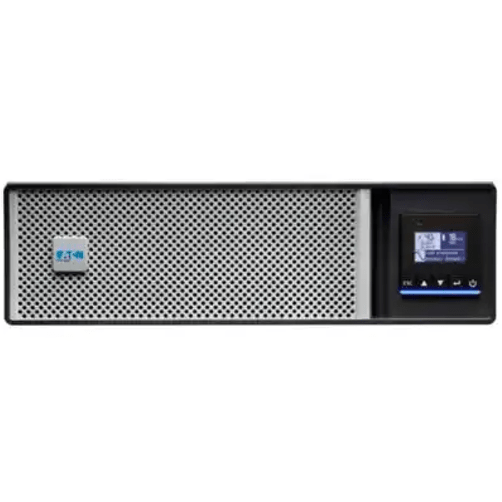

Eaton 5P1550IRT2UG2-L 1550i Rack/Tower 2U Lithium-ion G2 UPS

Eaton 5P1550IRT2UG2-L 1550i Rack/Tower 2U Lithium-ion G2 UPS (9210-LB6300) - 3 Years Local Warranty

Advanced Lithium-ion UPS for Business-Critical Applications

The Eaton 5P1550IRT2UG2-L 1550i Rack/Tower 2U Lithium-ion G2 UPS is designed to deliver dependable power protection for servers, network switches, storage devices, security systems, and critical business infrastructure. Featuring advanced Lithium-ion battery technology and a versatile rack/tower convertible design, this UPS helps organizations maintain operational continuity while protecting valuable equipment from power outages, surges, and voltage fluctuations.

Longer Battery Life with Reduced Maintenance

Equipped with next-generation Lithium-ion batteries, the Eaton 5P1550IRT2UG2-L offers significantly longer service life compared to conventional lead-acid UPS systems. The advanced battery technology reduces maintenance requirements, lowers replacement costs, and delivers faster recharge times, making it an ideal solution for businesses seeking long-term reliability and lower total cost of ownership.

Pure Sine Wave Output for Sensitive IT Equipment

Delivering 1550VA of backup power capacity, the Eaton 5P Gen2 UPS provides pure sine wave output for maximum compatibility with modern servers, virtualization environments, storage systems, and networking equipment. Automatic Voltage Regulation (AVR) helps stabilize incoming power fluctuations without unnecessarily switching to battery mode, extending battery lifespan while ensuring stable power delivery.

Flexible Deployment for Rack or Tower Environments

The convertible 2U rack/tower form factor provides deployment flexibility for server rooms, network closets, branch offices, edge computing installations, and enterprise environments. An intuitive LCD interface enables real-time monitoring of load levels, battery status, runtime estimates, and power conditions, simplifying UPS management and maintenance.

Technical Specifications

General
Model: 5P1550IRT2UG2-L
Part Number: 9210-LB6300
Product Name: Eaton 5P1550IRT2UG2-L 1550i Rack/Tower 2U Lithium-ion G2 UPS
Manufacturer: Eaton
Product Type: Line-Interactive UPS (Uninterruptible Power Supply)
Series: Eaton 5P Gen2 Lithium-ion Series

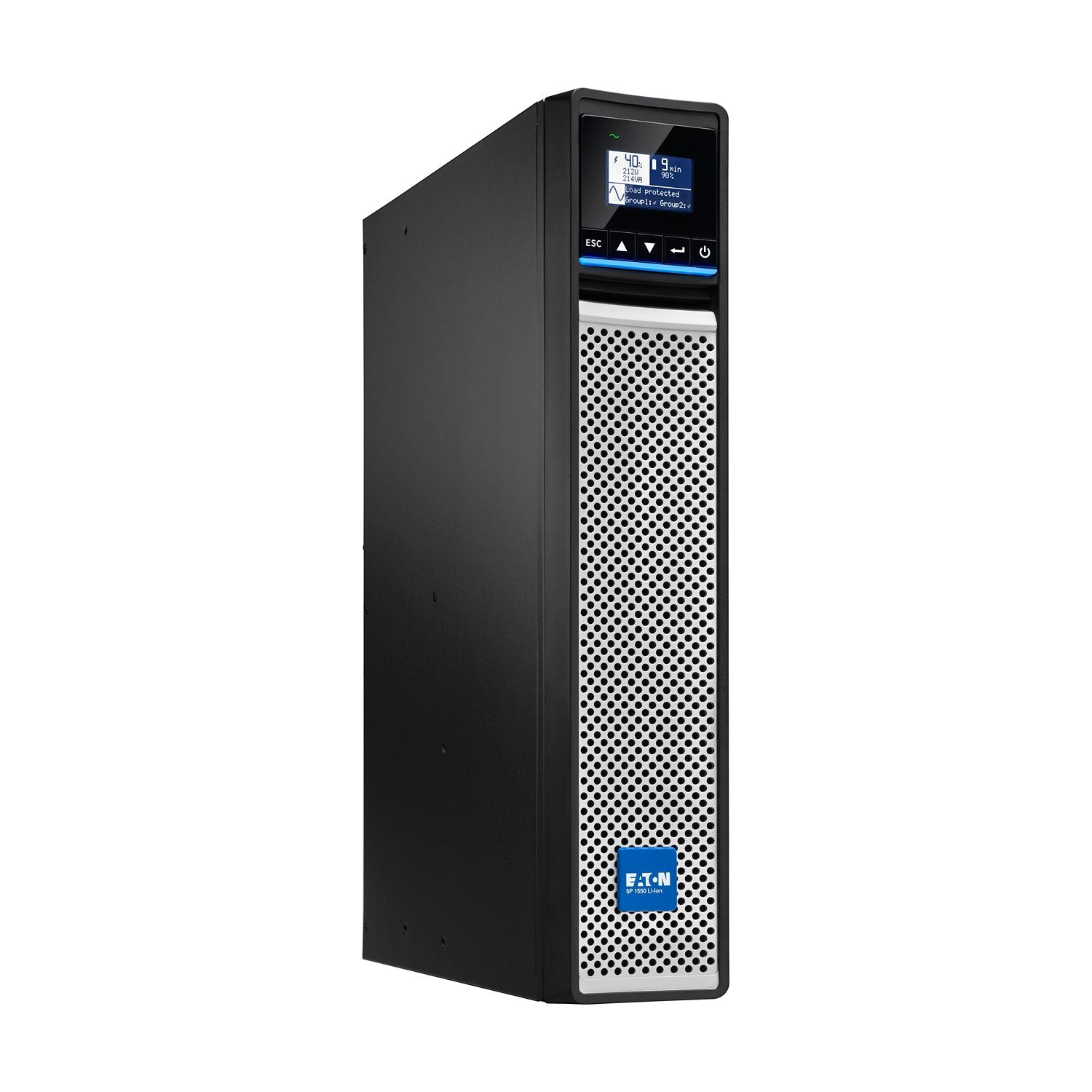

Form Factor: Rack/Tower Convertible
Rack Height: 2U
Topology: Line-Interactive with AVR
Battery Technology: Lithium-Ion (Li-ion)
Display Type: Graphical LCD Display with Blue Backlight
Output Waveform: Pure Sine Wave
Deployment: Servers, Network Switches, Storage Systems, Security Appliances, Edge Computing, Telecom Equipment, IT Infrastructure
Management Platform: Eaton Brightlayer Software Suite
Remote Management: Optional Network-M3 Card Support
Warranty: 5 Years Limited Warranty

Power Specifications
Power Capacity: 1550 VA
Power Rating: 1350 Watts
Output Power Factor: 0.9
UPS Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Nominal Voltage: 230V
Selectable Output Voltage: 200V / 208V / 220V / 230V / 240V
Input Voltage Range: 160V – 294V
Extended Input Range: 150V – 294V (Configurable)
Input Frequency Range: 47Hz – 70Hz
Output Frequency: 50/60Hz Auto-Sensing
Efficiency: Up to 98.2%
Automatic Voltage Regulation (AVR): Supported
Load Segment Control: Supported

Battery Specifications
Battery Technology: Lithium-Ion (Li-ion)
Battery Management: Eaton ABM+ Advanced Battery Management
Battery Lifespan: Up to 8–10 Years Typical
Battery Monitoring: Intelligent Real-Time Monitoring
Battery Health Prediction: Supported
Battery Replacement: User Replaceable
Hot-Swappable Batteries: Supported
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
Battery Replacement Wizard: Supported
Maintenance Requirement: Significantly Lower Than Traditional VRLA UPS Systems

Runtime Performance
Runtime at Half Load: Approximately 13.5 Minutes
Runtime at Full Load: Approximately 4 Minutes
Actual Runtime: Dependent on Connected Load and Operating Environment

Input Specifications
Input Connection: IEC C14
Input Phase: Single Phase
Input Current Protection: Supported
Surge Protection: Supported
Brownout Protection: Supported
Voltage Conditioning: Supported
Generator Compatibility: Supported
Adjustable Input Sensitivity: Supported

Output Specifications
Output Capacity: 1550VA / 1350W
Output Voltage: 230V AC
Output Frequency: 50/60Hz Auto-Sensing
Output Receptacles: IEC C13 Outlets
Switched Outlet Groups: 2
Load Segment Control: Supported
Critical Load Prioritization: Supported
Remote Load Shedding: Supported
Remote Reboot Capability: Supported
Energy Metering Per Outlet Group: Supported

Communication Interfaces
USB Port: 1 × USB HID
Serial Port: 1 × RS232
Communication Slot: 1 × Expansion Slot
Network-M3 Card Support: Supported
Gigabit Network Card Support: Supported
Relay-MS Card Support: Supported
Remote On/Off (ROO): Supported
Remote Power Off (RPO): Supported
Remote Monitoring: Supported

Management Features
Graphical LCD Display: Supported
Display Languages: Multi-Language Support
Energy Metering: Supported
Power Consumption Monitoring: Supported
Load Monitoring: Supported
Runtime Monitoring: Supported
Battery Health Monitoring: Supported
Event Logging: Supported
Alarm Notifications: Supported
Remote Configuration: Supported
Firmware Updates: Supported
Predictive Maintenance Analytics: Supported

Software Support
Eaton Brightlayer Software Suite: Supported
Eaton Intelligent Power Manager (IPM): Supported
Eaton Intelligent Power Protector (IPP): Supported
VMware Integration: Supported
Microsoft Hyper-V Integration: Supported
Citrix Integration: Supported
Windows Compatibility: Supported
Linux Compatibility: Supported
Cloud Monitoring: Supported
Virtualization Shutdown Automation: Supported

Protection Features
Power Failure Protection: Supported
Surge Protection: Supported
Overvoltage Protection: Supported
Undervoltage Protection: Supported
Short Circuit Protection: Supported
Overload Protection: Supported
Deep Discharge Protection: Supported
Automatic Restart: Supported
Voltage Regulation: Supported
Power Conditioning: Supported
Pure Sine Wave Protection: Supported

Design & Construction
Form Factor: Rack/Tower Convertible
Rack Height: 2U
Rack Compatibility: Standard 19-Inch Rack
Construction: Enterprise-Class Metal Chassis
LCD Interface: Front-Facing Graphical Display
Color: Black / Silver
Rack Mount Kit: Included
Tower Stand: Included
High-Density Design: Supported
Cable Retention System: Supported

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 50°C
Relative Humidity: 0% to 90% Non-Condensing
Maximum Altitude: 3000m
Noise Level: Less Than 35 dB @ 1 Meter

Physical Specifications
Form Factor: Rack/Tower Convertible UPS
Dimensions (W × D × H): 438 × 555 × 86 mm
Rack Height: 2U
Weight: Approximately 18.7 kg
Color: Black / Silver
Mounting: Rack Mount or Tower Deployment

Package Contents
Eaton 5P1550IRT2UG2-L Lithium-ion UPS
Rack Mount Rail Kit
Tower Stand Kit
USB Communication Cable
Power Cables
Quick Start Guide
Safety Documentation

Key Features
1550VA / 1350W Capacity
Lithium-Ion Battery Technology
Rack/Tower Convertible 2U Design
Pure Sine Wave Output
Up to 98.2% Efficiency
Eaton ABM+ Battery Management
Hot-Swappable Batteries
Graphical LCD Display
2 Managed Load Segments
Advanced Energy Metering
Network Management Card Ready
Remote Monitoring and Control
VMware & Hyper-V Compatible
Up to 10-Year Battery Life
Predictive Battery Analytics
Enterprise-Grade Edge Computing Protection

Performance & Features
Designed for modern edge computing, branch office infrastructure, server rooms, and distributed IT environments. The 1550VA / 1350W capacity provides significantly higher power density than lower-capacity models while maintaining a compact rack/tower footprint. Lithium-ion technology delivers longer battery life, reduced maintenance, faster recharge times, and lower total cost of ownership. Intelligent load segment control maximizes runtime for critical equipment, while Eaton Brightlayer integration enables centralized monitoring, remote management, and predictive maintenance across enterprise deployments.

Typical Use Cases
Enterprise Servers
Network Switches
Storage Arrays
Firewalls and Security Appliances
Telecommunications Equipment
Retail IT Infrastructure
Healthcare Systems
Industrial Edge Computing
Branch Office Networks
Virtualization Hosts
Hyper-Converged Infrastructure
Managed Service Provider Deployments
Data Center Edge Racks
Business-Critical Applications
Remote IT Cabinets and Network Closets

GTIN / EAN
EAN: 3553340710339
