Eaton 5P Gen2 Lithium-ion 1150VA 920W Line-Interactive Sine Wave Rack/Tower 2U UPS, 8x IEC C13
PRODUCT DESCRIPTION
Eaton 5P Gen2 Lithium-ion 1150VA/920W Rack/Tower 2U UPS (5P1150IRT2UG2-L, 9210-LB5300) - 3 Years Local Warranty
Compact Lithium-ion Protection for Racks and Offices

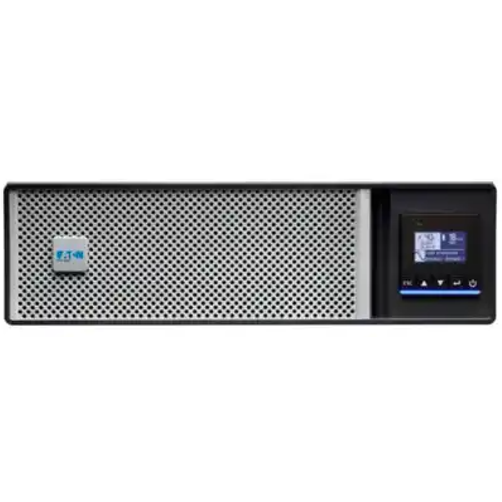

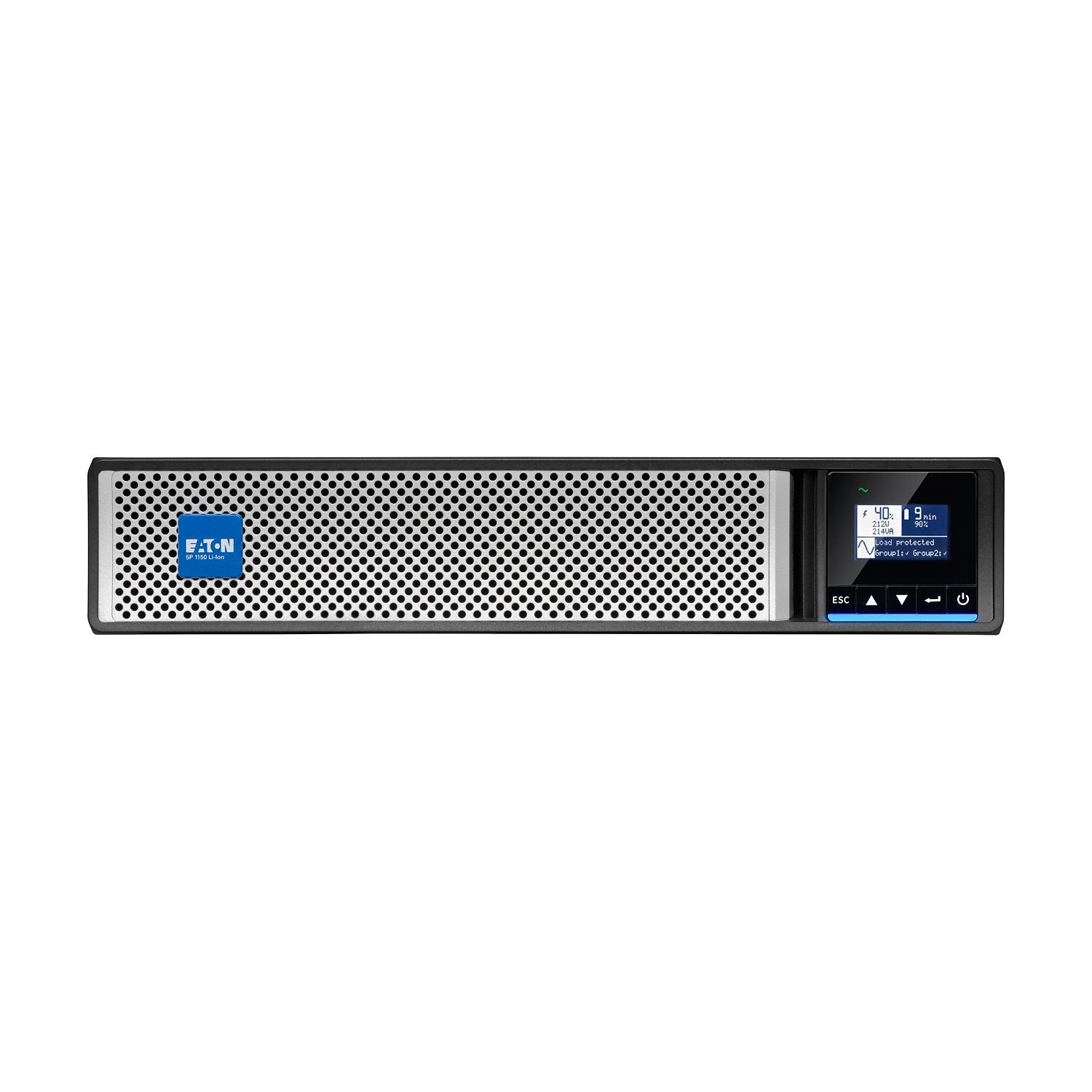

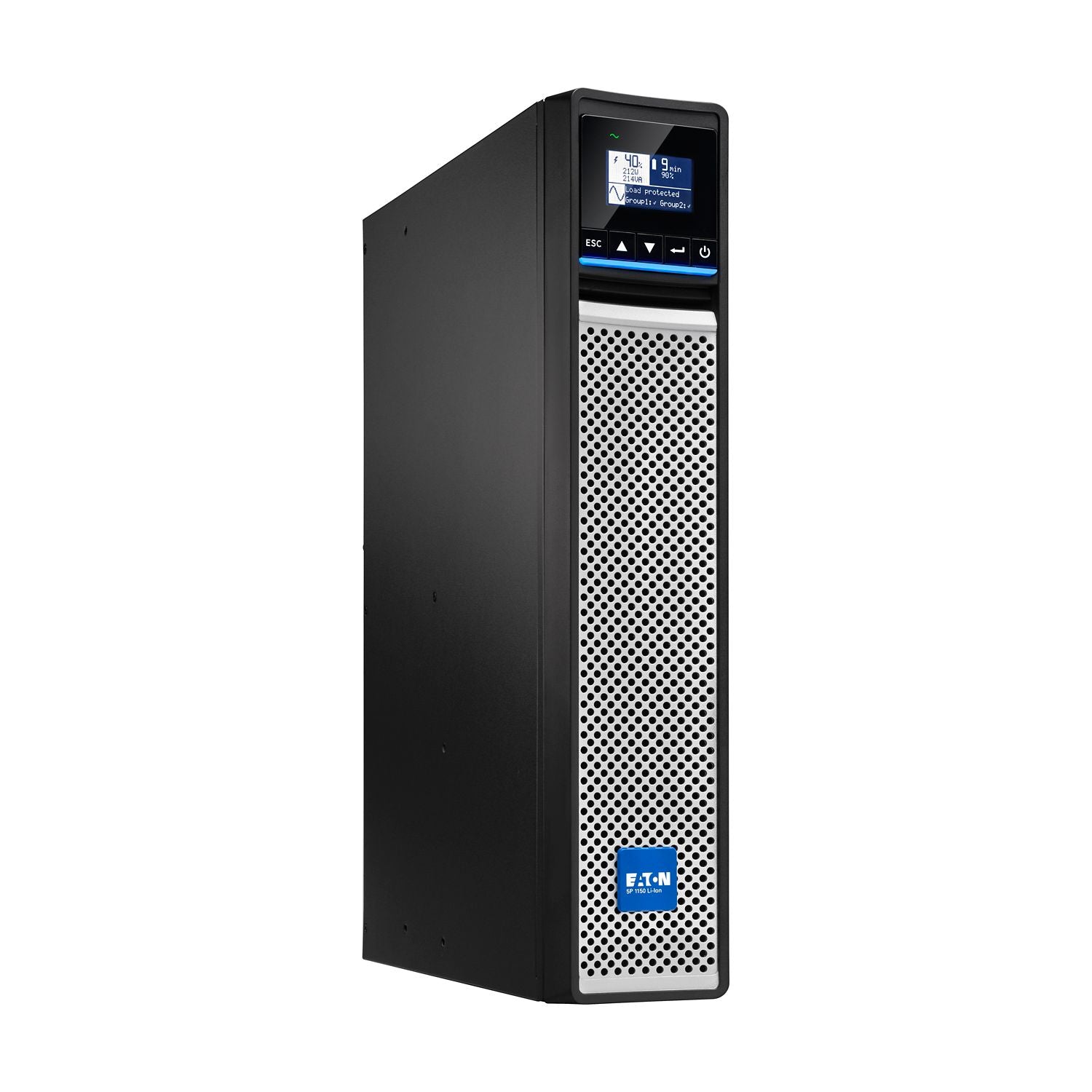

The Eaton 5P1150IRT2UG2-L is a 1150 VA / 920 W line-interactive UPS with a lithium-ion battery in a 2U, short-depth chassis that mounts in a 19-inch rack or stands as a tower. It suits Singapore server cabinets, comms rooms and branch offices protecting servers, storage, switches and firewalls.
Eaton pairs the lithium-ion battery with an advanced Battery Management System (BMS), and the whole unit is only 360 mm deep and 13.1 kg.
Pure Sine Wave Output with Automatic Voltage Regulation
Output is a clean sine wave at 230 V (selectable 200/208/220/230/240 V), suitable for active-PFC server power supplies. AVR corrects sags and swells across a 160–300 V input window (adjustable to 150–300 V) without drawing on the battery.
Manageable and Network-Ready
USB (HID compliant) and RS232 ports, a mini-terminal block for remote On/Off and Remote Power Off, and one slot for an optional communication card let you monitor the UPS and shut servers down automatically with the Eaton Brightlayer software suite. The multilingual graphical LCD shows status at a glance.
Efficient and Quiet
Eaton rates efficiency at 98.5% at maximum load, the unit is ENERGY STAR certified, and noise is under 30 dB at 1 m. Eaton publishes 8.8 minutes at full load and 17.1 minutes at half load.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 5P Gen2 Lithium-ion in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and its battery.
Unsure which size you need? Email sales@sourceit.com.sg with your rack load.
Eaton 5P1150IRT2UG2-L Datasheet — Technical Specifications
General
| Product Name | Eaton 5P Gen2 UPS (Lithium-ion) |
| Catalogue Number | 5P1150IRT2UG2-L |
| Part Number (SKU) | 9210-LB5300 |
| EAN | 3553340710971 |
| Topology | Line-interactive with AVR |
| Form Factor | Rack/tower, 2U, 482.6 mm (19 inch); rack mounting kit: yes |
| Colour | Black/silver |
| Local Warranty (Singapore) | 3 years on UPS and battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Input
| Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Input Voltage Range | 160–300 V (adjustable to 150–300 V) |
| Input Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Input Connection | IEC C14 |
Output
| Rated Power | 1150 VA / 920 W |
| Output Power Factor | 0.8 |
| Output Voltage | 230 V default (200/208/220/230/240 V), +6% / -10% |
| Output Frequency | 50/60 Hz |
| Output Waveform | Sine wave |
| Output Outlets | 8 x IEC C13 |
| Efficiency at Max Load | 98.5% |
| Power Consumption | 14 W |
Battery & Runtime (Eaton published)
| Battery Type | Lithium-ion with advanced BMS |
| Battery Rating | 6 Ah (24 cells) |
| Extended Battery Capability | No |
| Runtime at Full Load | 8.8 min |
| Runtime at Half Load | 17.1 min |
Communications

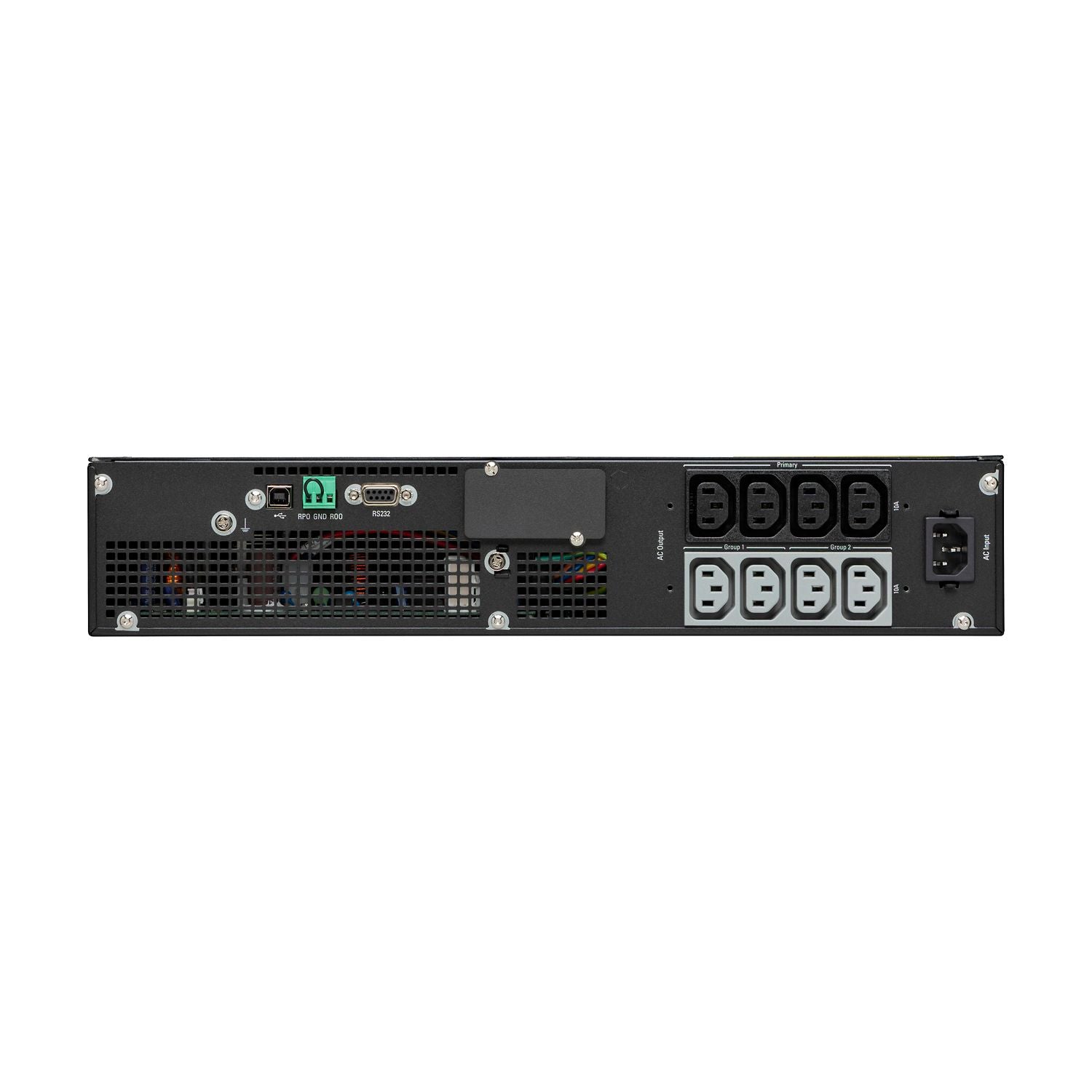

| Ports | USB (HID compliant), RS232 serial, mini-terminal block for remote On/Off and Remote Power Off, potential-free contact |
| Expansion Slot | 1 slot for optional communication card (network card not included) |
| Display | Multilingual graphical LCD with blue backlight |
| Software | Eaton Brightlayer software suite |
Physical & Environmental
| Dimensions (W x H x D) | 438 x 85.5 x 360 mm |
| Weight | 13.1 kg |
| Noise Level | < 30 dB at 1 m |
| Heat Dissipation | Online 48 BTU/hr; battery 420 BTU/hr |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, cTUVus, RCM, KCC |
| Compliances | ENERGY STAR certified; RoHS, WEEE, LVD (CB), EMC directives |
Compatibility & Software Support
What It Is Suited To
Servers, NAS/storage, switches, firewalls and VoIP systems in a rack or on a desk, up to 920 W continuous.
Operating Systems and Software
The HID-compliant USB port is recognised natively by Windows, macOS and Linux. Eaton's Brightlayer software suite handles monitoring and automatic shutdown, including multi-server and virtualised environments. Add an Eaton network card in the expansion slot for SNMP/web management.
Outlets
All 8 outlets are IEC C13. Equipment with BS 1363 (Type G) plugs needs an IEC C14 lead or an IEC-input power strip.
Package Contents & 5P Gen2 Lithium-ion Ordering Information
In the Box
Eaton 5P Gen2 Lithium-ion UPS with rack mounting kit and documentation. Confirm cables with us before ordering.
Eaton 5P Gen2 Lithium-ion — Ordering Information
| 5P650IRG2-L | 650 VA / 520 W, 1U rack | 9210-LB3300 |
| 5P1150IRT2UG2-L (this listing) | 1150 VA / 920 W, rack/tower 2U | 9210-LB5300 |
| 5P1550IRT2UG2-L | 1550 VA, rack/tower 2U | 9210-LB6300 |
Lead-acid 5P Gen2 tower and rack models are also available; ask us for the full range.
Datasheet & Downloads
| Eaton specifications | Eaton 5P1150IRT2UG2-L specifications |
| Eaton datasheet | Eaton 5P Gen2 Lithium-ion UPS Datasheet (PDF) |
| Eaton user manual | Eaton 5P Gen2 Lithium-ion Advanced User Manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5P1150IRT2UG2-L.
Frequently Asked Questions — Eaton 5P1150IRT2UG2-L
Can I add external batteries?
No. Eaton lists no extended battery capability for this model; runtime is from the internal lithium-ion battery (8.8 min full load, 17.1 min half load).
Can it be rack-mounted?
Yes. It is a 2U rack/tower unit and Eaton lists a rack mounting kit.
Does it support network management?
Yes, with an optional Eaton communication card in the expansion slot. USB and RS232 are standard.
What warranty do I get?
3 years on the UPS and battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
