Eaton 5P Gen2 1150VA 920W Line-Interactive Sine Wave 1U Rack UPS, 6x IEC C13
PRODUCT DESCRIPTION
Eaton 5P Gen2 1150VA/920W 1U Rack UPS (5P1150IRG2, 9210-53053) - 3 Years Local Warranty

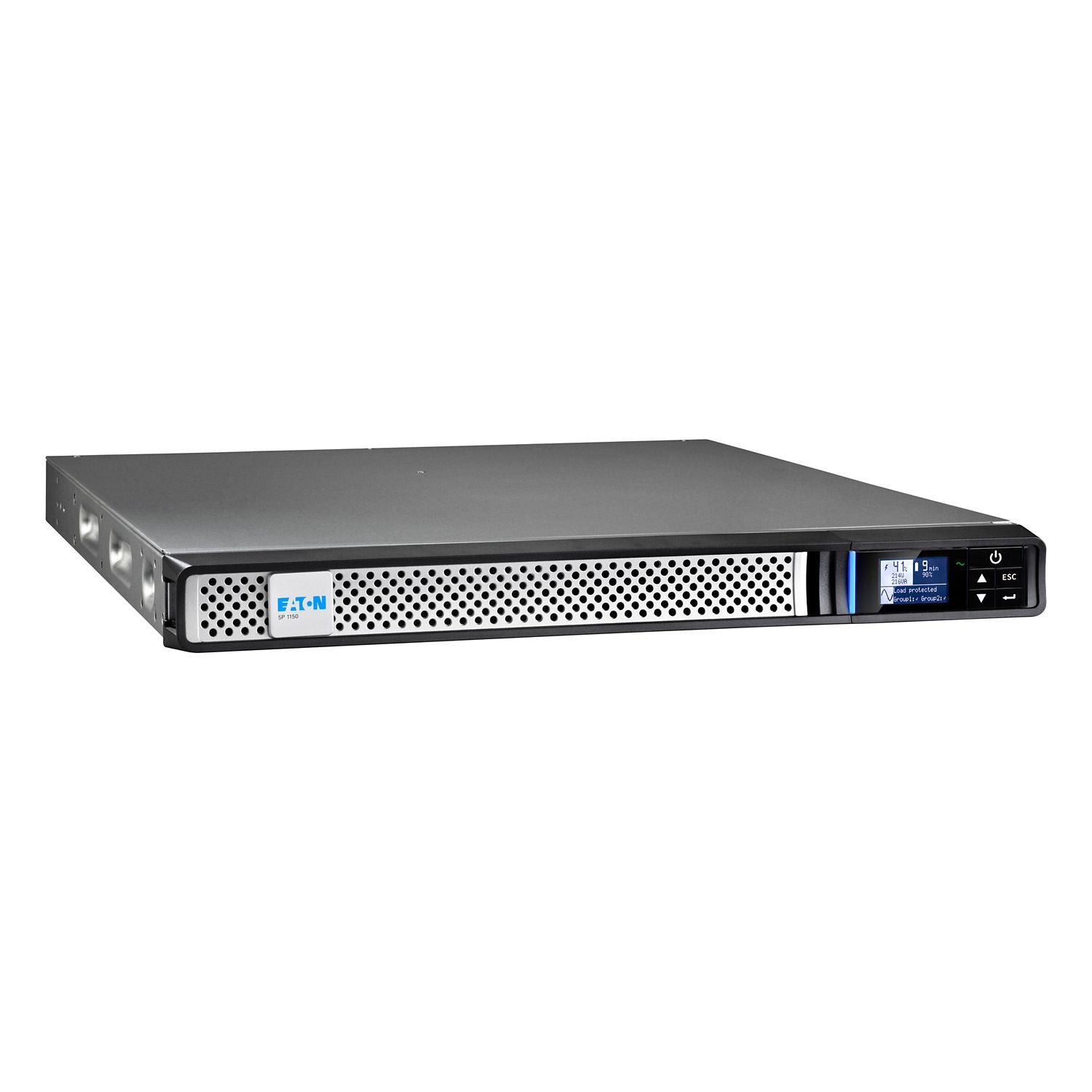

Line-Interactive Sine-Wave UPS in Just 1U
The Eaton 5P Gen2 5P1150IRG2 is a 1150 VA / 920 W line-interactive UPS with pure sine-wave output in a slim 1U, 19-inch rack chassis. It suits comms cabinets and server racks in Singapore offices where rack space is tight, riding through outages, sags and surges so servers, switches, firewalls and storage stay up or shut down cleanly.
Automatic Voltage Regulation and 98.2% Efficiency
Automatic Voltage Regulation (AVR) corrects low and high input voltage without using the battery. Eaton specifies an input window of 160–294 V (adjustable down to 150 V) and 98.2% efficiency at maximum load, keeping heat and running costs down in small, closed rooms.
Graphical LCD, Network-Ready and Remote Reboot

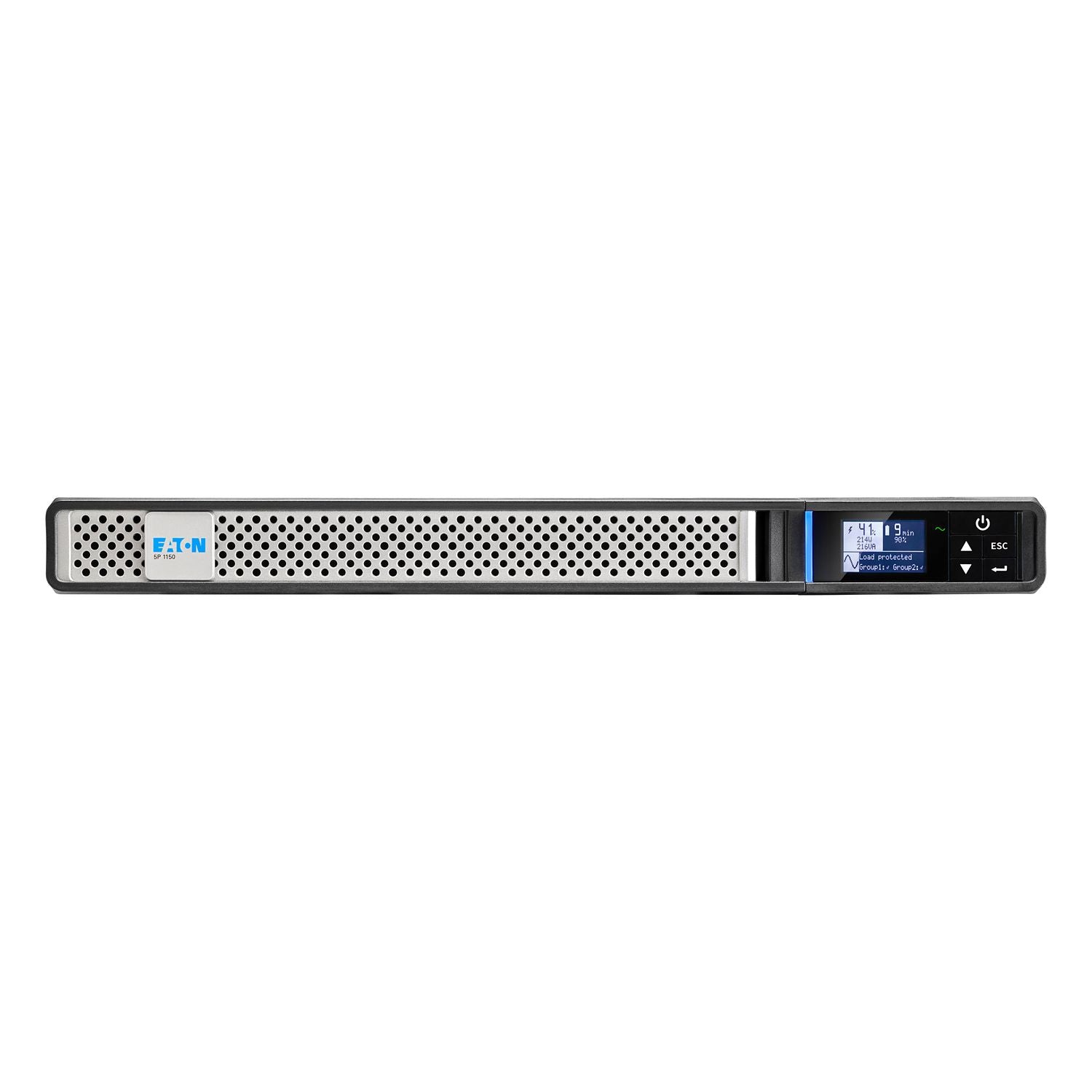

A multilingual graphical LCD with blue backlight gives local status and settings. USB and RS232 ports are standard and one slot accepts an optional Eaton communication card. Eaton lists 2 manageable outlet groups for remote reboot and runtime optimisation, compatibility with VMware, Hyper-V, Citrix Xen and Red Hat virtual environments, and full integration with the Eaton Brightlayer software suite.
Advanced Battery Management, Hot-Swappable Batteries
Eaton's ABM+ charging extends battery service life, automatic battery tests check battery health, and the batteries are hot-swappable and user replaceable. Eaton quotes 12.5 min runtime at half load and 3 min at full load.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the 5P Gen2 in Singapore with a full GST invoice and local warranty support; Eaton's Singapore price list gives 3 years on the UPS and 3 years on the internal battery. Need help sizing? Email sales@sourceit.com.sg.
Eaton 5P1150IRG2 Datasheet — Technical Specifications
General
| Product Name | Eaton 5P Gen2 UPS |
| Catalogue Number | 5P1150IRG2 |
| Part Number (SKU) | 9210-53053 |
| Range | Eaton 5P Gen2 |
| Topology | Line-interactive with AVR |
| Form Factor | Rack, 1U, 19-inch (rack-mounting kit included) |
| Colour | Black/silver |
| Local Warranty (Singapore) | 3 years UPS / 3 years internal battery (Eaton Singapore price list), with GST invoice from SourceIT |
Power
| Rated Power | 1150 VA / 920 W (output power factor 0.8) |
| Output Waveform | Sine wave |
| Output Outlets | 6 x IEC C13 |
| Output Nominal Voltage | 230 V default (200/208/220/230/240 V) |
| Output Voltage Range | 230 V (+6%/−10%) |
| Output Frequency | 50/60 Hz |
| Input Connection | IEC C14 |
| Input Voltage Range | 160–294 V (adjustable to 150–294 V) |
| Input Frequency Range | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Efficiency at Max. Load | 98.2% |
| Power Consumption | 17 W |
Battery & Runtime
| Battery Type | Lead-acid, maintenance-free, user replaceable |
| Internal Batteries | 4 x 6 V / 9 Ah |
| Battery Management | ABM or constant-voltage charging (user selectable), automatic battery test, deep discharge protection |
| Runtime at Half Load | 12.5 min |
| Runtime at Full Load | 3 min |
| Extended Battery Capability | No |
Communications
| Communication Ports | USB port (HID compliant); serial port (RS232); mini-terminal block for remote On/Off and Remote Power Off; dry contacts (2 outputs, optocoupler, RJ) |
| Expansion Slot | 1 slot for optional communication card (network card not included) |
| User Interface | Multilingual graphical LCD with blue backlight |
| Manageable Outlet Groups | 2 |
| Software | Eaton Brightlayer Software suite; compatible with VMware, Hyper-V, Citrix Xen, Red Hat virtual environments |
Physical & Environmental
| Dimensions (W x H x D) | 438 x 43.2 x 509 mm |
| Weight | 14.2 kg |
| Noise Level | <35 dB at 1 m |
| Heat Dissipation | Online 63 BTU/h; battery 465 BTU/h |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–90% non-condensing |
| Altitude | 3000 m |
| Compliances | LVD (CB), EMC, RoHS, WEEE, Packaging and Batteries Directives |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, KCC, cTUVus, BIS |
Compatibility & Software Support
What It Is Suited To
The 5P1150IRG2 suits entry and mid-range servers, NAS and storage, core and access switches, firewalls, VoIP/PABX and POS back-office equipment in a 19-inch rack. Keep the continuous load under 920 W with headroom.
Monitoring and Shutdown Software
The HID-compliant USB port lets most operating systems see the UPS as a power source without extra drivers. For graceful shutdown, virtual-environment integration and fleet monitoring, Eaton points to its Brightlayer software suite. Add an optional Eaton network card in the expansion slot for SNMP/web monitoring.
Outlets

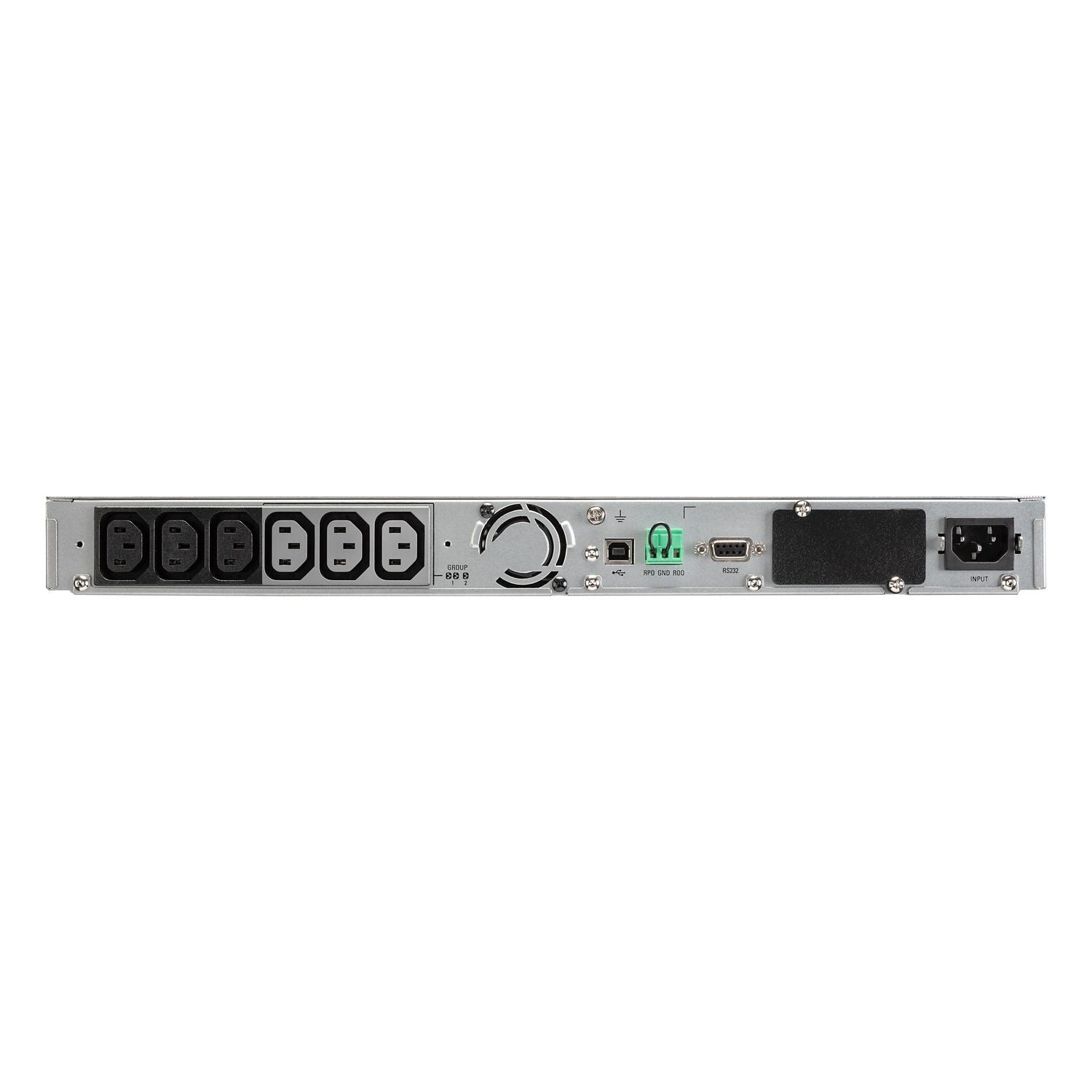

Outputs are 6 x IEC C13. Input is an IEC C14 inlet; two IEC-IEC cables are included. Equipment with BS 1363 (Type G) plugs needs IEC leads or an IEC-input PDU.
Package Contents & 5P Gen2 Ordering Information
In the Box
Rack-mounting kit, cable locking system, USB cable, (2) IEC-IEC cables, quick start guide, safety instructions (per Eaton).
Eaton 5P Gen2 Range — Ordering Information
| 5P650IG2 | 650 VA / 520 W | Tower | 4 x C13 | 9210-3390 |
| 5P850IG2 | 850 VA / 680 W | Tower | 6 x C13 | 9210-3391 |
| 5P1150IG2 | 1150 VA / 920 W | Tower | 8 x C13 | 9210-53052 |
| 5P1550IG2 | 1550 VA / 1350 W | Tower | 8 x C13 | 9210-63068 |
| 5P650IRG2 | 650 VA / 520 W | Rack 1U | 4 x C13 | 9210-3392 |
| 5P850IRG2 | 850 VA / 680 W | Rack 1U | 4 x C13 | 9210-3393 |
| 5P1150IRG2 (this listing) | 1150 VA / 920 W | Rack 1U | 6 x C13 | 9210-53053 |
| 5P1550IRG2 | 1550 VA / 1350 W | Rack 1U | 6 x C13 | 9210-63069 |
Lithium-ion 5P Gen2 versions are also listed: 5P650IRG2-L, 5P1150IRT2UG2-L and 5P1550IRT2UG2-L. Need more runtime? The 5PX G2 range accepts external battery modules.
Datasheet & Downloads
| Eaton product page | Eaton 5P1150IRG2 specifications |
| Eaton spec sheet | Eaton 5P1150IRG2 product specifications (PDF) |
| Eaton datasheet | Eaton 5P Gen2 UPS Datasheet (PDF) |
| Eaton user guide | Eaton 5P Gen2 Rack Advanced User Guide (PDF) |
| Eaton quick start | Eaton 5P Gen2 Quick Start Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5P1150IRG2.
Frequently Asked Questions — Eaton 5P1150IRG2
Is the output a pure sine wave?
Yes. Eaton specifies sine-wave output, which suits servers and active-PFC power supplies.
How much load can I connect?
Up to 920 W (1150 VA). Total the continuous watts of your equipment and leave headroom.
How long will it run on battery?
Eaton quotes 12.5 min at half load and 3 min at full load. The 5P Gen2 does not take external battery modules; for longer runtime consider the 5PX G2 or 9-series.
Is the rack kit included?
Yes. Eaton lists a rack-mounting kit and cable locking system in the box.
Can I monitor it over the network?
Yes, by adding an optional Eaton network card in the expansion slot. The card is not included.
What warranty do I get?
3 years on the UPS and 3 years on the internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
