Dell Pro 14 Plus P1425 14" Portable USB-C Monitor
PRODUCT DESCRIPTION
Dell Pro 14 Plus Portable Monitor P1425 (210-BQNP) - 3 Years Local Warranty
A Second Screen That Travels
The Dell Pro 14 Plus P1425 is a 14-inch WUXGA (1920 x 1200) 16:10 IPS portable monitor just 4.60 mm thin, weighing 0.62 kg with its stand assembly and cables.
One Cable from Your Laptop
Two USB-C ports with DisplayPort 1.2 Alt Mode carry video and pass through up to 65 W of power, so one cable can drive the screen while a second charges the laptop.
Landscape or Portrait
An auto-rotation sensor, tilt and portrait adjustment, 400 cd/m² brightness, 100% sRGB and TÜV-certified ComfortView Plus.
Equipping a mobile sales or field team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P1425 Datasheet — Technical Specifications
General
| Dell SKU | 210-BQNP |
| Local Warranty (Singapore) | 3-year Advanced Exchange Service (Dell), supplied by SourceIT with a GST invoice |
| Model | Dell Pro 14 Plus Portable Monitor - P1425 |
| Product Line | Pro Plus |
| Product Type | LED Monitor |
| Manufacturer Part Number | DHXKV |
Display
| Diagonal Viewing Size | 355.7 mm (14.0 in.) |
| Panel Type | In-Plane Switching (IPS) Technology |
| Maximum Preset Resolution and Refresh Rate | 1920 x 1200 up to 60 Hz/1200 x 1920 up to 60 Hz |
| Aspect Ratio | 16:10 |
| Backlight Technology | LED Edgelight System |
| Brightness | 400 cd/m² (typical) |
| Contrast Ratio | 1500:1 (typical) |
| Response Time | Normal mode: 7 ms (gray to gray) |
| Color Gamut | sRGB 100% (CIE 1931) (typical) |
| Color Depth | 16.7 million colors |
| Pixel Pitch | Horizontal: 0.15708 mm Vertical: 0.15708 mm |
| Pixel Per Inch (PPI) | 162 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Display Screen Coating | Anti-glare with hard-coating 3H |
| TÜV Certification | Yes, Dell ComfortView Plus |
Connectivity
| Connectivity | 2 x USB-C ports (DisplayPort 1.2 Alt Mode, Power pass-through up to 65W) (HDCP 1.4) |
| USB Power Delivery | 65 W |
| Maximum DisplayPort Resolution | 1920 x 1200 at 60 Hz |
| Network (RJ-45) | No |
Audio & Camera
| Built-in Devices | Auto-rotation sensor |
| Webcam | No |
Ergonomics
| Adjustability | Tilt +10°/+90°, Portrait +16.5° |
| Flat Panel Mount Interface | VESA (100 mm x 100 mm) |
Power
| Power Consumption | 5.4 W (On mode), 0.3 W (Off mode), 0.3 W (Standby mode), 7.0 W (Max.) |
Physical
| Dimensions (with stand) | Height: 223.54 mm (8.80 in.), Width: 315.15 mm (12.41 in.), Depth: 14.65 mm (0.58 in.) |
| Dimensions (without stand) | Height: 223.54 mm (8.80 in.), Width: 315.15 mm (12.41 in.), Depth: 4.60 mm (0.18 in.) |
| Weight with packaging | 1.24 kg (2.73 lb) |
| Weight with stand assembly and cables | 0.62 kg (1.36 lb) |
| Temperature Range | Operating: 0°C to 40°C (32°F to 104°F), Non-Operating: -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | Operating: 10% to 80% (non-condensing), Non-Operating: 5% to 90% (non-condensing) |
Certifications
| Compliant Standards | ENERGY STAR 8.0, EPEAT Gold with Climate+, RoHS Compliant |
| Features | Anti-glare; Arsenic-free Glass; BFR Free; Mercury-free; PVC Free |
Compatibility & Software Support
Laptop Connection
Connect a laptop USB-C port that supports DisplayPort Alt Mode using the included USB-C to USB-C cable for 1920 x 1200 at 60 Hz. Use the second USB-C port with a USB-C power adapter to pass up to 65 W through to the laptop.
Orientation

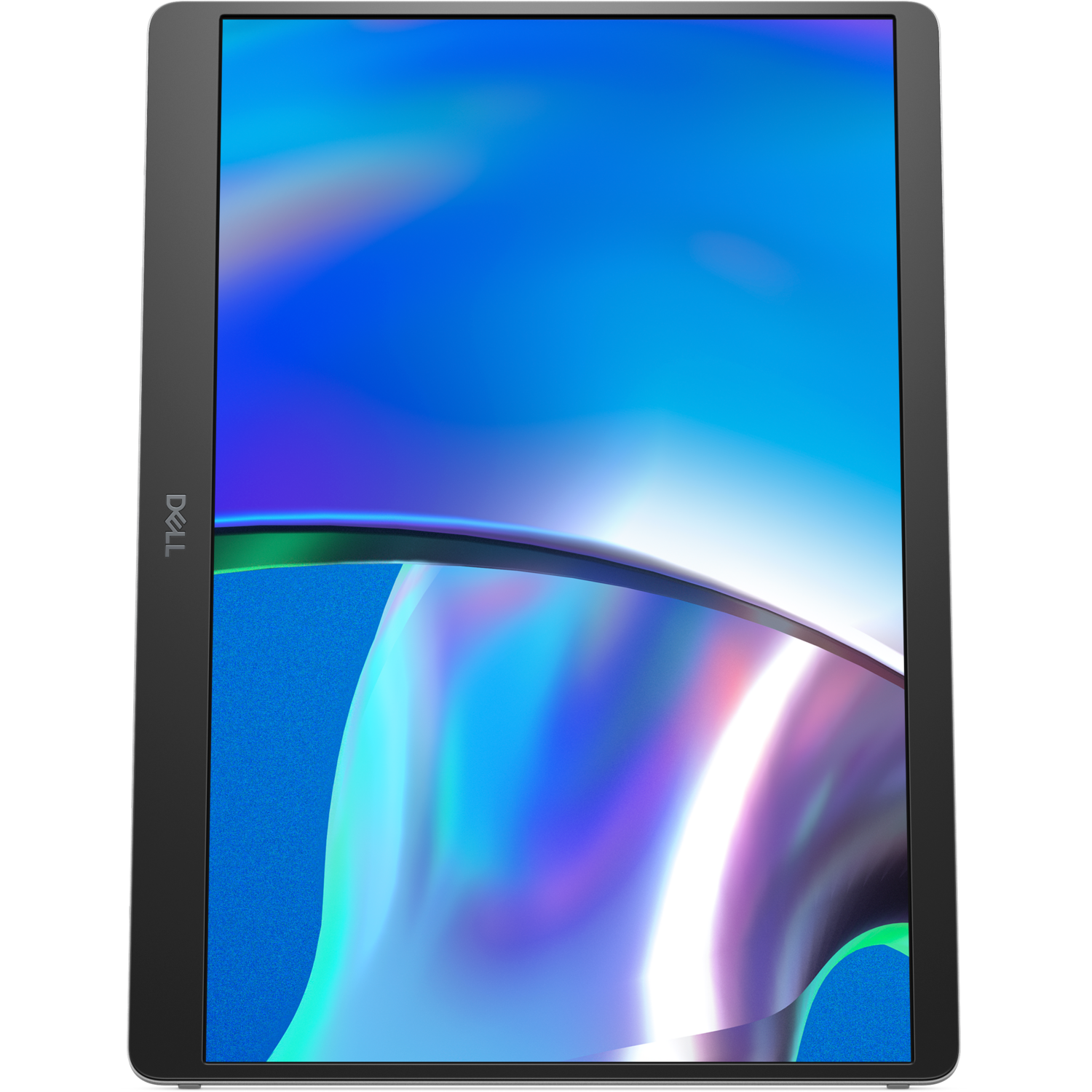

The built-in auto-rotation sensor switches between landscape and portrait (1200 x 1920).
Mounting
VESA 100 x 100 mm mountable.
Package Contents & Dell Pro Plus 24-inch & Portable Monitors Ordering Information
In the Box
Monitor, 1 x USB Type-C to C upstream cable 1.00 m, QR card, Safety Information.
Dell Pro Plus 24-inch & Portable Monitors
| Model | Key feature |
| P1425 (this listing) | 14" WUXGA portable, 2 x USB-C, 65W pass-through |
| P2425H | 24" FHD 100 Hz |
| P2425 | 24" WUXGA 16:10, 100 Hz |
| P2425E | 24" WUXGA 16:10 USB-C hub |
| P2425D | 24" QHD |
| P2425DE | 24" QHD USB-C hub |
| P2424HT | 24" FHD touch, USB-C hub |
| P2424HEB | 24" FHD, 2K IR camera, 90W USB-C, RJ45 |
| P2426H | 24" FHD 120 Hz |
Datasheet & Downloads
| Datasheet (PDF) | P1425 datasheet on delltechnologies.com |
| Manuals & drivers | P1425 manuals and documents on Dell Support |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P1425.
Frequently Asked Questions — Dell P1425
Does it need a separate power supply?
It draws its power over USB-C (5.4 W typical on-mode). A USB-C power source on the second port can pass up to 65 W through to the laptop.
Does it support HDMI?
No. Input is USB-C (DisplayPort 1.2 Alt Mode) only.
What resolution is it?
1920 x 1200 at up to 60 Hz, 16:10, landscape or portrait.
Does it have a webcam or speakers?
No webcam. Dell lists an auto-rotation sensor as the built-in device.
What warranty do I get?
3-year Advanced Exchange Service (Dell), supplied locally by SourceIT with a GST invoice.
