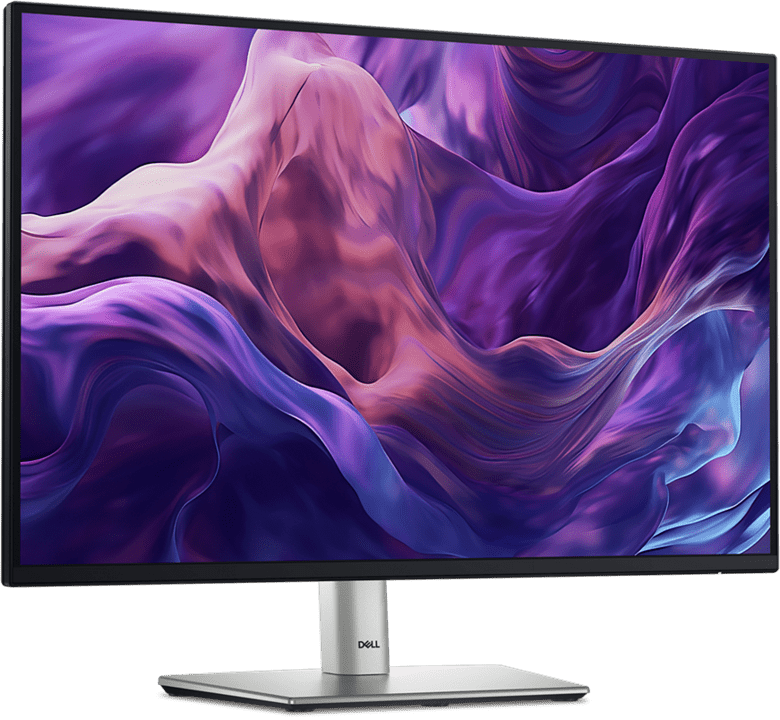

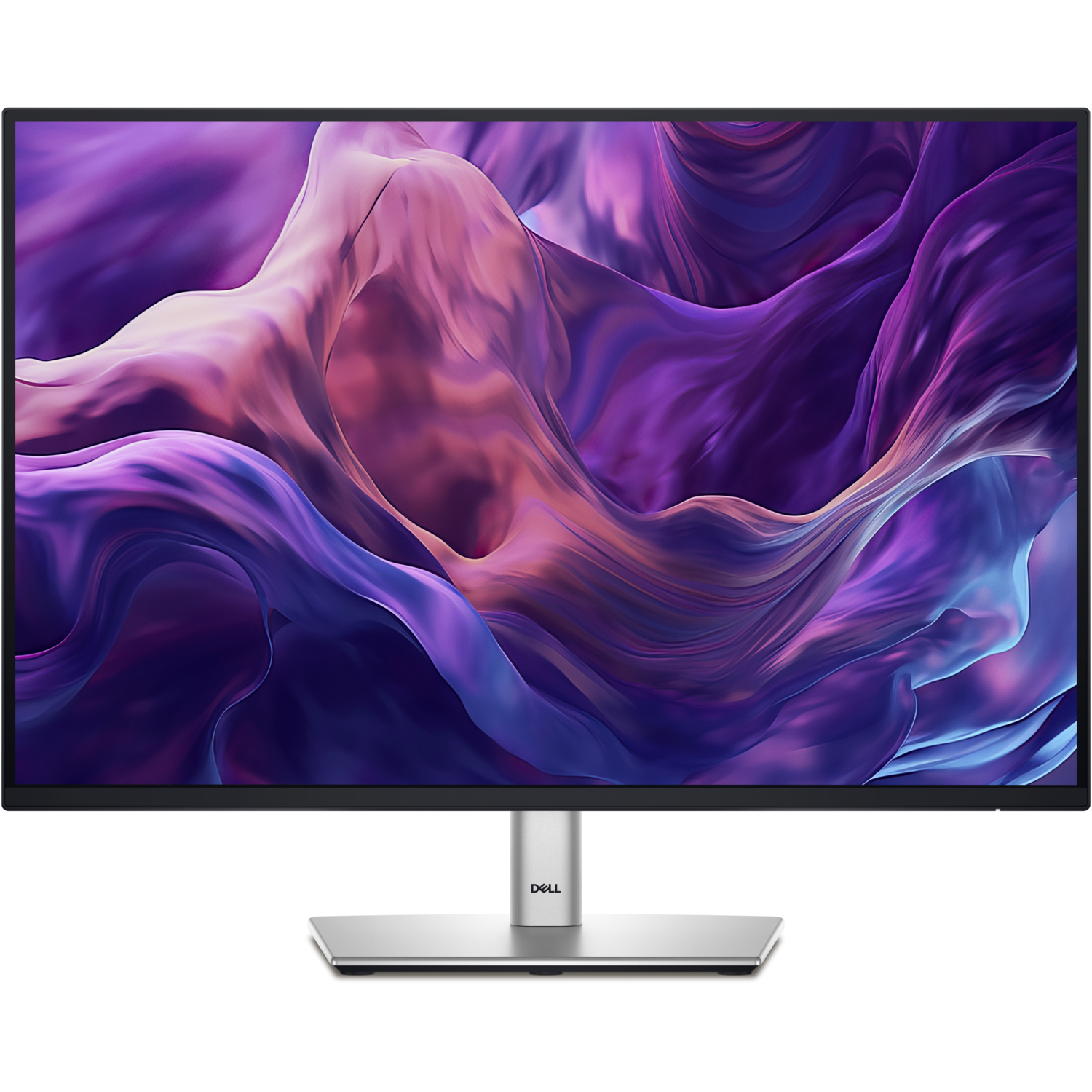

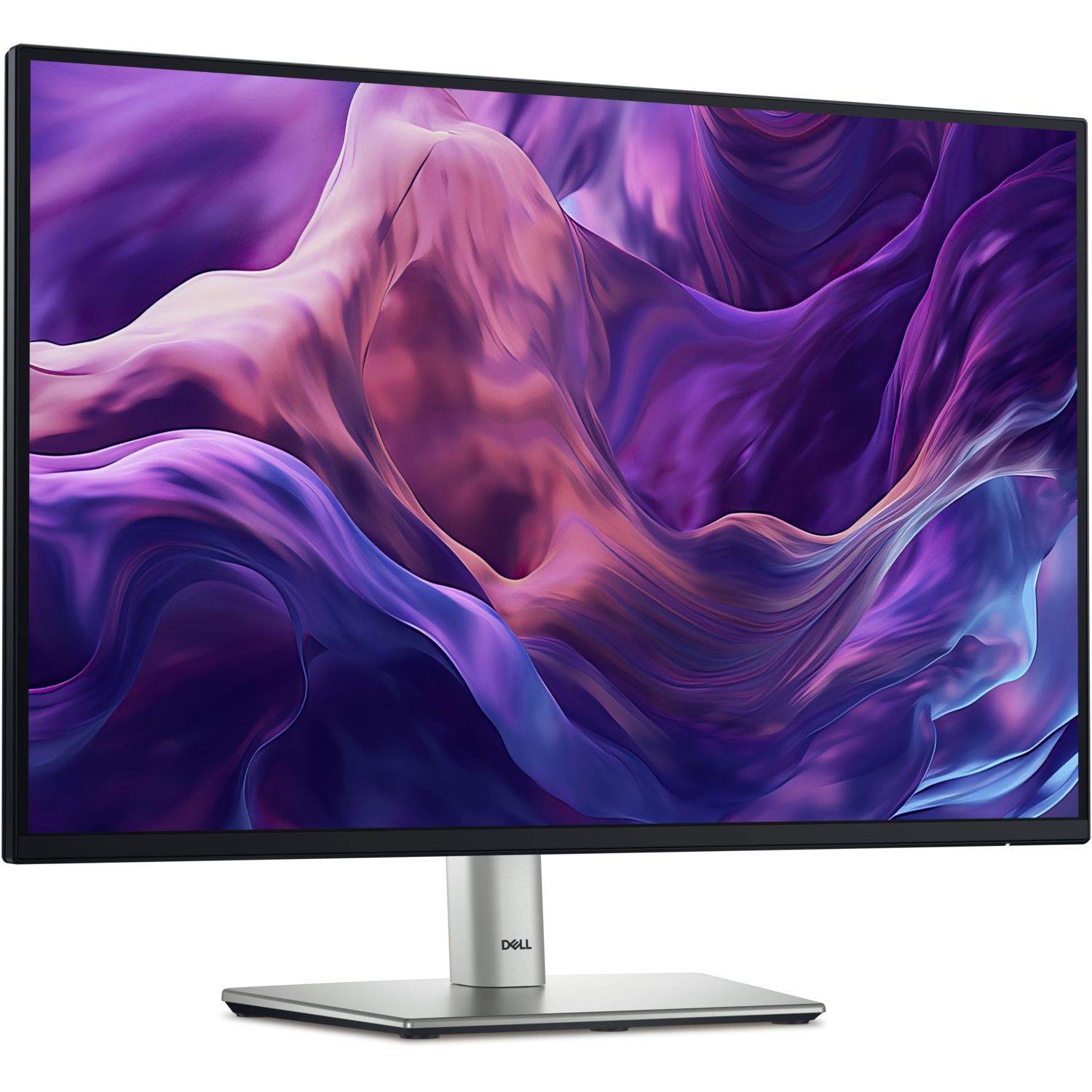

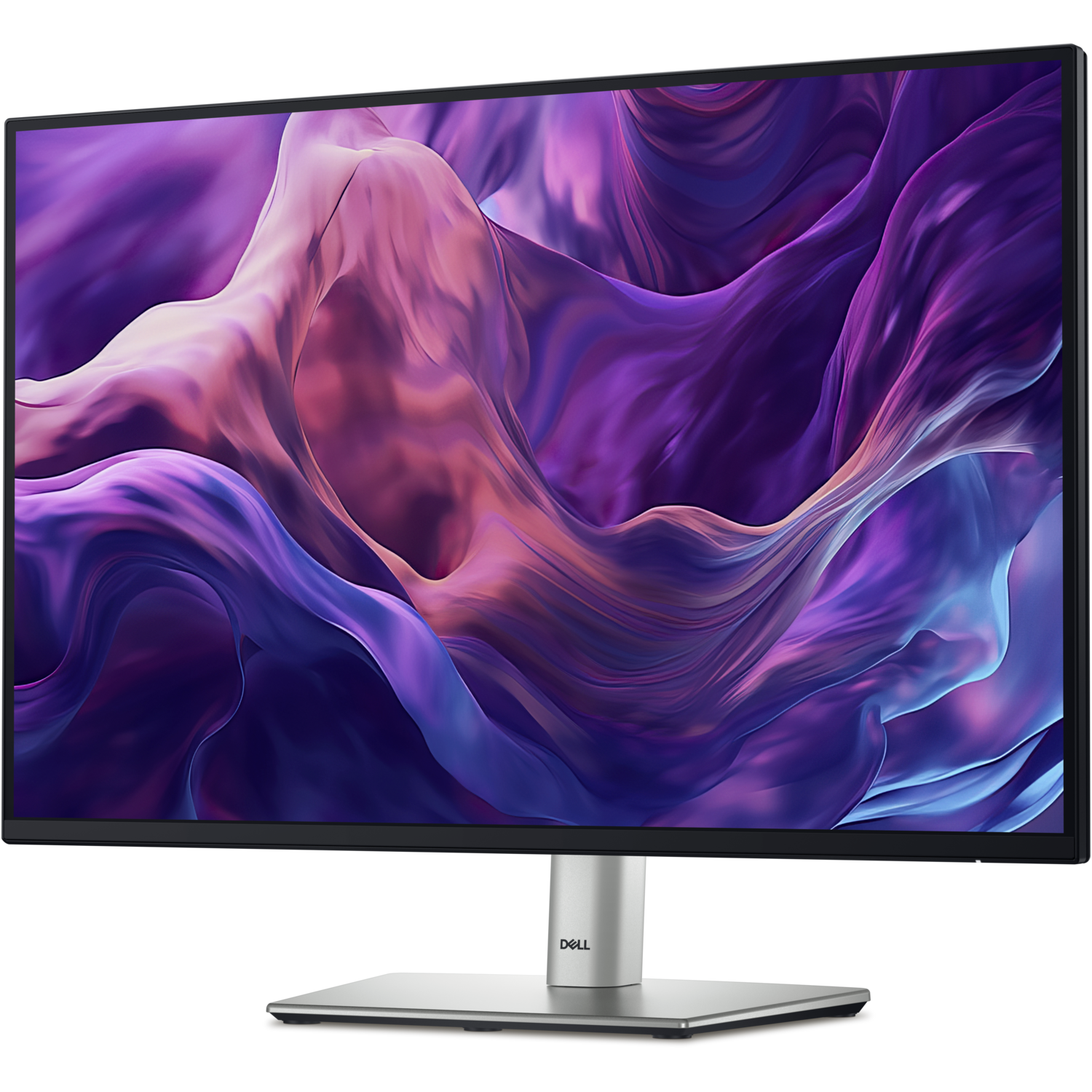

Dell Pro 24 Plus P2425E 24" 16:10 USB-C Hub Monitor
PRODUCT DESCRIPTION
Dell Pro 24 Plus USB-C Hub Monitor P2425E (210-BMNG) - 3 Years Local Warranty
24-inch 16:10 at 100 Hz
The Dell Pro 24 Plus P2425E uses a 24-inch 1920 x 1200 IPS panel, giving extra vertical space over a 16:9 screen for documents and spreadsheets. Dell rates it at 300 cd/m², 1,500:1 contrast and 99% sRGB at up to 100 Hz.
USB-C Hub with 90 W and Ethernet
One USB-C 5Gbps upstream cable carries DisplayPort 1.4 Alt mode video, data and up to 90 W of power, while the built-in hub adds 1GbE RJ45, three USB-A and one USB-C (15 W) port. DP-out with MST daisy-chains a second monitor.
Built for Office Comfort

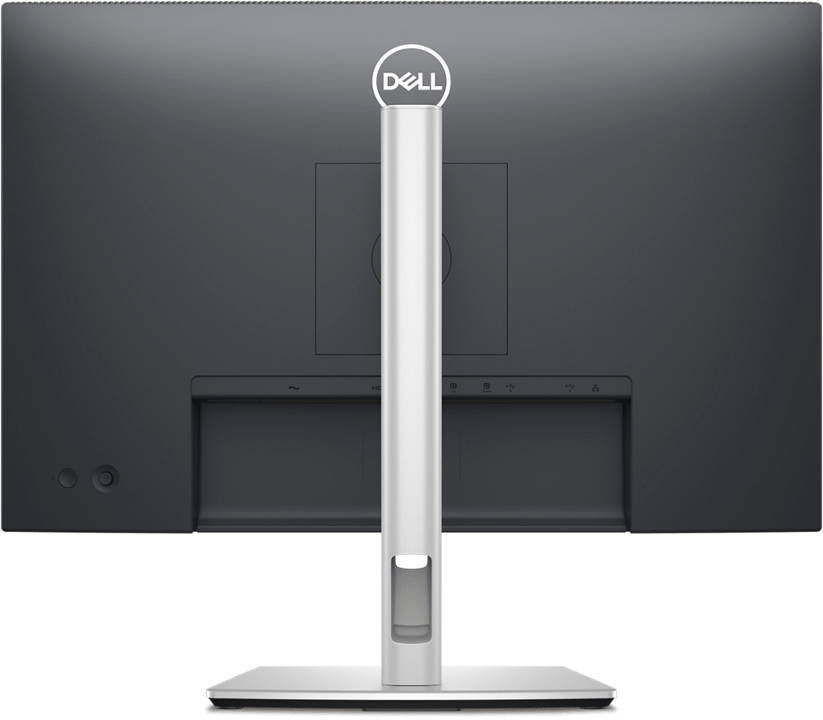

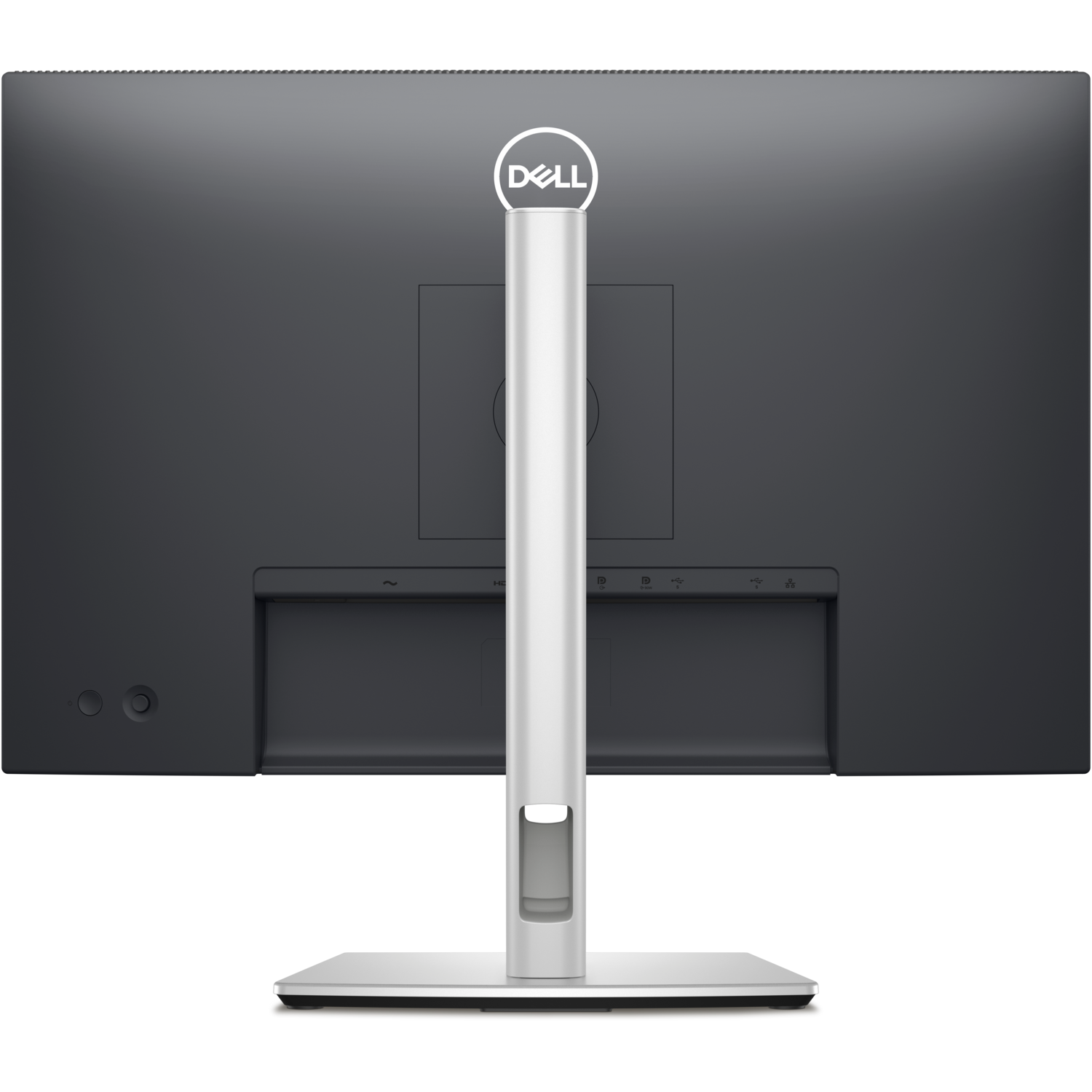

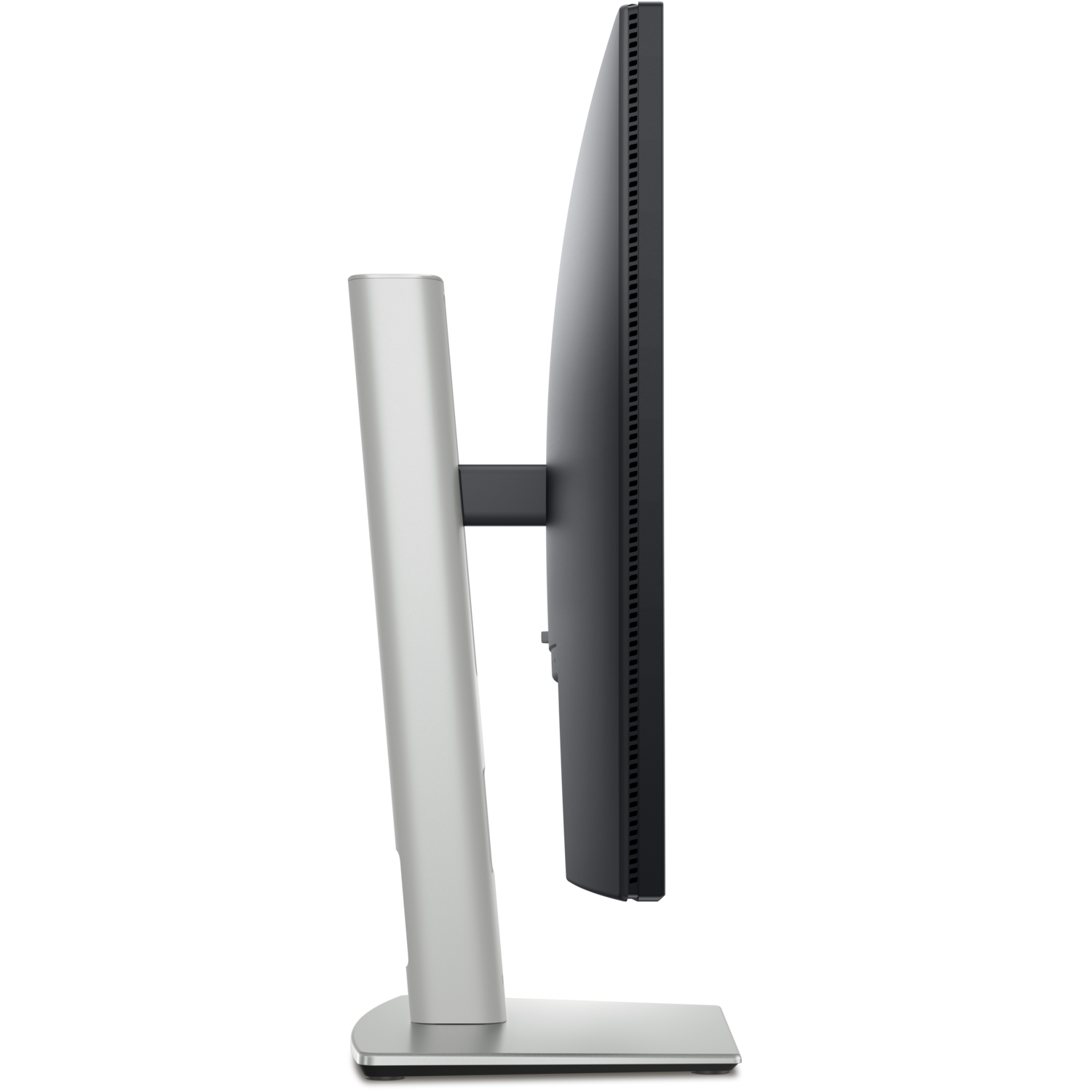

TÜV Eye Comfort 4-star certification, a 3H anti-glare surface and a stand with 150 mm height, tilt, swivel and pivot keep long working days comfortable.
Buying for an office roll-out? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell P2425E Datasheet — Technical Specifications
General
| Product Name | Dell Pro 24 Plus 16:10 USB-C Hub Monitor - P2425E |
| Model | P2425E |
| Dell SKU (Singapore) | 210-BMNG |
| Product Line | Dell Pro Plus |
| Local Warranty (Singapore) | 3 years Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 24.07" (61.1 cm viewable) |
| Panel Technology | In-Plane Switching (IPS) |
| Resolution | 1920 x 1200 (WUXGA) @ 100 Hz |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.2700 mm x 0.2700 mm |
| Pixels Per Inch | 94.07 |
| Brightness | 300 cd/m² (typical) |
| Contrast Ratio | 1,500:1 (typical) |
| Colour Gamut | 99% sRGB |
| Colour Depth | 16.7 million colours |
| Response Time | 5 ms GtG (Fast); 8 ms GtG (Normal) |
| Viewing Angle | 178° / 178° |
| Backlight | LED edgelight system |
| Surface | Anti-glare, 3H hardness |
Eye Comfort
| Certification | TÜV Eye Comfort 4-Star |
| Flicker Free | Yes |
Audio
| Speakers | None (optional soundbar sold separately) |

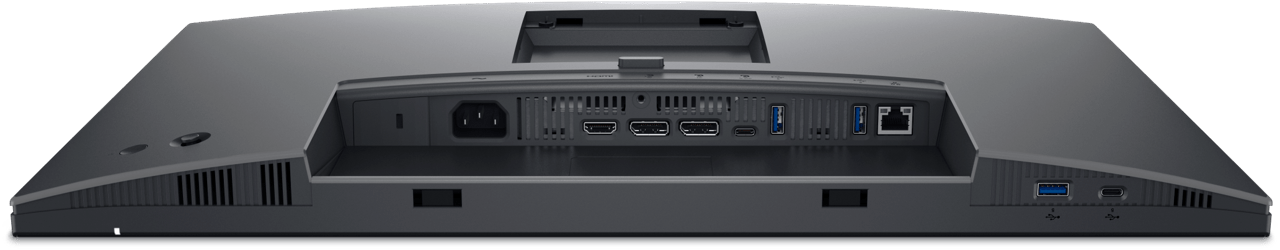

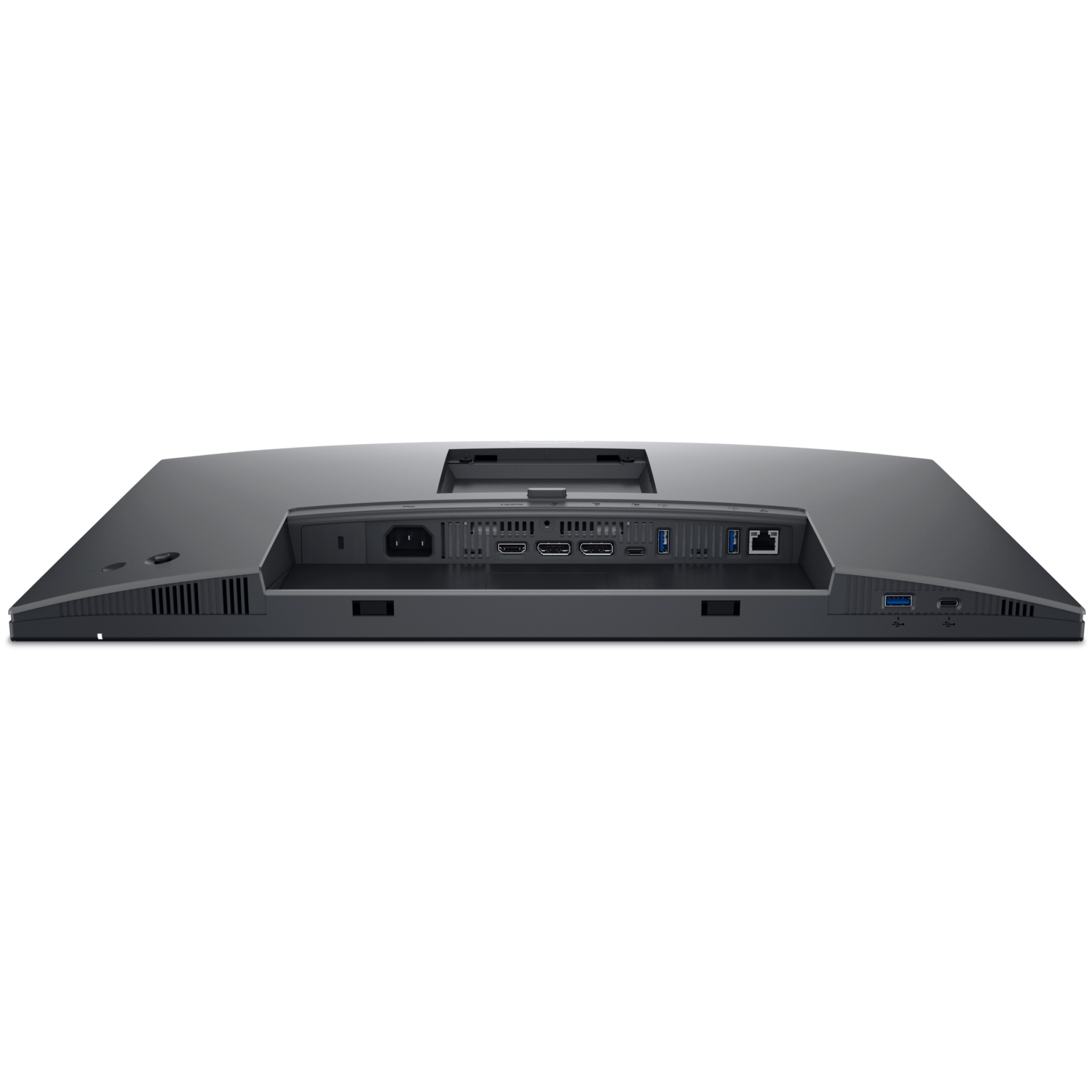

Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4), up to 1920 x 1200 100 Hz |
| DisplayPort in | 1 x DisplayPort 1.4 (HDCP 1.4) |
| DisplayPort out | 1 x DP-out 1.4 with MST (HDCP 1.4) |
| USB-C upstream | 1 x USB 3.2 Gen1 Type-C (DP 1.4 Alt Mode), up to 90 W PD |
| USB-C downstream | 1 x USB 3.2 Gen1 Type-C, up to 15 W (data only) |
| USB-A downstream | 3 x USB 3.2 Gen1 Type-A |
| Ethernet | 1 x RJ45, 1GbE |
| Features | Daisy chain (MST); Dell Power Button Sync via USB-C |

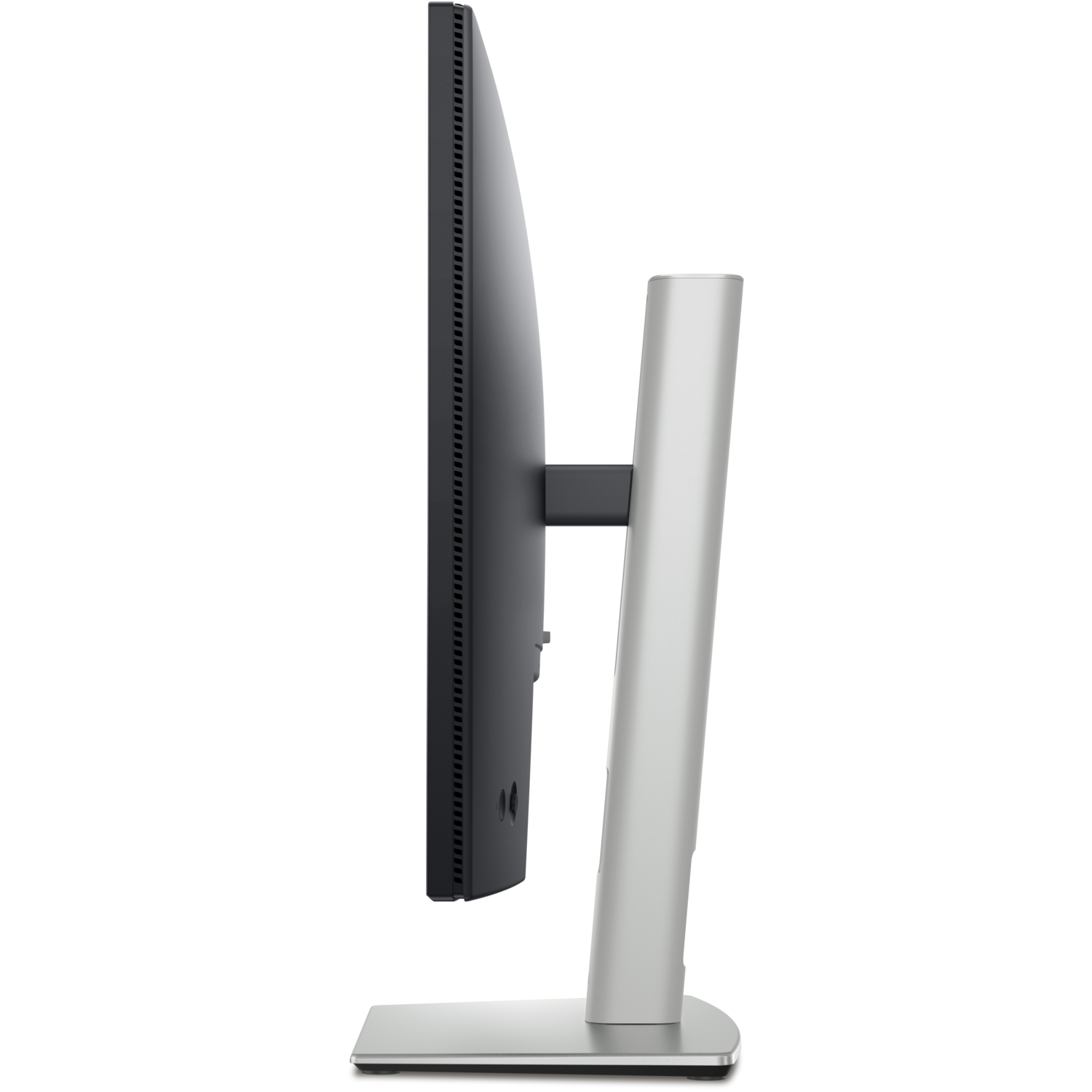

Ergonomics
| Height Adjustment | 150 mm |
| Tilt | -5° / +21° |
| Swivel | -45° / +45° |
| Pivot | -90° / +90° |
| VESA | 100 x 100 mm |
| Security | Kensington Security Slot |
Power
| Input Voltage | 100–240 VAC, 50/60 Hz ± 3 Hz, 2 A (typ) |
| On mode (typical) | 15.0 W |
| Maximum | 190 W |
| Standby | 0.3 W |
| Networked Standby | 1.0 W |
| Off | 0.3 W |
Environmental
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% (non-condensing) |
| Non-operating Temperature | -20°C to 60°C |
| Non-operating Humidity | 5% to 90% (non-condensing) |
Dimensions & Weight
| With stand (H x W x D) | 364.00–511.20 mm x 531.80 mm x 181.75 mm |
| Without stand (H x W x D) | 343.70 x 531.80 x 50.03 mm |
| Weight panel only (VESA) | 3.51 kg |
| Weight with packaging | 7.12 kg |
Certifications
| Compliance | ENERGY STAR; EPEAT Gold; EPEAT Climate+; TCO Certified Displays; TCO Certified Edge; RoHS; BFR/PVC free (excl. external cables); arsenic-free glass, mercury-free (panel only) |
| Software | Dell Display Manager with Easy Arrange; remote asset management |
Compatibility & Software Support
Laptop Connection
Any notebook with a USB-C port supporting DisplayPort Alt mode can drive the P2425E over one cable and charge at up to 90 W; Dell Power Button Sync works with supported Dell notebooks. PCs without USB-C connect over HDMI or DisplayPort 1.4.
Software
Dell Display Manager handles Easy Arrange window layouts, with remote asset management for managed fleets.
Typical Use
Hot desks and hybrid-work offices where one USB-C cable should connect the laptop, network and peripherals.
Package Contents & Dell Pro 24 Plus Monitors Ordering Information
In the Box
Monitor panel, Stand riser and base, Power cord, DP-to-DP cable (1.8 m), USB 3.2 Gen2 Type-C to Type-C cable (1.0 m), Cable tie, Quick setup guide, Safety, Environmental and Regulatory Information.
Dell Pro 24 Plus Monitors
| Model | Key feature |
| P2425H | 24" FHD 100 Hz |
| P2424HT | 24" FHD touch, USB-C hub |
| P2425E (this listing) | 24" 16:10 WUXGA, USB-C hub, 90 W |
| P2425D | 24" QHD 100 Hz |
| P2425DE | 24" QHD, USB-C hub |
Datasheet & Downloads
| Dell datasheet | Dell 24 USB-C Hub Monitor P2425E Datasheet (PDF) |
| Manuals & drivers | P2425E manuals and documents on Dell Support |
| Dell product page | P2425E on dell.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting P2425E.
Frequently Asked Questions — Dell P2425E
Can one USB-C cable power my laptop?
Yes. The USB-C upstream port delivers up to 90 W while carrying video, data and Ethernet. A USB-C to USB-C cable is in the box.
Can I daisy-chain a second monitor?
Yes, through the DisplayPort 1.4 output with MST.
Does it have an Ethernet port?
Yes, 1 x RJ45 1GbE.
Can it be wall- or arm-mounted?
Yes, it is VESA 100 x 100 compatible.
What warranty do I get?
3 years Dell Limited Hardware Warranty with Advanced Exchange Service and Premium Panel Exchange, supplied locally by SourceIT with a GST invoice.
