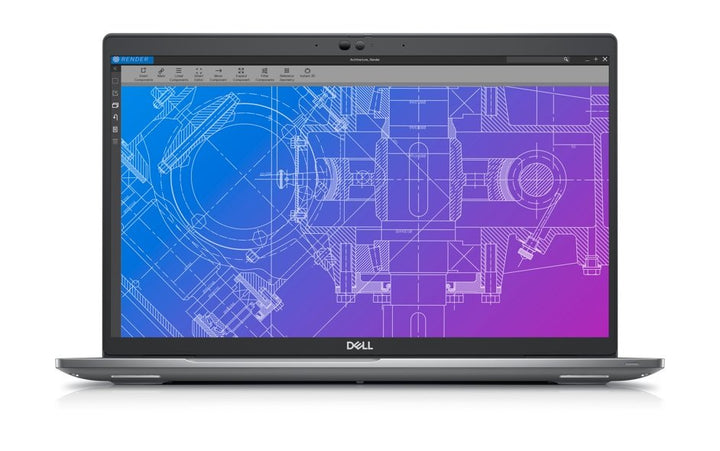

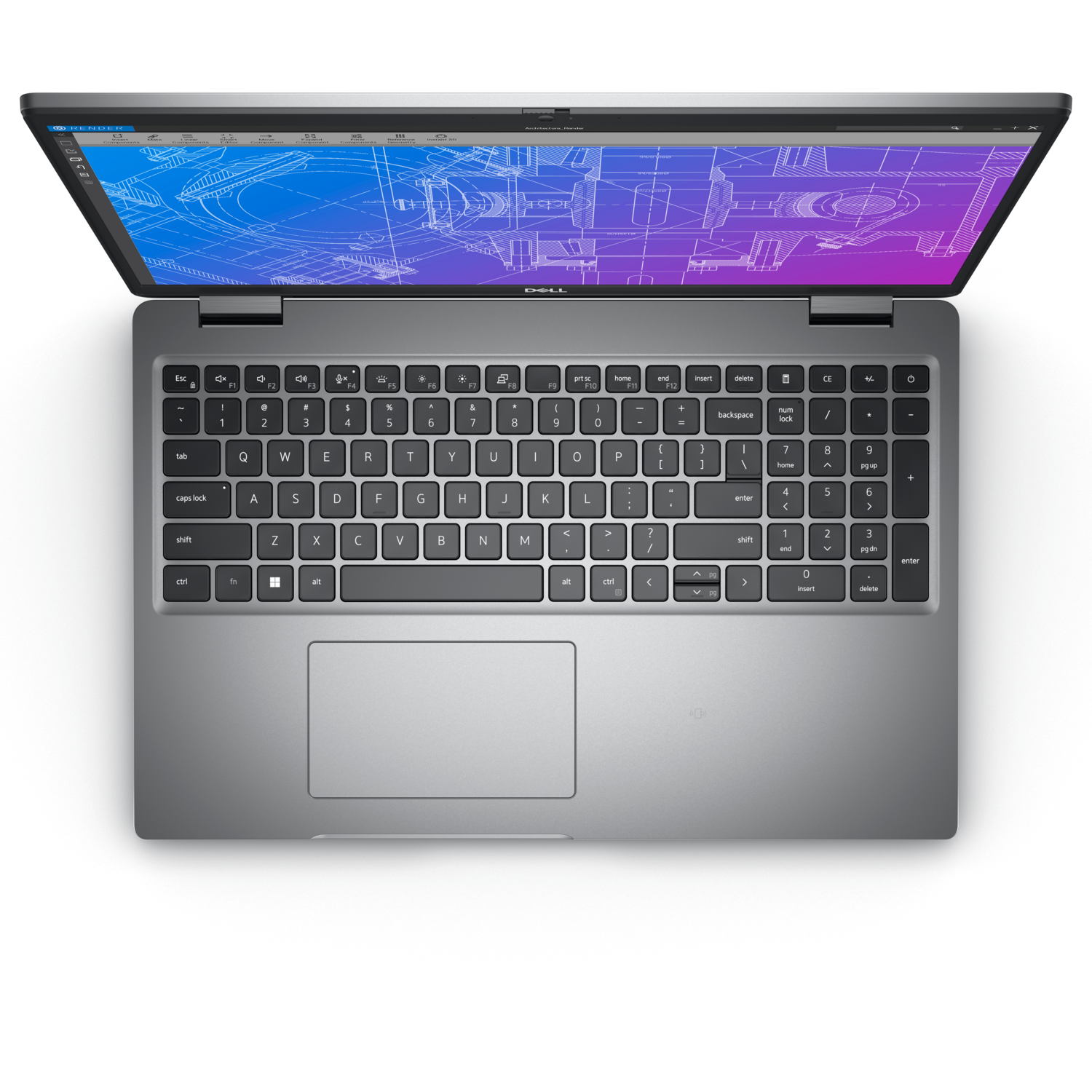

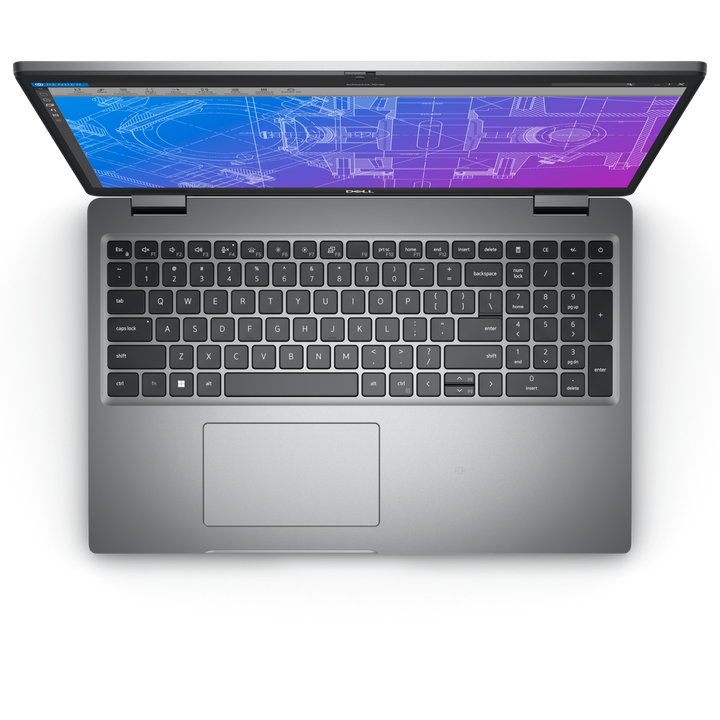

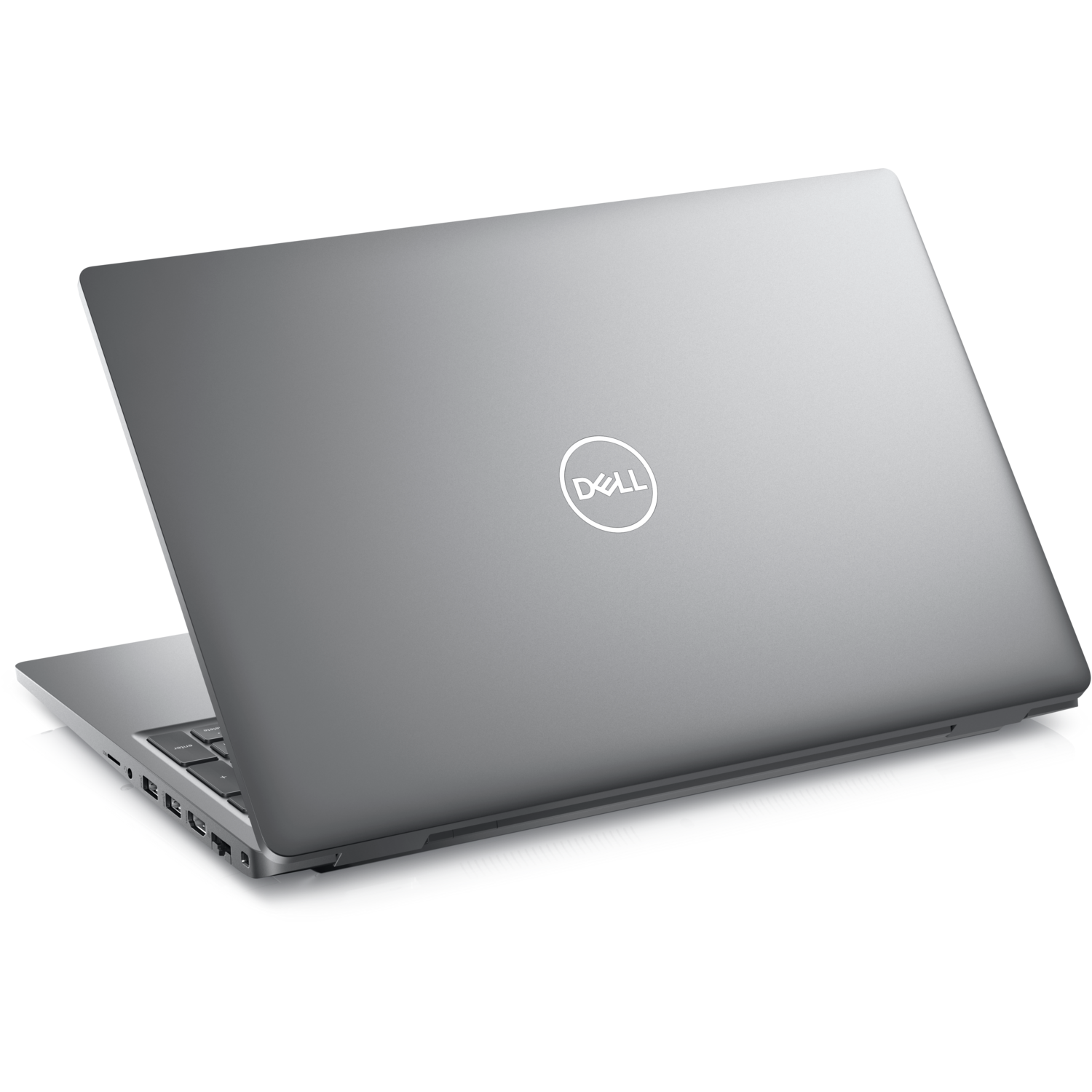

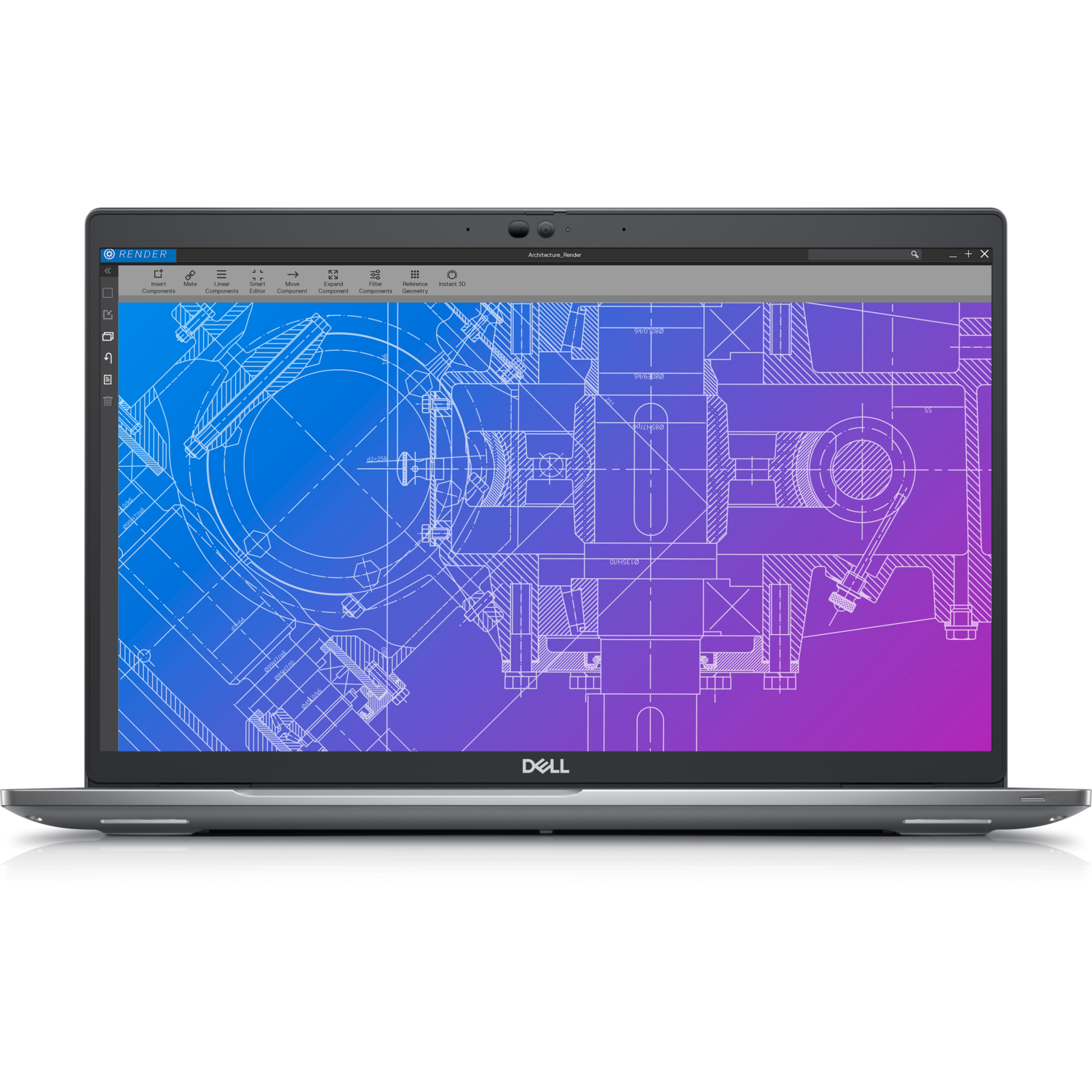

Dell Precision 3570 15.6" Mobile Workstation Core i7 NVIDIA T550
PRODUCT DESCRIPTION
Dell Precision 3570 15.6" Mobile Workstation 12th Gen Intel Core i7 / 16GB or 32GB / SSD / NVIDIA T550 (210-BDTQ) - 3 Years Local Onsite Warranty
No Longer Available. New or Similar items below:
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 16GB/512GB RTX 500 Ada
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 32GB/1TB RTX 500 Ada
12th Gen Intel Core i7 with NVIDIA T550
A 12th Gen Intel Core i7 paired with NVIDIA T550 4GB professional graphics handles CAD, BIM, GIS and creative workloads on a 15.6-inch mobile workstation.
Room to Grow

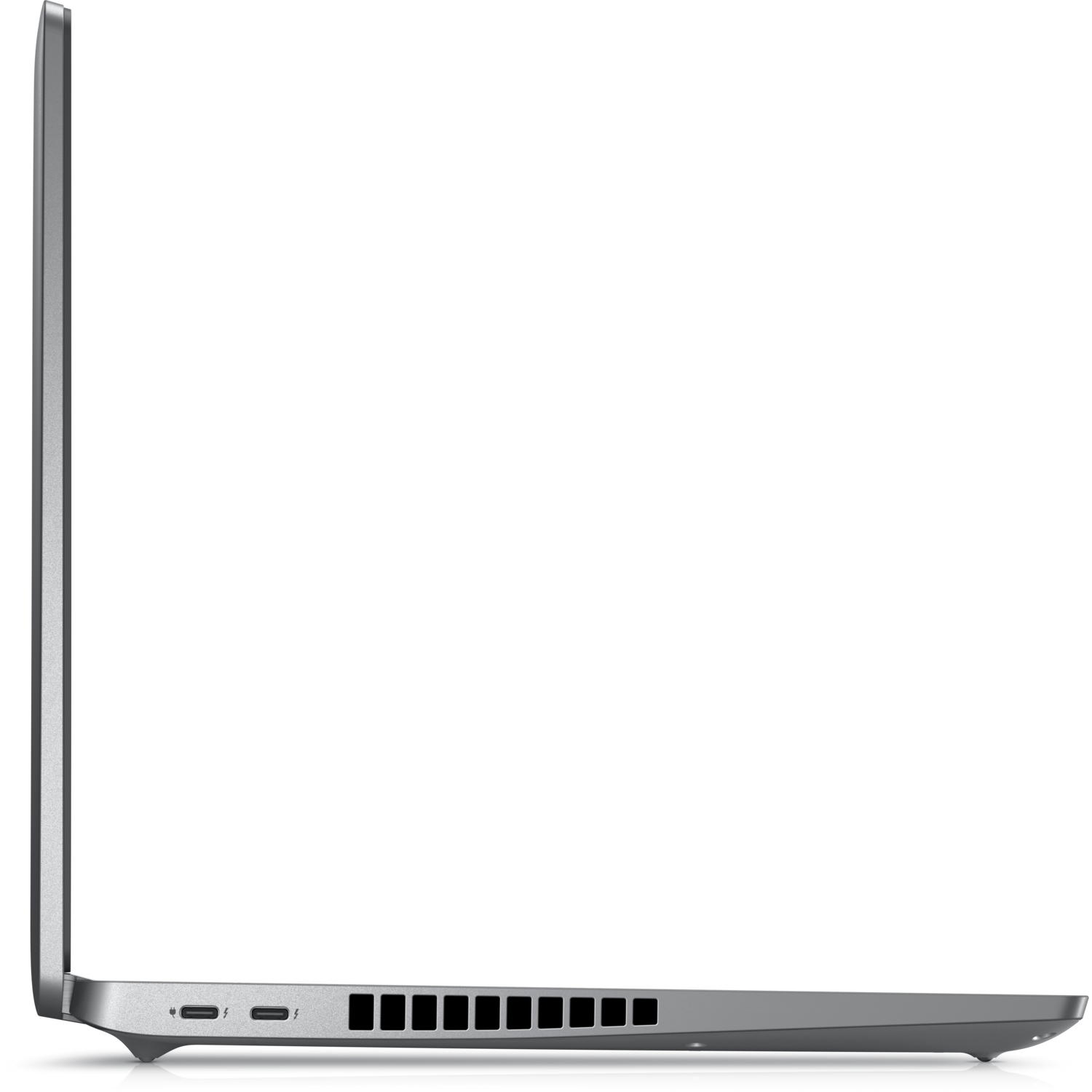

Two SO-DIMM slots take up to 64GB of memory and two M.2 PCIe NVMe SSD slots allow a second drive, while two Thunderbolt 4 ports, HDMI 2.0 and RJ45 Ethernet cover docks and displays.
Secure and Manageable
Discrete TPM 2.0, optional fingerprint and smart card readers with ControlVault 3, and Dell manageability tools, from 1.59 kg.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3570 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3570 Mobile Workstation |
| Part Number | 210-BDTQ |
| Processor | 12th Gen Intel Core i7 (Dell offers the i7-1255U, i7-1265U, i7-1270P and i7-1280P) |
| Memory | 16GB or 32GB (per variant) |
| Storage | M.2 PCIe NVMe SSD (capacity per selected variant) |
| Graphics | NVIDIA T550 4GB GDDR6 + Intel Iris Xe |
| Display | 15.6-inch |
| Local Warranty (Singapore) | 3 years local onsite |
Processor & Graphics
| Processor | 12th Gen Intel Core i7 |
| Discrete graphics | NVIDIA T550, 4GB GDDR6 |
| Integrated graphics | Intel Iris Xe |
| Chipset | Intel PCH-LP, PCIe Gen 4 |
Memory & Storage
| Memory support | Two SO-DIMM slots, up to 64GB (2 x 32GB) |
| Storage support | Two M.2 2230/2280 PCIe Gen 3/Gen 4 NVMe SSD slots, plus one M.2 2230 slot for Wi-Fi/Bluetooth |
Display, Camera & Audio
| Display options (Dell) | 15.6-inch, 60 Hz, anti-glare: HD 220 nits; FHD WVA 250 nits (touch or non-touch); FHD WVA 400 nits 100% sRGB; UHD WVA 400 nits 100% sRGB |
| Camera options (Dell) | HD RGB, HD RGB + IR, or FHD RGB with ambient light sensor and proximity detection |
| Microphones | Dual-array microphones |
| Audio | Realtek ALC3204 with Waves MaxxAudio Pro, two 2 W speakers |
Connectivity & Ports
| Wireless options (Dell) | Intel AX211 Wi-Fi 6E, MediaTek Wi-Fi 6E or Realtek Wi-Fi 5, with Bluetooth; optional WWAN |

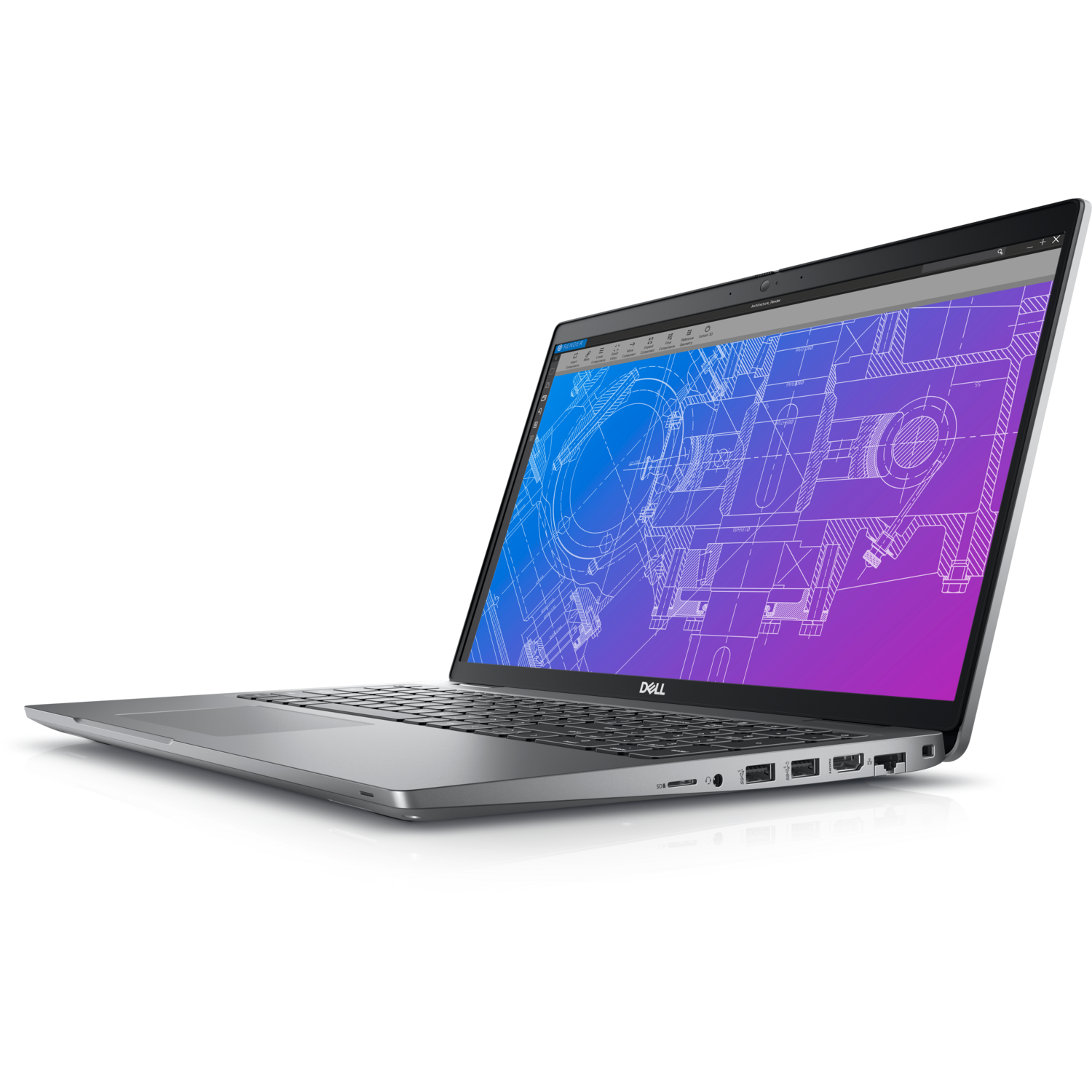

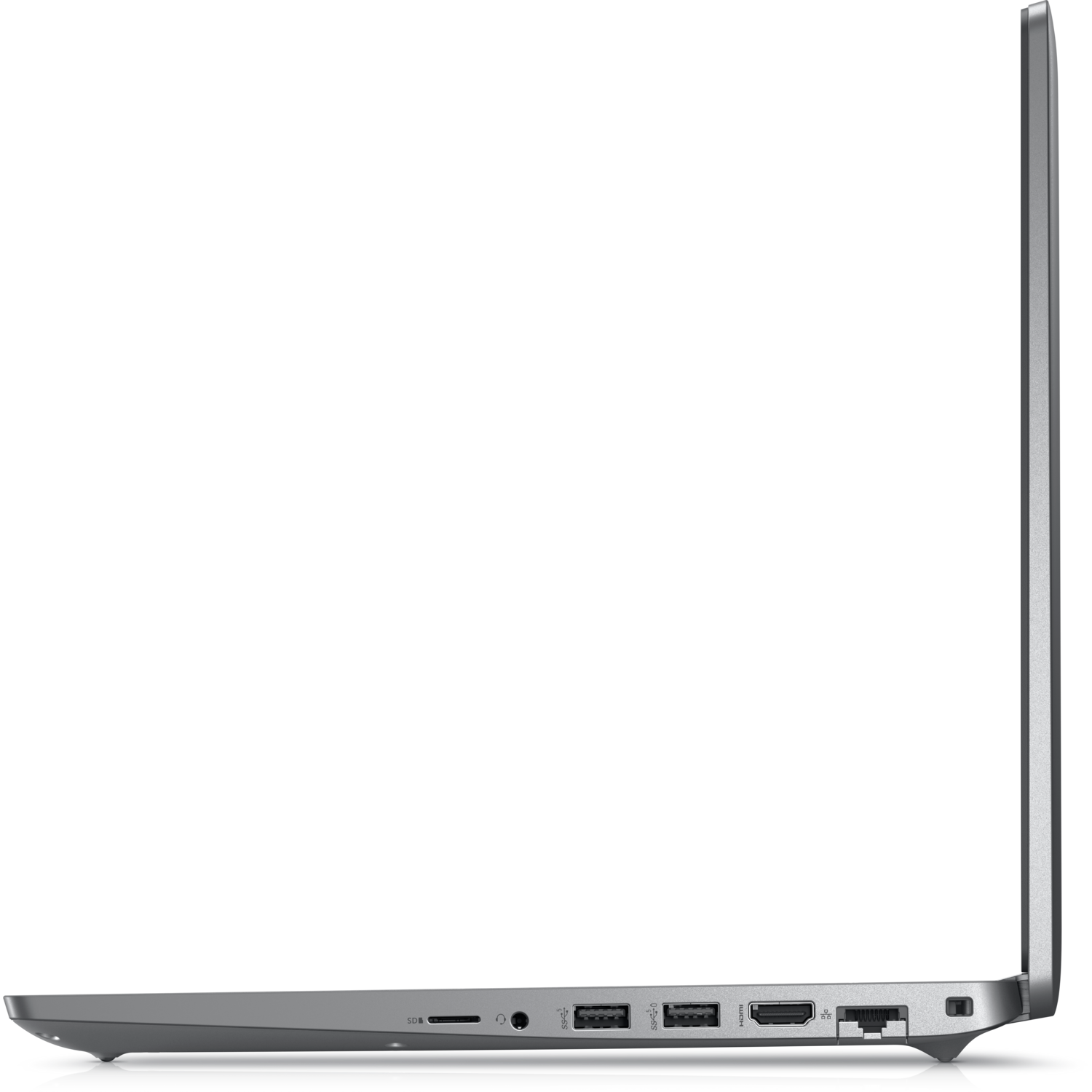

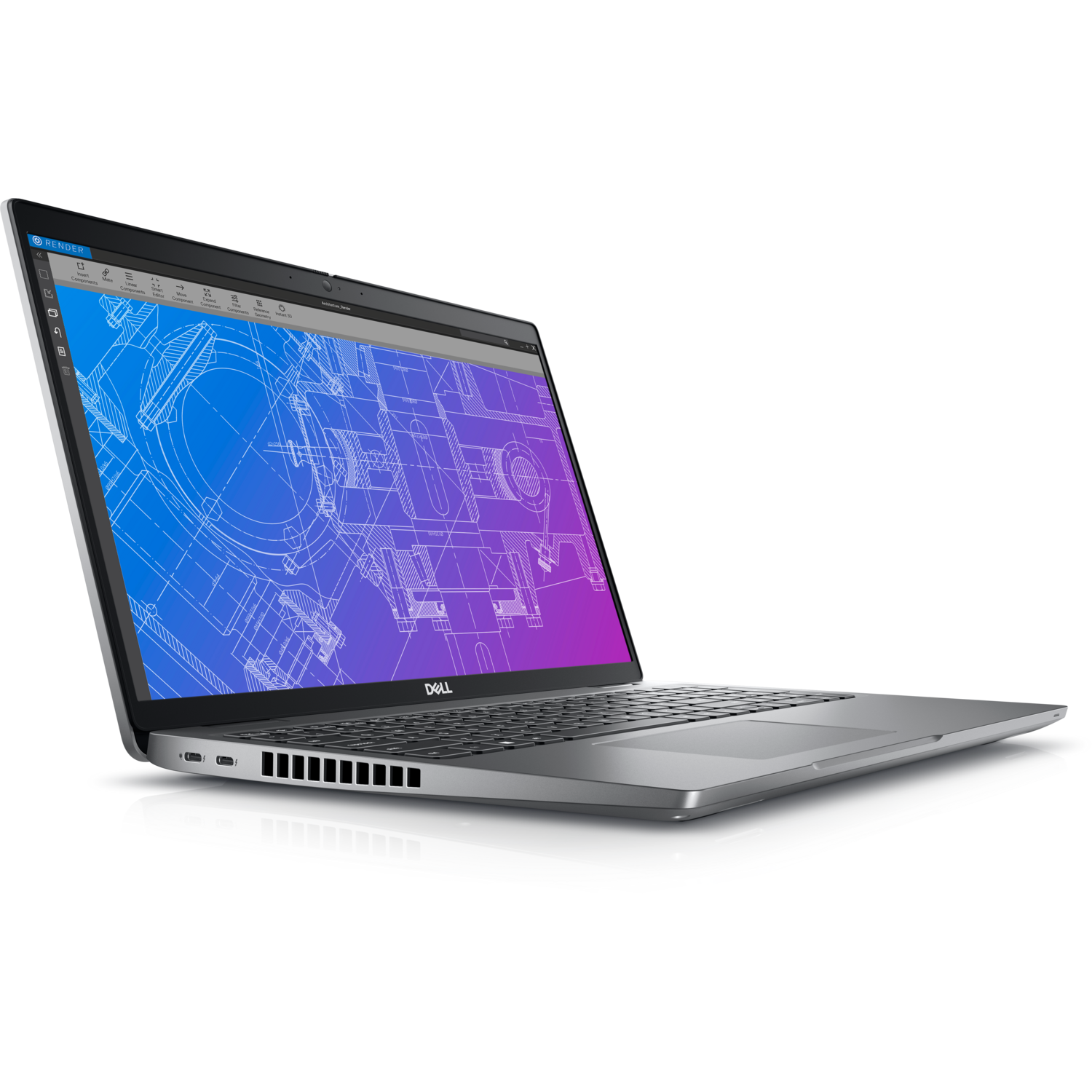

| Ports | 2 x Thunderbolt 4 (USB4, DisplayPort Alt Mode, Power Delivery), 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 with PowerShare, HDMI 2.0, RJ45 Ethernet, universal audio jack, microSD card slot, wedge-shaped lock slot, optional smart card reader |
Power & Physical
| Battery options (Dell) | 3-cell 41 Wh or 4-cell 58 Wh with ExpressCharge |
| Power adapter options (Dell) | USB-C 65 W, 90 W or 130 W |
| Dimensions | 20.77–22.15 x 357.8 x 236.2 mm (H x W x D) |
| Weight | From 1.59 kg |
Security
| Security | Discrete TPM 2.0 (FIPS 140-2), optional fingerprint reader with ControlVault 3, optional contacted / contactless smart card reader, self-encrypting drive options, wedge lock slot |
Compatibility & Software Support
Operating System
Dell lists Windows 11 Pro, Windows 10 Pro (downgrade), Ubuntu 20.04 LTS and Red Hat Enterprise Linux 8.4 for the Precision 3570.
Displays & Docking
Drive external displays from the two Thunderbolt 4 ports (DisplayPort Alt Mode) or HDMI 2.0, and connect a Thunderbolt or USB-C dock with a single cable.
Professional Software
NVIDIA T550 professional graphics with Dell Precision Optimizer for engineering, CAD and creative applications.
Manageability
Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3570 Ordering Information
In the Box
Dell Precision 3570 mobile workstation, USB-C power adapter and documentation.
Dell Precision Mobile Workstations at SourceIT
| Model | Configuration |
| Precision 3560 15.6" (11th Gen) | Core i7 / T500 |
| Precision 3570 15.6" (12th Gen) (this listing) | Core i7 / T550 |
| Precision 3480 14" (13th Gen) | Core i5-1350P / 16GB / 512GB / RTX A500 |
| Precision 3480 14" (13th Gen) | Core i7-1370P / 16GB / 512GB / RTX A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 512GB / A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 1TB / A500 |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 16GB / 512GB / RTX 500 Ada |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 32GB / 1TB / RTX 500 Ada |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | Precision 3570 Setup and Specifications (Dell) |
| Manuals & drivers | Precision 3570 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3570.
Frequently Asked Questions — Dell Precision 3570
Is this model still available?
This model is no longer available to order. See the Dell Precision 3590 listings linked above, or email sales@sourceit.com.sg for current stock and alternatives.
Which Core i7 processor is fitted?
Dell offered the Precision 3570 with the Core i7-1255U, i7-1265U, i7-1270P or i7-1280P; the supplied configuration states "i7" only, so please confirm the exact processor with sales before ordering.
Can I add a second SSD?
Yes — the Precision 3570 has two M.2 2230/2280 PCIe NVMe SSD slots.
Does it support external monitors?
Yes — through the two Thunderbolt 4 ports and HDMI 2.0.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
