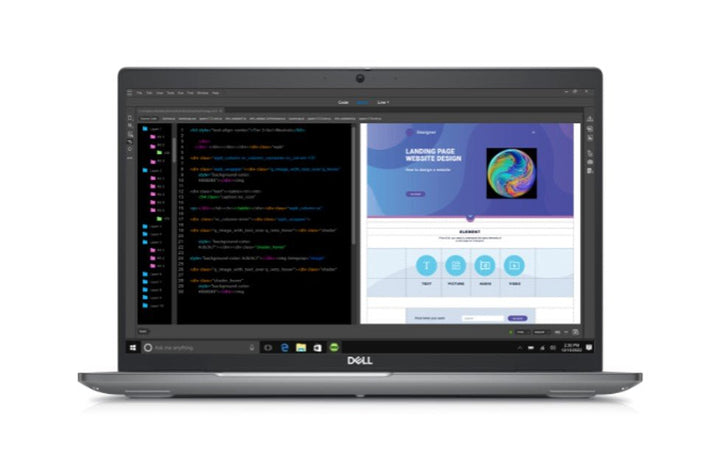

Dell Precision 3580 15.6" Mobile Workstation Core i7-1360P 16GB 512GB RTX A500
PRODUCT DESCRIPTION
Dell Precision 3580 15.6" FHD Mobile Workstation Intel Core i7-1360P vPro / 16GB / 512GB SSD / NVIDIA RTX A500 (210-BGDH / AWM3580i516GB512GBSSDA500) - 3 Years ProSupport NBD Onsite Warranty
No Longer Available. New or Similar items below:
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 16GB/512GB RTX 500 Ada
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 32GB/1TB RTX 500 Ada
13th Gen Core i7-1360P vPro with NVIDIA RTX A500
The 28 W Intel Core i7-1360P vPro and NVIDIA RTX A500 4GB professional graphics, with 16GB of DDR5 memory and a 512GB PCIe Gen 4 SSD, run CAD, BIM and creative applications on a 15.6-inch mobile workstation.
15.6-inch Workstation with Numeric Keypad
A 15.6-inch FHD anti-glare display, full-size backlit keyboard with numeric keypad, FHD IR camera with presence detection, Wi-Fi 6E and a 54 Wh battery in a chassis from 1.613 kg — with a Dell Pro Slim Backpack included.
Thunderbolt 4 and Business Security
Two Thunderbolt 4 ports, HDMI 2.0 and RJ45 Ethernet connect docks and displays, while discrete TPM 2.0 and Intel vPro keep the fleet secure and manageable.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3580 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3580 Mobile Workstation |
| Part Number | 210-BGDH / AWM3580i516GB512GBSSDA500 |
| Processor | Intel Core i7-1360P vPro Essentials — 12 cores (4P + 8E), 16 threads, 18 MB cache, up to 5.0 GHz, 28 W |
| Memory | 16GB (1 x 16GB) DDR5 SO-DIMM, 4800 MT/s |
| Storage | 512GB M.2 2280 PCIe Gen 4 NVMe SSD |
| Graphics | NVIDIA RTX A500 4GB GDDR6 + Intel UHD Graphics |
| Display | 15.6-inch FHD (1920 x 1080), 250 nits, non-touch |
| Camera | FHD IR camera and microphone with proximity sensor |
| Wireless | Intel AX211 Wi-Fi 6E 2x2 with Bluetooth |
| Keyboard | English US backlit keyboard with numeric keypad, 99 keys |
| Battery | 3-cell 54 Wh |
| Operating System | Windows 11 Pro |
| Bundled | Dell Pro Slim Backpack 15 (PO1520PS) |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-1360P vPro Essentials — 12 cores (4P + 8E), 16 threads, 18 MB cache, up to 5.0 GHz, 28 W |
| Discrete graphics | NVIDIA RTX A500, 4GB GDDR6 |
| Integrated graphics | Intel UHD Graphics (Intel UHD Graphics with single-channel memory, Iris Xe with dual-channel memory) |
Memory & Storage
| Memory supplied | 16GB (1 x 16GB) DDR5 SO-DIMM, 4800 MT/s |
| Memory support | Two SO-DIMM slots, DDR5, up to 64GB |
| Storage supplied | 512GB M.2 2280 PCIe Gen 4 NVMe SSD |
| Storage support | M.2 2230/2280 PCIe Gen 4 NVMe SSD slot (up to 2TB); RAID 0/1 on select storage options |
Display, Camera & Audio
| Display | 15.6-inch FHD 1920 x 1080 IPS, anti-glare, 250 nits, 45% NTSC, 60 Hz, non-touch |
| Camera | FHD RGB + IR camera (1080p at 30 fps) with presence detection for Express Sign-In |
| Audio | Realtek audio with Waves MaxxAudio, two 2 W stereo speakers, digital-array microphones |
Connectivity & Ports
| Wireless | Intel AX211 Wi-Fi 6E (2.4/5/6 GHz, up to 2400 Mbps) with Bluetooth |
| WWAN | Optional 4G LTE / 5G WWAN modules (Dell); this configuration’s display assembly is WWAN-antenna ready |
| Left | 2 x Thunderbolt 4 (USB4, DisplayPort 1.4, Power Delivery), optional smart card reader |
| Right | microSD card slot, universal audio jack, USB 3.2 Gen 1, USB 3.2 Gen 1 with PowerShare, HDMI 2.0, RJ45 Ethernet (10/100/1000), wedge-shaped lock slot |
Power & Physical
| Battery | 3-cell 54 Wh with ExpressCharge |
| Power adapter options (Dell) | USB-C 65 W (integrated graphics only), 100 W or 130 W |
| Dimensions | 20.80–22.80 x 357.80 x 233.30 mm (H x W x D) |
| Weight | From 1.613 kg |
Security
| Security | Discrete TPM 2.0 (FIPS 140-2, TCG certified), optional fingerprint reader in the power button with ControlVault 3, optional contacted / contactless smart card reader, self-encrypting drive options |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home and Ubuntu 22.04 LTS for the Precision 3580.
Displays & Docking
Drive external displays from the two Thunderbolt 4 ports (DisplayPort 1.4 Alt Mode) or HDMI 2.0, and connect a Thunderbolt or USB-C dock with a single cable.
Professional Software
NVIDIA RTX A500 professional graphics with Dell Precision Optimizer for engineering, CAD and creative applications.
Manageability
Intel vPro, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3580 Ordering Information
In the Box
Dell Precision 3580 mobile workstation, USB-C power adapter, Dell Pro Slim Backpack 15 (PO1520PS) and documentation.
Dell Precision Mobile Workstations at SourceIT
| Model | Configuration |
| Precision 3560 15.6" (11th Gen) | Core i7 / T500 |
| Precision 3570 15.6" (12th Gen) | Core i7 / T550 |
| Precision 3480 14" (13th Gen) | Core i5-1350P / 16GB / 512GB / RTX A500 |
| Precision 3480 14" (13th Gen) | Core i7-1370P / 16GB / 512GB / RTX A500 |
| Precision 3580 15.6" (13th Gen) (this listing) | Core i7-1360P / 16GB / 512GB / RTX A500 |
| Precision 3580 15.6" (13th Gen) | Core i7-1370P / 32GB / 1TB / RTX A500 |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 16GB / 512GB / RTX 500 Ada |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 32GB / 1TB / RTX 500 Ada |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | Precision 3580 Owner’s Manual (Dell) |
| Datasheet | Precision 3580 Spec Sheet (Dell Technologies) |
| Manuals & drivers | Precision 3580 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3580.
Frequently Asked Questions — Dell Precision 3580
Is this model still available?
This model is no longer available to order. See the Dell Precision 3590 listings linked above, or email sales@sourceit.com.sg for current stock and alternatives.
Is this a Precision 3580 or 3570?
The configuration (15.6-inch display, 13th Gen Core i7-1360P, numeric keypad, 1.613 kg starting weight) is the Dell Precision 3580; it was previously described as a Precision 3570. The listing part code 210-BGDH is shown as supplied — quote the full configuration when ordering.
Can I upgrade the memory?
Yes — two SO-DIMM slots, up to 64GB. The supplied 16GB (1 x 16GB) module leaves one slot free; adding a second module enables dual-channel memory and Intel Iris Xe graphics.
Does it include 4G?
The display assembly is WWAN-antenna ready, but no WWAN modem is listed in this configuration — email sales@sourceit.com.sg if you need 4G or 5G.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
