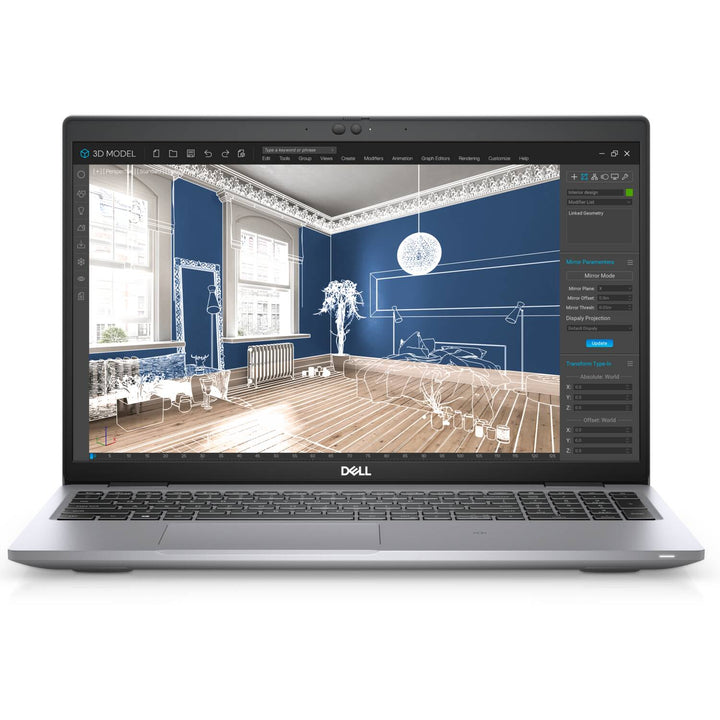

Dell Precision 3560 15.6" Mobile Workstation Core i7 NVIDIA T500
PRODUCT DESCRIPTION
Dell Precision 3560 15.6" Mobile Workstation Intel Core i7 / 16GB or 32GB / 1TB SSD / NVIDIA T500 (S009P356015SGVI / AWM3560I775l32GB1TBSSD) - 3 Years Local Onsite Warranty
No Longer Available. New or Similar items below:
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 16GB/512GB RTX 500 Ada
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 32GB/1TB RTX 500 Ada
Entry Mobile Workstation Power with NVIDIA T500
An 11th Gen Intel Core i7 with NVIDIA T500 professional graphics, a 1TB NVMe SSD and 16GB or 32GB of DDR4-3200 memory runs CAD, BIM and creative applications on a 15.6-inch workstation.
Thunderbolt 4 and Full-Size Ports
Two Thunderbolt 4 ports, HDMI 2.0, RJ45 Ethernet, two USB-A ports and a microSD reader connect docks, displays and peripherals without adapters.
Secure and Built for Business
Discrete TPM 2.0, optional fingerprint and smart card readers with ControlVault 3, and a chassis that includes reclaimed carbon fibre and bio-plastics, from 1.59 kg.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3560 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3560 Mobile Workstation |
| Part Numbers | S009P356015SGVI (16GB) / AWM3560I775l32GB1TBSSD (32GB) |
| Processor | 11th Gen Intel Core i7 (Dell offers the i7-1165G7 and i7-1185G7 — 4 cores, 8 threads, 12 MB cache) |
| Memory | 16GB or 32GB DDR4-3200 (per variant) |
| Storage | 1TB M.2 PCIe NVMe SSD |
| Graphics | NVIDIA T500 2GB GDDR6 + Intel Iris Xe |
| Display | 15.6-inch |
| Local Warranty (Singapore) | 3 years local onsite |
Processor & Graphics
| Processor | 11th Gen Intel Core i7, 4 cores / 8 threads, 12 MB cache |
| Discrete graphics | NVIDIA T500, 2GB GDDR6 |
| Integrated graphics | Intel Iris Xe |
| Chipset | Intel PCH-LP, PCIe up to Gen 4 |
Memory & Storage
| Memory support | Two SO-DIMM slots, DDR4-3200 dual-channel, up to 64GB (2 x 32GB) |
| Storage supplied | 1TB M.2 PCIe NVMe SSD |
| Storage support | M.2 2230 or 2280 PCIe NVMe SSDs (Gen 3, 2TB Gen 4 option); dual-drive configurations use two slots |
Display, Camera & Audio
| Display options (Dell) | 15.6-inch, 60 Hz, anti-glare: HD 220 nits; FHD WVA 250 nits (touch or non-touch); FHD WVA 400 nits 100% sRGB; UHD WVA 400 nits 100% sRGB |
| Camera | HD RGB + IR camera options with privacy shutter |
| Microphones | Dual-array microphones |
| Audio | Realtek ALC3204, two 2 W speakers (2.5 W peak) |
Connectivity & Ports
| Wireless options (Dell) | Intel Wi-Fi 6 AX201, Intel Wi-Fi 6E AX210 or Qualcomm Wi-Fi 5, with Bluetooth; optional LTE WWAN |
| Left | 2 x Thunderbolt 4 (USB4, DisplayPort Alt Mode, Power Delivery), optional smart card reader |
| Right | microSD card slot, universal audio jack, 1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 1 with PowerShare, HDMI 2.0, RJ45 Ethernet, wedge-shaped lock slot |
Power & Physical
| Battery options (Dell) | 3-cell 42 Wh or 4-cell 63 Wh with ExpressCharge |
| Power adapter options (Dell) | USB-C 65 W, 90 W or 130 W |
| Keyboard | Single-point keyboard, backlit or non-backlit, no numeric keypad |
| Weight | From 1.59 kg |
Security
| Security | Discrete TPM 2.0 (FIPS 140-2), optional fingerprint reader in the power button with ControlVault 3, optional contacted / contactless smart card reader, self-encrypting drive options |
Compatibility & Software Support
Operating System
Dell lists Windows 11 Pro / Home, Windows 10 Pro / Home and Ubuntu 20.04 LTS for the Precision 3560.
Displays & Docking
Drive external displays from the two Thunderbolt 4 ports (DisplayPort Alt Mode) or HDMI 2.0, and connect a Thunderbolt or USB-C dock with a single cable.
Professional Software
NVIDIA T500 professional graphics with Dell Precision Optimizer for engineering, CAD and creative applications.
Manageability
Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3560 Ordering Information
In the Box
Dell Precision 3560 mobile workstation, USB-C power adapter and documentation.
Dell Precision Mobile Workstations at SourceIT
| Model | Configuration |
| Precision 3560 15.6" (11th Gen) (this listing) | Core i7 / T500 |
| Precision 3570 15.6" (12th Gen) | Core i7 / T550 |
| Precision 3480 14" (13th Gen) | Core i5-1350P / 16GB / 512GB / RTX A500 |
| Precision 3480 14" (13th Gen) | Core i7-1370P / 16GB / 512GB / RTX A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 512GB / A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 1TB / A500 |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 16GB / 512GB / RTX 500 Ada |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 32GB / 1TB / RTX 500 Ada |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | Precision 3560 Setup and Specifications (Dell) |
| Technical guidebook | Precision 3560 Technical Guidebook (Dell Technologies) |
| Manuals & drivers | Precision 3560 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3560.
Frequently Asked Questions — Dell Precision 3560
Is this model still available?
This model is no longer available to order. See the Dell Precision 3590 listings linked above, or email sales@sourceit.com.sg for current stock and alternatives.
Which Core i7 processor is fitted?
Dell offered the Precision 3560 with the Core i7-1165G7 or i7-1185G7; the supplied configuration states "i7" only, so please confirm the exact processor with sales before ordering.
Can I upgrade the memory?
Yes — two DDR4-3200 SO-DIMM slots, up to 64GB.
Does it support external monitors?
Yes — through the two Thunderbolt 4 ports and HDMI 2.0.
What warranty do I get?
3 years local onsite warranty, supplied locally by SourceIT with a GST invoice.
