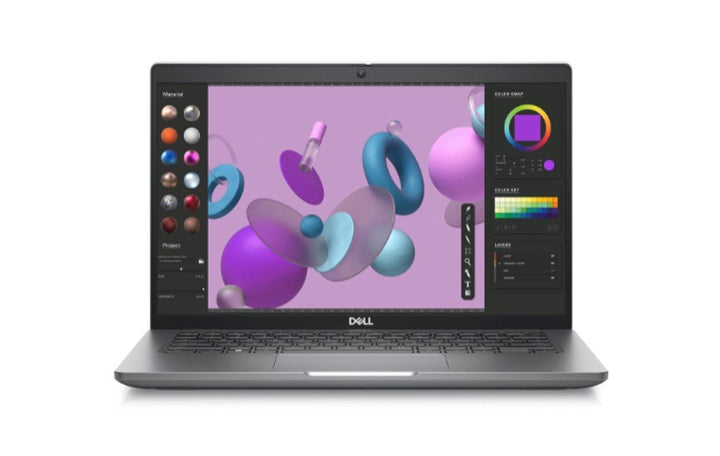

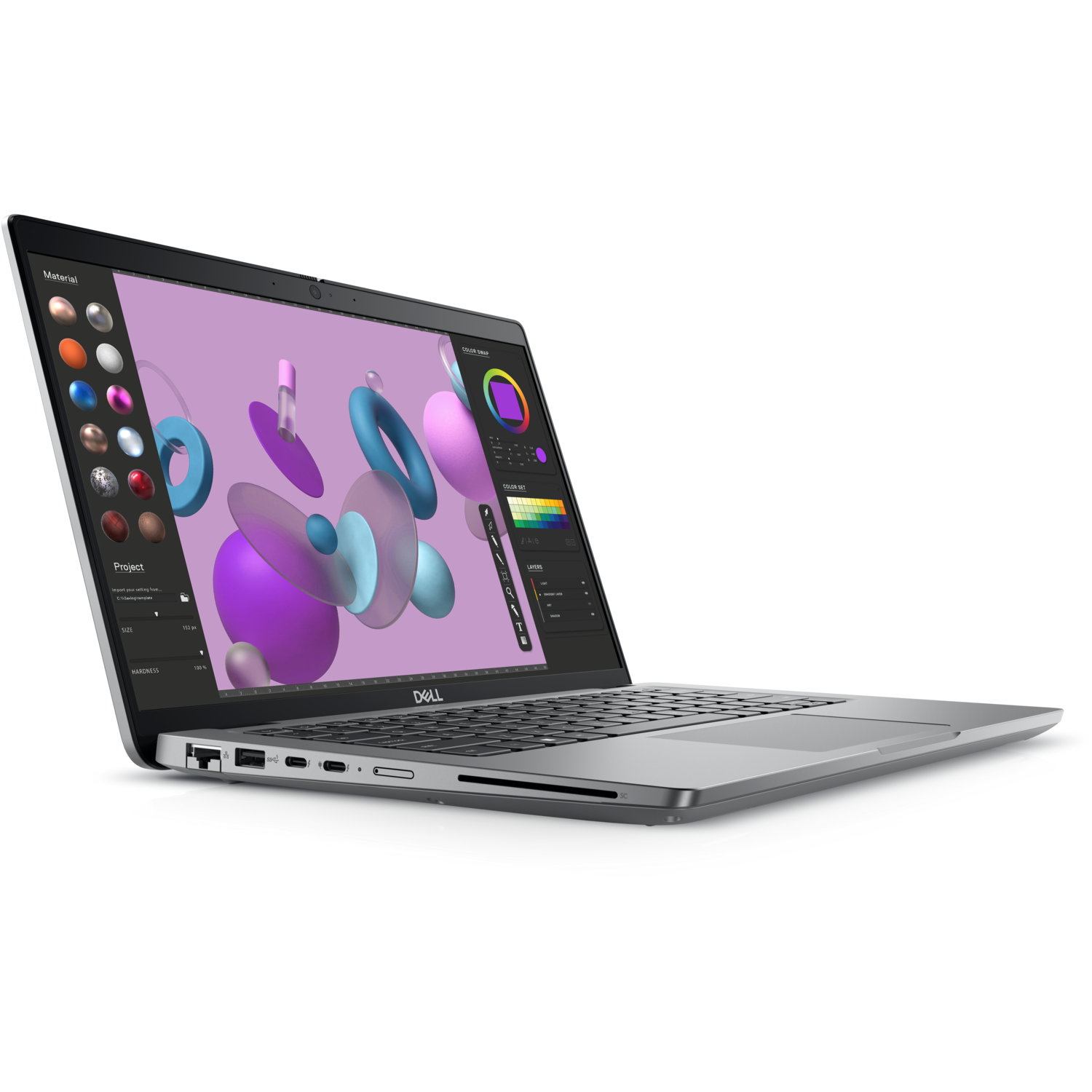

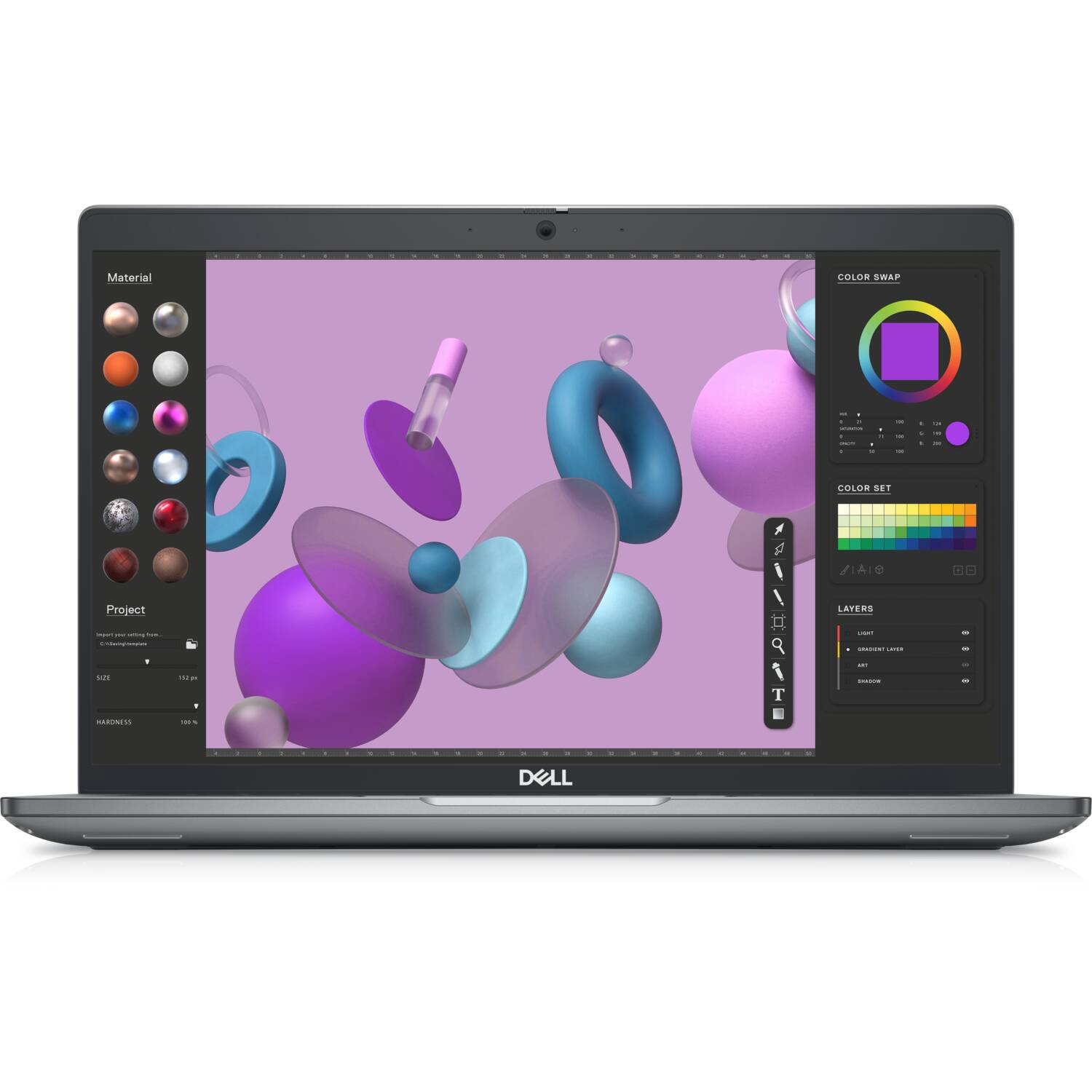

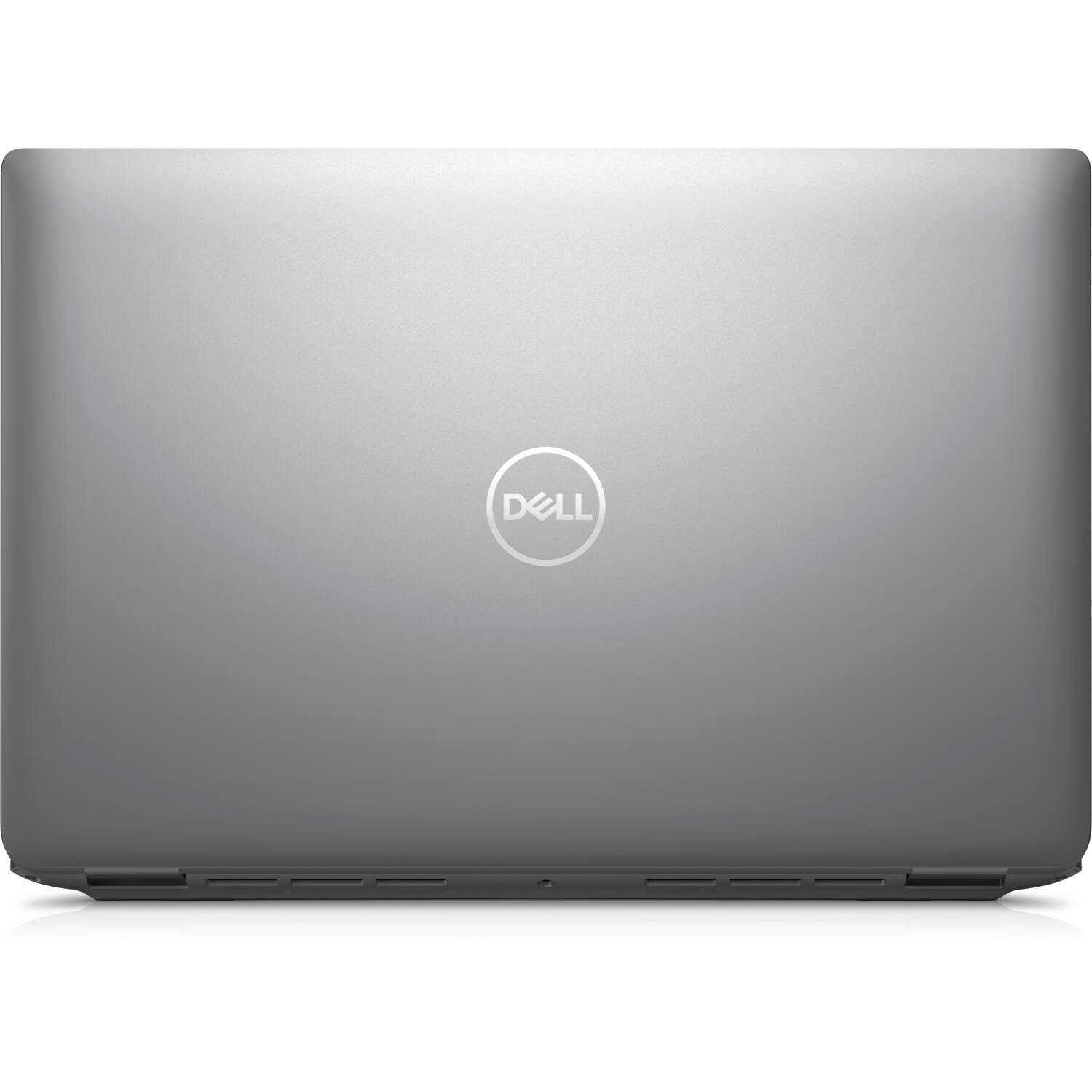

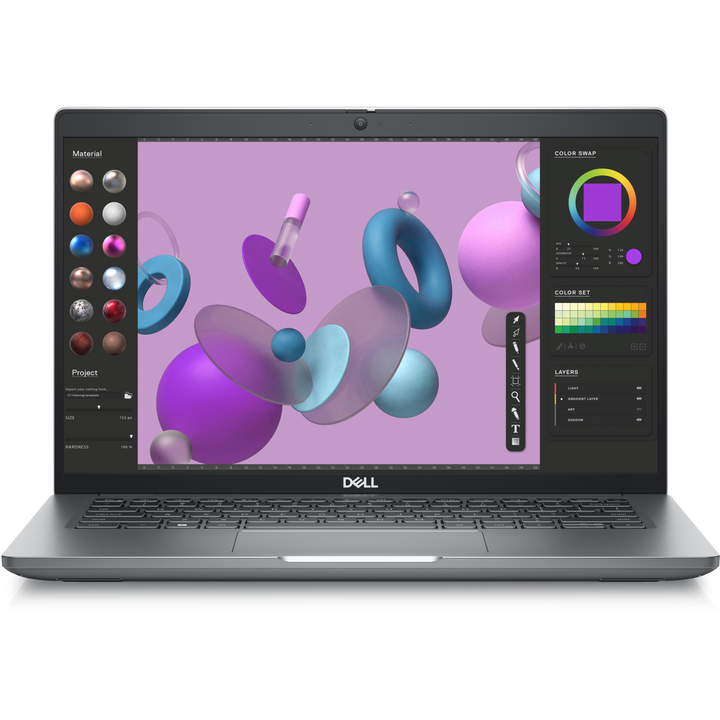

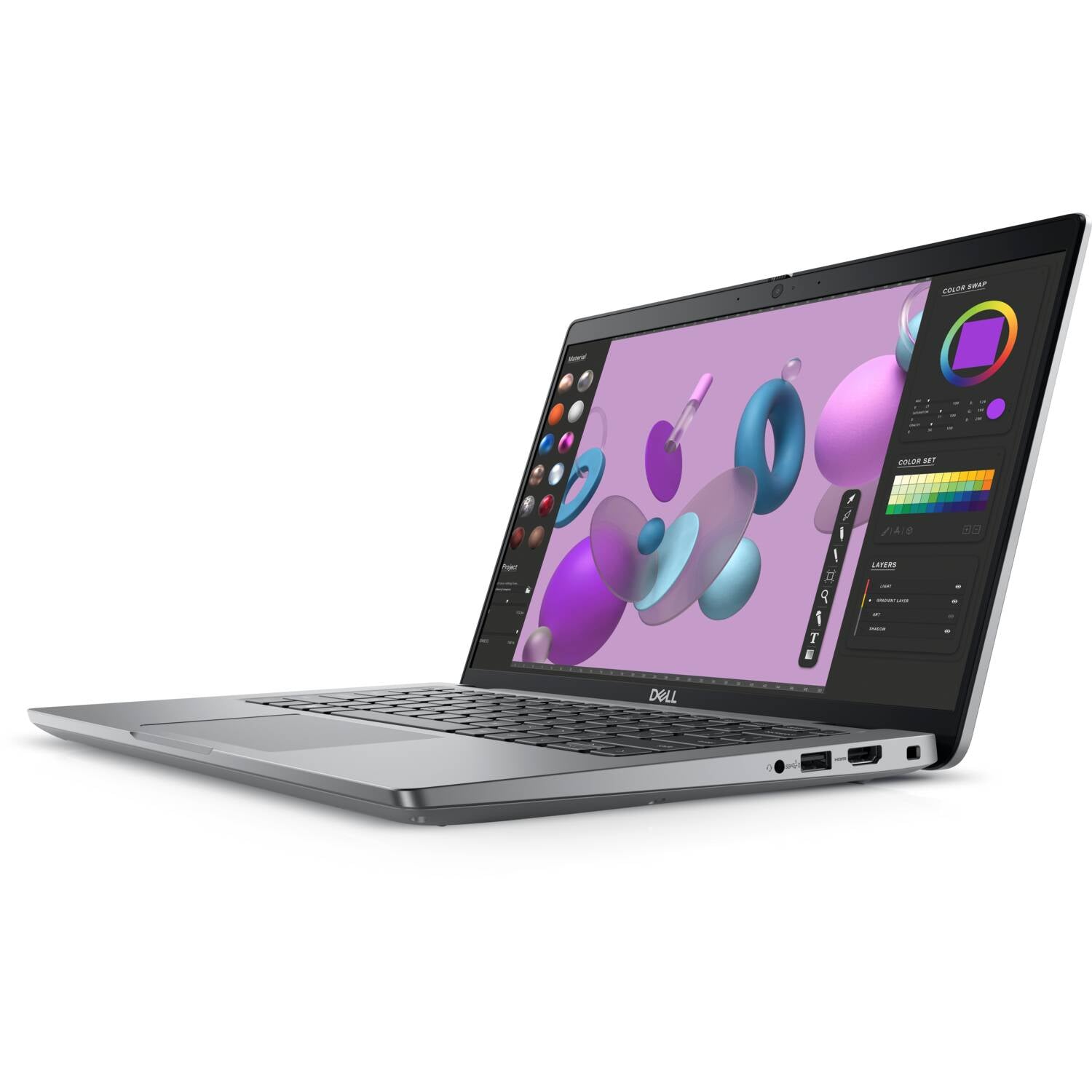

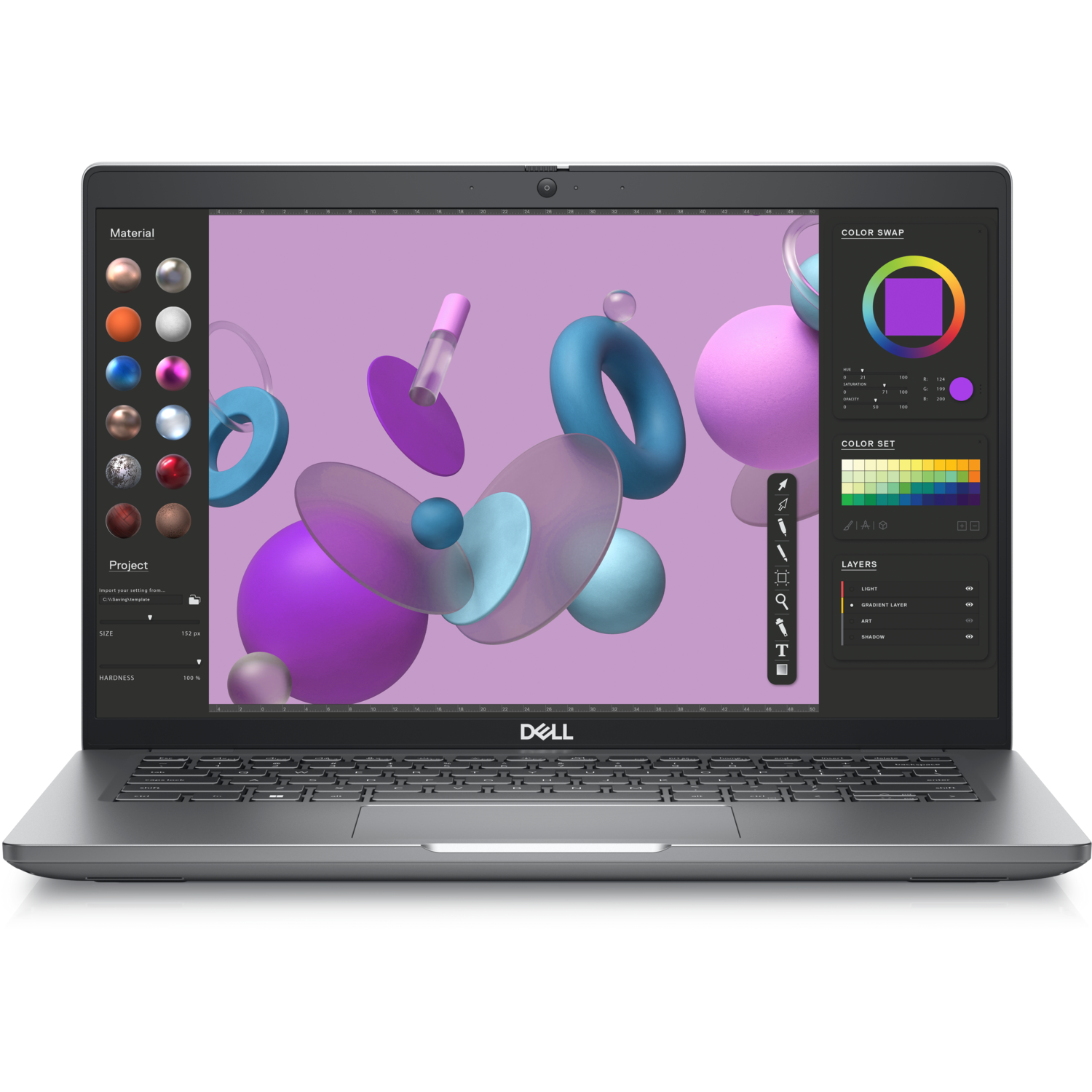

Dell Precision 3480 14" Mobile Workstation Core i7-1370P 16GB 512GB RTX A500
PRODUCT DESCRIPTION
Dell Precision 3480 14" FHD Mobile Workstation Intel Core i7-1370P vPro Enterprise / 16GB / 512GB SSD / NVIDIA RTX A500 (210-BGDH / AWM3480i716GB512GBSSDA500) - 3 Years ProSupport NBD Onsite Warranty
No Longer Available. New or Similar items below:
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 16GB/512GB RTX 500 Ada
Dell Precision 3590 Mobile Workstation Core Ultra 7 165H 32GB/1TB RTX 500 Ada
13th Gen Intel Core i7-1370P vPro with NVIDIA RTX A500
The 28 W Intel Core i7-1370P vPro Enterprise and NVIDIA RTX A500 4GB professional graphics, with 16GB of DDR5 memory and a 512GB PCIe Gen 4 SSD, run CAD, BIM and creative applications on a 14-inch mobile workstation.
Compact 14-inch Workstation from 1.39 kg
A 14-inch FHD anti-glare display, FHD IR camera with presence detection, Wi-Fi 6E and a 54 Wh battery in a chassis that starts at 1.39 kg — with a Dell Pro Slim Backpack included.
Thunderbolt 4 and Business Security
Two Thunderbolt 4 ports, HDMI 2.0 and RJ45 Ethernet connect docks and displays, while discrete TPM 2.0 and Intel vPro Enterprise keep the fleet secure and manageable.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3480 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3480 Mobile Workstation |
| Part Number | 210-BGDH / AWM3480i716GB512GBSSDA500 |
| Processor | Intel Core i7-1370P vPro Enterprise — 14 cores (6P + 8E), 20 threads, 24 MB cache, up to 5.2 GHz, 28 W |
| Memory | 16GB (1 x 16GB) DDR5 SO-DIMM, 4800 MT/s |
| Storage | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Graphics | NVIDIA RTX A500 4GB GDDR6 + Intel Iris Xe |
| Display | 14-inch FHD (1920 x 1080), 250 nits, non-touch |
| Camera | FHD IR camera and microphone with proximity sensor |
| Wireless | Intel AX211 Wi-Fi 6E 2x2 with Bluetooth |
| Keyboard | English US backlit keyboard, 79 keys |
| Battery | 3-cell 54 Wh |
| Operating System | Windows 11 Pro |
| Bundled | Dell Pro Slim Backpack 15 (PO1520PS) |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core i7-1370P vPro Enterprise — 14 cores (6P + 8E), 20 threads, 24 MB cache, up to 5.2 GHz, 28 W |
| Discrete graphics | NVIDIA RTX A500, 4GB GDDR6 |
| Integrated graphics | Intel Iris Xe |
| Chipset | Integrated in the processor, PCIe up to Gen 4 |
Memory & Storage
| Memory supplied | 16GB (1 x 16GB) DDR5 4800 MT/s, single-channel |
| Memory support | Two SO-DIMM slots, up to 64GB |
| Storage supplied | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Storage support | One M.2 2230 PCIe Gen 4 x4 NVMe SSD slot, up to 2TB |
Display, Camera & Audio
| Display | 14-inch FHD 1920 x 1080 IPS, anti-glare, 250 nits, 45% NTSC, 60 Hz, non-touch |
| Camera | FHD RGB + IR camera (1080p at 30 fps) with presence detection for Express Sign-In |
| Audio | Realtek audio with Waves MaxxAudio, two 2 W speakers, digital-array microphones |
Connectivity & Ports
| Wireless | Intel AX211 Wi-Fi 6E (2.4/5/6 GHz, up to 2400 Mbps) with Bluetooth |
| Left | RJ45 Ethernet, 1 x USB 3.2 Gen 1, 2 x Thunderbolt 4 (40 Gbps, USB4, DisplayPort Alt Mode, Power Delivery) |
| Right | Universal audio jack, 1 x USB 3.2 Gen 1 with PowerShare, HDMI 2.0, wedge-shaped lock slot |
Power & Physical
| Battery | 3-cell 54 Wh |
| Power adapter options (Dell) | USB-C 65 W, 100 W or 130 W |
| Dimensions | 19.06–21.04 x 321.35 x 212 mm (H x W x D) |
| Weight | From 1.39 kg |
Security
| Security | Discrete TPM 2.0 (FIPS 140-2), optional fingerprint reader in the power button with ControlVault 3, optional smart card reader, self-encrypting drive options, Intel vPro Enterprise |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home, Windows 10 Pro (downgrade) and Ubuntu 22.04 LTS for the Precision 3480.
Displays & Docking
Drive external displays from the two Thunderbolt 4 ports (DisplayPort Alt Mode) or HDMI 2.0, and connect a Thunderbolt or USB-C dock with a single cable.
Professional Software
NVIDIA RTX A500 professional graphics with Dell Precision Optimizer for engineering, CAD and creative applications.
Manageability
Intel vPro Enterprise, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3480 Ordering Information
In the Box
Dell Precision 3480 mobile workstation, USB-C power adapter, Dell Pro Slim Backpack 15 (PO1520PS) and documentation.
Dell Precision Mobile Workstations at SourceIT
| Model | Configuration |
| Precision 3560 15.6" (11th Gen) | Core i7 / T500 |
| Precision 3570 15.6" (12th Gen) | Core i7 / T550 |
| Precision 3480 14" (13th Gen) | Core i5-1350P / 16GB / 512GB / RTX A500 |
| Precision 3480 14" (13th Gen) (this listing) | Core i7-1370P / 16GB / 512GB / RTX A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 512GB / A500 |
| Precision 3580 (13th Gen) | Core i7-1360P / 16GB / 1TB / A500 |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 16GB / 512GB / RTX 500 Ada |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 32GB / 1TB / RTX 500 Ada |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | Precision 3480 Owner’s Manual (Dell) |
| Datasheet | Precision 3480 Spec Sheet (Dell Technologies) |
| Manuals & drivers | Precision 3480 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3480.
Frequently Asked Questions — Dell Precision 3480
Is this model still available?
This model is no longer available to order. See the Dell Precision 3590 listings linked above, or email sales@sourceit.com.sg for current stock and alternatives.
Is this a Precision 3480 or 3570?
This configuration (Dell base 210-BGDH, 14-inch display, 13th Gen Core i7-1370P) is the Dell Precision 3480 14-inch mobile workstation; it was previously listed under the Precision 3570 name.
Can I upgrade the memory?
Yes — two SO-DIMM slots, up to 64GB. The supplied 16GB (1 x 16GB) module leaves one slot free.
Can I add a second SSD?
No — the Precision 3480 has a single M.2 2230 SSD slot (up to 2TB).
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
