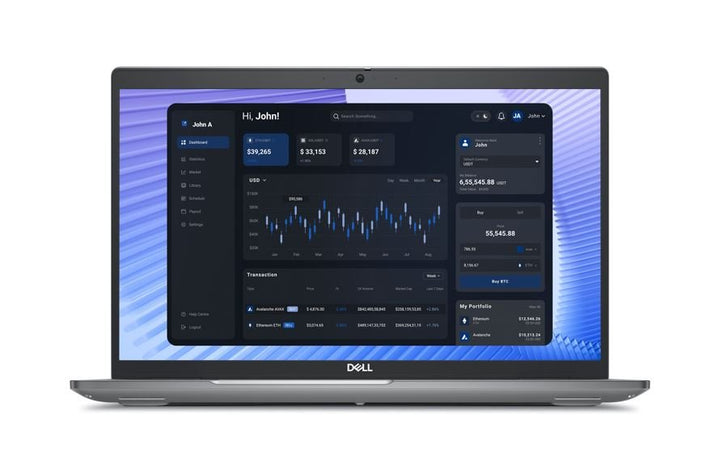

Dell Precision 3590 15.6" Mobile Workstation Core Ultra 7 165H 16GB 512GB RTX 500 Ada
PRODUCT DESCRIPTION
Dell Precision 3590 15.6" FHD Mobile Workstation Intel Core Ultra 7 165H vPro / 16GB / 512GB SSD / NVIDIA RTX 500 Ada (460-BDSG / AWM3590U716G512A500) - 3 Years ProSupport NBD Onsite Warranty
Core Ultra 7 165H with NVIDIA RTX 500 Ada
Intel Core Ultra 7 165H vPro Enterprise with a built-in NPU and NVIDIA RTX 500 Ada Generation 4GB graphics, with 16GB of DDR5-5600 memory and a 512GB PCIe Gen 4 SSD, run CAD, BIM, creative and AI-assisted workloads.
15.6-inch Workstation from 1.62 kg
A 15.6-inch FHD anti-glare display, backlit Copilot-key keyboard with numeric keypad, FHD HDR IR camera, Wi-Fi 6E and a 54 Wh battery — with a 130 W USB-C adapter and Dell EcoLoop Pro Slim Backpack included.
Thunderbolt 4 and Business Security
Two Thunderbolt 4 ports, HDMI 2.1 and RJ45 Ethernet connect docks and displays, while the smart card reader, fingerprint reader with ControlVault 3+ and discrete TPM 2.0 protect credentials and data.
Buying for a team or project? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
Dell Precision 3590 Datasheet — Technical Specifications
Configuration
| Product Name | Dell Precision 3590 Mobile Workstation |
| Part Number | 460-BDSG / AWM3590U716G512A500 |
| Processor | Intel Core Ultra 7 165H vPro Enterprise — 16 cores (6P + 8E + 2 LP-E), 22 threads, 24 MB cache, up to 5.0 GHz |
| Memory | 16GB (1 x 16GB) DDR5 SO-DIMM, 5600 MT/s, non-ECC |
| Storage | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Graphics | NVIDIA RTX 500 Ada Generation 4GB GDDR6 + Intel Graphics |
| Display | 15.6-inch FHD (1920 x 1080), 250 nits, non-touch |
| Camera | FHD HDR IR camera with proximity sensor and microphone |
| Wireless | Intel AX211 Wi-Fi 6E 2x2 with Bluetooth |
| Security options fitted | Smart card reader, fingerprint reader, ControlVault 3+ |
| Keyboard | English US backlit AI hotkey (Copilot) keyboard with numeric keypad, 99 keys |
| Battery | 3-cell 54 Wh |
| Power Adapter | 130 W USB Type-C |
| Operating System | Windows 11 Pro |
| Bundled | Dell EcoLoop Pro Slim Backpack (CP5724S) |
| Local Warranty (Singapore) | 3 years Dell ProSupport, next business day onsite |
Processor & Graphics
| Processor | Intel Core Ultra 7 165H vPro Enterprise — 16 cores (6P + 8E + 2 LP-E), 22 threads, 24 MB cache, up to 5.0 GHz |
| Discrete graphics | NVIDIA RTX 500 Ada Generation, 4GB GDDR6 |
| Integrated graphics | Intel Graphics (Dell: Intel Arc Graphics requires dual-channel memory of 16GB or more) |
Memory & Storage
| Memory supplied | 16GB (1 x 16GB) DDR5 SO-DIMM, 5600 MT/s, non-ECC |
| Memory support | Two SO-DIMM slots, DDR5 5600 MT/s, up to 64GB |
| Storage supplied | 512GB M.2 2230 PCIe Gen 4 NVMe SSD |
| Storage support | One M.2 2230/2280 slot (up to 2TB) and one M.2 2230 slot (up to 1TB), PCIe Gen 4 NVMe |
Display, Camera & Audio
| Display | 15.6-inch FHD 1920 x 1080 IPS, anti-glare, 250 nits, 45% NTSC, 60 Hz, non-touch |
| Camera | FHD RGB + IR camera (1080p at 30 fps) with Express Sign-In presence detection |
| Audio | Realtek audio with Waves MaxxAudio 13.0, two 2 W stereo speakers, digital-array microphones |
Connectivity & Ports
| Wireless | Intel Wi-Fi 6E AX211 2x2 (2.4/5/6 GHz) with Bluetooth |
| WWAN | Optional 4G LTE (DW5825e) or 5G (DW5932e) modules from Dell |
| Left | 2 x Thunderbolt 4 (40 Gbps, USB4, DisplayPort Alt Mode, Power Delivery), smart card reader |
| Right | microSD card slot, universal audio jack, USB 3.2 Gen 1, USB 3.2 Gen 1 with PowerShare, HDMI 2.1, RJ45 Ethernet (10/100/1000), wedge-shaped lock slot |
Power & Physical
| Battery | 3-cell 54 Wh with ExpressCharge and ExpressCharge Boost |
| Power adapter | 130 W USB Type-C (Dell also offers 65 W and 100 W) |
| Dimensions | 20.80–22.80 x 357.80 x 233.30 mm (H x W x D) |
| Weight | From 1.62 kg |
Security
| Security | Discrete TPM 2.0 (FIPS 140-2, TCG certified), fingerprint reader in the power button with ControlVault 3+, contacted smart card reader, Dell SafeBIOS and SafeID, self-encrypting drive options |
Compatibility & Software Support
Operating System
Supplied with Windows 11 Pro. Dell also lists Windows 11 Home and Ubuntu 22.04 LTS for the Precision 3590.
Displays & Docking
Drive external displays from the two Thunderbolt 4 ports (DisplayPort Alt Mode) or HDMI 2.1, and connect a Thunderbolt or USB-C dock with a single cable.
Professional & AI Software
NVIDIA RTX 500 Ada professional graphics and the Intel AI Boost NPU in Core Ultra, with Dell Optimizer for engineering, CAD and creative applications.
Manageability
Intel vPro Enterprise, Dell Command tools, SupportAssist and Dell Update handle drivers, BIOS and fleet management.
Package Contents & Dell Precision 3590 Ordering Information
In the Box
Dell Precision 3590 mobile workstation, 130 W USB Type-C power adapter, Dell EcoLoop Pro Slim Backpack (CP5724S) and documentation.
Dell Precision Mobile Workstations at SourceIT
| Model | Configuration |
| Precision 3560 15.6" (11th Gen) | Core i7 / T500 |
| Precision 3570 15.6" (12th Gen) | Core i7 / T550 |
| Precision 3480 14" (13th Gen) | Core i5-1350P / 16GB / 512GB / RTX A500 |
| Precision 3480 14" (13th Gen) | Core i7-1370P / 16GB / 512GB / RTX A500 |
| Precision 3580 15.6" (13th Gen) | Core i7-1360P / 16GB / 512GB / RTX A500 |
| Precision 3580 15.6" (13th Gen) | Core i7-1370P / 32GB / 1TB / RTX A500 |
| Precision 3590 15.6" (Core Ultra) (this listing) | Core Ultra 7 165H / 16GB / 512GB / RTX 500 Ada |
| Precision 3590 15.6" (Core Ultra) | Core Ultra 7 165H / 32GB / 1TB / RTX 500 Ada |
Other configurations can be quoted on request — email sales@sourceit.com.sg.
Datasheet & Downloads
| Owner’s manual & specifications | Precision 3590 Owner’s Manual (Dell) |
| Datasheet | Precision 3590 Spec Sheet (Dell Technologies) |
| Manuals & drivers | Precision 3590 on Dell Support Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting Precision 3590.
Frequently Asked Questions — Dell Precision 3590
Does the Core Ultra 7 165H have an NPU?
Yes — Intel Core Ultra processors include the Intel AI Boost NPU alongside the CPU and GPU.
Can I upgrade the memory?
Yes — two SO-DIMM slots, up to 64GB. The supplied 16GB (1 x 16GB) module leaves one slot free; a second module enables dual-channel memory and Intel Arc graphics.
Can I add a second SSD?
Yes — the Precision 3590 has a second M.2 2230 SSD slot (up to 1TB) in addition to the main M.2 2230/2280 slot.
What warranty do I get?
3 years Dell ProSupport next business day onsite, supplied locally by SourceIT with a GST invoice.
