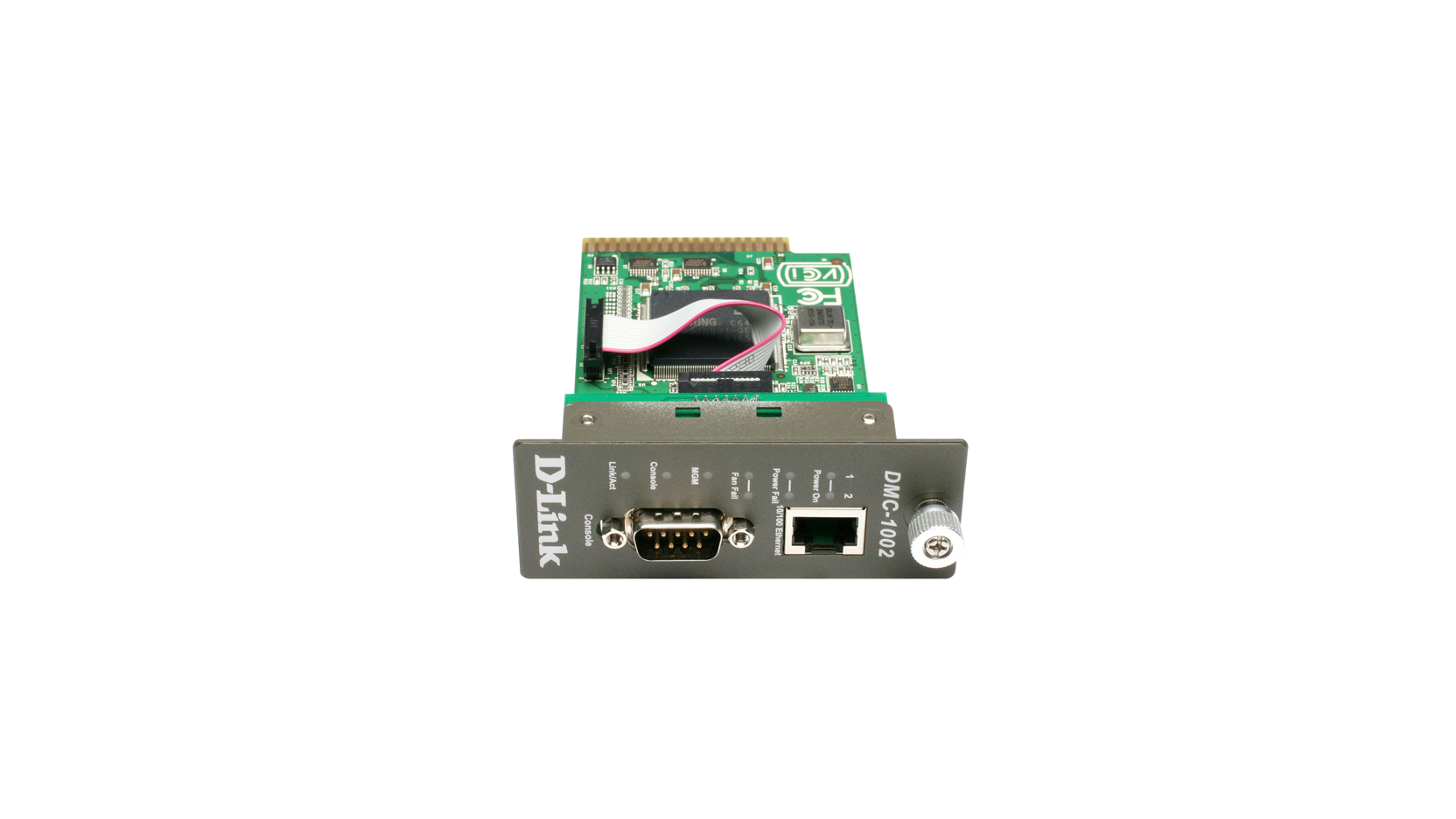

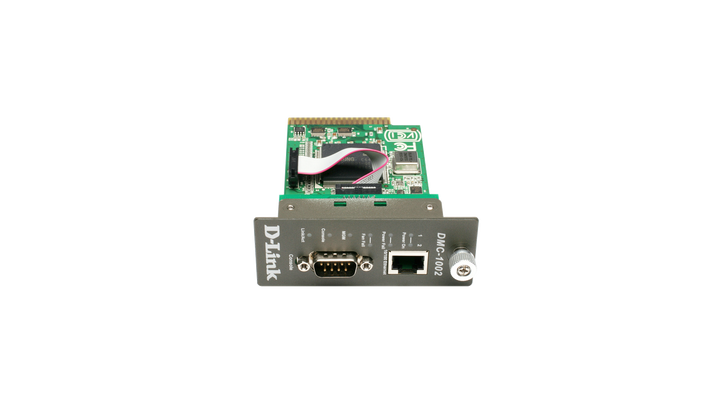

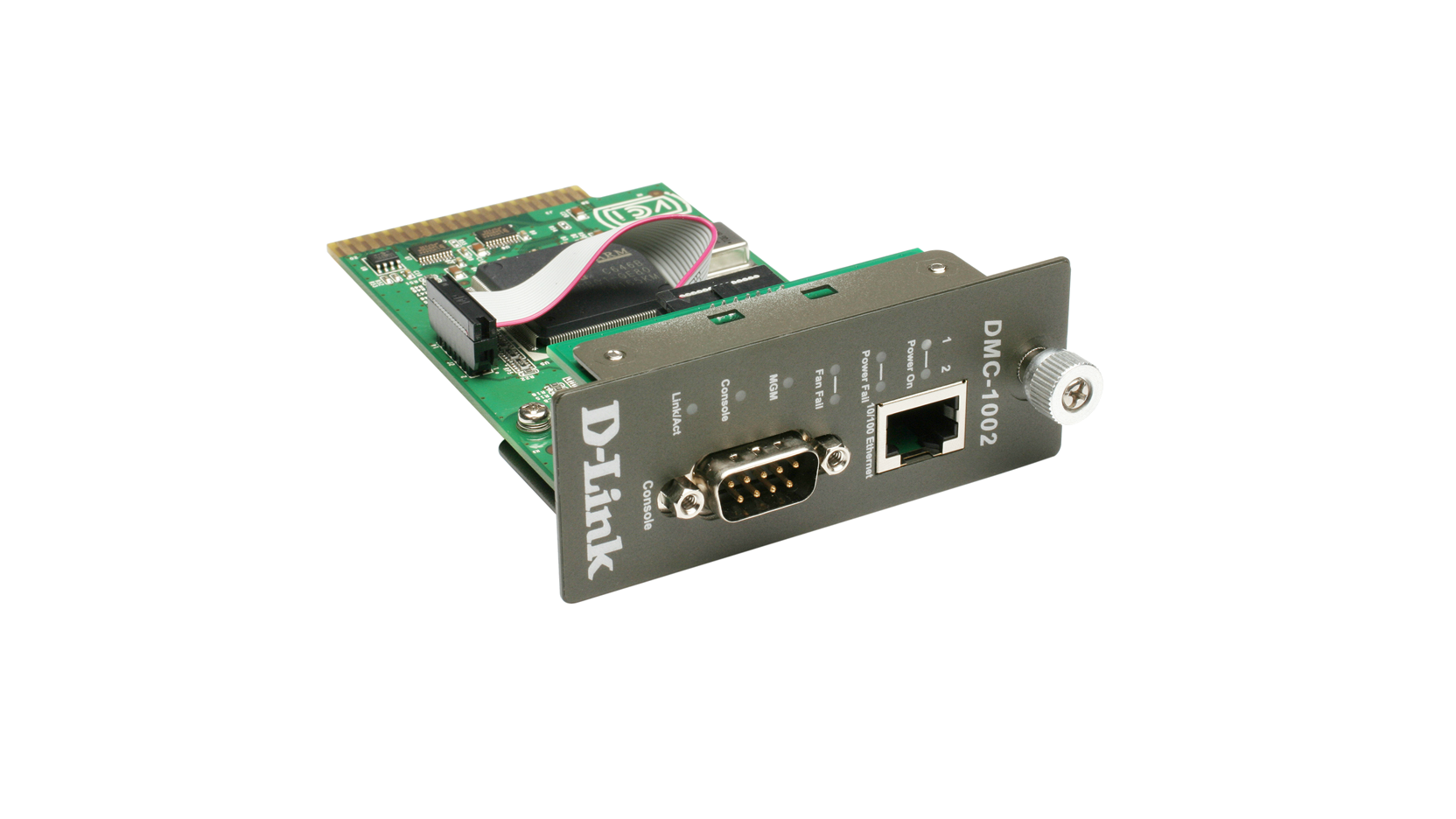

D-Link DMC-1002 SNMP Management Module for DMC-1000
PRODUCT DESCRIPTION
D-Link DMC-1002 SNMP Management Module for DMC-1000 Chassis (DMC-1002) - 5 Years Local Warranty
Remote Management for the DMC-1000
The D-Link DMC-1002 provides SNMP-based and web-based management of all media converter and power supply modules installed in the DMC-1000 chassis.
Real-Time Status and Traps
It shows the link, speed and duplex status of each converter in real time and sends SNMP traps for cold start, warm start, authentication fail, power fail, fan fail, module insertion and pull-out, and port link up/down.
Console, Telnet and Web
A 10/100 Mbps Fast Ethernet port and an RS-232 console port give access through a menu-driven terminal program (console or Telnet) or a web browser, with password protection and TFTP/web firmware and configuration upload.
Need help choosing? Email sales@sourceit.com.sg with your chassis layout and NMS requirements and we will size it for you.
D-Link DMC-1002 Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-1002 SNMP Management Module for DMC-1000 Chassis |
| Part Number | DMC-1002 |
| Designed For | DMC-1000 16-slot media converter chassis |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Network Port | 1 x 10/100 Mbps Fast Ethernet |
| Console Port | RS-232 |
Management
| SNMP | Built-in SNMP v1 agent with MIB-II and enterprise MIBs |
| Protocols Supported | IP, UDP, SNMP, TCP, TFTP, ARP, ICMP, HTTP |
| Access | Web-based; menu-driven terminal via console port or Telnet; password protection |
| Maintenance | Configuration upload/download and firmware upgrade via TFTP and web |
Physical & Environmental
| LED Indicators | Power 1, 2; Power Fail 1, 2; Fan Fail 1, 2; MGM; Console; Link/Activity |
| Dimensions | 120 x 88 x 25 mm |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -25 to 70 °C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 90% |
Certifications
| EMI | FCC Class B, CE Mark Class B, VCCI Class B |
Specifications from the dlink.com DMC-1002 product page and D-Link's chassis-based media converter datasheet. The older DMC-1002 user guide (2002) lists 130 x 35 x 88 mm and 0–50 °C operating; the product page figures are shown above. D-Link does not publish weight or power consumption.
Compatibility & Software Support
Compatibility
Installs in the DMC-1000 chassis and manages all installed DMC media converters and DMC-1001 power supplies.
Default Access
D-Link's documentation gives default IP 192.168.1.1 — change the default credentials on first login.
Package Contents & DMC Chassis Ordering Information
DMC Chassis System Ordering Information
| Model | Description | Part No. |
| DMC-1000/E | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 (this listing) | SNMP / web management module for DMC-1000 | DMC-1002 |
| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
Package contents are not listed in D-Link's documentation — ask us if you need confirmation.
Datasheet & Downloads
| D-Link datasheet | Chassis-based Media Converters / DMC-1002 Datasheet (PDF) |
| D-Link user guide | DMC-1002 Manual (PDF) |
| D-Link product page | DMC-1002 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-1002.
Frequently Asked Questions — D-Link DMC-1002
What does it manage?
All media converter and power supply modules installed in a DMC-1000 chassis.
Which SNMP version?
A built-in SNMP v1 agent with MIB-II and enterprise MIBs.
Can I manage it without SNMP software?
Yes — through the web interface, or a menu-driven terminal via the console port or Telnet.
Is the DMC-1002 still current?
dlink.com lists the DMC-1002 as End of Life (firmware 1.18, 2007). It remains in D-Link Singapore's current commercial price list — contact us to confirm availability and support before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
