D-Link DMC-1001 Redundant Power Supply for DMC-1000
PRODUCT DESCRIPTION
D-Link DMC-1001 Redundant Power Supply for DMC-1000 Chassis (DMC-1001) - 5 Years Local Warranty
Fail-Safe Power for the DMC-1000

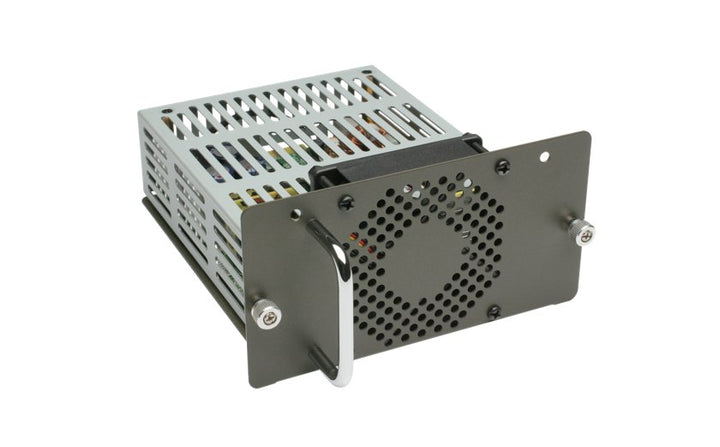

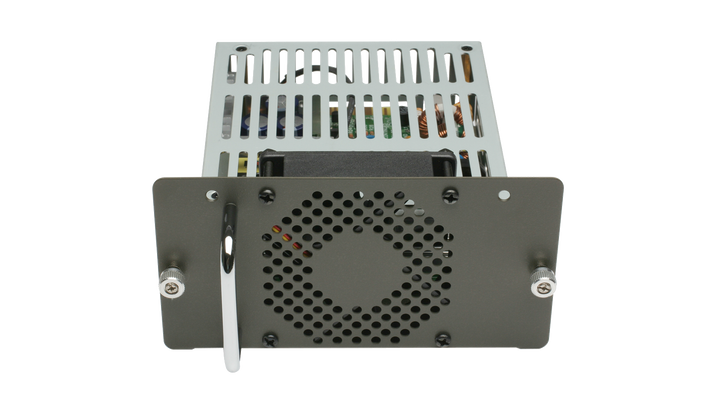

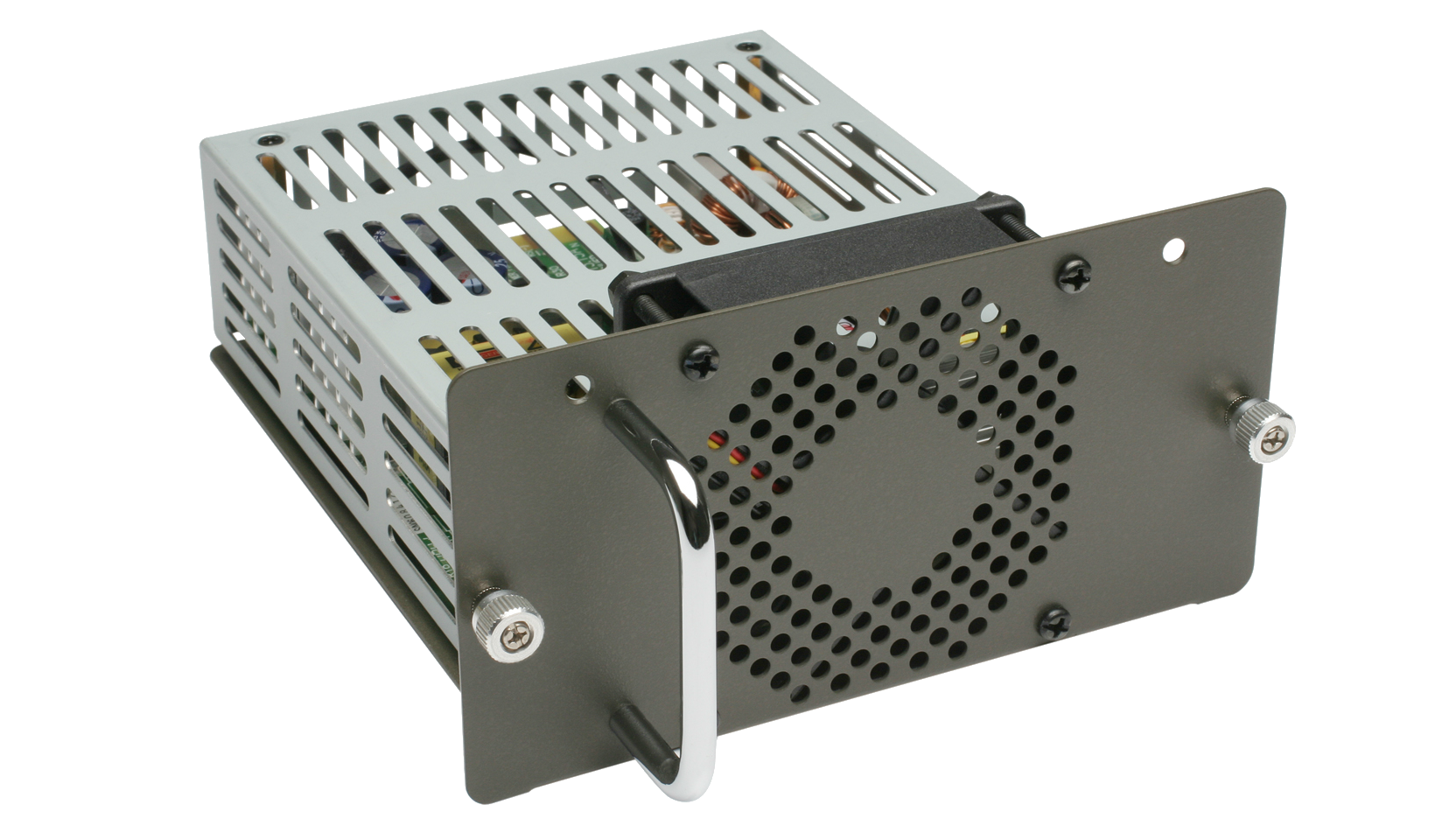

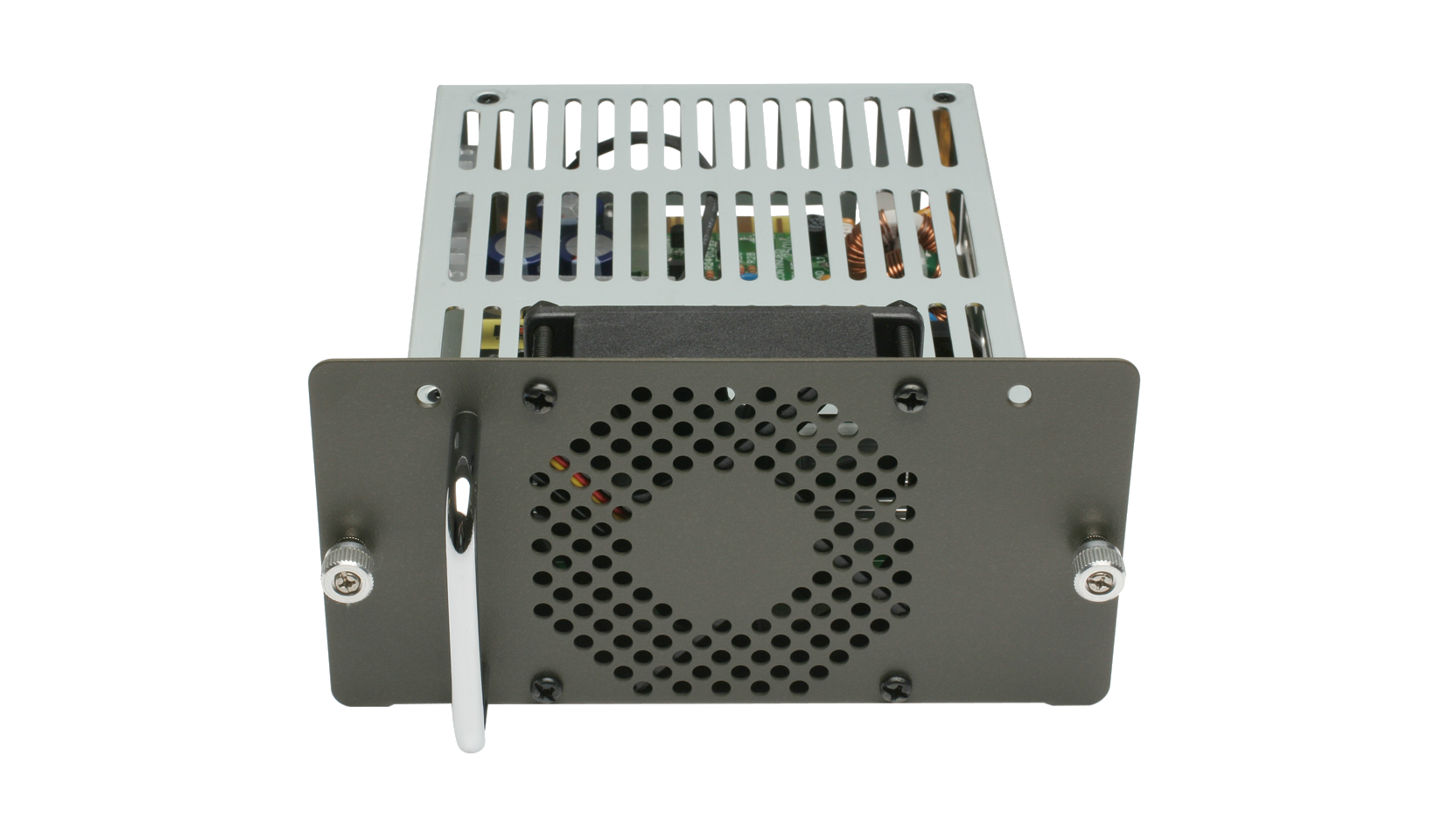

The D-Link DMC-1001 is a hot-swappable redundant power supply designed for the DMC-1000 media converter chassis. It acts as a fail-safe against power failure for every converter installed in the chassis.
Load Sharing and Instant Takeover
According to D-Link's user guide, both power supplies are switched on and share the load; if one fails, the other instantaneously takes 100% of the load without any loss.
Hot-Swappable
A failed supply can be switched off and removed while the chassis continues functioning.
Need help choosing? Email sales@sourceit.com.sg with your DMC-1000 chassis configuration and we will size it for you.
D-Link DMC-1001 Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-1001 Redundant Power Supply for DMC-1000 Chassis |
| Part Number | DMC-1001 |
| Designed For | DMC-1000 16-slot media converter chassis |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Power
| Input Voltage | 85 VAC (60 Hz) to 264 VAC (50 Hz); label 110–240 V |
| Output Voltage | +12 V |
| Power Consumption | 150 W max. |
| Protection | All outputs protected from short circuit, automatic recovery |
Physical & Environmental
| Dimensions | 185 x 160 x 85 mm |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -10 to 50 °C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 90% |
Certifications
| EMI | FCC Class A, CE Mark Class A, VCCI Class A |
| Safety | UL 1950, CSA 22.2 No. 234 |
Specifications from the DMC-1001 Redundant Power Supply User's Guide (D-Link). The dlink.com DMC-1001 product page repeats the DMC-1000 chassis dimensions and LED rows; this table uses the power-supply figures from the user guide. D-Link does not publish a weight.
Compatibility & Software Support
Compatibility
DMC-1000 16-slot media converter chassis only.
Management
Power supply status (power, power fail, fan fail) can be monitored through the optional DMC-1002 management module.
Package Contents & DMC Chassis Ordering Information
DMC Chassis System Ordering Information
| Model | Description | Part No. |
| DMC-1000/E | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 (this listing) | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 | SNMP / web management module for DMC-1000 | DMC-1002 |
| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
Package contents are not listed in D-Link's documentation — ask us if you need confirmation.
Datasheet & Downloads
| D-Link user guide | DMC-1001 User's Guide (PDF) |
| D-Link datasheet | DMC Series Datasheet (PDF) |
| D-Link product page | DMC-1001 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-1001.
Frequently Asked Questions — D-Link DMC-1001
Which chassis does it fit?
The D-Link DMC-1000 16-slot media converter chassis.
What happens if one supply fails?
Per D-Link, both supplies share the load and the remaining one instantly takes 100% of the load without any loss.
Can it be replaced without downtime?
Yes, D-Link states a supply can be switched off and removed while the chassis keeps running.
Is the DMC-1001 still current?
dlink.com lists the DMC-1001 as End of Sale in some regions; it remains in D-Link Singapore's current commercial price list. Contact us to confirm availability.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
