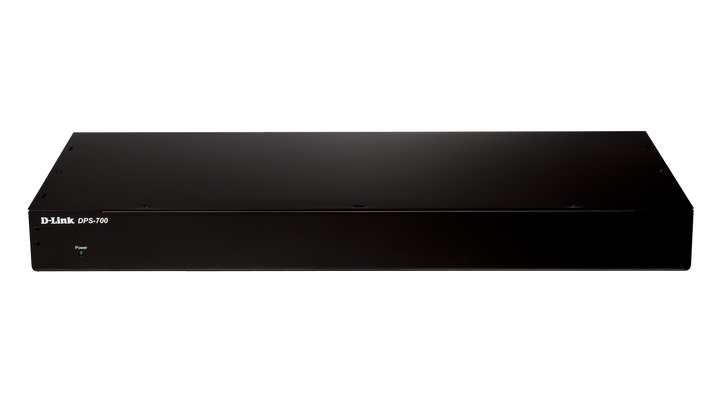

D-Link DPS-700 589W PoE Redundant Power Supply
PRODUCT DESCRIPTION
D-Link DPS-700 589W Redundant Power Supply for PoE Switches (DPS-700) - 1 Year Local Warranty
Redundant System and PoE Power
The D-Link DPS-700 is a 589-watt redundant power supply (RPS) for D-Link managed PoE switches. It delivers +54 VDC and +12 VDC outputs, backing up both switch system power and PoE power if the switch's internal supply fails.
1+1 PoE Budget Extension
D-Link specifies 1+1 power capability, with a PoE budget supporting a 370 W extension on compatible switches — useful for camera and access point deployments where PoE uptime matters.
Rack-mounted, Wide-range Input
The rack-mounted unit accepts 90 to 264 V AC at 47 to 63 Hz with 80% efficiency, and D-Link rates it at an MTBF of 624,961 hours.
Not sure which RPS your switch needs? Email sales@sourceit.com.sg with your switch model and we will confirm the right unit.
D-Link DPS-700 Datasheet — Technical Specifications
General
| Product Name | D-Link DPS-700 589 Watt Redundant Power Supply |
| Part Number | DPS-700 |
| Total Output Power | 589 W |
| Output Voltage | +54 VDC, +12 VDC |
| PoE Budget | 1+1 PoE budget supporting 370 W extension on compatible switches |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Electrical
| Input Voltage | 90 to 264 V AC |
| Input Frequency | 47 to 63 Hz |
| Max Input Current | 7.5 A at 115 V AC 60 Hz; 3.7 A at 230 V AC 50 Hz |
| Max Inrush Current | 30 A at 115 V AC / 230 V AC |
| Leakage Current | 3.5 mA max. |
| Efficiency | 80% |
Physical & Environmental
| Dimensions | 441 x 199.4 x 44 mm (DPS series datasheet); the dlink.com India product page lists 196 x 195 x 50 mm |
| Weight | 3.65 kg (datasheet); 3.7 kg (product page) |
| Operating Temperature | 0 to 65 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 5 to 95% RH |
| MTBF | 624,961 hours |
Compatibility & Software Support
Compatible Switches (per dlink.com)
DGS-1510-52XMP, DGS-1520-28MP, DGS-1520-52MP, DGS-3120-24PC, DGS-3120-48PC, DGS-3130-30PS/SI, DGS-3130-54PS/SI, DGS-3420-28PC, DGS-3420-52PC, DGS-3620-28PC, DGS-3620-52PC, DGS-3630-28PC, DGS-3630-52PC.
Typical Use
Surveillance, Wi-Fi and VoIP networks where PoE devices must stay powered through a switch power-supply fault.
Package Contents & DPS Redundant Power Supply Ordering Information
D-Link DPS Redundant Power Supplies
| Model | Output | For | Part No. |
| DPS-200A | 60 W | Non-PoE switches | DPS-200A |
| DPS-500A | 140 W | Non-PoE switches | DPS-500A |
| DPS-700 (this listing) | 589 W | PoE switches | DPS-700 |
D-Link's US product name for this model is "DPS-700 589-watt RPS with a 1-meter DC power cable"; ask us to confirm the cable supplied with SG stock.
Datasheet & Downloads
| D-Link datasheet | DPS Series Datasheet (PDF) |
| D-Link product page | DPS-700 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DPS-700.
Frequently Asked Questions — D-Link DPS-700
Does it back up PoE power?
Yes. It provides +54 VDC for PoE as well as +12 VDC system power, with a 1+1 PoE budget supporting a 370 W extension on compatible switches.
Which switches does it support?
D-Link PoE models including the DGS-3130-30PS/54PS, DGS-3630-28PC/52PC and DGS-1520-28MP/52MP — see the Compatibility section for the full list.
Why do the dimensions differ between sources?
D-Link's DPS series datasheet gives 441 x 199.4 x 44 mm (a 1U rack width), while one dlink.com product page lists 196 x 195 x 50 mm. Ask us if rack space is critical.
Is the DPS-700 still current?
The dlink.com India product page marks the DPS-700 as End of Sale. Please confirm availability with us before ordering.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
