D-Link DIS-700G-28XS Industrial L2+ Managed Fibre Switch
PRODUCT DESCRIPTION
D-Link DIS-700G-28XS Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ Slots (DIS-700G-28XS) - 5 Years Local Warranty
An All-Fibre Industrial Backbone

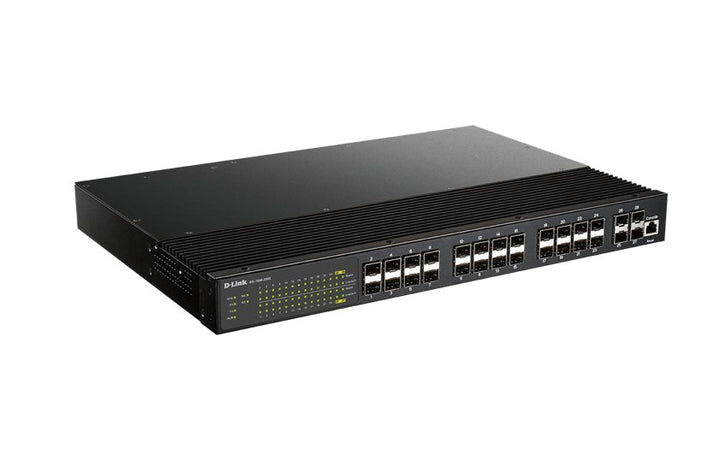

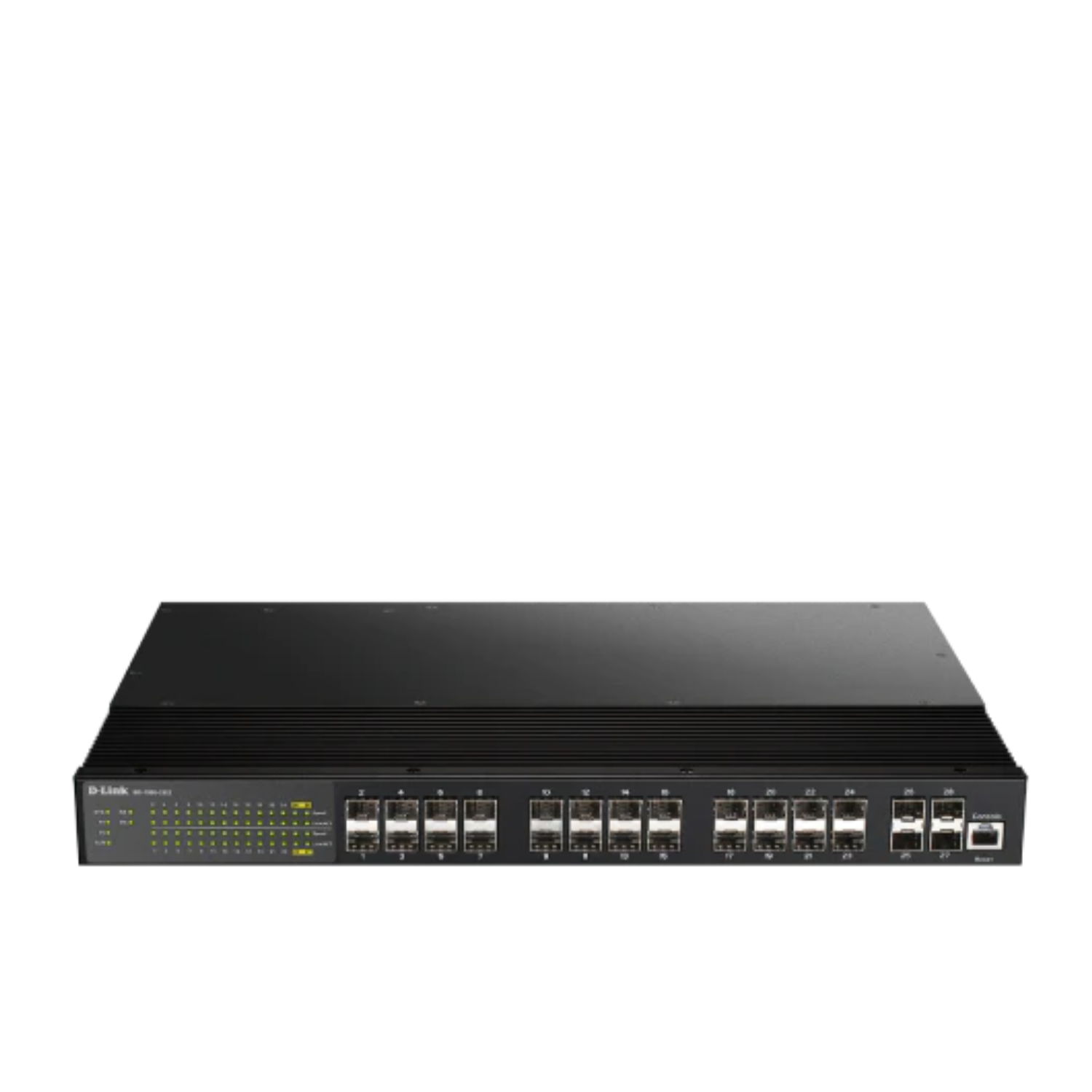

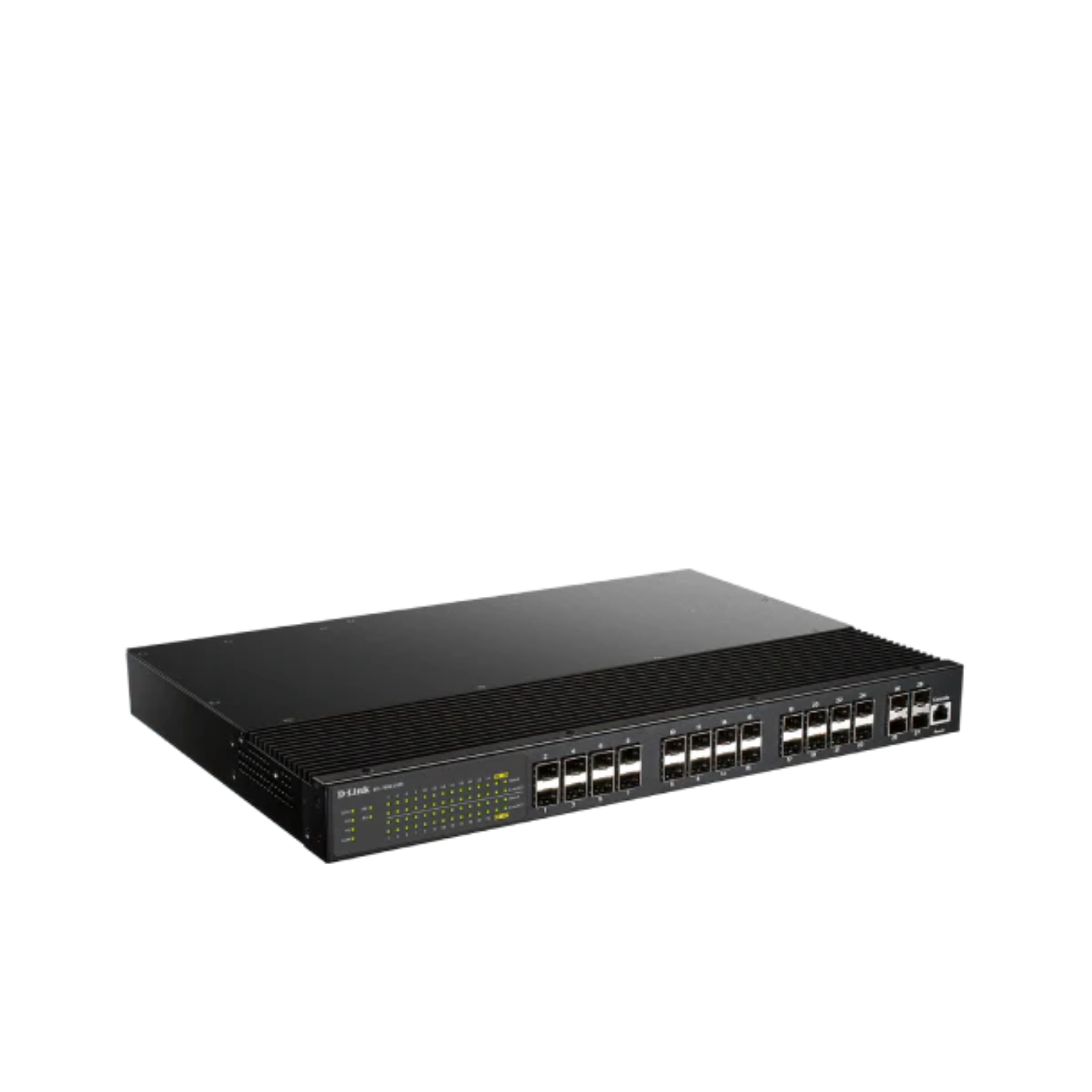

The D-Link DIS-700G-28XS is a 19-inch rack-mount industrial Layer 2+ managed switch with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible), built to aggregate fibre rings and field switches in utilities, transport and industrial plants.
Hardened for the Field
The fanless IP30 design operates from -40 to +75 °C and is tested for vibration (IEC 60068-2-6), shock (IEC 60068-2-27) and free fall (IEC 60068-2-32), with EN 61000-6-2 / 6-4 industrial EMC.
High Availability

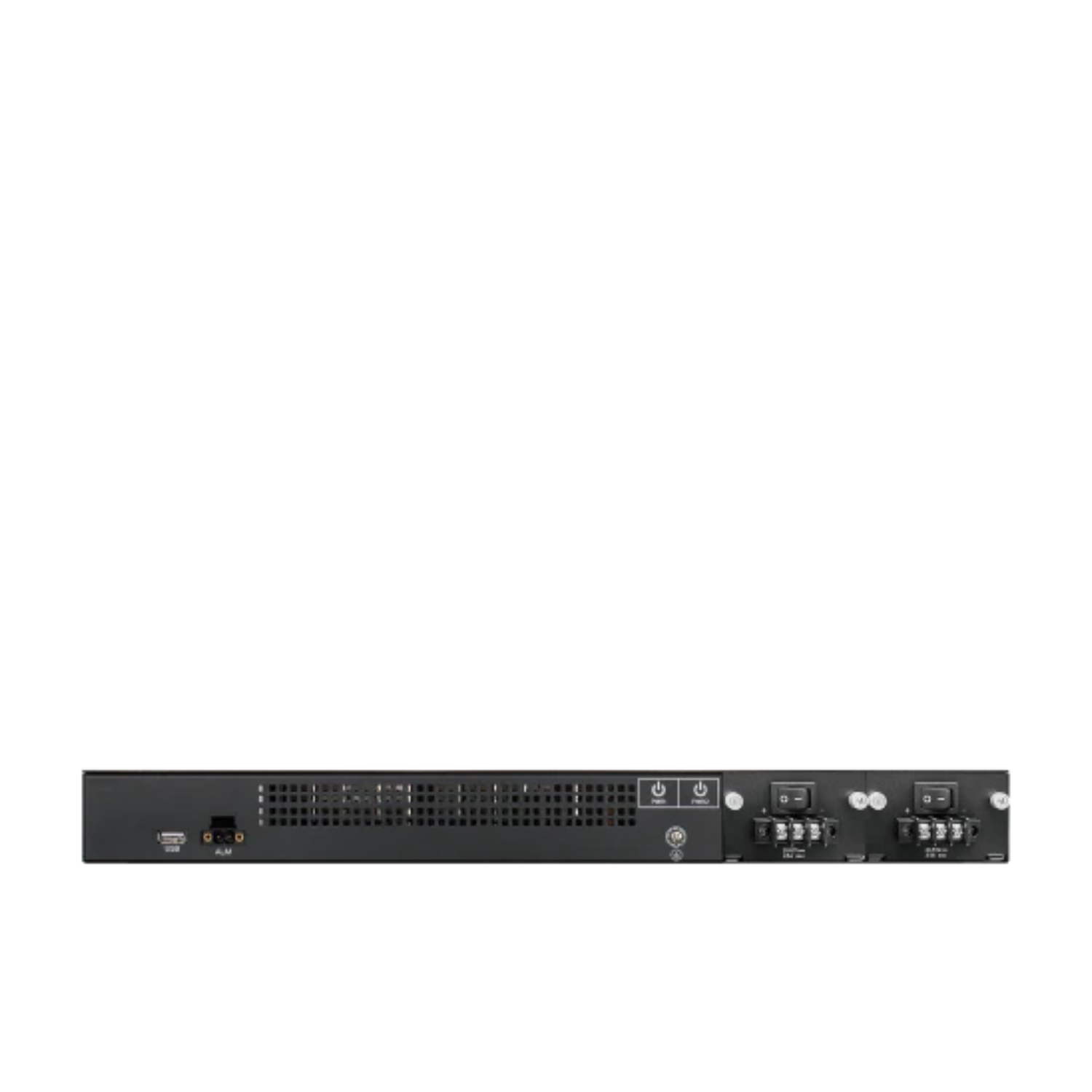

Dual 20–57 VDC inputs, a 2 A alarm relay, STP/RSTP/MSTP, LACP and D-Link's fast failover protection rings (link loss recovery under 20 ms) protect critical traffic.
Advanced Security and QoS
Multi-layer ACLs, IEEE 802.1X with RADIUS, storm control, up to 2048 VLANs, IGMP v1/v2/v3 with up to 512 multicast groups and SPQ/WRR scheduling with per-port, per-queue shaping.
Need help choosing? Email sales@sourceit.com.sg with your ring topology and fibre distances and we will spec the switch and SFP modules for you.
D-Link DIS-700G-28XS Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-700G-28XS Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ Slots |
| Part Number | DIS-700G-28XS |
| Series | DIS-700G Industrial Layer 2+ Gigabit Managed Switch |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| SFP Ports | 24 x SFP |
| SFP+ Slots | 4 x 10G SFP+ (1G SFP backwards compatible) |
| Console | RJ45 (RJ45-to-RS232 DB9 cable included) |
| Alarm | Relay output, 2 A @ 24 VDC |
| LEDs | Power status; Ethernet port link and speed |
Performance
| Switching Engine | Store and forward, L2 wire-speed / non-blocking |
| MAC Address Table | 8K |
| Jumbo Frames | 9K bytes |
| VLANs | Up to 2048 |
| Multicast | IGMP v1/v2/v3, up to 512 groups |
Power
| Input Voltage | Dual 20–57 VDC |
| Power Consumption | 35 W |
Physical & Environmental
| Dimensions | 440 x 44 x 318.5 mm |
| Weight | 4.5 kg |
| Ingress Protection | IP30, fanless |
| Mounting | 19-inch rack |
| Operating Temperature | -40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5 to 95% RH |
| MTBF | > 25 years |
Certifications
| Safety | UL 61010-1, CE, FCC |
| EMC | EN 61000-6-2, EN 61000-6-4 |
| Mechanical | Vibration IEC 60068-2-6; Shock IEC 60068-2-27; Free Fall IEC 60068-2-32 |
| Environmental | RoHS (Pb free), WEEE |
Compatibility & Software Support
Management
Industrial CLI, web-based management, SNMP v1/v2c/v3, Telnet, HTTPS and SSH.
Software Features (per D-Link)
Port-based, 802.1Q tag-based, protocol-based VLANs and double tagging; STP/RSTP/MSTP, LACP and fast failover protection rings (<20 ms); multi-layer ACLs (VLAN ID, MAC, IP, TCP/UDP, DSCP/ToS); IEEE 802.1X, RADIUS and storm control; SPQ, WRR and SPQ+WRR scheduling. D-Link describes the switch as Layer 2+; its datasheet does not list IP routing features.
Optional SFP Modules (per D-Link)
DIS-S301SX, DIS-S302SX and DIS-S310LX industrial SFP transceivers. The switch is DC-only; AC sites need an industrial power supply.
Package Contents & D-Link Industrial Managed Ordering Information
D-Link Industrial Managed Switches
| Model | Ports | Form Factor |
| DIS-700G-28XS (this listing) | 24 x SFP + 4 x 10G SFP+ | 19-inch rack |
| DIS-300G-12SW | 8 x GE + 4 x SFP | DIN-rail |
| DIS-300G-8PSW | 4 x GE PoE + 2 x GE + 2 x SFP | DIN-rail |
| DIS-300G-14PSW | 8 x GE PoE + 2 x GE + 4 x SFP | DIN-rail |
D-Link lists an RJ45-to-RS232 DB9 console cable as included; other package contents are not listed — ask us to confirm. SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DIS-700G Series Datasheet (PDF) |
| D-Link product page | DIS-700G-28XS on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-700G-28XS.
Frequently Asked Questions — D-Link DIS-700G-28XS
Does it have copper RJ45 data ports?
No. It is an all-fibre switch: 24 SFP ports plus 4 x 10G SFP+ slots (the RJ45 port is for console only).
Can it run from AC mains?
No, it takes dual 20–57 VDC inputs. Ask us for a suitable industrial power supply.
Does it do IP routing?
D-Link classes it as Layer 2+ and its datasheet lists Layer 2 features only — ask us before planning inter-VLAN routing on it.
What temperatures can it handle?
-40 to +75 °C operating, fanless, IP30.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
