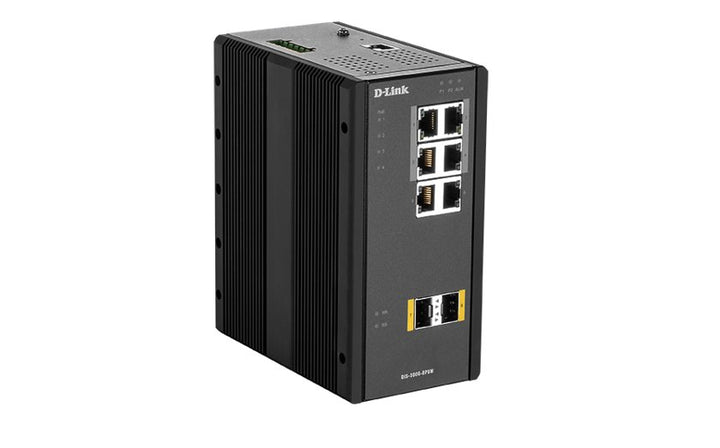

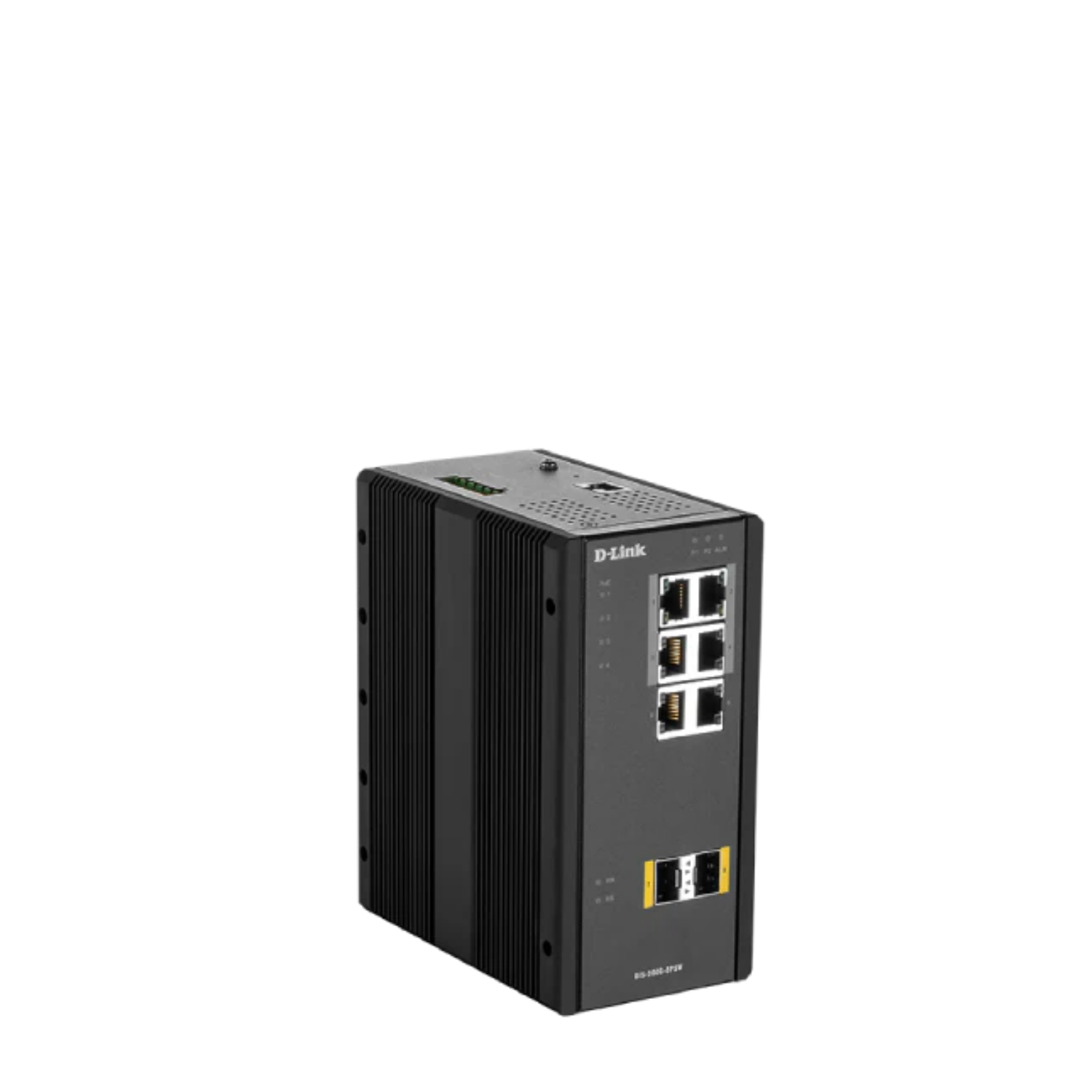

D-Link DIS-300G-8PSW Industrial Gigabit Managed PoE Switch
PRODUCT DESCRIPTION
D-Link DIS-300G-8PSW Industrial Gigabit Managed PoE Switch with SFP Slots (DIS-300G-8PSW) - 5 Years Local Warranty
Hardened PoE Switching for Harsh Sites
The D-Link DIS-300G-8PSW is an industrial Gigabit managed switch with 4 x 10/100/1000BASE-T PoE ports, 2 x 10/100/1000BASE-T ports and 2 x 100/1000BASE SFP slots. The PoE ports support IEEE 802.3af and 802.3at with a 120 W total budget for IP cameras, wireless access points and sensors in the field.
Built to Survive Heat, Cold and Vibration
A fanless IP30 housing operates from -40 to +75 °C and is tested for vibration (IEC 60068-2-6), shock (IEC 60068-2-27) and free fall (IEC 60068-2-32), with NEMA-TS2 certification for traffic-control cabinets. It mounts on a DIN rail or a wall.
High Availability
Redundant DC input terminals with reverse power protection, an alarm relay output, STP/RSTP/MSTP and D-Link's fast failover protection ring (link loss recovery under 20 ms) keep critical links running.
Familiar Management
Configure it through an industrial CLI, web GUI, SNMP v1/v2c/v3 or Telnet, with PoE scheduling, power control and PD power consumption monitoring.
Need help choosing? Email sales@sourceit.com.sg with your device count, PoE loads and DC supply and we will size the switch and power supply for you.
D-Link DIS-300G-8PSW Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-300G-8PSW Industrial Gigabit Managed PoE Switch with SFP Slots |
| Part Number | DIS-300G-8PSW |
| Series | DIS-300G Industrial Gigabit Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| PoE Ports | 4 x 10/100/1000BASE-T |
| Copper Ports | 2 x 10/100/1000BASE-T |
| SFP Slots | 2 x 100/1000BASE SFP |
| Alarm | Relay output, 0.5 A @ 24 VDC |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 120 W |
| PoE Management | Scheduling, power control, PD power consumption |
Performance
| Switching Engine | L2 wire-speed / non-blocking |
| MAC Address Table | 8K |
| Jumbo Frames | 9K bytes |
Power
| Input Voltage | 48–58 VDC (802.3af PoE); 12–48 VDC (non-PoE) |
| Input Protection | Redundant input terminals, reverse power protection |
| Power Consumption | Max 145 W with 120 W PSE power delivered; max 14 W without PD connected |
Physical & Environmental
| Dimensions | 77 x 154 x 128 mm |
| Weight | 1.308 kg |
| Ingress Protection | IP30, fanless |
| Mounting | DIN-rail, wall |
| Operating Temperature | -40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5 to 95% RH |
| MTBF | > 25 years |
Certifications
| Safety / Industry | UL 60950-1, CE, FCC, NEMA-TS2 |
| EMC | FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2/-3/-4/-5/-6 |
| Mechanical | Vibration IEC 60068-2-6; Shock IEC 60068-2-27; Free Fall IEC 60068-2-32 |
| Environmental | RoHS, WEEE |
Compatibility & Software Support
Management
Industrial CLI, web-based management, SNMP v1/v2c/v3 and Telnet. D-Link's software feature groups: bridge, VLANs and protocols; multicast; traffic management and QoS; security; and network redundancy (IEEE 802.1D STP, 802.1w RSTP, 802.1s MSTP and fast failover protection rings with link loss recovery under 20 ms).
Optional Accessories (per D-Link)
D-Link industrial DIN-rail power supplies DIS-H30-24, DIS-H60-24, DIS-N240-48 and DIS-N480-48; industrial SFP modules DIS-S301SX, DIS-S302SX and DIS-S310LX. The switch is DC-powered, so an industrial PSU is needed on AC sites.
Typical Use
Roadside and traffic cabinets, factories, utilities and outdoor enclosures powering PoE cameras and APs with a fibre uplink.
Package Contents & DIS-300G Ordering Information

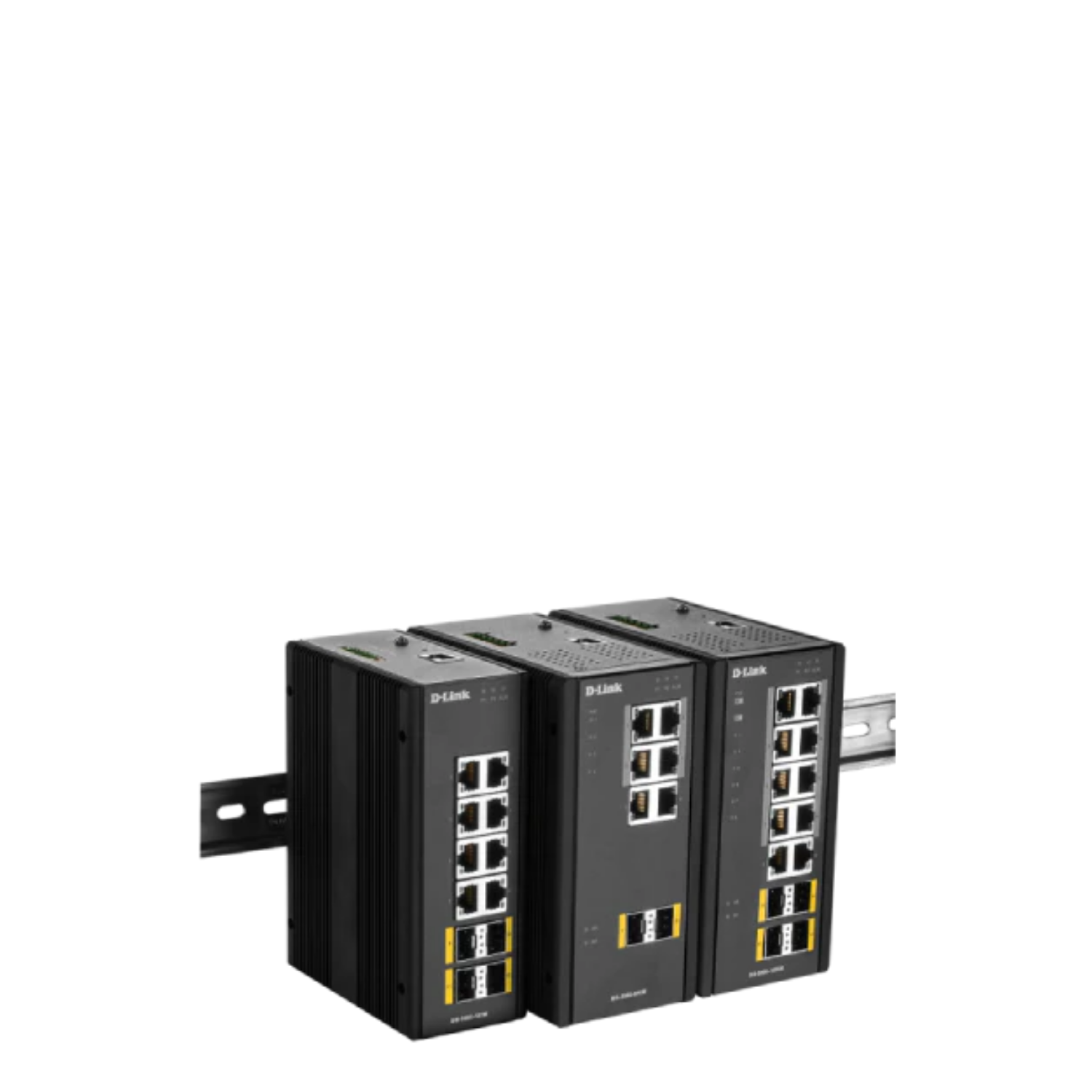

DIS-300G Models
| Model | Ports | PoE Budget |
| DIS-300G-8PSW (this listing) | 4 x GE PoE + 2 x GE + 2 x SFP | 120 W |
| DIS-300G-14PSW | 8 x GE PoE + 2 x GE + 4 x SFP | 240 W |
| DIS-300G-12SW | 8 x GE + 4 x SFP | — |
Package contents are not listed in D-Link's datasheet — ask us to confirm the DIN-rail kit and terminal blocks. Power supply and SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DIS-300G Series Datasheet (PDF) |
| D-Link product page | DIS-300G-8PSW on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-300G-8PSW.
Frequently Asked Questions — D-Link DIS-300G-8PSW
How much PoE power does it provide?
120 W in total across the 4 PoE ports, using IEEE 802.3af and 802.3at.
Can it run from AC mains?
No, it takes DC input (48–58 VDC for PoE operation). Pair it with a D-Link industrial DIN-rail power supply — ask us which one suits your PoE load.
What temperatures can it handle?
-40 to +75 °C operating, in a fanless IP30 housing.
Does it support ring redundancy?
Yes, fast failover protection rings with link loss recovery under 20 ms, plus STP, RSTP and MSTP.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
