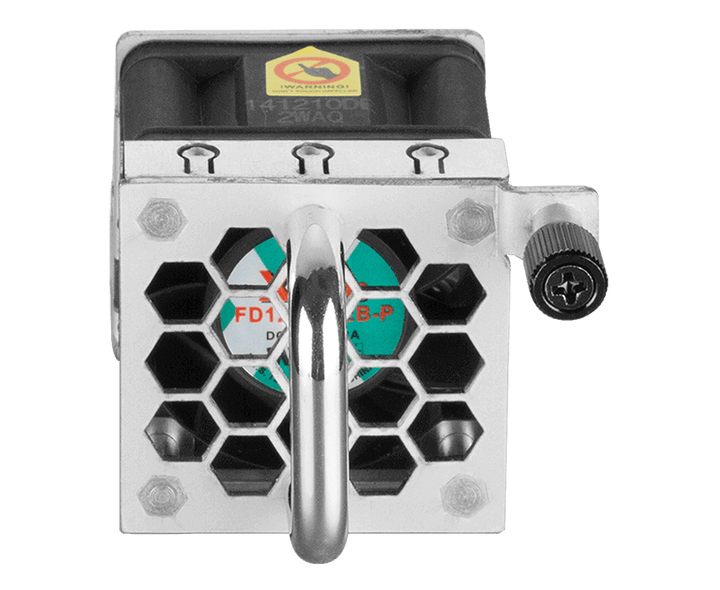

D-Link DXS-FAN100 Hot-Swap Fan Module for DXS-3400
PRODUCT DESCRIPTION
D-Link DXS-FAN100 Fan Module with Front-to-Back Airflow for DXS-3400 (DXS-FAN100) - 1 Year Local Warranty
Hot-Swap Cooling for the DXS-3400
The D-Link DXS-FAN100 is the hot-swappable fan module for the DXS-3400-24TC and DXS-3400-24SC. The switch uses three fan trays for N+1 cooling redundancy with front-to-back airflow, so a spare module lets you replace a failed fan without downtime.
Email sales@sourceit.com.sg with your switch model to confirm the right spare.
D-Link DXS-FAN100 Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-FAN100 Fan Module with Front-to-Back Airflow |
| Part Number | DXS-FAN100 |
| Type | Hot-swappable fan module |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Physical
| Airflow | Front-to-back (per D-Link product name) |
| Dimensions | 13.92 x 5.79 x 4.06 cm |
| Weight | 467 g |
| MTBF | 457,518 hours |
Compatibility & Software Support
Compatible Switches (per D-Link)
DXS-3400-24TC and DXS-3400-24SC only.
Package Contents & DXS-3400 Ordering Information
DXS-3400 Models & Modules
| Model | Ports / Image |
| DXS-3400-24TC/EEI | 20 x 10GBASE-T + 4 x 10GBASE-T/SFP+ combo; Enhanced Image (EI) |
| DXS-3400-24TC/ESI | 20 x 10GBASE-T + 4 x 10GBASE-T/SFP+ combo; Standard Image (SI) |
| DXS-3400-24SC/EEI | 20 x 10G SFP+ + 4 x 10GBASE-T/SFP+ combo; Enhanced Image (EI) |
| DXS-3400-24SC/ESI | 20 x 10G SFP+ + 4 x 10GBASE-T/SFP+ combo; Standard Image (SI) |
| DXS-PWR300AC | 300 W AC hot-swap power module, front-to-back airflow |
| DXS-FAN100 (this listing) | Hot-swap fan module for DXS-3400-24TC/24SC |
Package contents are not listed by D-Link — ask us to confirm.
Datasheet & Downloads
| D-Link product page | DXS-FAN100 on dlink.com |
| DXS-3400 datasheet | DXS-3400 Series Datasheet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-FAN100.
Frequently Asked Questions — D-Link DXS-FAN100
Which switches does it fit?
DXS-3400-24TC and DXS-3400-24SC, per D-Link.
Is it hot-swappable?
Yes. The DXS-3400 has three hot-swappable fan trays with N+1 redundancy.
Does it fit the DXS-3600?
No — D-Link lists it for the DXS-3400 only. The DXS-3600 uses its own fan trays.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
