D-Link DXS-3400-24SC/ESI 24-Port 10G SFP+ L3 Stackable Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-3400-24SC/ESI 24-Port Layer 3 Stackable 10 Gigabit Fiber Managed Switch, Standard Image (DXS-3400-24SC/ESI) - 5 Years Local Warranty

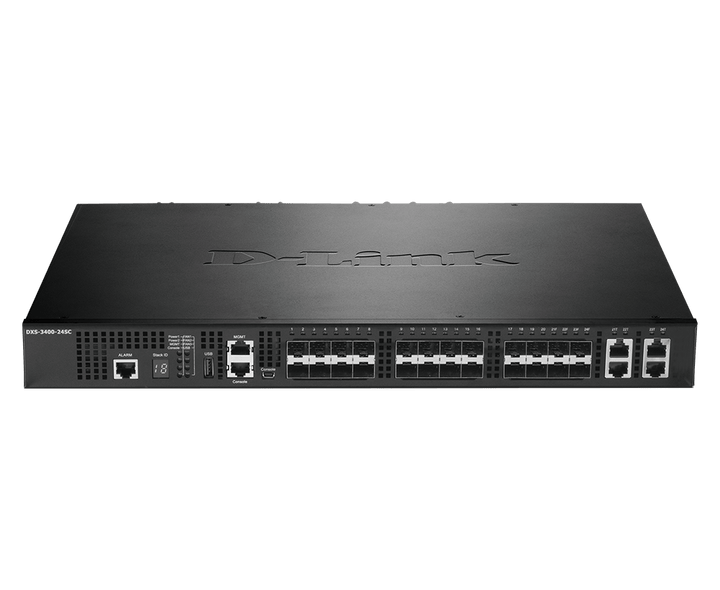

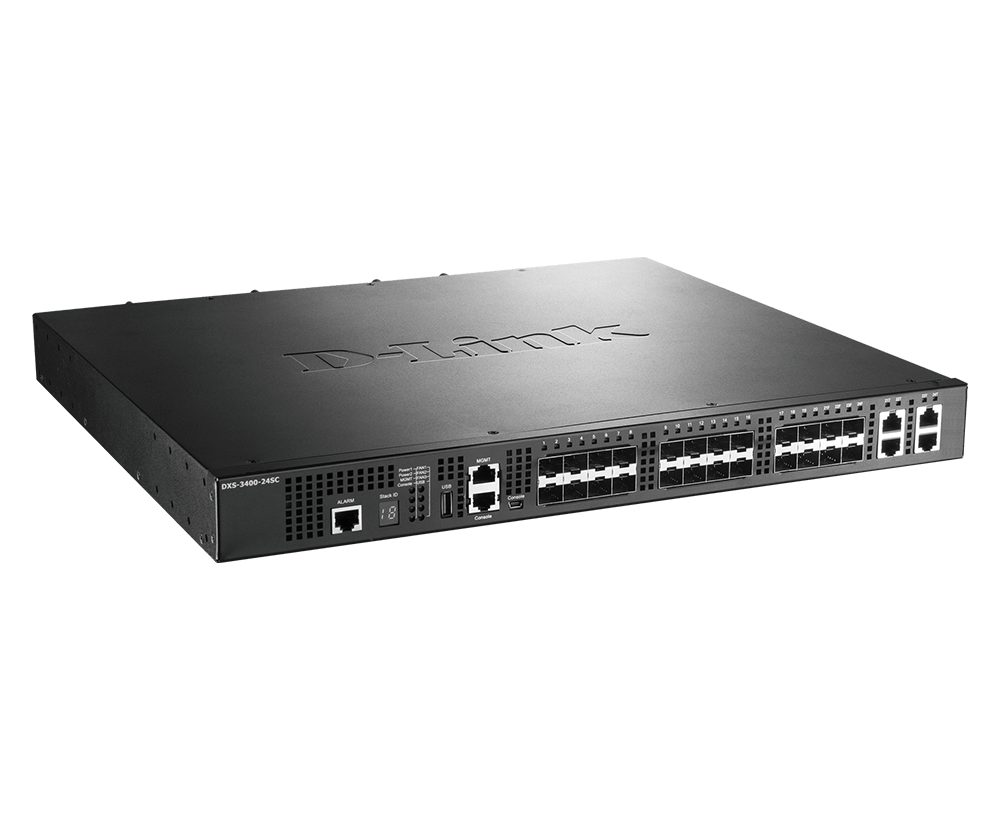

Top-of-Rack 10 Gigabit in 1U
The D-Link DXS-3400-24SC/ESI delivers 20 x 10G SFP+ fibre ports plus 4 x 10GBASE-T/SFP+ combo ports in a 1U chassis, with 480 Gbps switching capacity and a 357.12 Mpps forwarding rate for server racks, storage and campus aggregation.
Standard Image with an Upgrade Path
This part number is the Standard Image (SI) version, covering core SMB/SME Layer 2+ functions including static routing, RIP v1/v2/RIPng, VRRP and policy-based routing. OSPF, PIM and other advanced L3 features need the Enhanced Image (DXS-3400-24SC-SE-LIC upgrade licence, or the /EEI part number).
Stackable and Resilient
Stack up to 4 switches with up to 80G stacking bandwidth, or manage up to 32 units as a virtual stack. MLAG, ERPS and 802.1AX link aggregation add path redundancy, and data centre bridging (PFC, ETS, CN) suits converged storage traffic.

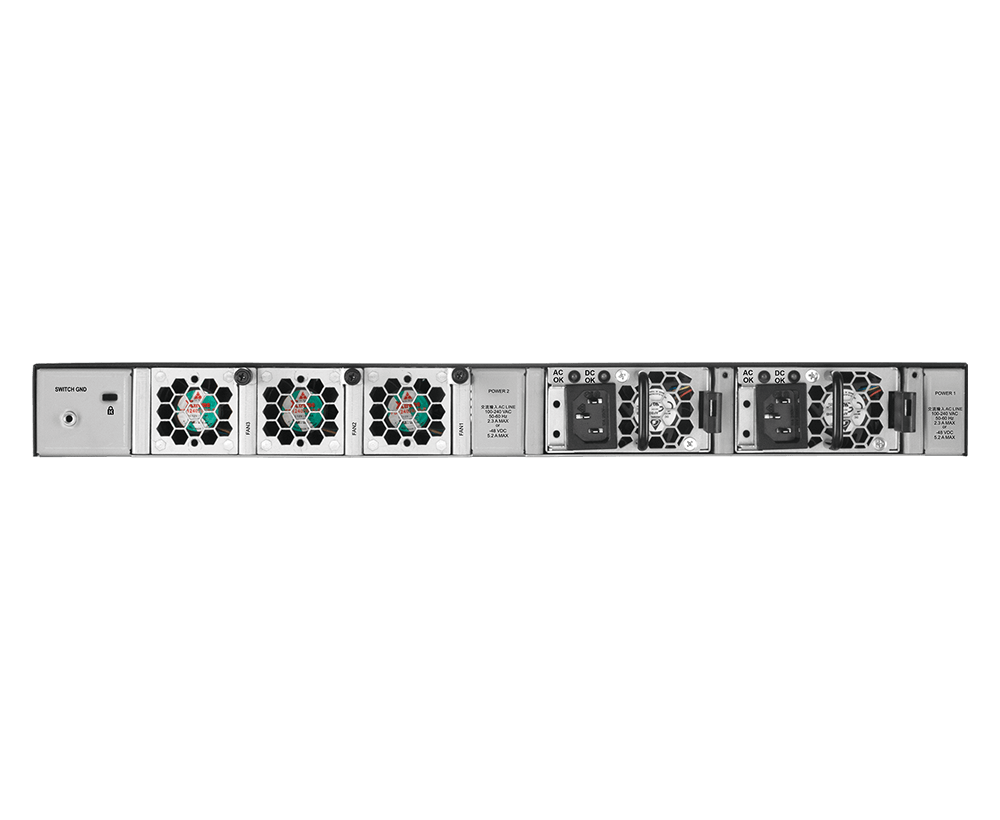

Hot-Swap Power and Cooling
Ships with one power module; add a second DXS-PWR300AC for 1+1 redundancy and load sharing. Three hot-swappable fan trays give N+1 cooling with front-to-back airflow.
Need help choosing? Email sales@sourceit.com.sg with your port counts, optics and stacking plans and we will recommend the right switch, modules and cables.
D-Link DXS-3400-24SC/ESI Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3400-24SC/ESI Layer 3 Stackable 10G SFP+ Managed Switch, Standard Image |
| Part Number | DXS-3400-24SC/ESI |
| Firmware Image | Standard Image (SI) |
| Form Factor | 19-inch, 1U rack-mount |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 10G Ports | 20 x 10G SFP+ |
| Combo Ports | 4 x 10GBASE-T/SFP+ |
| Console Ports | RJ-45 and Mini USB |
| Management Port | 10/100/1000BASE-T RJ-45 (out-of-band) |
| USB | 1 x USB port |
Performance
| Switching Capacity | 480 Gbps |
| Max. Forwarding Rate | 357.12 Mpps |
| CPU / DRAM | 1.2 GHz / 512 MB (dlink.com product page) |
| Packet Buffer | 4 MB |
| MAC Address Table | Up to 48K entries |
| L3 Forwarding Entries | Up to 32K IPv4 / 16K IPv6 (shared hardware table) |
| Static Routes | Up to 256 IPv4 / 128 IPv6 |
| Jumbo Frame | Up to 12 Kb |
| Link Aggregation | 802.1AX, up to 32 groups, 8 ports per group |
| Stacking | Up to 4 units physical (up to 80G bandwidth); up to 32 units virtual stacking |
Power & Cooling
| AC Input | 100 to 240 V AC, 50/60 Hz, 2 A |
| Power Supply | 1 PSU included; second DXS-PWR300AC for 1+1 redundancy and load sharing |
| Max. Power Consumption | 118.6 W |
| Standby Power Consumption | 64.8 W |
| Max. Heat Dissipation | 388.39 BTU/hr |
| Fans | 3 hot-swappable fan trays, N+1 redundancy, front-to-back airflow, smart fans with heat sensors |
Physical & Environmental
| Dimensions (W x H x D) | 441 x 44 x 380 mm |
| Weight | 7.45 kg (2 PSUs, 3 fan modules); 6.5 kg (1 PSU, 3 fans); 5.1 kg (no PSU or fans) |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 0% to 95% RH (operating and storage) |
Software Highlights
| Layer 2 | 802.1D/w/s STP/RSTP/MSTP, ERPS, MLAG, loopback detection, 4 mirroring groups, iSCSI awareness, IGMP snooping v1/v2/v3, MLD snooping v1/v2, PIM snooping |
| VLAN | 802.1Q, 802.1v, Q-in-Q, port/MAC/subnet-based VLAN, private VLAN, GVRP, voice VLAN, auto surveillance VLAN, up to 4094 VIDs |
| Layer 3 (Standard Image) | Static routing, policy-based routing, RIP v1/v2, RIPng, VRRP v2/v3, IPv6 ND, UDP helper, proxy ARP |
| Enhanced Image | IPv6 tunnelling, OSPF, BFD, IGMP v1/v2/v3, MLD v1/v2, IGMP/MLD proxy, DVMRP v3, PIM SM/DM/SSM/SDM, MSDP (requires DXS-3400-24SC-SE-LIC) |
| QoS | 8 queues per port, Strict/WRR/DRR/WDRR, WRED, trTCM/srTCM, bandwidth control (64 Kb/s granularity) |
| Data Centre Bridging | 802.1Qbb PFC, 802.1Qaz ETS, 802.1Qau CN |
| Security | 802.1X, WAC, MAC-based access control, RADIUS/TACACS+, port security, D-Link Safeguard Engine, IP-MAC-Port Binding, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, DHCPv6 Guard, IPv6 RA Guard, SSH v2, SSL, time-based ACLs |
| OAM | Cable diagnostics, 802.3ah, 802.1ag CFM, Y.1731, DULD, dying gasp, optical DDM |
| Management | Web GUI, CLI, Telnet, SNMP v1/v2c/v3, RMON v1/v2, sFlow, syslog, LLDP/LLDP-MED, NTP, DHCP server/relay, DHCP auto-configuration, multiple images and configurations, D-View 7 |
Certifications
| Safety | cUL, CB, CE, CCC, BSMI |
| EMI/EMC | CE, FCC, C-Tick, VCCI, BSMI, CCC |
Compatibility & Software Support
Firmware Images
Ships with the Standard Image. The DXS-3400-24SC-SE-LIC licence upgrades it to the Enhanced Image (OSPF, BFD, PIM, DVMRP, MSDP and more) — ask us for a quote.
Power & Fan Modules (per D-Link)
DXS-PWR300AC 300 W AC hot-swap power module (front-to-back airflow) for redundancy; DXS-FAN100 hot-swap fan module.
Optics & DAC Cables (per D-Link datasheet)
1G SFP: DGS-712 (1000BASE-T), DEM-310GT, DEM-311GT, DEM-312GT2. 10G SFP+: DEM-431XT, DEM-432XT. DAC: DEM-CB100S, DEM-CB300S, DEM-CB100QXS-4XS. Management software: D-View 7 (DV-700 licences).
Package Contents & DXS-3400 Ordering Information
DXS-3400 Models & Modules
| Model | Ports / Image |
| DXS-3400-24TC/EEI | 20 x 10GBASE-T + 4 x 10GBASE-T/SFP+ combo; Enhanced Image (EI) |
| DXS-3400-24TC/ESI | 20 x 10GBASE-T + 4 x 10GBASE-T/SFP+ combo; Standard Image (SI) |
| DXS-3400-24SC/EEI | 20 x 10G SFP+ + 4 x 10GBASE-T/SFP+ combo; Enhanced Image (EI) |
| DXS-3400-24SC/ESI (this listing) | 20 x 10G SFP+ + 4 x 10GBASE-T/SFP+ combo; Standard Image (SI) |
| DXS-PWR300AC | 300 W AC hot-swap power module, front-to-back airflow |
| DXS-FAN100 | Hot-swap fan module for DXS-3400-24TC/24SC |
Includes 1 power supply per D-Link. The full package contents list is not published in D-Link's datasheet — ask us to confirm. Transceivers, DAC cables, a second PSU and licences are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3400 Series Datasheet (PDF) |
| D-Link product page | DXS-3400-24SC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3400-24SC/ESI.
Frequently Asked Questions — D-Link DXS-3400-24SC/ESI
What is the difference between /EEI and /ESI?
The /EEI part number ships with the Enhanced Image (advanced L3: OSPF, BFD, PIM, DVMRP, MSDP); /ESI ships with the Standard Image (static routing, RIP, VRRP). This listing is the Standard Image version; see DXS-3400-24SC/EEI for the other option.
Does it have redundant power?
It ships with one PSU. Add a second DXS-PWR300AC for 1+1 redundancy and load sharing; the three fan trays are hot-swappable with N+1 redundancy.
How many switches can I stack?
Up to 4 switches physically with up to 80G stacking bandwidth, or up to 32 units with virtual stacking.
Can the combo ports use copper or fibre?
Yes. The 4 combo ports accept either 10GBASE-T copper or SFP+ modules. The other 20 ports are SFP+ slots.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
