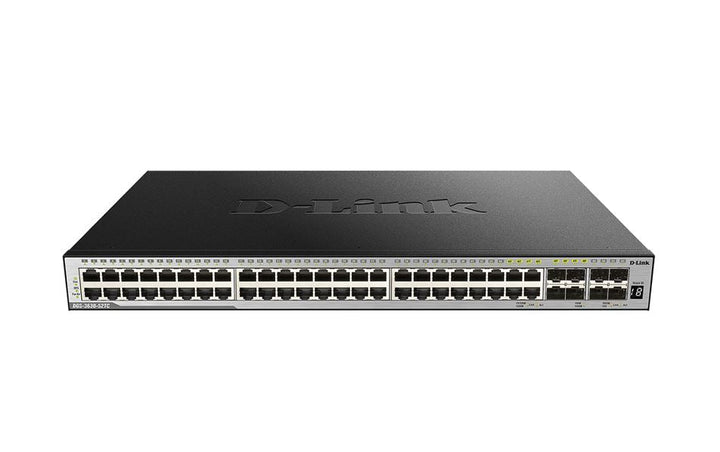

D-Link DGS-3630-52TC 52-Port Gigabit L3 Stackable Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-3630-52TC 52-Port Gigabit Layer 3 Stackable Managed Switch with 4 x 10G SFP+ (DGS-3630-52TC) - 5 Years Local Warranty
Enterprise Layer 3 Access and Aggregation

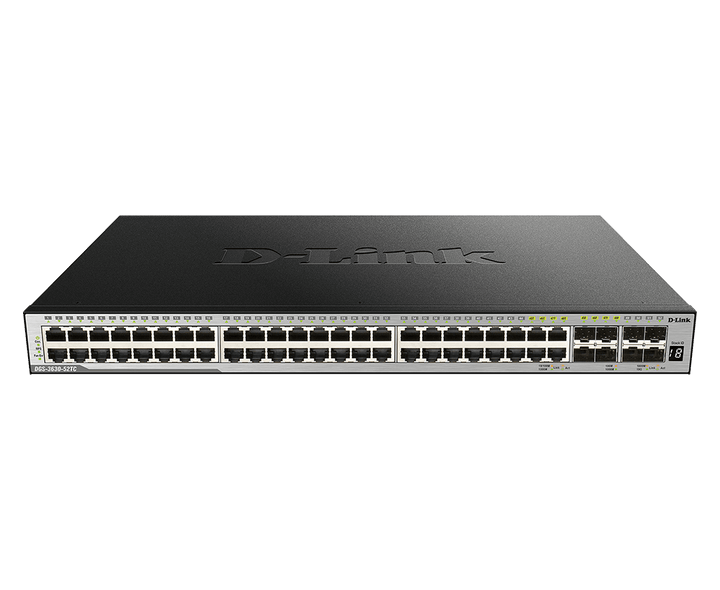

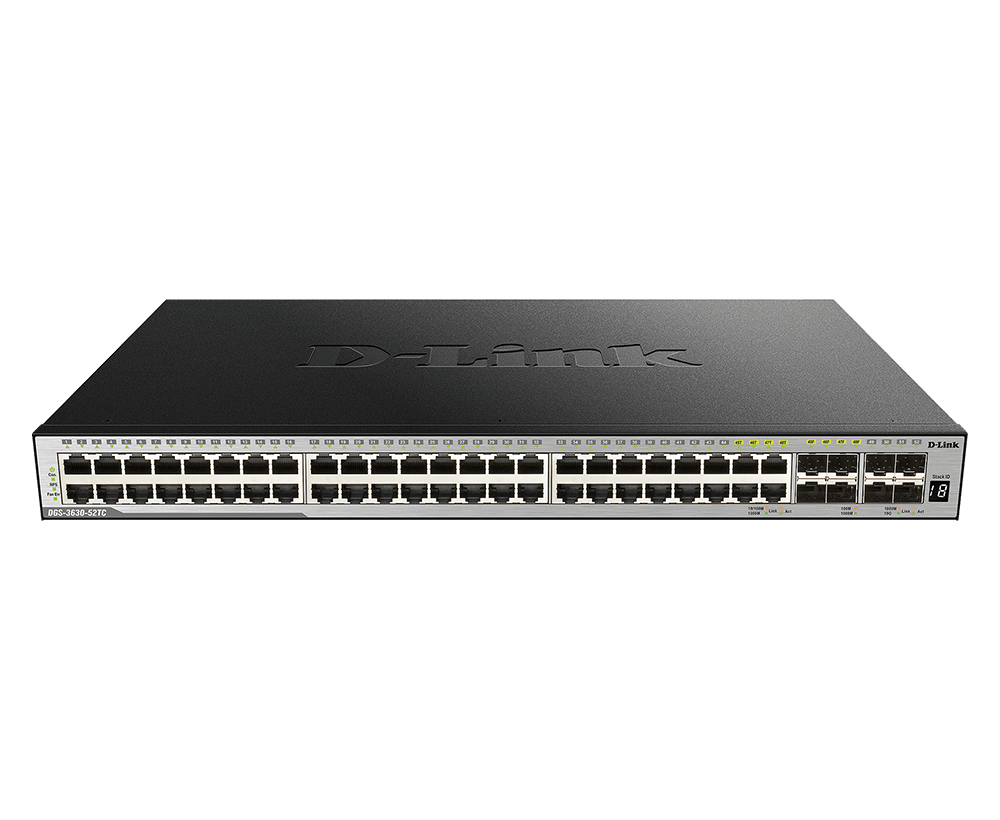

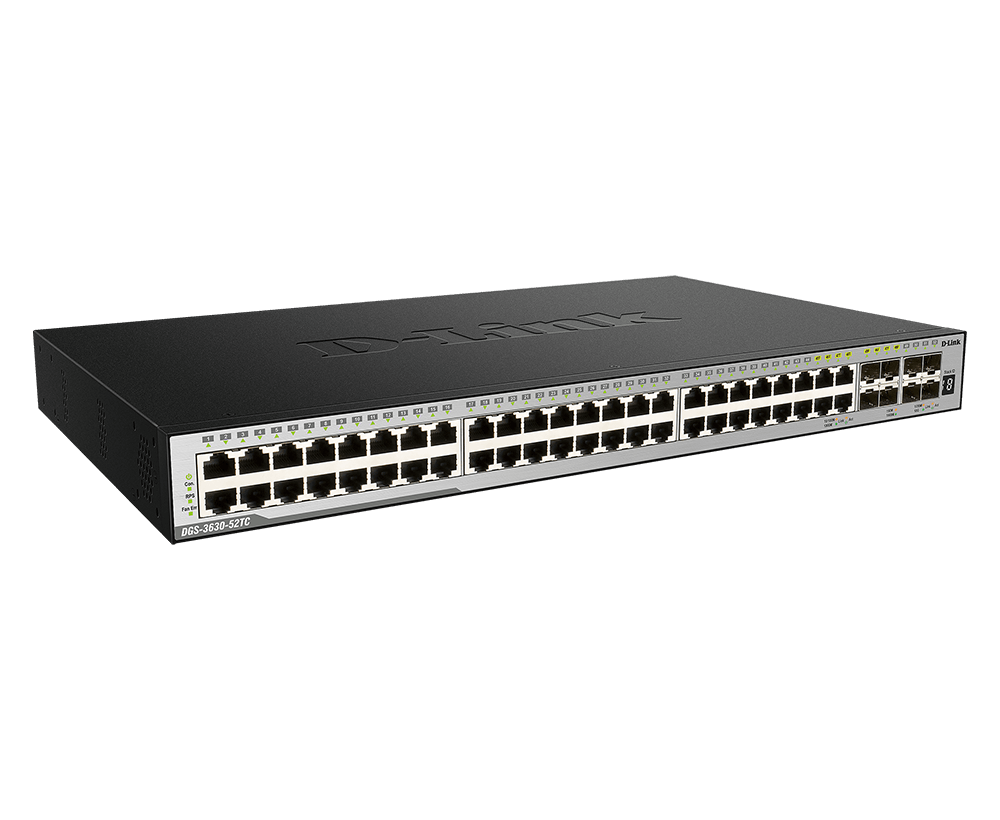

The D-Link DGS-3630-52TC is a 52-port Gigabit Layer 3 stackable managed switch: 44 copper Gigabit ports, 4 combo copper/SFP ports and 4 x 10G SFP+ uplinks in a 1U chassis, with 6 kV surge protection on all access ports.
Physical Stacking up to 9 Units
D-Link specifies physical stacking of up to 9 units (up to 432 Gigabit ports) with 80 Gbps stacking bandwidth per device, so the stack is managed as a single switch. Switching capacity is 176 Gbps with a 130.95 Mpps forwarding rate.
Standard, Enhanced and MPLS Images
The DGS-3630 runs D-Link's Standard Image (SI) with L2 switching, static routing, RIP, VRRP and advanced QoS. Licence upgrades unlock the Enhanced Image (EI: OSPF, BGP, VRF-Lite, PIM) and the MPLS Image (MI: IS-IS and MPLS L2/L3 VPN). ERPS, 802.3ah/802.1ag/Y.1731 OAM, OpenFlow 1.3, sFlow and PTP are also listed.
Need help choosing an image or stack size? Email sales@sourceit.com.sg with your topology and we will size it for you.
D-Link DGS-3630-52TC Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-3630-52TC 52-Port Gigabit L3 Stackable Managed Switch |
| Part Number | DGS-3630-52TC |
| Series | DGS-3630 Layer 3 Stackable Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit Copper Ports | 44 x 10/100/1000BASE-T |
| Combo Ports | 4 x 10/100/1000BASE-T / SFP combo |
| 10G Uplinks | 4 x 10G SFP+ |

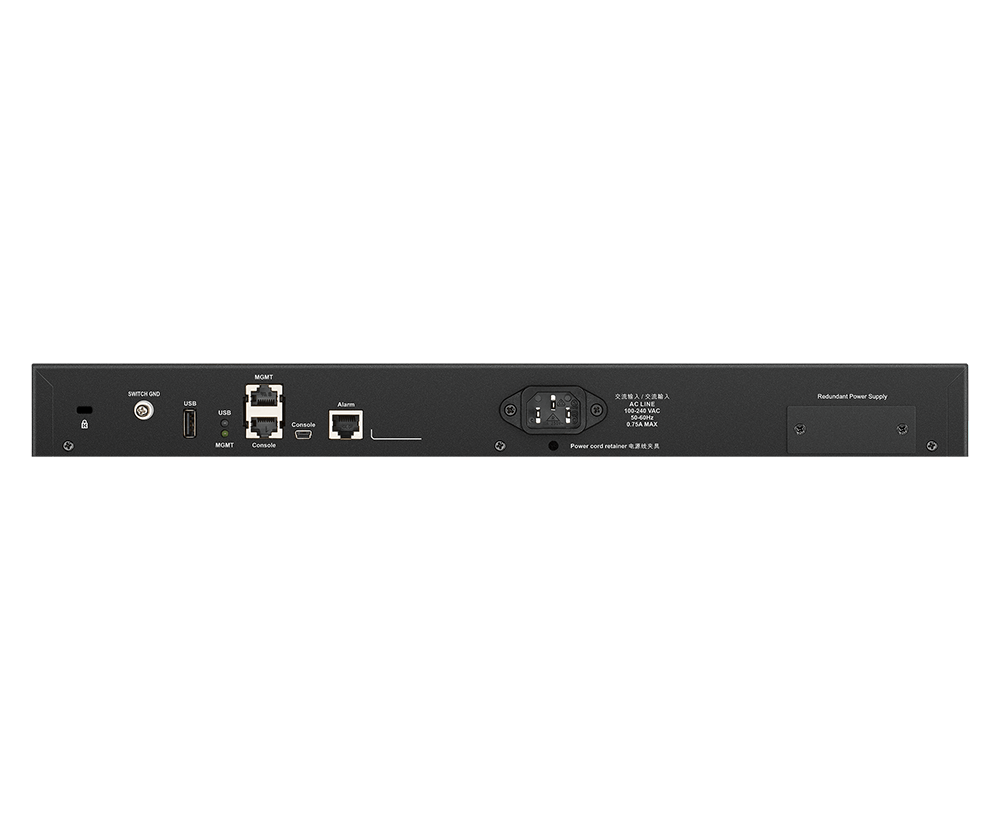

| Management | RJ45 and Mini-USB console ports; 10/100/1000BASE-T out-of-band management port; RJ45 alarm port; USB 2.0 Type A |
Performance
| Switching Capacity | 176 Gbps |
| Maximum Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 4 MB |
| MAC Address Table | 68K entries |
| Routing Table | 16K IPv4 / 7K IPv6 entries |
| Jumbo Frames | 12 KB |
| Stacking | Up to 9 units (432 GbE ports); 80 Gbps stacking bandwidth per device |
Physical & Environmental
| Dimensions | 441 x 259.8 x 44 mm |
| Weight | 4.04 kg |
| Power Input | 100–240 VAC, 50/60 Hz |
| Power Consumption | Max 62 W; standby 36 W |
| Redundant Power (optional) | DPS-500A (AC), DPS-500DC (DC) |
| Cooling | 2 x smart fans |
| Acoustic Noise | 53.9 dB(A) |
| MTBF | 263,936.78 hours |
| Surge Protection | 6 kV on all access ports |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | Operating 10% to 95%, storage 5% to 95% non-condensing |
| Certifications | cUL, CB, CE, CCC, BSMI |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | 802.1D/w/s spanning tree; 802.1Q, QinQ, protocol-, MAC- and subnet-based VLANs (4K); 802.1AX link aggregation (32 groups, 12 ports per group); ERPS and FlexLink; IGMP/MLD snooping; port mirroring and RSPAN |
| Layer 3 (Standard Image) | IPv4/IPv6 static routing (512 IPv4 / 256 IPv6 static entries), RIP v1/v2/ng, VRRP v2/v3, BFD |
| Enhanced Image (licence) | OSPF v2/v3, BGP4, VRF-Lite, PIM SM/DM/SSM |
| MPLS Image (licence) | IS-IS, MPLS L2/L3 VPN |
| QoS | 8 queues per port; SP, WRR, WDRR; WRED; ingress/egress bandwidth control (8 kbps granularity); time-based QoS |
| Security | Multi-layer ACLs (4K ingress / 1K egress); port security; 802.1X with RADIUS/TACACS+; Dynamic ARP Inspection; DHCP snooping; IP Source Guard; D-Link Safeguard Engine; storm control; SSL/TLS 1.0–1.2, SSH v2 |
| OAM | IEEE 802.3ah Link OAM; IEEE 802.1ag / ITU-T Y.1731 Service OAM; cable diagnostics; loopback detection; dying gasp |
| Management | Web GUI (HTTP/HTTPS, IPv4/IPv6); CLI via console, Telnet, SSH; SNMP v1/v2c/v3; D-Link Network Assistant; DHCP auto-configuration and auto-image; OpenFlow 1.3; LLDP/LLDP-MED; NTP v3/v4, PTP; sFlow; D-View 7 (separately licensed) |
Image Upgrade Licences
| Standard to Enhanced | DGS-3630-52TC-SE-LIC |
| Enhanced to MPLS | DGS-3630-52TC-EM-LIC |
| Standard to MPLS | DGS-3630-52TC-SM-LIC |
Optional D-Link Transceivers & Cables (per datasheet)
| 10G SFP+ Transceivers | DEM-431XT (SR), DEM-432XT (LR 10 km), DEM-433XT (ER 40 km), DEM-434XT (ZR 80 km), DEM-436XT-BXD / -BXU (BiDi 20 km), DEM-410T (10GBASE-T copper, 30 m) |
| 10G SFP+ DAC | DEM-CB100S (1 m), DEM-CB300S (3 m), DEM-CB700S (7 m) |
| 1G SFP Transceivers | DGS-712 (copper), DEM-310GT (LX 10 km), DEM-311GT (SX 550 m), DEM-312GT2 (SX 2 km), DEM-314GT (LHX 50 km), DEM-315GT (ZX 80 km), DEM-330T/R and DEM-331T/R (BiDi) |
D-Link lists usage restrictions for the DEM-410T copper SFP+ module (hardware revision, quantity per switch and ambient temperature) — ask us before ordering it, or before using third-party modules.
Package Contents & DGS-3630 Series Ordering Information
DGS-3630 Series Models
| Model | Ports |
| DGS-3630-28TC | 20 x GE + 4 x combo GE/SFP + 4 x 10G SFP+ |
| DGS-3630-28PC | 20 x GE PoE + 4 x combo GE PoE/SFP + 4 x 10G SFP+, 370 W |
| DGS-3630-28SC | 20 x SFP + 4 x combo GE/SFP + 4 x 10G SFP+ |
| DGS-3630-52TC (this listing) | 44 x GE + 4 x combo GE/SFP + 4 x 10G SFP+ |
| DGS-3630-52PC | 44 x GE PoE + 4 x combo GE PoE/SFP + 4 x 10G SFP+, 370 W |
D-Link notes that stacking cables and USB flash drives are not included. Ask us for the full package contents or stacking accessories.
Datasheet & Downloads
| D-Link datasheet | DGS-3630 Series Datasheet (PDF) |
| D-Link product page | DGS-3630-52TC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-3630-52TC.
Frequently Asked Questions — D-Link DGS-3630-52TC
Does it support OSPF and BGP out of the box?
OSPF, BGP, VRF-Lite and PIM are Enhanced Image features; the Standard Image covers static routing, RIP and VRRP. Upgrade with the DGS-3630-52TC-SE-LIC licence (or -SM-LIC for MPLS). Ask us which image your unit ships with.
How many switches can be stacked?
Up to 9 units per stack (up to 432 Gigabit ports), 80 Gbps stacking bandwidth per device, per D-Link. Stacking cables are not included.
Is it fanless?
No. D-Link lists 2 x smart fans (53.9 dB(A)).
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
