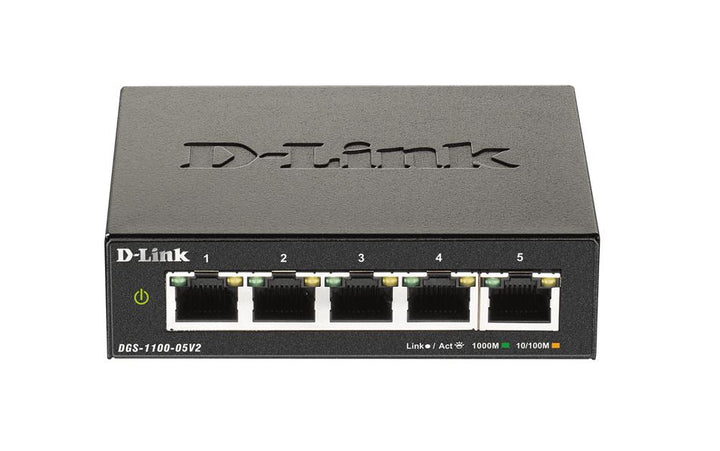

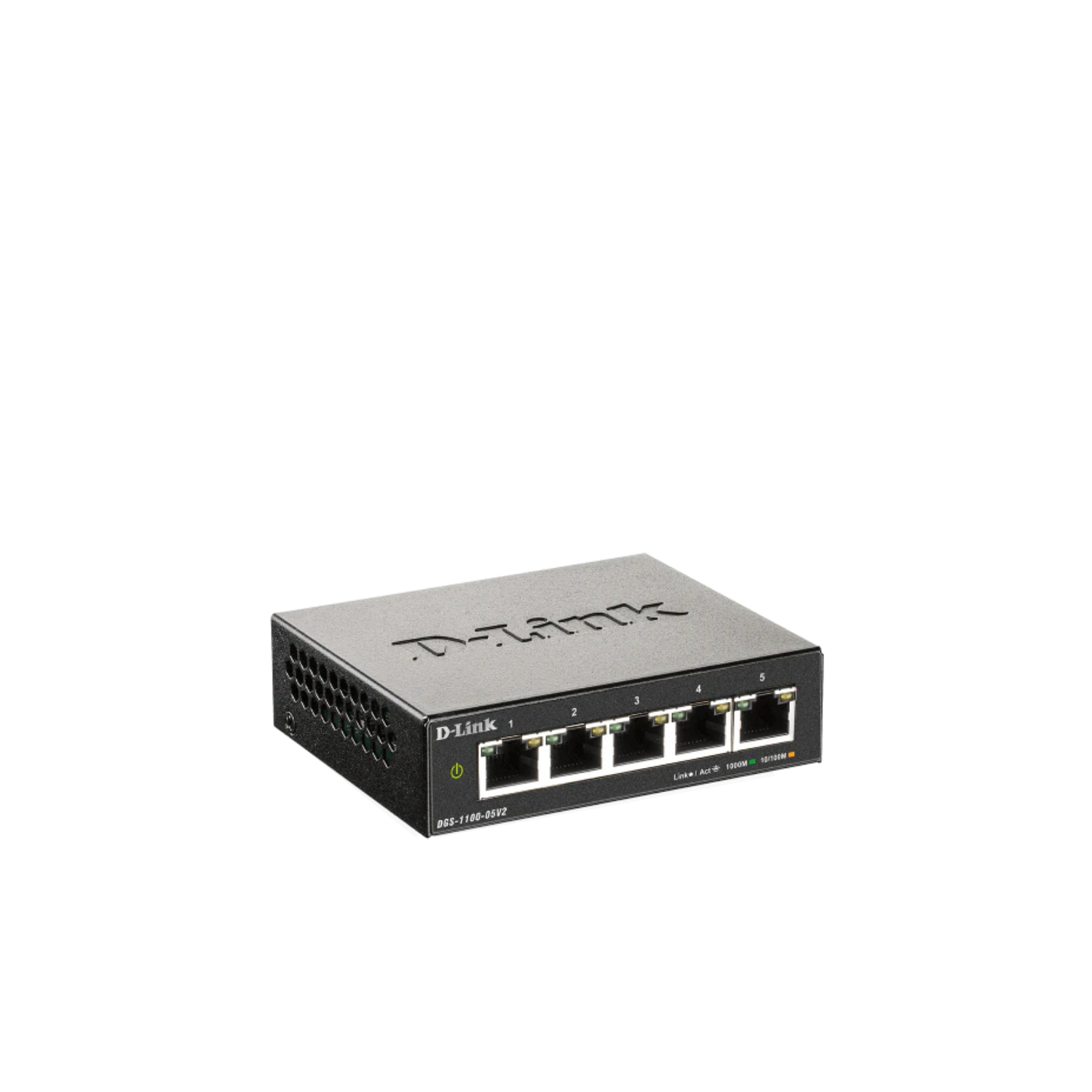

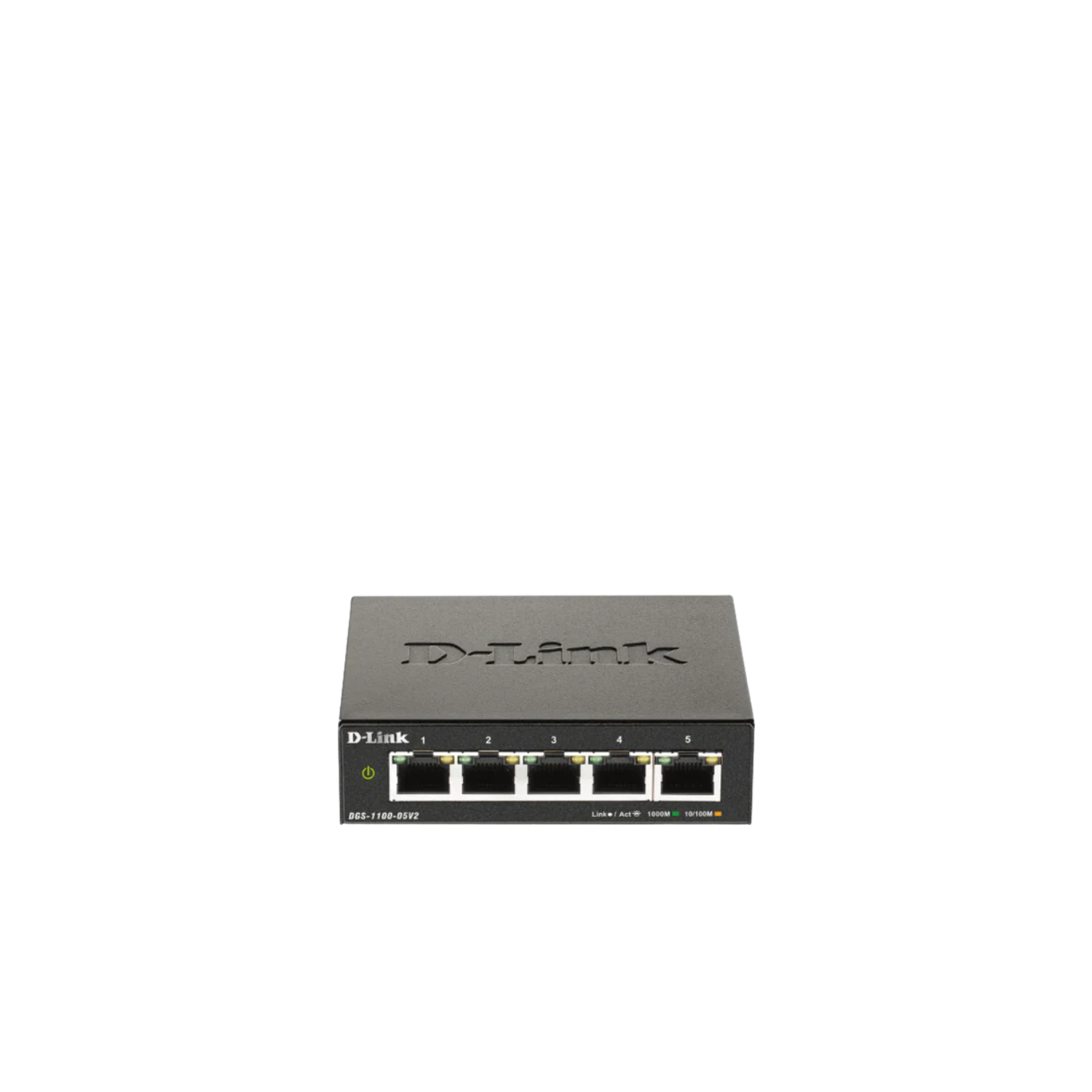

D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch (DGS-1100-05V2) - 5 Years Local Warranty
5 Gigabit Ports, Smart Managed
The D-Link DGS-1100-05V2 is a 5-port member of D-Link's DGS-1100 V2 Gigabit Smart Managed series, with 5 x 10/100/1000BASE-T ports. It adds VLANs, QoS and troubleshooting tools to a network that has outgrown an unmanaged switch.
Fanless and Silent
D-Link specifies a fanless design (0 dB(A)) and a compact desktop housing with an external power adapter, so the DGS-1100-05V2 suits offices, classrooms and shop fronts where noise matters.
Built for Surveillance and Voice
Surveillance VLAN, Voice VLAN, bandwidth control and Quality of Service keep camera and voice traffic separated and prioritised, while IGMP Snooping sends multicast traffic only where it is needed.
Simple Web Management
Configuration is through a web-based GUI (IPv4). Loopback detection and cable diagnostics speed up fault finding, and D-Link Green (IEEE 802.3az) reduces power use on idle ports.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
D-Link DGS-1100-05V2 Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1100-05V2 5-Port Gigabit Smart Managed Switch |
| Part Number | DGS-1100-05V2 |
| Series | DGS-1100 V2 Gigabit Smart Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Ports | 5 x 10/100/1000BASE-T ports |
Performance
| Switching Capacity | 10 Gbps |
| Maximum Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K entries |
| Packet Buffer | 1 Mbits |
Physical & Environmental
| Dimensions | 100.5 x 82 x 28 mm |
| Weight | 0.23 kg |
| Cooling | Fanless (0 dB(A)) |

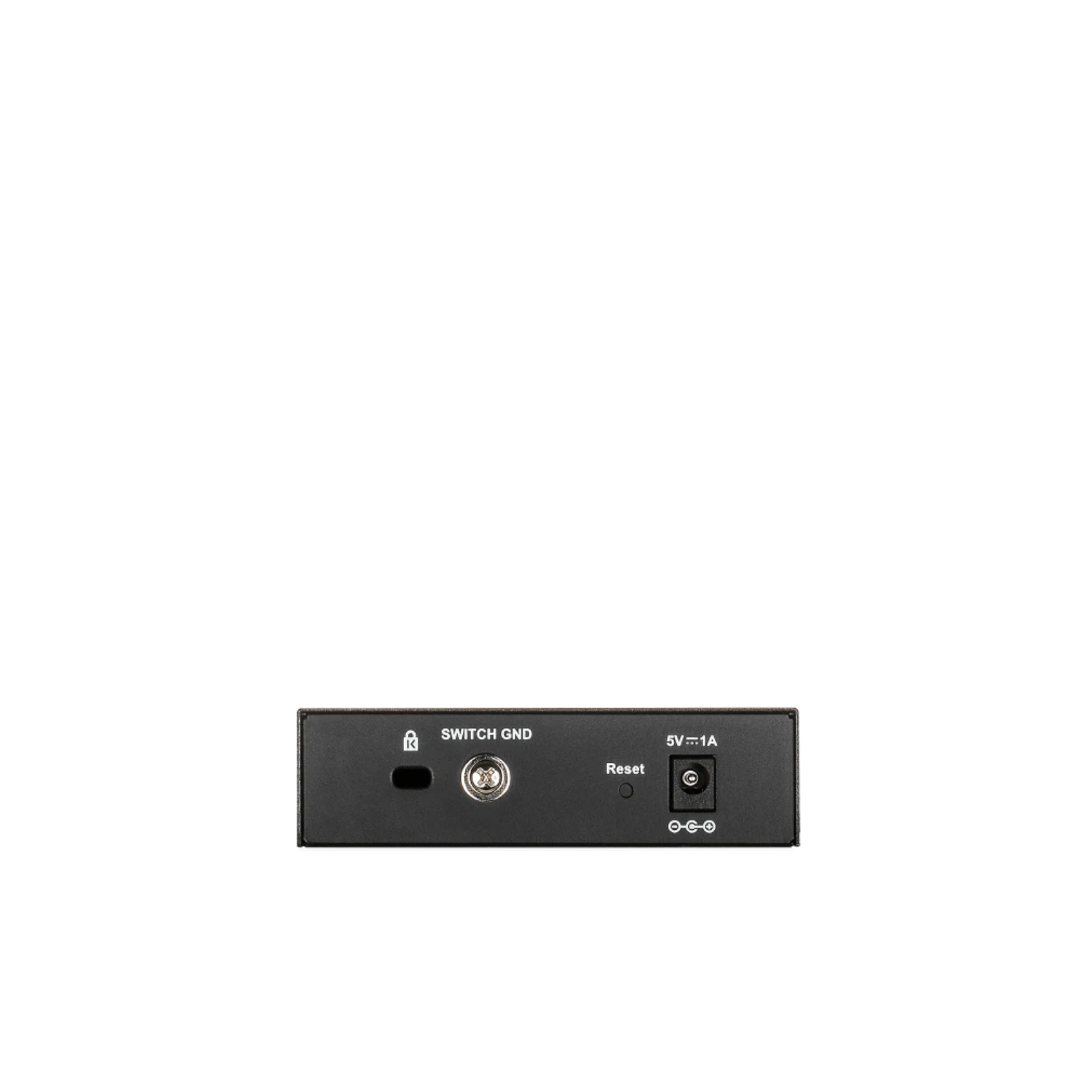

| Power Input | 100–240 V AC, 50–60 Hz external power adapter |
| Power Consumption | Standby 1.39 W; max 3.42 W |
| Operating Temperature | 0 to 40 °C |
| MTBF | 1,562,055 hours |
Certifications
| EMI | FCC Class B, CE Class B, VCCI Class B, BSMI |
| Safety | cUL, CE LVD, CB, BSMI |
Compatibility & Software Support
Management
Web-based GUI (supports IPv4).
Layer 2 Features
32 static VLAN groups (max. 4094 VIDs), IGMP v1/v2 Snooping (128 groups), loopback detection and cable diagnostics.
QoS & Traffic
802.1p with 4 queues per port, bandwidth control, Surveillance VLAN and Voice VLAN; 802.3x flow control.
Green Technology
D-Link Green with IEEE 802.3az Energy Efficient Ethernet.
Package Contents & DGS-1100 V2 Ordering Information
DGS-1100 V2 Models
| Model | Ports | Part No. |
| DGS-1100-05V2 (this listing) | 5 x GE | DGS-1100-05V2 |
| DGS-1100-08V2 | 8 x GE | DGS-1100-08V2 |
| DGS-1100-16V2 | 16 x GE | DGS-1100-16V2 |
| DGS-1100-24V2 | 24 x GE | DGS-1100-24V2 |
| DGS-1100-08PV2 | 8 x GE PoE (64 W) | DGS-1100-08PV2 |
| DGS-1100-18PV2 | 16 x GE PoE + 2 x Combo GE/SFP (130 W) | DGS-1100-18PV2 |
| DGS-1100-24PV2 | 12 x GE PoE + 12 x GE (100 W) | DGS-1100-24PV2 |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DGS-1100 V2 Series Datasheet (PDF) |
| D-Link series page | DGS-1100 V2 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1100-05V2.
Frequently Asked Questions — D-Link DGS-1100-05V2
Is the DGS-1100-05V2 fanless?
Yes. D-Link lists the DGS-1100-05V2 as fanless, with 0 dB(A) acoustic noise.
Does the DGS-1100-05V2 have SFP fibre ports?
No. It has 5 x 10/100/1000BASE-T ports and no SFP ports. For fibre uplinks look at the DGS-1210 series.
How is it managed?
Through a web-based GUI (supports IPv4).
Does it support PoE?
No. For PoE look at the DGS-1100-08PV2, DGS-1100-18PV2 or DGS-1100-24PV2.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
