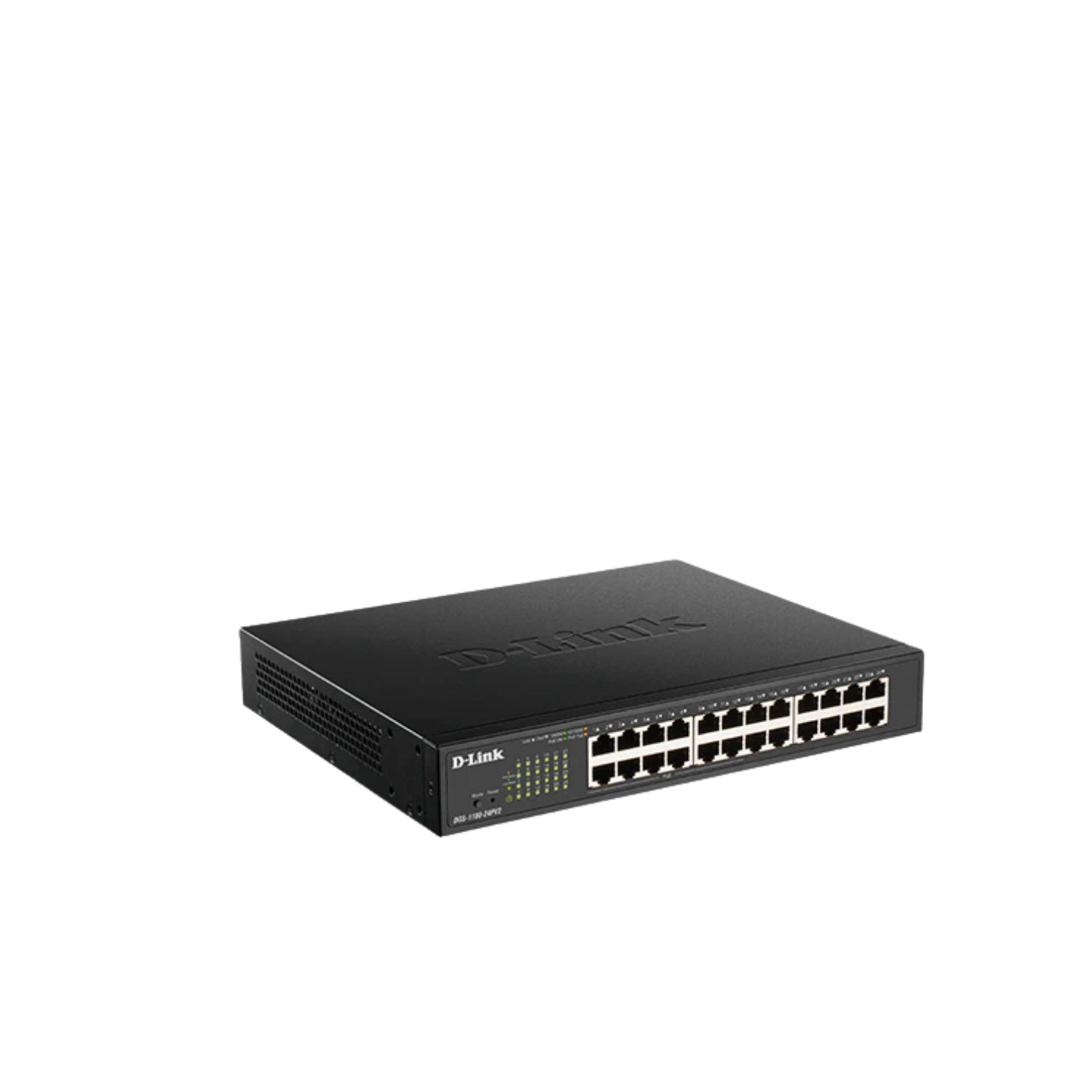

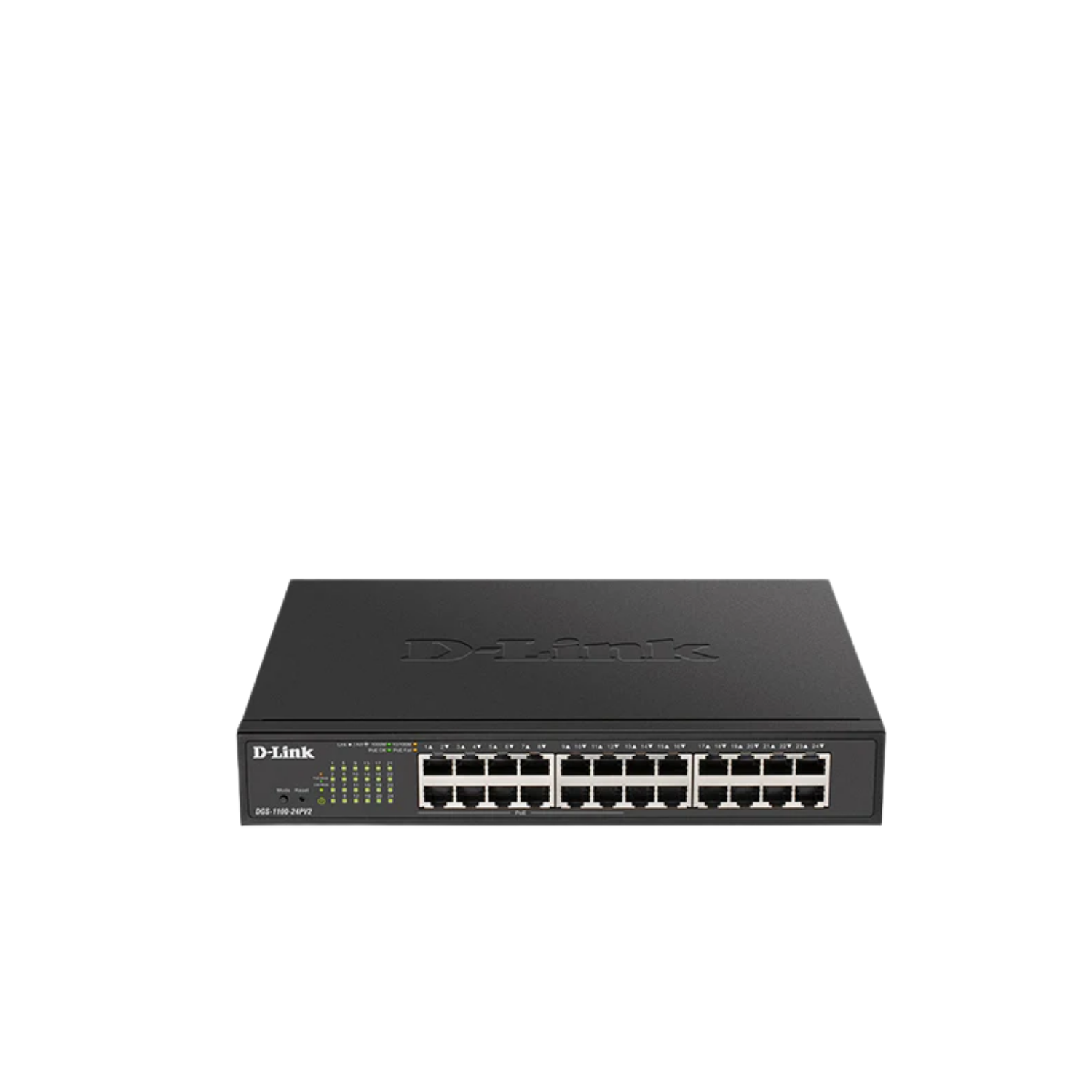

D-Link DGS-1100-24PV2 24-Port Gigabit PoE Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-1100-24PV2 24-Port Gigabit PoE Smart Managed Switch (DGS-1100-24PV2) - 5 Years Local Warranty
12 PoE + 12 Gigabit Ports
The D-Link DGS-1100-24PV2 is a 24-port member of the DGS-1100 V2 Gigabit Smart Managed series, with 12 x Gigabit PoE ports (IEEE 802.3af/at, ports 1–12) and 12 x Gigabit non-PoE ports. The 100 W PoE budget suits IP cameras, access points and IP phones alongside PCs and printers.
Silent Fanless Operation
A fanless design (0 dB(A)) keeps it silent in open offices, with 48 Gbps switching capacity and 35.71 Mpps forwarding.
Built for Surveillance and Voice
Auto Surveillance VLAN, Voice VLAN, IGMP Snooping (v1/v2/v3) and QoS prioritise camera and voice traffic, while 802.3ad Link Aggregation (up to 8 groups) and Spanning Tree add resilience.
Simple Web Management
Configured through a web-based GUI supporting IPv4 and IPv6, with D-Link Green energy-saving features.
Need help choosing? Email sales@sourceit.com.sg with your port count and PoE devices and we will size it for you.
D-Link DGS-1100-24PV2 Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1100-24PV2 24-Port Gigabit PoE Smart Managed Switch |
| Part Number | DGS-1100-24PV2 |
| Series | DGS-1100 V2 Gigabit Smart Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 12 x 10/100/1000BASE-T (ports 1–12) |
| Gigabit Ports | 12 x 10/100/1000BASE-T |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 100 W |
Performance
| Switching Capacity | 48 Gbps |
| Maximum Forwarding Rate | 35.71 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Jumbo Frames | Up to 10,000 bytes |
Physical & Environmental
| Dimensions | 280 x 230 x 44 mm |
| Weight | 2.00 kg |
| Cooling | Fanless (0 dB(A)) |
| Power Consumption | Standby 8.8 W; max 131.5 W (PoE on) / 19.5 W (PoE off) |
| Operating Temperature | -5 to 50 °C |
| MTBF | 255,003 hours |
Certifications
| EMI | FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI |
| Safety | cUL, CE LVD, CB, BSMI |
Compatibility & Software Support
Management
Web-based GUI (IPv4 / IPv6). Features per D-Link include 802.1Q VLAN, Auto Surveillance VLAN, Voice VLAN, IGMP Snooping v1/v2/v3, 802.3ad Link Aggregation (up to 8 groups, 8 ports per group), STP/RSTP, QoS, storm control and SSL.
Typical Use
SMB networks mixing up to 12 PoE devices with 12 wired PCs, printers or servers on one silent switch.
Package Contents & DGS-1100 V2 PoE Ordering Information
DGS-1100 V2 PoE Models
| Model | Ports | PoE Budget | Part No. |
| DGS-1100-08PV2 | 8 x GE PoE | 64 W | DGS-1100-08PV2 |
| DGS-1100-10MPV2 | 8 x GE PoE + 2 x SFP | 130 W | DGS-1100-10MPV2 |
| DGS-1100-18PV2 | 16 x GE PoE + 2 x Combo GE/SFP | 130 W | DGS-1100-18PV2 |
| DGS-1100-24PV2 (this listing) | 12 x GE PoE + 12 x GE | 100 W | DGS-1100-24PV2 |
| DGS-1100-26MPV2 | 24 x GE PoE + 2 x Combo GE/SFP | 370 W | DGS-1100-26MPV2 |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-1100 V2 Series Datasheet (PDF) |
| D-Link series page | DGS-1100 V2 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1100-24PV2.
Frequently Asked Questions — D-Link DGS-1100-24PV2
Are all 24 ports PoE?
No. Ports 1–12 are PoE (IEEE 802.3af/at); ports 13–24 are standard Gigabit ports.
How much PoE power does it provide?
100 W in total across the 12 PoE ports.
Is it fanless?
Yes. D-Link lists a fanless design with 0 dB(A) acoustic output.
Does it have SFP ports?
No. For SFP uplinks see the DGS-1100-18PV2 or DGS-1100-26MPV2.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
