D-Link DXS-3610-54S 54-Port L3 Stackable 10G/100G Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-3610-54S Layer 3 Stackable 48 x 10G SFP+ + 6 x 100G QSFP28 Managed Switch (DXS-3610-54S) - 5 Years Local Warranty
High-Density 10G Aggregation with 100G Uplinks

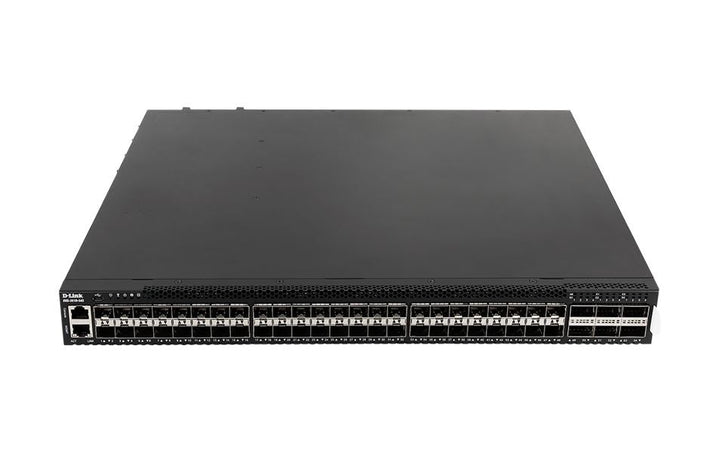

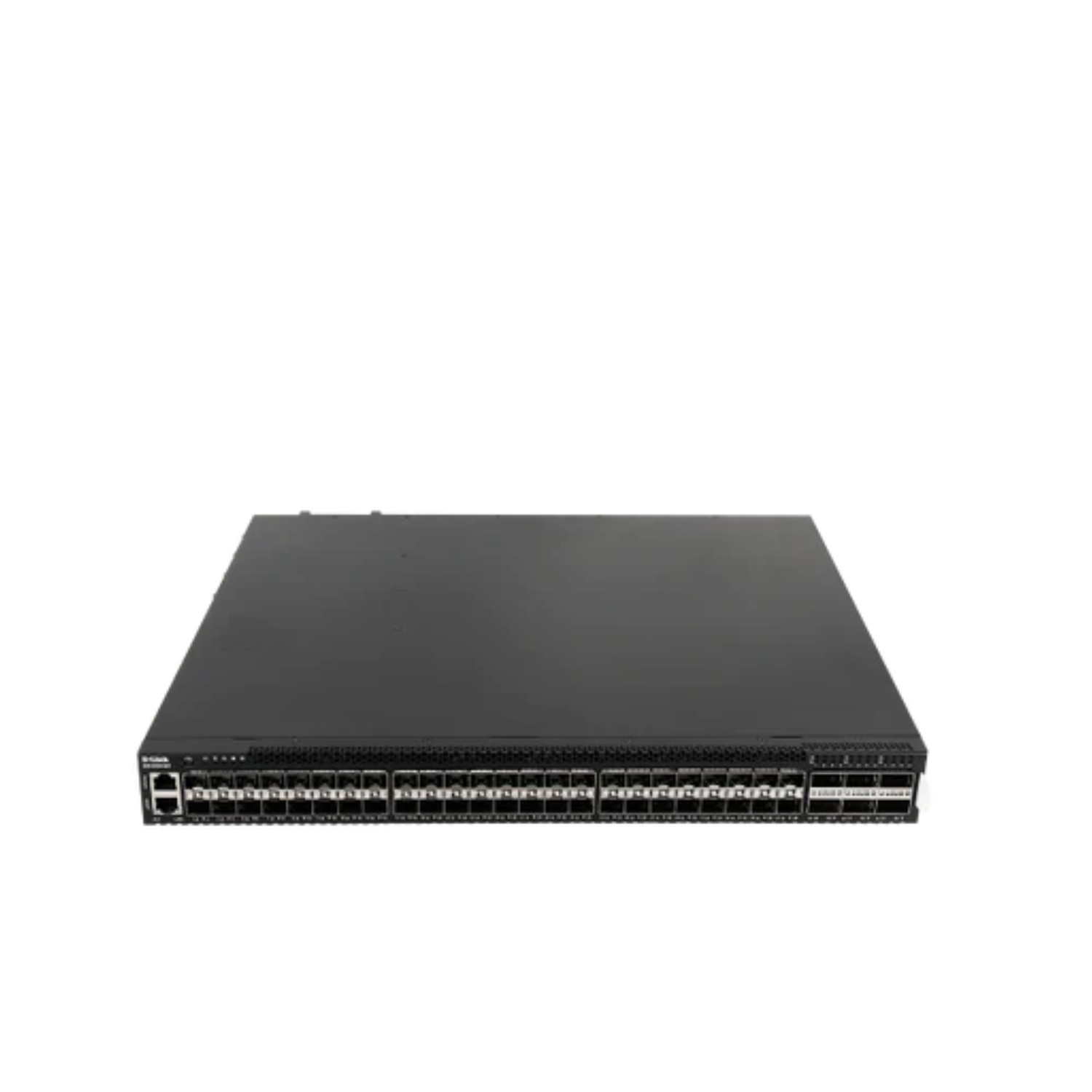

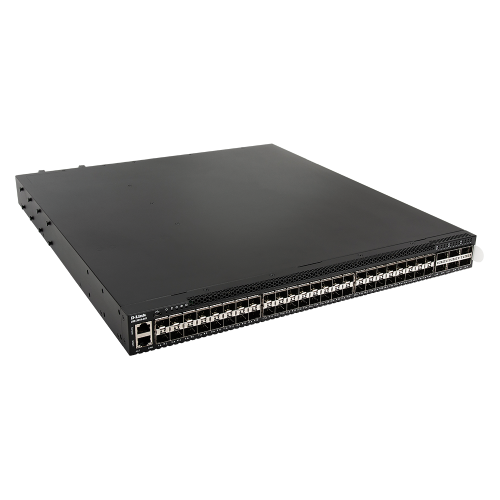

The D-Link DXS-3610-54S packs 48 x 1/10GbE SFP/SFP+ ports and 6 x 40/100GbE QSFP+/QSFP28 ports into a 1U chassis, with 2.16 Tbps switching capacity and a 1607.04 Mpps forwarding rate for enterprise and campus aggregation.
Stack Up to 12 Switches
Physical stacking of up to 12 units in ring or chain topology delivers up to 1200G stacking bandwidth using QSFP28 DAC cables, while MLAG, ERPS and virtual stacking of up to 32 units add further resilience and simpler management.
Built for Uptime

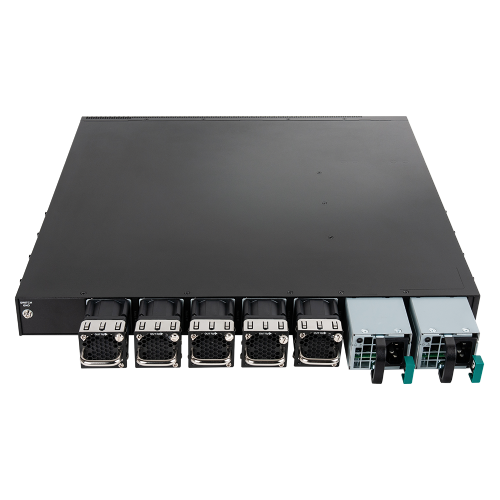

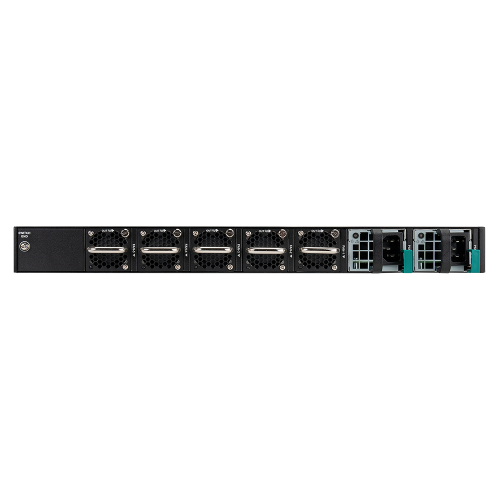

Two hot-swappable AC/DC power modules provide 1+1 redundancy with load sharing, and hot-swappable fan trays give front-to-back airflow with N+1 cooling redundancy. A switch locator LED and ID tag simplify maintenance.
SDN-Ready and Upgradable
OpenFlow 1.3 support suits SDN environments, and an optional Enhanced Image licence unlocks BGP, IS-IS, VRF Lite, L3 multicast and MPLS/L3 VPN.
Need help choosing? Email sales@sourceit.com.sg with your port counts, uplink speeds and stacking plans and we will recommend the right switches, optics and power modules.
D-Link DXS-3610-54S Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3610-54S Layer 3 Stackable 10G/100G Managed Switch |
| Part Number | DXS-3610-54S |
| Form Factor | 19-inch, 1U rack-mount |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 10G Ports | 48 x 1/10GbE SFP/SFP+ |
| 100G Ports | 6 x 40/100GbE QSFP+/QSFP28 |
| Management Ports | RJ-45 console port (out-of-band); 10/100/1000BASE-T RJ-45 management port |
| USB | 1 x USB 2.0 Type A |
Performance
| Switching Capacity | 2.16 Tbps |
| Max. Forwarding Rate | 1607.04 Mpps |
| Packet Buffer | 32 MB |
| MAC Address Table | Up to 288K |
| IPv4 / IPv6 Routing Table | Up to 32K / up to 16K |
| IPv4 / IPv6 Forwarding Table | Up to 144K / up to 144K |
| Jumbo Frame | 9436 bytes (hardware table) |
| Stacking | Up to 12 units, up to 1200G stacking bandwidth (QSFP28 DAC DEM-CB100Q28), ring/chain |
Power & Cooling
| Power Supply | 1+1 redundant, hot-swappable modules with load sharing |
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Max. Power Consumption | 320.8 W |
| Standby Power Consumption | 120.6 W |
| Max. Heat Dissipation | 1083 BTU/hr |
| Fans | 5 fans; hot-swappable fan trays, front-to-back airflow, N+1 redundancy |
| Acoustics | Max 79.4 dB(A), min 65.3 dB(A) |
Physical & Environmental
| Dimensions (W x L x H) | 441.0 x 487.44 x 43.5 mm |
| Weight | 9.80 kg |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 0% to 95% RH (operating and storage) |
| MTBF | 94,262 hours |
Software Highlights
| Layer 2 | 802.1D/w/s STP/RSTP/MSTP, 802.1AX link aggregation, ERPS (G.8032 v1/v2), port/flow mirroring and RSPAN, L2 protocol tunnelling, IGMP snooping v1/v2/v3, MLD snooping v1/v2 |
| VLAN | 802.1Q, 802.1v, Q-in-Q, MAC/subnet-based VLAN, private VLAN, GVRP, VLAN translation, up to 4094 VIDs |
| Layer 3 (Standard Image) | Static routing, RIPv1/v2/RIPng, OSPFv2/v3, VRRPv2/v3, IPv6 tunnelling, 256 IP interfaces |
| Enhanced Image (licence) | BGP v4/v4+, IS-IS, VRF Lite, PIM-SM/DM/SSM, MSDP, DVMRP v3, MPLS (LDP, VPWS, VPLS), BGP/MPLS L3 VPN |
| QoS | 8 queues per port, Strict/WRR/RR/WDRR, WRED, trTCM/srTCM, bandwidth control (8 Kb/s granularity) |
| Security & AAA | 802.1X, WAC, MAC-based access control, RADIUS/TACACS+, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 RA Guard/DHCPv6 Guard, D-Link Safeguard Engine, SSH v2, SSL |
| Data Centre / OAM | 802.1Qbb PFC; 802.3ah, 802.1ag, Y.1731 |
| SDN | OpenFlow v1.3 |
| Management | Web GUI, CLI, Telnet, SNMP v1/v2c/v3, RMON, sFlow, syslog, LLDP/LLDP-MED, SNTP, DHCP auto-configuration |
Certifications
| Safety | CB, cUL, LVD |
| EMI/EMC | FCC, CE, C-Tick, IC, VCCI |
Compatibility & Software Support
Firmware Images
Ships with the Standard Image. The DXS-3610-54S-SE-LIC licence upgrades it to the Enhanced Image (full L3 and MPLS features) — ask us for a quote.
Power & Fan Modules (per D-Link)
DXS-PWR700AC 770 W AC PSU, DXS-PWR1000DC 1100 W DC PSU and DXS-FAN200 fan tray, all front-to-back airflow.
Optics & DAC Cables (per D-Link datasheet)
100G QSFP28: DEM-Q2801Q-SR4, DEM-Q2810Q-LR4. 40G QSFP+: DEM-QX01Q-SR4, DEM-QX10Q-LR4. 10G SFP+: DEM-431XT, DEM-432XT, DEM-433XT, DEM-434XT, DEM-436XT-BXU/BXD, DEM-410T. 1G SFP: DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-315GT, DEM-330T/R, DEM-331T/R. DAC: DEM-CB100Q28, DEM-CB100Q28-4S28, DEM-CB100QXS, DEM-CB300QXS, DEM-CB100QXS-4XS, DEM-CB100S, DEM-CB300S, DEM-CB700S.
D-Link notes restrictions on using DEM-410T 10GBASE-T modules in this switch (hardware revision, quantity and temperature) — please check with us before ordering.
Package Contents & DXS-3610 Ordering Information
DXS-3610 Models
| Model | Ports |
| DXS-3610-54S (this listing) | 48 x 10G SFP+ + 6 x 100G QSFP28 |
| DXS-3610-54T | 48 x 10GBASE-T + 6 x 100G QSFP28 |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Transceivers, DAC cables and the Enhanced Image licence are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3610 Series Datasheet (PDF) |
| D-Link product page | DXS-3610-54S on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3610-54S.
Frequently Asked Questions — D-Link DXS-3610-54S
How many switches can I stack?
Up to 12 units physically, with up to 1200G stacking bandwidth over QSFP28 DAC cables.
Does it have redundant power?
Yes. It takes two hot-swappable power modules for 1+1 redundancy and load sharing; fan trays are hot-swappable with N+1 redundancy.
Does it support BGP or MPLS?
Yes, with the Enhanced Image licence (DXS-3610-54S-SE-LIC). The Standard Image includes static routing, RIP, OSPF and VRRP.
Can the 100G ports run at 40G?
Yes. D-Link specifies the 6 uplinks as 40/100GbE QSFP+/QSFP28.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
