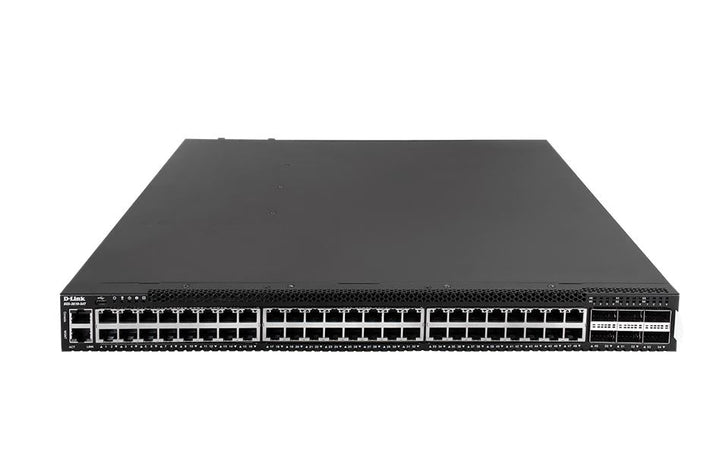

D-Link DXS-3610-54T 54-Port L3 Stackable 10GBASE-T/100G Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-3610-54T Layer 3 Stackable 48 x 10GBASE-T + 6 x 100G QSFP28 Managed Switch (DXS-3610-54T) - 5 Years Local Warranty
10G Copper Aggregation with 100G Uplinks
The D-Link DXS-3610-54T provides 48 x 1/10GbE Base-T ports and 6 x 40/100GbE QSFP+/QSFP28 ports in a 1U chassis, with 2.16 Tbps switching capacity and a 1607.04 Mpps forwarding rate — 10G over copper cabling without per-port transceivers.
Stack Up to 12 Switches
Physical stacking of up to 12 units in ring or chain topology delivers up to 1200G stacking bandwidth using QSFP28 DAC cables, while MLAG, ERPS and virtual stacking of up to 32 units add further resilience and simpler management.
Built for Uptime
Two hot-swappable AC/DC power modules provide 1+1 redundancy with load sharing, and hot-swappable fan trays give front-to-back airflow with N+1 cooling redundancy. A switch locator LED and ID tag simplify maintenance.
SDN-Ready and Upgradable
OpenFlow 1.3 support suits SDN environments, and an optional Enhanced Image licence unlocks BGP, IS-IS, VRF Lite, L3 multicast and MPLS/L3 VPN.
Need help choosing? Email sales@sourceit.com.sg with your port counts, uplink speeds and stacking plans and we will recommend the right switches, optics and power modules.
D-Link DXS-3610-54T Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-3610-54T Layer 3 Stackable 10G/100G Managed Switch |
| Part Number | DXS-3610-54T |
| Form Factor | 19-inch, 1U rack-mount |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 10G Ports | 48 x 1/10GbE Base-T (RJ-45) |
| 100G Ports | 6 x 40/100GbE QSFP+/QSFP28 |
| Management Ports | RJ-45 console port (out-of-band); 10/100/1000BASE-T RJ-45 management port |
| USB | 1 x USB 2.0 Type A |
Performance
| Switching Capacity | 2.16 Tbps |
| Max. Forwarding Rate | 1607.04 Mpps |
| Packet Buffer | 32 MB |
| MAC Address Table | Up to 288K |
| IPv4 / IPv6 Routing Table | Up to 32K / up to 16K |
| IPv4 / IPv6 Forwarding Table | Up to 144K / up to 144K |
| Jumbo Frame | 9436 bytes (hardware table) |
| Stacking | Up to 12 units, up to 1200G stacking bandwidth (QSFP28 DAC DEM-CB100Q28), ring/chain |
Power & Cooling
| Power Supply | 1+1 redundant, hot-swappable modules with load sharing |
| AC Input | 100 to 240 V AC, 50/60 Hz |
| Max. Power Consumption | 330.2 W |
| Standby Power Consumption | 108.2 W |
| Max. Heat Dissipation | 1126 BTU/hr |
| Fans | 5 fans; hot-swappable fan trays, front-to-back airflow, N+1 redundancy |
| Acoustics | Max 76.6 dB(A), min 69.7 dB(A) |
Physical & Environmental
| Dimensions (W x L x H) | 441.0 x 487.44 x 43.5 mm |
| Weight | 9.88 kg |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 0% to 95% RH (operating and storage) |
| MTBF | 96,503 hours |
Software Highlights
| Layer 2 | 802.1D/w/s STP/RSTP/MSTP, 802.1AX link aggregation, ERPS (G.8032 v1/v2), port/flow mirroring and RSPAN, L2 protocol tunnelling, IGMP snooping v1/v2/v3, MLD snooping v1/v2 |
| VLAN | 802.1Q, 802.1v, Q-in-Q, MAC/subnet-based VLAN, private VLAN, GVRP, VLAN translation, up to 4094 VIDs |
| Layer 3 (Standard Image) | Static routing, RIPv1/v2/RIPng, OSPFv2/v3, VRRPv2/v3, IPv6 tunnelling, 256 IP interfaces |
| Enhanced Image (licence) | BGP v4/v4+, IS-IS, VRF Lite, PIM-SM/DM/SSM, MSDP, DVMRP v3, MPLS (LDP, VPWS, VPLS), BGP/MPLS L3 VPN |
| QoS | 8 queues per port, Strict/WRR/RR/WDRR, WRED, trTCM/srTCM, bandwidth control (8 Kb/s granularity) |
| Security & AAA | 802.1X, WAC, MAC-based access control, RADIUS/TACACS+, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 RA Guard/DHCPv6 Guard, D-Link Safeguard Engine, SSH v2, SSL |
| Data Centre / OAM | 802.1Qbb PFC; 802.3ah, 802.1ag, Y.1731 |
| SDN | OpenFlow v1.3 |
| Management | Web GUI, CLI, Telnet, SNMP v1/v2c/v3, RMON, sFlow, syslog, LLDP/LLDP-MED, SNTP, DHCP auto-configuration |
Certifications
| Safety | CB, cUL, LVD |
| EMI/EMC | FCC, CE, C-Tick, IC, VCCI |
Compatibility & Software Support
Firmware Images
Ships with the Standard Image. The DXS-3610-54T-SE-LIC licence upgrades it to the Enhanced Image (full L3 and MPLS features) — ask us for a quote.
Power & Fan Modules (per D-Link)
DXS-PWR700AC 770 W AC PSU, DXS-PWR1000DC 1100 W DC PSU and DXS-FAN200 fan tray, all front-to-back airflow.
Optics & DAC Cables for the QSFP28 Uplinks (per D-Link datasheet)
100G QSFP28: DEM-Q2801Q-SR4, DEM-Q2810Q-LR4. 40G QSFP+: DEM-QX01Q-SR4, DEM-QX10Q-LR4. DAC: DEM-CB100Q28 (also used for stacking), DEM-CB100Q28-4S28, DEM-CB100QXS, DEM-CB300QXS, DEM-CB100QXS-4XS.
Package Contents & DXS-3610 Ordering Information
DXS-3610 Models
| Model | Ports |
| DXS-3610-54S | 48 x 10G SFP+ + 6 x 100G QSFP28 |
| DXS-3610-54T (this listing) | 48 x 10GBASE-T + 6 x 100G QSFP28 |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Transceivers, DAC cables and the Enhanced Image licence are sold separately.
Datasheet & Downloads
| D-Link datasheet | DXS-3610 Series Datasheet (PDF) |
| D-Link product page | DXS-3610-54T on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-3610-54T.
Frequently Asked Questions — D-Link DXS-3610-54T
Do the 10G ports need transceivers?
No. The 48 downlinks are 1/10GbE Base-T RJ-45 copper ports; only the 6 QSFP28 uplinks take optics or DAC cables.
How many switches can I stack?
Up to 12 units physically, with up to 1200G stacking bandwidth over QSFP28 DAC cables.
Does it have redundant power?
Yes. It takes two hot-swappable power modules for 1+1 redundancy and load sharing; fan trays are hot-swappable with N+1 redundancy.
Does it support BGP or MPLS?
Yes, with the Enhanced Image licence (DXS-3610-54T-SE-LIC). The Standard Image includes static routing, RIP, OSPF and VRRP.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
