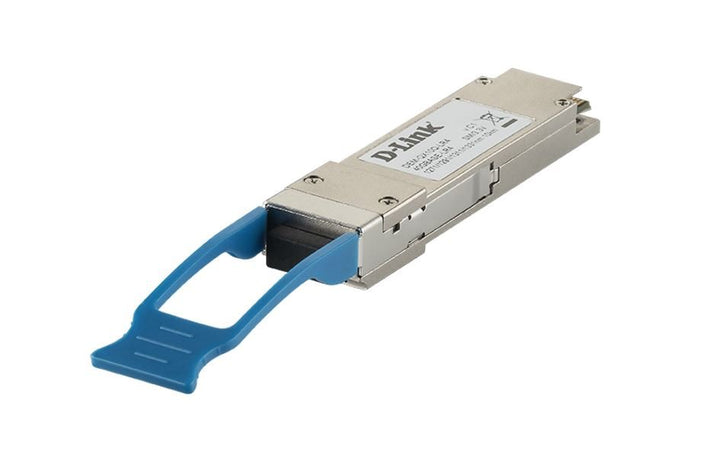

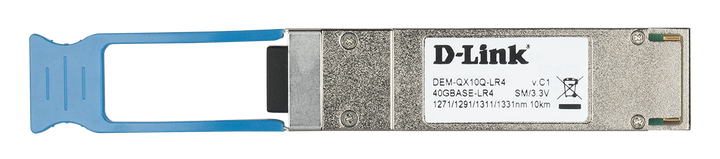

D-Link DEM-QX10Q-LR4 40GBASE-LR4 QSFP+ transceiver front

D-Link DEM-QX10Q-LR4 40GBASE-LR4 QSFP+ Single-Mode Transceiver

Name: D-Link DEM-QX10Q-LR4 40GBASE-LR4 QSFP+ Single-Mode Transceiver
Brand: DLINK
SKU: DEM-QX10Q-LR4
Price: 1779.65 SGD
Availability: InStock

SKU: DEM-QX10Q-LR4 Brand: DLINK

~~S$2,158.32~~ Save 17%

Prices in SGD, excluding 9% GST.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

D-Link DEM-QX10Q-LR4 40GBASE-LR4 QSFP+ Single-Mode Transceiver (DEM-QX10Q-LR4) - 5 Years Local Warranty

40G over Single-Mode Fibre up to 10 km

The D-Link DEM-QX10Q-LR4 is a 40GBASE-LR4 QSFP+ transceiver for 40G Ethernet links of up to 10 km over single-mode 9/125 µm fibre, using a duplex LC connector — for building-to-building, campus backbone and data-centre interconnect uplinks between 40G switches.

Hot Pluggable, MSA and IEEE 802.3ba Compliant

The module complies with IEEE 802.3ba and the QSFP+ MSA, is RoHS compliant, runs on 3.3 V and is hot pluggable. D-Link lists Digital Diagnostic Monitoring (DDM) on the product page.

Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre or cable type and link distance and we will match the right module for you.

D-Link DEM-QX10Q-LR4 Datasheet — Technical Specifications

General

Product Name	D-Link DEM-QX10Q-LR4 40GBASE-LR4 QSFP+ Single-Mode Transceiver
Part Number	DEM-QX10Q-LR4
Series	DEM-QX Series 40G QSFP+ Transceivers
Local Warranty (Singapore)	5 years, supplied by SourceIT with a GST invoice

Optical Interface

Standard	IEEE 802.3ba 40GBASE-LR4
Data Rate	40G Ethernet
Connector	Duplex LC
Media	Single-mode fibre 9/125 µm
Wavelengths	1271, 1291, 1311, 1331 nm (dlink.com product page); the datasheet lists 1310 nm
Maximum Distance	10 km
Direction	Single direction

Module

Form Factor	QSFP+, MSA compliant
Power Supply	3.3 V
Hot Pluggable	Yes
DDM	Yes (per dlink.com product page)
Compliance	RoHS

Compatibility & Software Support

Host Ports

Plugs into a 40G QSFP+ slot. D-Link does not publish a host compatibility list or environmental ratings for this module — send us your switch model and we will confirm before you order.

Cabling

Uses standard duplex LC single-mode patch cords (9/125 µm).

Package Contents & DEM-QX 40G QSFP+ Ordering Information

D-Link 40G QSFP+ Transceivers (DEM-QX Series)

Model	Standard	Media	Distance	Part No.
DEM-QX01Q-SR4	40GBASE-SR4, 850 nm	Multi-mode OM3/OM4, MPO	100 m OM3 / 150 m OM4	DEM-QX01Q-SR4
DEM-QX10Q-LR4 (this listing)	40GBASE-LR4	Single-mode 9/125 µm, duplex LC	10 km	DEM-QX10Q-LR4

Package contents are not listed by D-Link — ask us if you need confirmation of what is in the box.

Datasheet & Downloads

D-Link datasheet	DEM-QX Series 40G QSFP+ Datasheet, February 2019 (PDF)
D-Link product page	DEM-QX10Q-LR4 on dlink.com

Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-QX10Q-LR4.

Frequently Asked Questions — D-Link DEM-QX10Q-LR4

How far can the DEM-QX10Q-LR4 reach?

Up to 10 km over single-mode 9/125 µm fibre.

What connector does it use?

Duplex LC, so standard single-mode LC patch cords fit.

Which module do I need for short in-rack runs?

The DEM-QX01Q-SR4 (40GBASE-SR4) covers 100 m on OM3 / 150 m on OM4 multi-mode fibre with an MPO connector.

Why do the wavelengths differ between documents?

40GBASE-LR4 carries four lanes; the dlink.com product page lists the four lane wavelengths (1271–1331 nm) while the 2019 datasheet gives a single nominal 1310 nm figure.

What warranty do I get?

5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
