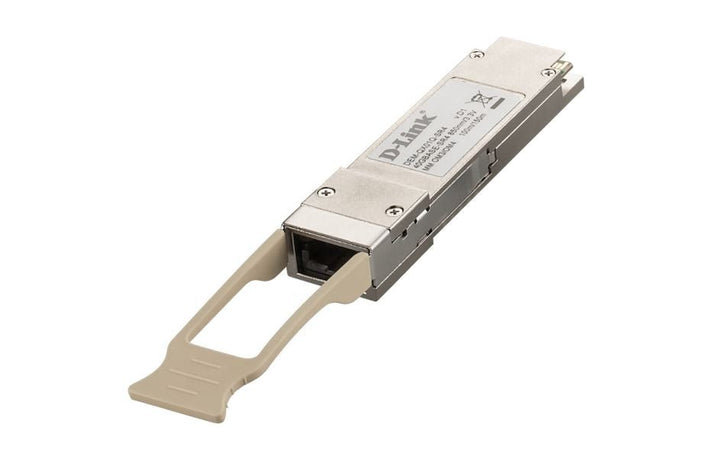

D-Link DEM-QX01Q-SR4 40GBASE-SR4 QSFP+ Multi-Mode Transceiver

Name: D-Link DEM-QX01Q-SR4 40GBASE-SR4 QSFP+ Multi-Mode Transceiver
Brand: DLINK
SKU: DEM-QX01Q-SR4
Price: 270.48 SGD
Availability: InStock

SKU: DEM-QX01Q-SR4 Brand: DLINK

~~S$329.36~~ Save 17%

Prices in SGD, excluding 9% GST.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

D-Link DEM-QX01Q-SR4 40GBASE-SR4 QSFP+ Multi-Mode Transceiver (DEM-QX01Q-SR4) - 5 Years Local Warranty

40G over Multi-Mode Fibre

The D-Link DEM-QX01Q-SR4 is a 40GBASE-SR4 QSFP+ transceiver for 40G Ethernet. It uses an 850 nm laser over OM3 or OM4 multi-mode fibre with an MPO connector, reaching 100 m on OM3 and 150 m on OM4 — for switch-to-switch and aggregation links in data centres and enterprise wiring closets.

Hot Pluggable and MSA Compliant

The module is IEEE 802.3ba and QSFP+ MSA compliant, RoHS compliant, runs on 3.3 V and is hot swappable in a standard QSFP+ slot.

Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will match the right module for you.

D-Link DEM-QX01Q-SR4 Datasheet — Technical Specifications

General

Product Name	D-Link DEM-QX01Q-SR4 40GBASE-SR4 QSFP+ Multi-Mode Transceiver
Part Number	DEM-QX01Q-SR4
Series	DEM-QX Series 40G QSFP+ Transceivers
Local Warranty (Singapore)	5 years, supplied by SourceIT with a GST invoice

Optical Interface

Standard	IEEE 802.3ba 40GBASE-SR4
Data Rate	40G Ethernet
Connector	MPO
Media	Multi-mode fibre 50/125 µm, OM3 or OM4
Wavelength	850 nm
Maximum Distance	100 m on OM3; 150 m on OM4

Module

Form Factor	QSFP+, MSA compliant
Power Supply	3.3 V
Hot Pluggable	Yes
Compliance	RoHS

Compatibility & Software Support

Host Ports

Plugs into a 40G QSFP+ slot. D-Link's datasheet does not publish a host compatibility list or environmental ratings — send us your switch model and we will confirm before you order.

Cabling

Requires an MPO multi-mode trunk (OM3 or OM4) rather than duplex LC patch cords.

Package Contents & DEM-QX 40G QSFP+ Ordering Information

D-Link 40G QSFP+ Transceivers (DEM-QX Series)

Model	Standard	Media	Distance	Part No.
DEM-QX01Q-SR4 (this listing)	40GBASE-SR4, 850 nm	Multi-mode OM3/OM4, MPO	100 m OM3 / 150 m OM4	DEM-QX01Q-SR4
DEM-QX10Q-LR4	40GBASE-LR4	Single-mode	10 km	DEM-QX10Q-LR4

Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.

Datasheet & Downloads

D-Link datasheet

DEM-QX Series 40G QSFP+ Datasheet, February 2019 (PDF)

Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-QX01Q-SR4.

Frequently Asked Questions — D-Link DEM-QX01Q-SR4

How far can the DEM-QX01Q-SR4 reach?

100 m on OM3 and 150 m on OM4 multi-mode fibre, per D-Link's datasheet.

What connector does it use?

MPO. Standard duplex LC patch cords will not fit.

Which module do I need for longer runs?

The DEM-QX10Q-LR4 (40GBASE-LR4) reaches 10 km over single-mode fibre.

What warranty do I get?

5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
