D-Link DEM-CB100QXS-4XS 40G QSFP+ to 4x 10G SFP+ Breakout Cable
PRODUCT DESCRIPTION
D-Link DEM-CB100QXS-4XS 40G QSFP+ to 4 x 10G SFP+ Passive Breakout Direct Attach Cable, 1 m (DEM-CB100QXS-4XS) - 5 Years Local Warranty
Split One 40G Port into Four 10G Links

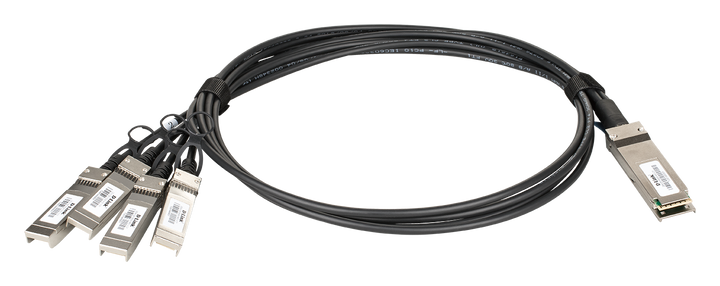

The D-Link DEM-CB100QXS-4XS is a 1 m passive twinaxial breakout cable with a QSFP+ connector on one end and four SFP+ connectors on the other. It fans one 40G QSFP+ port out to four 10G SFP+ ports — ideal for connecting a 40G aggregation switch to 10G access switches or servers in the same rack.
Built to the QSFP+ and SFP+ Standards
30 AWG twinax, 100 Ohm impedance and a 23.5 mm minimum bend radius, compliant with the SFP MSA, SFF-8436, SFF-8431, EIA 364, EIA-364-1000.01 and UL 94. D-Link rates it for -40 to 85 °C operation.
Need help choosing? Email sales@sourceit.com.sg with your switch model and the ports you want to connect, and we will match the right cable for you.
D-Link DEM-CB100QXS-4XS Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-CB100QXS-4XS 40G QSFP+ to 4 x 10G SFP+ Passive Breakout Direct Attach Cable, 1 m |
| Part Number | DEM-CB100QXS-4XS |
| Series | 40G Passive QSFP+ Twinaxial Direct Attach Cable Series |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Cable & Electrical
| Data Rate | 40 Gbps (4 x 10 Gbps) |
| Connector Type | One QSFP+ connector to four SFP+ connectors |
| Cable Length | 1 m |
| Cable Type | Passive twinaxial copper |
| Wire Gauge | 30 AWG |
| Minimum Cable Bend Radius | 23.5 mm (0.93 in) |
| Cable Characteristic Impedance | 100 Ohms |
| Voltage / Current | 30 V AC / 0.5 A |
| Operating Temperature | -40 to 85 °C (-40 to 185 °F) |
| Certifications | SFP MSA, EIA-364-1000.01, SFF-8436, EIA 364, UL 94, SFF-8431 |
Dimensions and weight are not published by D-Link for this cable.
Compatibility & Software Support
Host Switches
D-Link UK lists the DXS-5000-54S 10G/40G aggregation switch as compatible. The QSFP+ port on the host must support 4 x 10G breakout — send us your switch model and we will confirm.
Software
Direct attach cables need no configuration or licence — the host switch detects the cable when it is plugged in.
Package Contents & D-Link Direct Attach Cable Ordering Information
D-Link Direct Attach Cables
| Model | Connectors | Rate | Length |
| DEM-CB100S | SFP+ to SFP+ | 10 Gbps | 1 m |
| DEM-CB300S | SFP+ to SFP+ | 10 Gbps | 3 m |
| DEM-CB700S | SFP+ to SFP+ | 10 Gbps | 7 m |
| DEM-CB100QXS | QSFP+ to QSFP+ | 40 Gbps | 1 m |
| DEM-CB300QXS | QSFP+ to QSFP+ | 40 Gbps | 3 m |
| DEM-CB100QXS-4XS (this listing) | QSFP+ to 4 x SFP+ breakout | 40 Gbps (4 x 10G) | 1 m |
| DEM-CB100Q28 | QSFP28 to QSFP28 | 100 Gbps | 1 m |
| DEM-CB100Q28-4S28 | QSFP28 to 4 x 25G SFP28 breakout | 100 Gbps (4 x 25G) | Not stated in datasheet |
| DEM-CB50CXP | CXP to CXP (stacking) | 120 Gbps (12 x 10G) | 0.5 m |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DEM-CBx00QXS Series A1 Datasheet, updated Feb 2013 (PDF) |
| D-Link datasheet | 40G Passive QSFP+ Direct Attach Cable Series A1 Datasheet v1.00 WW (PDF) |
| D-Link product page | DEM-CB100QXS-4XS on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-CB100QXS-4XS.
Frequently Asked Questions — D-Link DEM-CB100QXS-4XS
Will it work on any QSFP+ port?
Only on QSFP+ ports that support 4 x 10G breakout. D-Link lists the DXS-5000-54S; ask us to confirm other hosts.
Is this model still current?
D-Link UK lists the DEM-CB100QXS-4XS as End of Sale (phased out 5 Feb 2022, support until 5 Feb 2027). Please email us to confirm availability before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
