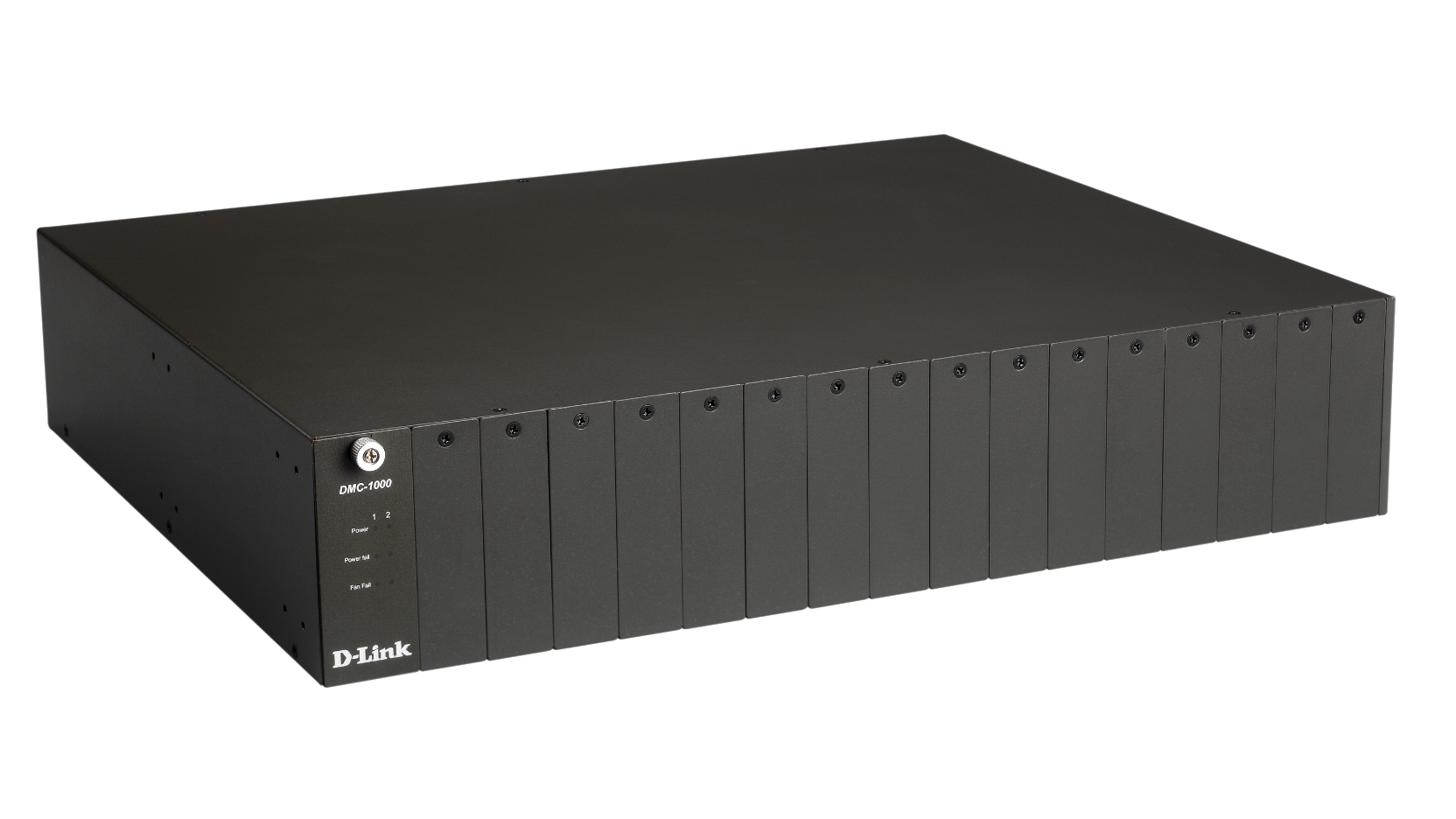

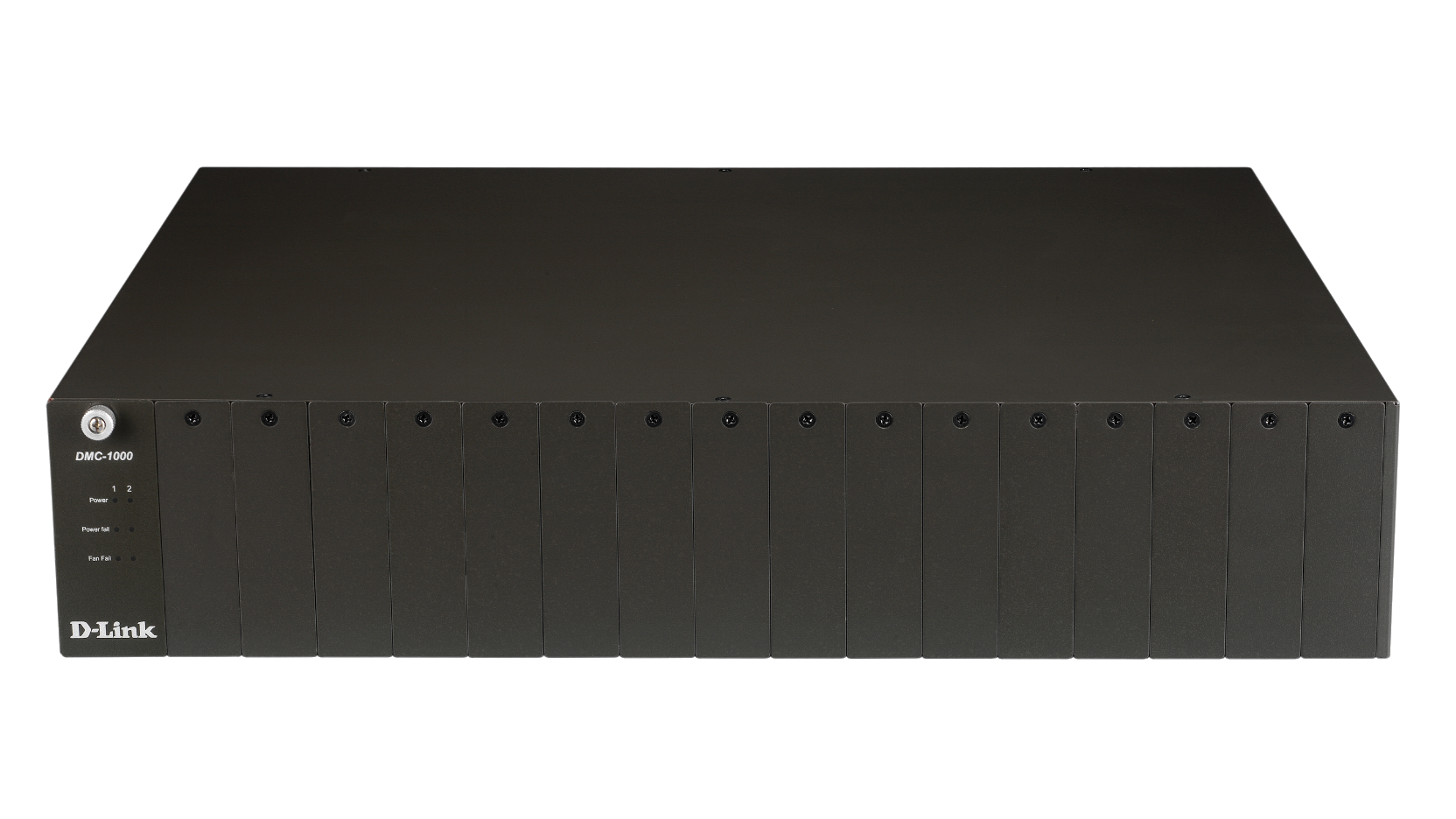

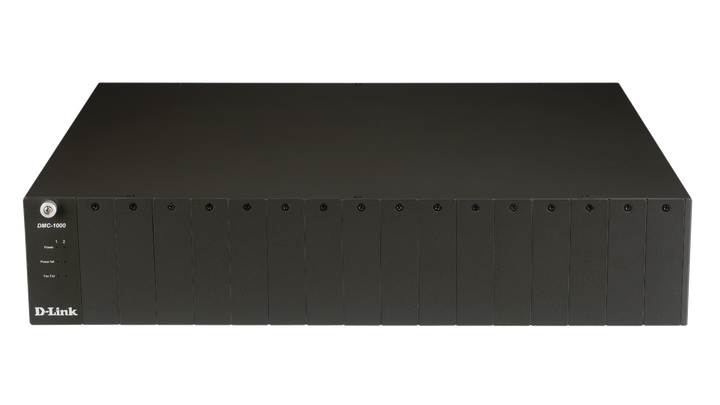

D-Link DMC-1000/E 16-Slot Media Converter Chassis
PRODUCT DESCRIPTION
D-Link DMC-1000/E 16-Slot Chassis for DMC Series Media Converters (DMC-1000/E) - 5 Years Local Warranty
Up to 16 Media Converters in One 19" Chassis
The D-Link DMC-1000 houses up to 16 DMC series media converters in a standard 19-inch, 2U rack-mount enclosure (415 x 390 x 89 mm), and powers every installed converter from its internal universal power supply.
Redundant Power and Remote Management Options
Add the DMC-1001 redundant power supply as a fail-safe against power failure, and the DMC-1002 management module for SNMP and web-based monitoring of all converters in the chassis.
Hot-Swappable Converters
D-Link states that converters are hot-swappable when mounted, so a faulty module can be replaced without powering down the rest of the chassis.
Need help choosing? Email sales@sourceit.com.sg with the number and type of fibre links you need to terminate and we will size it for you.
D-Link DMC-1000/E Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-1000 16-Slot Chassis for DMC Series Media Converters |
| Part Number | DMC-1000/E |
| Capacity | Up to 16 DMC series media converters |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Power
| AC Input | 100 to 240 V AC, 50/60 Hz, internal universal power supply |
| Power Supply Rating | 150 W max. (per D-Link user guide) |
| Redundant Power Supply | Optional DMC-1001 |
Physical & Environmental
| Dimensions | 415 x 390 x 89 mm, 19" rack mount, 2U |
| Weight | 7 kg |
| Material | Steel (per user guide) |
| Diagnostic LEDs | Power, Fan |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -10 to 50 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
Certifications
| EMI | FCC Class A, CE Class A, VCCI Class A |
Specifications from D-Link's DMC series datasheet (updated February 2019) and the DMC-1000 user guide.
Compatibility & Software Support
Supported Modules
DMC series chassis-mountable media converters, e.g. DMC-300SC, DMC-515SC and DMC-530SC, plus the DMC-1001 redundant power supply and DMC-1002 management module.
Management
The chassis itself is unmanaged; the optional DMC-1002 module adds SNMP v1 and web-based management of all installed converters and power supplies.
Package Contents & DMC Chassis Ordering Information
DMC Chassis System Ordering Information
| Model | Description | Part No. |
| DMC-1000/E (this listing) | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 | SNMP / web management module for DMC-1000 | DMC-1002 |
| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
The D-Link user guide lists rack-mount screws (8 pcs) and rack-mount brackets (2 pcs) for installation. Media converters, DMC-1001 and DMC-1002 are sold separately.
Datasheet & Downloads
| D-Link datasheet | DMC Series / DMC-1000 Datasheet (PDF) |
| D-Link user guide | DMC-1000 User's Guide (PDF) |
| D-Link product page | DMC-1000 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-1000/E.
Frequently Asked Questions — D-Link DMC-1000/E
How many converters does it hold?
Up to 16 DMC series media converters.
Is it rack-mountable?
Yes, it is a standard 19-inch, 2U rack-mount chassis.
Can I add redundant power?
Yes, with the optional DMC-1001 redundant power supply; D-Link states the second supply takes 100% of the load if one fails.
Is the DMC-1000 still current?
dlink.com lists the DMC-1000 as End of Sale in some regions; it remains in D-Link Singapore's current commercial price list. Contact us to confirm availability before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
