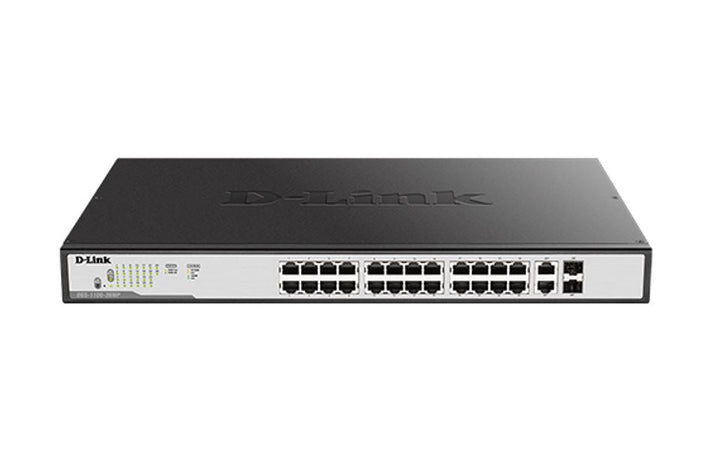

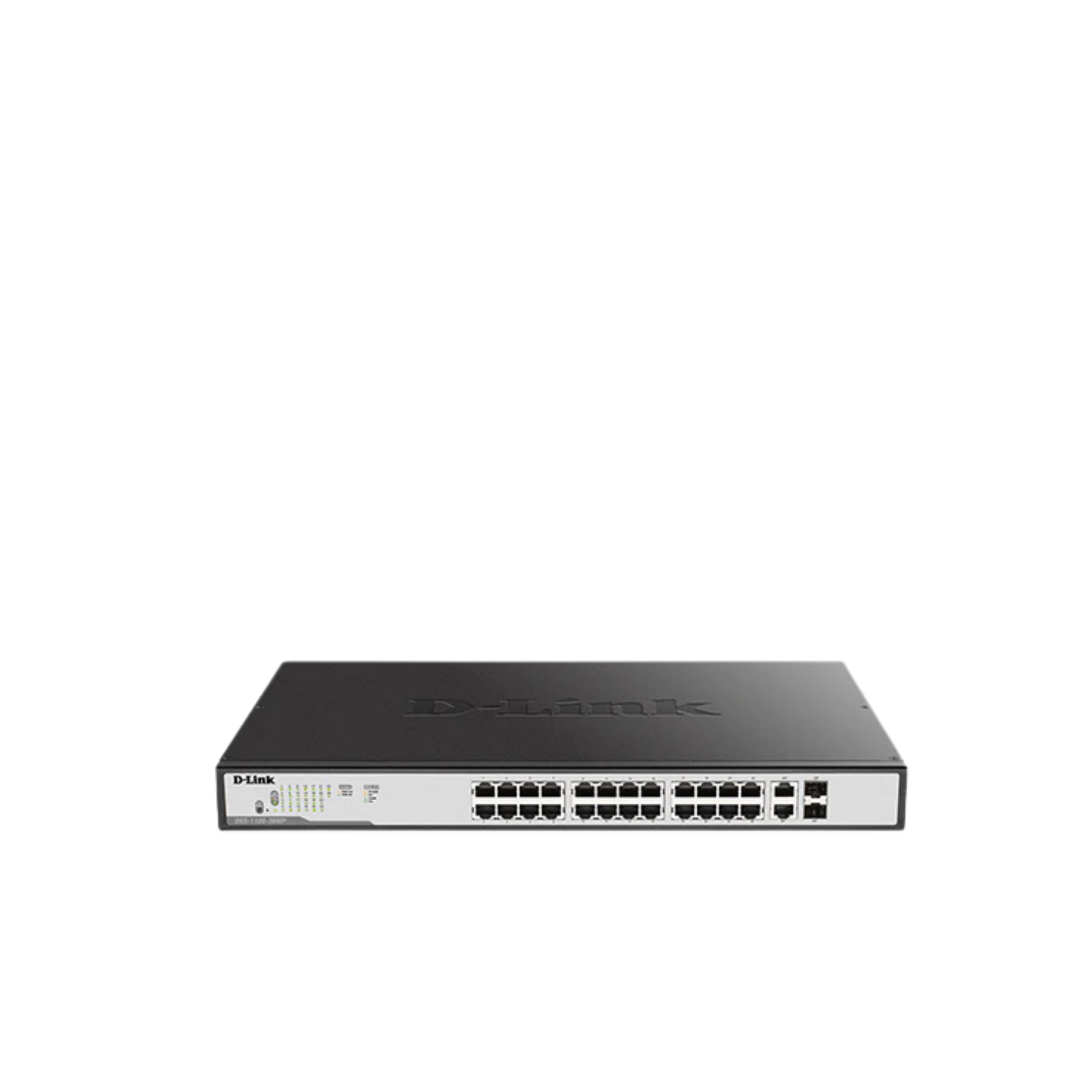

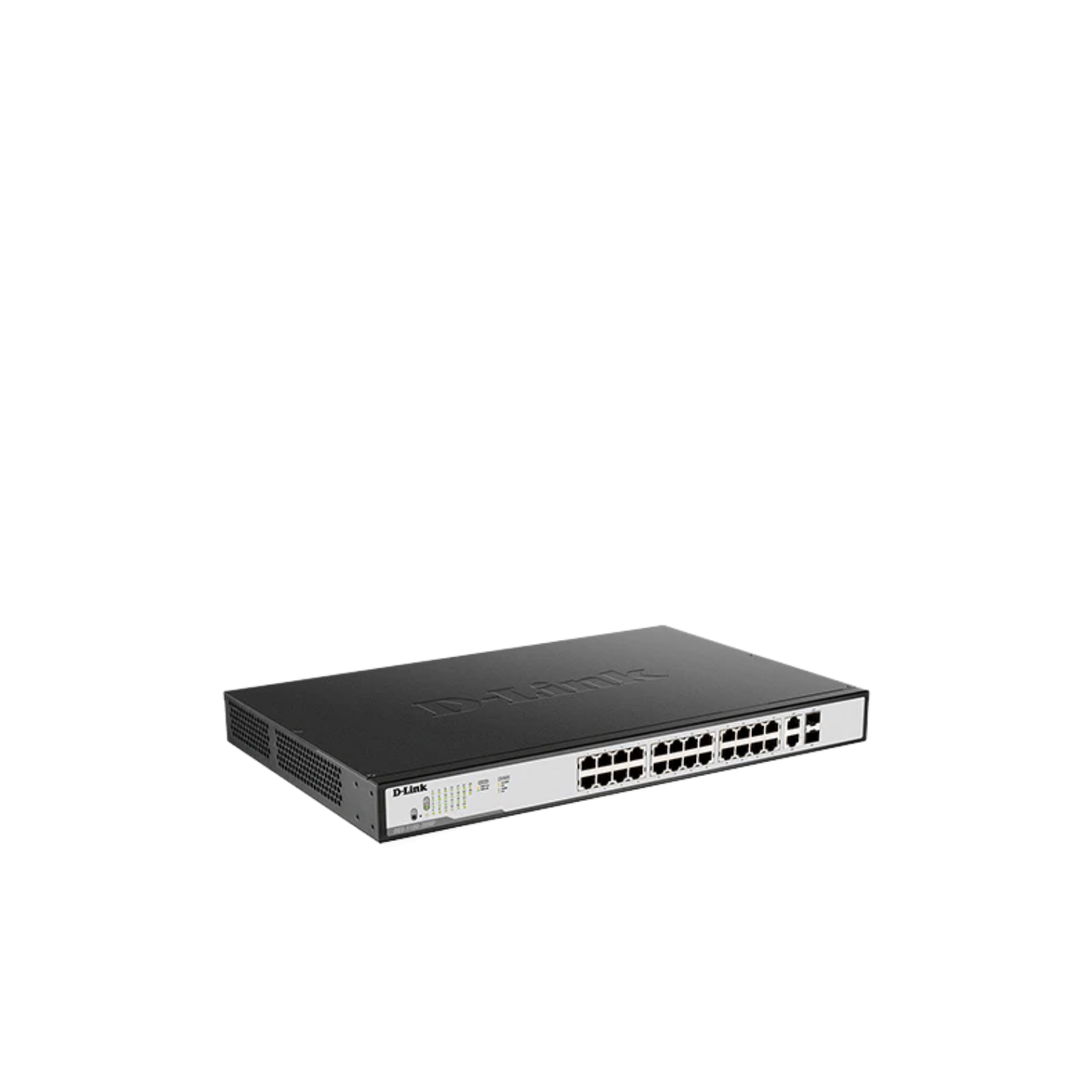

D-Link DGS-1100-26MPV2 26-Port Gigabit PoE Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-1100-26MPV2 26-Port Gigabit PoE Smart Managed Switch (DGS-1100-26MPV2) - 5 Years Local Warranty
24 PoE Ports with a 370 W Budget
The D-Link DGS-1100-26MPV2 is the high-power 26-port model of the DGS-1100 V2 Gigabit Smart Managed series: 24 x Gigabit PoE ports (IEEE 802.3af/at) sharing a 370 W PoE budget, plus 2 x Combo Gigabit RJ45/SFP uplinks.
Gigabit Performance
D-Link rates it at 52 Gbps switching capacity and 38.69 Mpps forwarding, with an 8K MAC table, 4.1 Mbit buffer and jumbo frames up to 10,000 bytes. A smart fan (35.2 dB(A) at low speed) cools the 440 mm chassis.
Built for Surveillance and Voice
Auto Surveillance VLAN, Voice VLAN, IGMP Snooping v1/v2/v3 and QoS prioritise camera and voice traffic, with 802.3ad link aggregation and Spanning Tree for resilience.
Simple Web Management
Configured through a web-based GUI supporting IPv4 and IPv6, with D-Link Green energy-saving features.
Need help choosing? Email sales@sourceit.com.sg with your PoE device count and uplink needs and we will size it for you.
D-Link DGS-1100-26MPV2 Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1100-26MPV2 26-Port Gigabit PoE Smart Managed Switch |
| Part Number | DGS-1100-26MPV2 |
| Series | DGS-1100 V2 Gigabit Smart Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 24 x 10/100/1000BASE-T |
| Combo Ports | 2 x Combo Gigabit RJ45 / SFP |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 370 W |
Performance
| Switching Capacity | 52 Gbps |
| Maximum Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Jumbo Frames | Up to 10,000 bytes |
Physical & Environmental
| Dimensions | 440 x 208 x 44 mm |
| Weight | 2.8 kg |
| Cooling | Smart fan (50.5 dB(A) high speed / 35.2 dB(A) low speed) |
| Power Consumption | Standby 15.2 W; max 454.1 W (PoE on) / 26.5 W (PoE off) |
| Operating Temperature | -5 to 50 °C |
| MTBF | 317,777 hours |
Certifications
| EMI | FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI |
| Safety | cUL, UL, LVD, CB, BSMI |
Compatibility & Software Support
Management
Web-based GUI (IPv4 / IPv6). Features per D-Link include 802.1Q VLAN, Auto Surveillance VLAN, Voice VLAN, IGMP Snooping v1/v2/v3, 802.3ad Link Aggregation, Spanning Tree, QoS, storm control and SSL.
Typical Use
Larger camera, access-point and IP-phone deployments needing PoE+ on all 24 ports, uplinked over copper or fibre.
Package Contents & DGS-1100 V2 PoE Ordering Information
DGS-1100 V2 PoE Models
| Model | Ports | PoE Budget | Part No. |
| DGS-1100-08PV2 | 8 x GE PoE | 64 W | DGS-1100-08PV2 |
| DGS-1100-10MPV2 | 8 x GE PoE + 2 x SFP | 130 W | DGS-1100-10MPV2 |
| DGS-1100-18PV2 | 16 x GE PoE + 2 x Combo GE/SFP | 130 W | DGS-1100-18PV2 |
| DGS-1100-24PV2 | 12 x GE PoE + 12 x GE | 100 W | DGS-1100-24PV2 |
| DGS-1100-26MPV2 (this listing) | 24 x GE PoE + 2 x Combo GE/SFP | 370 W | DGS-1100-26MPV2 |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-1100 V2 Series Datasheet (PDF) |
| D-Link series page | DGS-1100 V2 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1100-26MPV2.
Frequently Asked Questions — D-Link DGS-1100-26MPV2
How much PoE power does it provide?
370 W in total across 24 PoE ports, using IEEE 802.3af and 802.3at (PoE+).
Does it support PoE++ (802.3bt)?
D-Link's datasheet lists IEEE 802.3af/at for this model. For 802.3bt ports, ask us about the DGS-1100-26MPPV2.
Does it have fibre uplinks?
Yes, two Combo ports accept either Gigabit RJ45 or Gigabit SFP modules.
Is it fanless?
No. D-Link lists a smart fan.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
