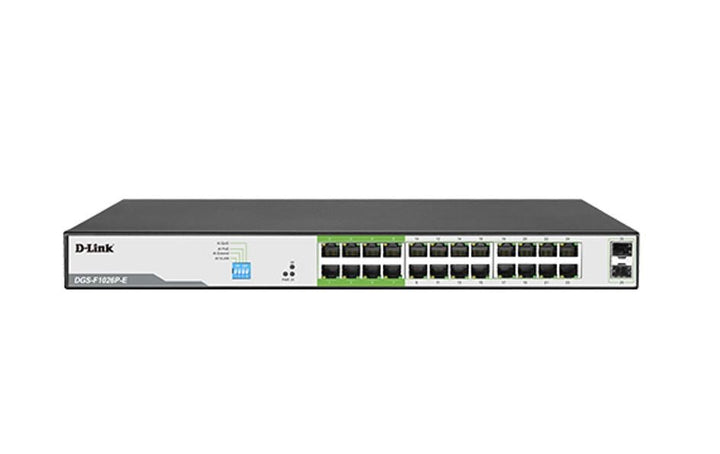

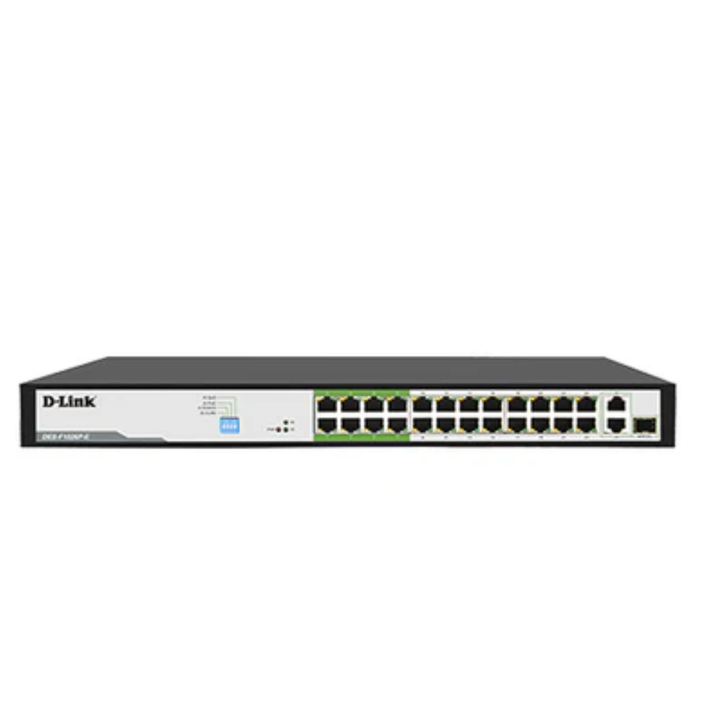

D-Link DGS-F1026P-E 24-Port Gigabit 250m PoE Switch with 2 SFP
PRODUCT DESCRIPTION
D-Link DGS-F1026P-E 250m 24-Port Gigabit PoE Switch with 2 SFP Ports (DGS-F1026P-E) - 3 Years Local Warranty
24 PoE Ports and a 250 W Budget
The D-Link DGS-F1026P-E is an unmanaged 250m PoE switch with 24 x 10/100/1000BASE-T PoE ports and 2 x SFP uplinks. Each PoE port supports IEEE 802.3af/at with up to 30 W, from a 250 W total PoE budget — enough for a full rack of IP cameras, access points or IP phones.
250 m Reach with Extend Mode
With Extend mode enabled, ports 1–8 carry data and PoE up to 250 m at 10 Mbps, for cameras beyond the normal 100 m Ethernet limit.
Plug and Play, Built for Surveillance
No configuration is needed. D-Link lists Extend, VLAN, QoS and PoE modes, a 52 Gbps switching capacity and 6 kV lightning protection.
Need help choosing? Email sales@sourceit.com.sg with your camera count, cable distances and uplink needs and we will size it for you.
D-Link DGS-F1026P-E Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-F1026P-E 250m 24-Port Gigabit PoE Switch with 2 SFP Ports |
| Part Number | DGS-F1026P-E |
| Type | Unmanaged PoE switch |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| PoE Ports | 24 x 10/100/1000BASE-T |
| Uplinks | 2 x SFP |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| Per-Port Output | Up to 30 W |
| PoE Budget | 250 W |
| Extend Mode | Ports 1–8, up to 250 m at 10 Mbps |
Performance
| Switching Capacity | 52 Gbps |
| Forwarding Rate (per port) | 14,800 pps (10M) / 148,800 pps (100M) / 1,488,000 pps (1000M) |
Physical & Environmental
| Dimensions | 440 x 180 x 44 mm |
| Weight | 3.0 kg |
| Power Consumption | 250 W |
| Surge Protection | 6 kV |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 0% to 95% RH non-condensing |
| EMI/EMC | CE |
Compatibility & Software Support
Management
Unmanaged — no software or web interface. D-Link lists Extend, VLAN, QoS and PoE operating modes.
Typical Use
IP surveillance and SMB networks powering up to 24 IEEE 802.3af/at devices, with long camera runs on ports 1–8 and SFP fibre uplinks to an NVR or core switch.
Package Contents & 250m PoE Switch Ordering Information
D-Link 250m Gigabit PoE Switches
| Model | Ports | PoE Budget | Part No. |
| DGS-F1005P-E | 4 x GE PoE + 1 x GE uplink | 60 W | DGS-F1005P-E |
| DGS-F1018P-E | 16 x GE PoE + 2 x SFP | 150 W | DGS-F1018P-E |
| DGS-F1026P-E (this listing) | 24 x GE PoE + 2 x SFP | 250 W | DGS-F1026P-E |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit. SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DGS-F1026P-E Datasheet (PDF) |
| D-Link product page | DGS-F1026P-E on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-F1026P-E.
Frequently Asked Questions — D-Link DGS-F1026P-E
How much PoE power does it provide?
250 W in total, up to 30 W per port, across 24 IEEE 802.3af/at PoE ports.
Which ports reach 250 m?
Ports 1–8, when Extend mode is enabled (link runs at 10 Mbps).
Is it managed?
No. It is a plug-and-play unmanaged switch.
Does it have fibre uplinks?
Yes, 2 x SFP ports (modules sold separately).
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
