D-Link DGS-1210-20 20-Port Gigabit Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-1210-20 20-Port Gigabit Smart Managed Switch (DGS-1210-20) - 5 Years Local Warranty
16 x Gigabit RJ45 with Fibre Uplinks

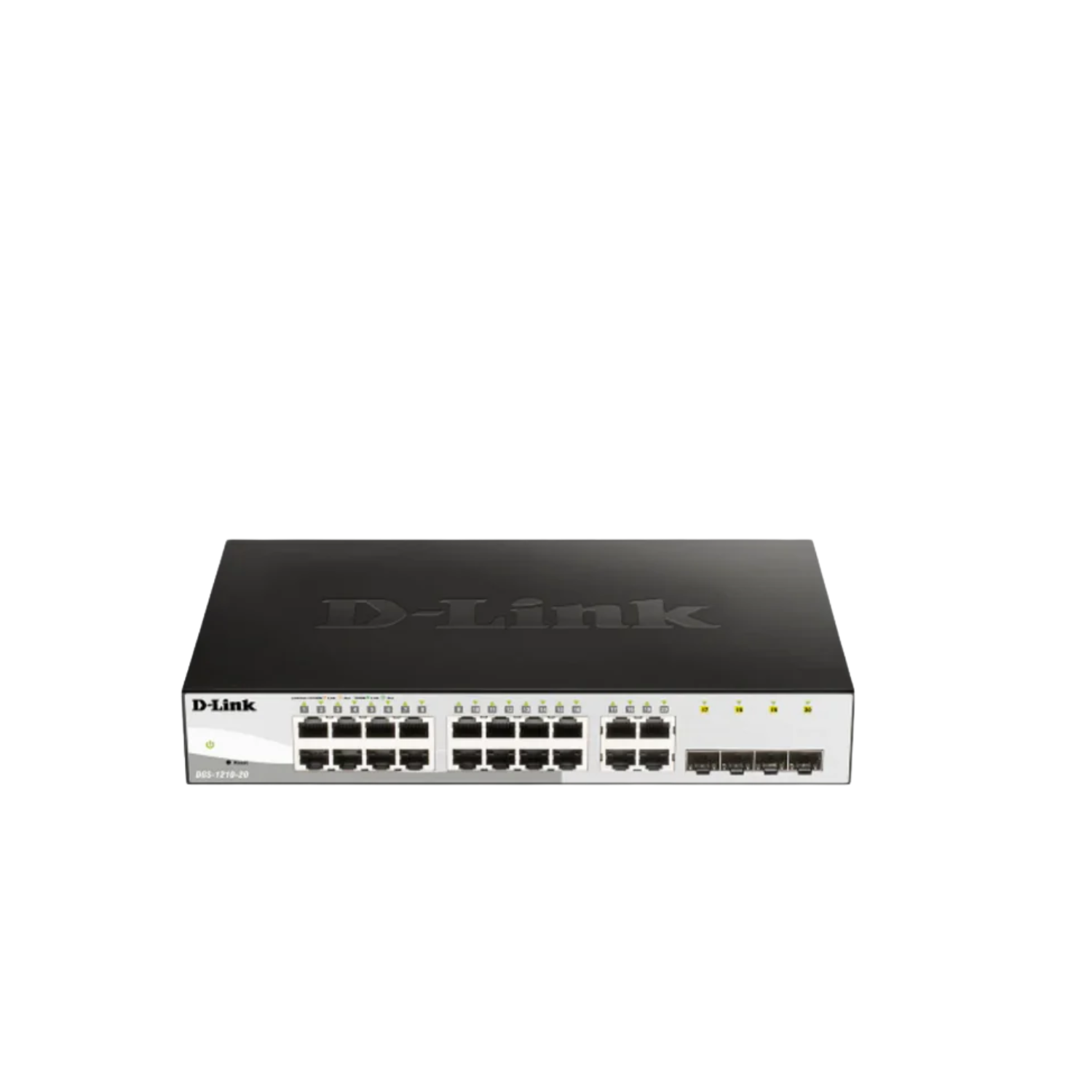

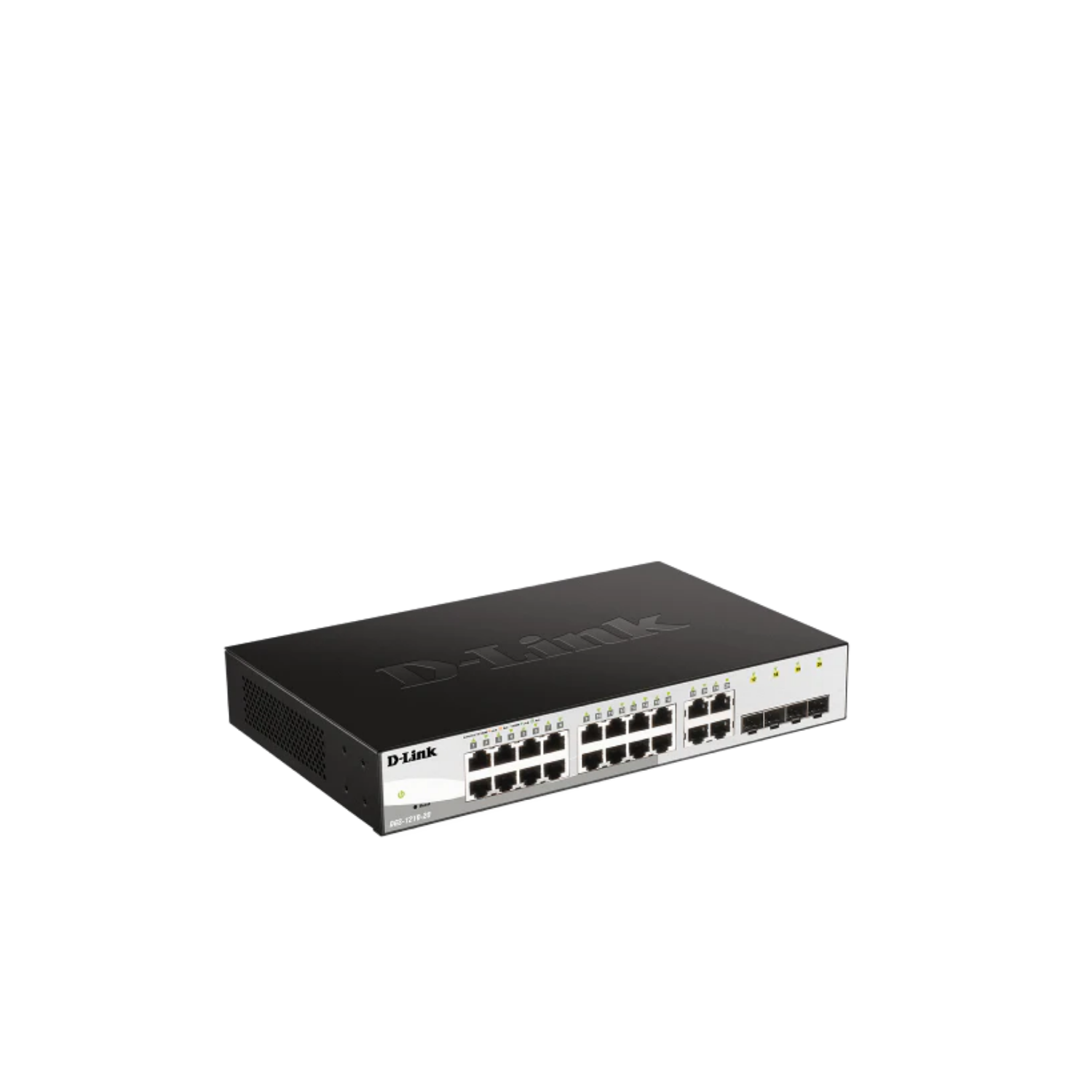

The D-Link DGS-1210-20 is a 20-port member of D-Link's DGS-1210 Gigabit Smart Managed series (F revision), with 16 x Gigabit RJ45 and 4 x 100/1000 Mbps Combo GbE/SFP ports for fibre or copper uplinks to the core.
Layer 2+ Features and Static Routing
Beyond VLANs and QoS, the DGS-1210-20 supports 802.1D/802.1w/802.1s spanning tree, 802.3ad link aggregation (8 groups), LLDP/LLDP-MED and IPv4/IPv6 static routing, so small branches can route between VLANs without a separate router.
Surveillance and Voice Ready
Auto Surveillance VLAN detects compatible ONVIF cameras and Auto Voice VLAN detects VoIP traffic, with 8 QoS queues per port to keep video and voice smooth. An optional surveillance-mode management interface simplifies NVR and camera deployments.
Secure and Easy to Manage
802.1X port-based access control, ACLs, port security, DHCP server screening and ARP spoofing prevention protect the edge. Manage it through D-Link's multi-lingual web UI, a compact Telnet CLI, SNMP v1/v2c/v3 or the D-Link Network Assistant utility. The fanless design runs silently.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
D-Link DGS-1210-20 Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1210-20 20-Port Gigabit Smart Managed Switch |
| Part Number | DGS-1210-20 |
| Series | DGS-1210 Gigabit Smart Managed Switches (F revision) |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit RJ45 Ports | 16 x 10/100/1000BASE-T ports |
| Uplink Ports | 4 x 100/1000 Mbps Combo GbE/SFP ports |
Performance
| Switching Capacity | 40 Gbps |
| Maximum Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Jumbo Frames | Up to 10,000 bytes |
Physical & Environmental
| Dimensions | 280 x 180 x 44 mm |
| Weight | 1.75 kg |
| Power Consumption | Max 13.08 W (100 V) / 13.02 W (240 V); standby 5.47 W / 5.56 W |
| MTBF | 1,087,100 hours |
| Cooling | Fanless (0 dB(A)) |

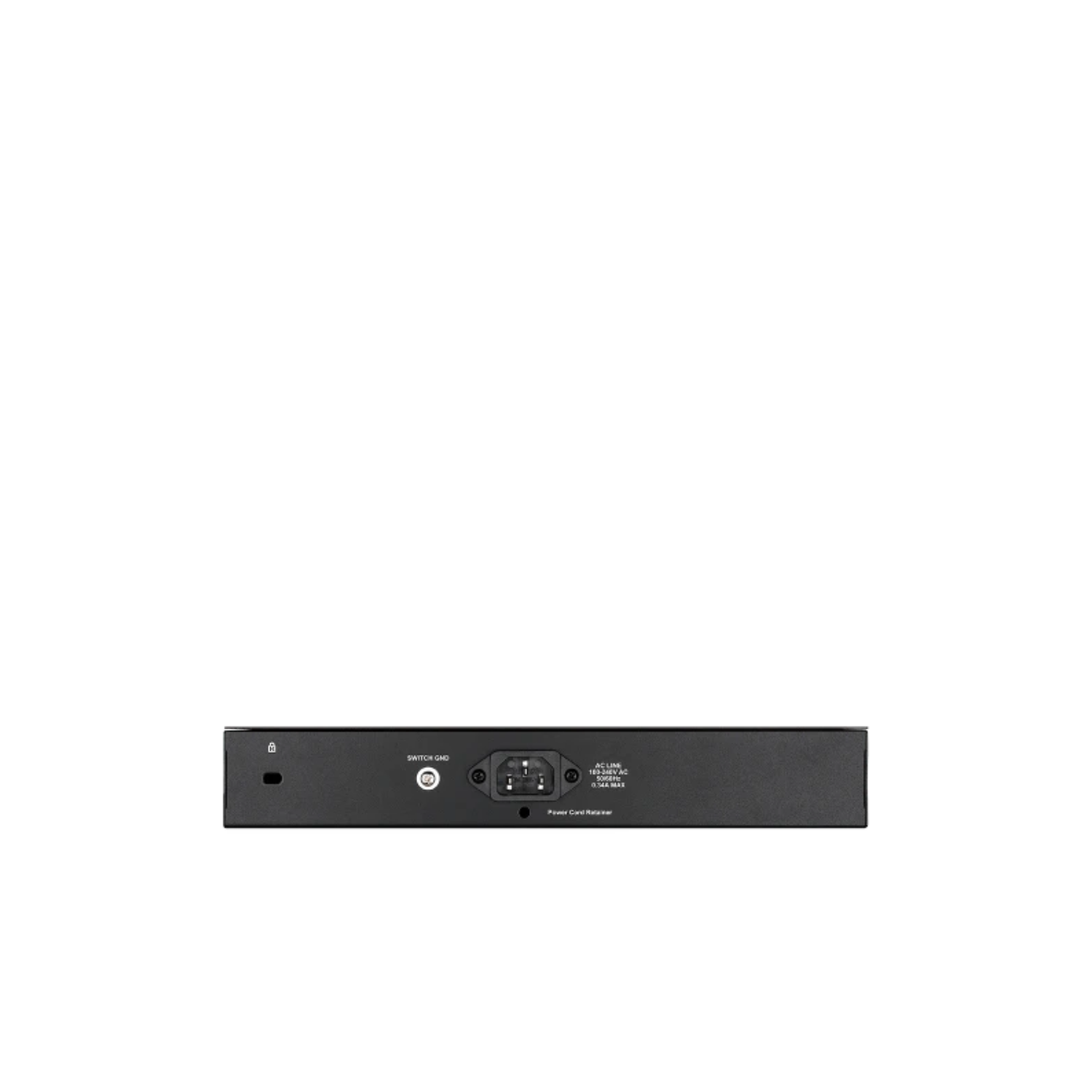

| Power Input | 100–240 V AC, 50/60 Hz |
| Operating Temperature | -5 to 50 °C |
Certifications
| EMI | CE Class A, VCCI Class A, FCC Class A, BSMI, CQC |
| Safety | CB, UL, BSMI, LVD, CQC |
Compatibility & Software Support
Management
D-Link multi-lingual web UI (standard or surveillance mode), compact CLI through Telnet, SNMP v1/v2c/v3 and traps, D-Link Network Assistant utility, built-in SNMP MIB for D-View 8.
Layer 2 & Layer 3
Up to 256 static VLAN groups; 802.3ad link aggregation (max. 8 groups); 802.1D STP, 802.1w RSTP, 802.1s MSTP; IGMP v1/v2 Snooping with IGMP v3 awareness (256 groups); LLDP and LLDP-MED; port mirroring (one-to-one, many-to-one); loopback detection; cable diagnostics; 124 IPv4 and 50 IPv6 static routes.
QoS & Security
8 queues per port; Auto Surveillance VLAN and Auto Voice VLAN; 802.1X port-based access control; up to 50 access lists / 768 rules (IPv4, MAC, IPv6); port security up to 64 MAC addresses per port; DHCP server screening; ARP spoofing prevention (127 entries).
Green Technology
D-Link Green: link status detection, port shut-off and system hibernation.
Package Contents & DGS-1210 Ordering Information
DGS-1210 Models
| Model | Ports | Part No. |
| DGS-1210-10 | 8 x GE + 2 x SFP | DGS-1210-10 |
| DGS-1210-20 (this listing) | 16 x GE + 4 x Combo GE/SFP | DGS-1210-20 |
| DGS-1210-26 | 24 x GE + 2 x SFP | DGS-1210-26 |
| DGS-1210-28 | 24 x GE + 4 x Combo GE/SFP | DGS-1210-28 |
| DGS-1210-52 | 48 x GE + 4 x Combo GE/SFP | DGS-1210-52 |
| DGS-1210-10P | PoE model | DGS-1210-10P |
| DGS-1210-10MP | PoE model | DGS-1210-10MP |
| DGS-1210-28P | PoE model | DGS-1210-28P |
| DGS-1210-28MP | PoE model | DGS-1210-28MP |
| DGS-1210-52MP | PoE model | DGS-1210-52MP |
| DGS-1210-52MPP | PoE model | DGS-1210-52MPP |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link datasheet | DGS-1210 Series (F revision) Datasheet (PDF) |
| D-Link series page | DGS-1210 Series on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1210-20.
Frequently Asked Questions — D-Link DGS-1210-20
Does the DGS-1210-20 support fibre?
Yes. It has 4 x 100/1000 Mbps Combo GbE/SFP ports, accepting 100/1000 Mbps SFP modules.
Can the DGS-1210-20 route between VLANs?
Yes, with static routing: up to 124 IPv4 and 50 IPv6 static routes.
Is the DGS-1210-20 fanless?
Yes. D-Link lists it as fanless with 0 dB(A) acoustic noise.
Does it support PoE?
No. For PoE look at the DGS-1210-10P, -10MP, -28P, -28MP, -52MP or -52MPP.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
