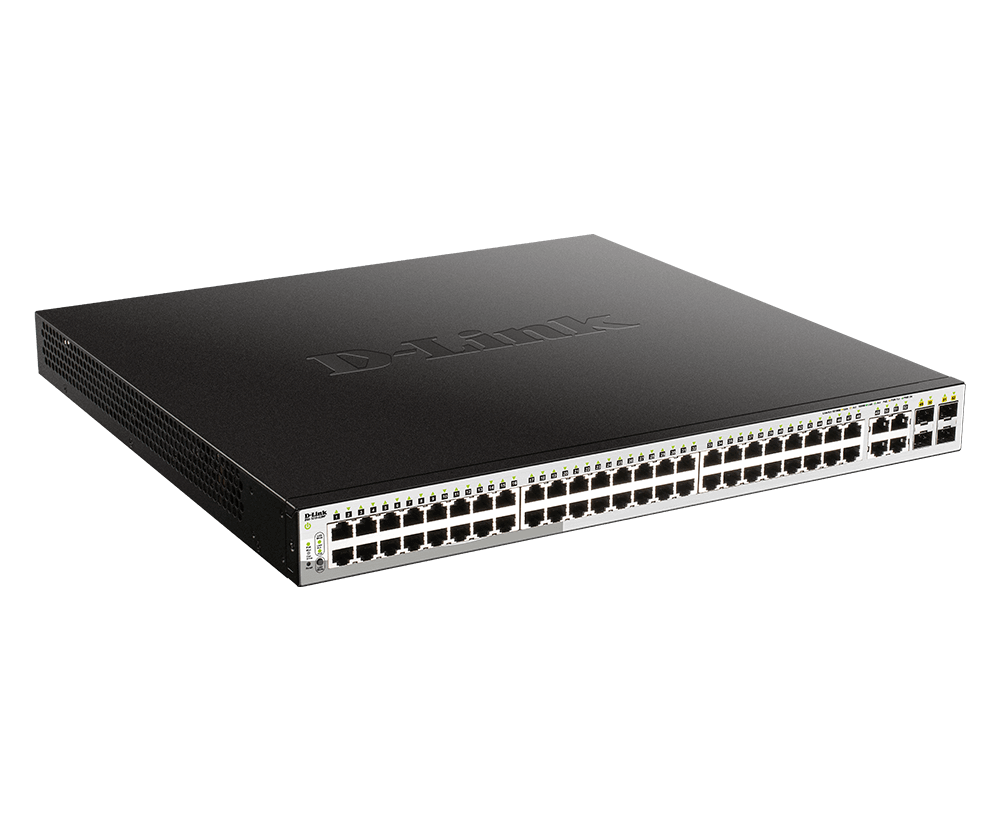

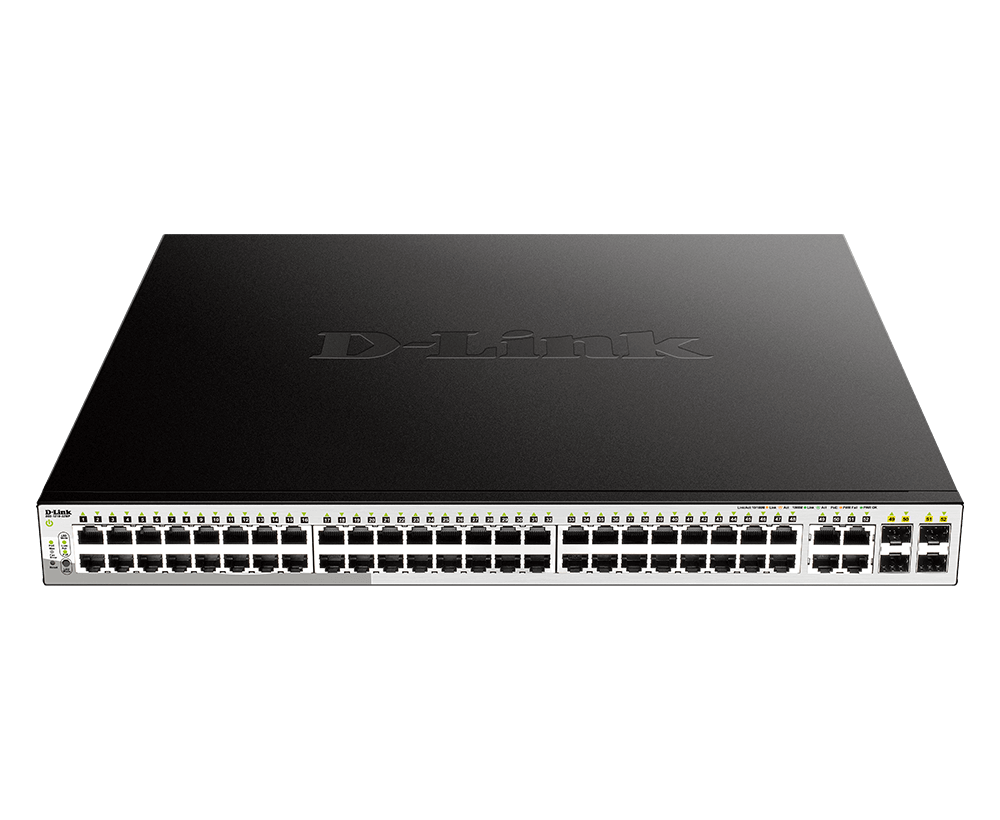

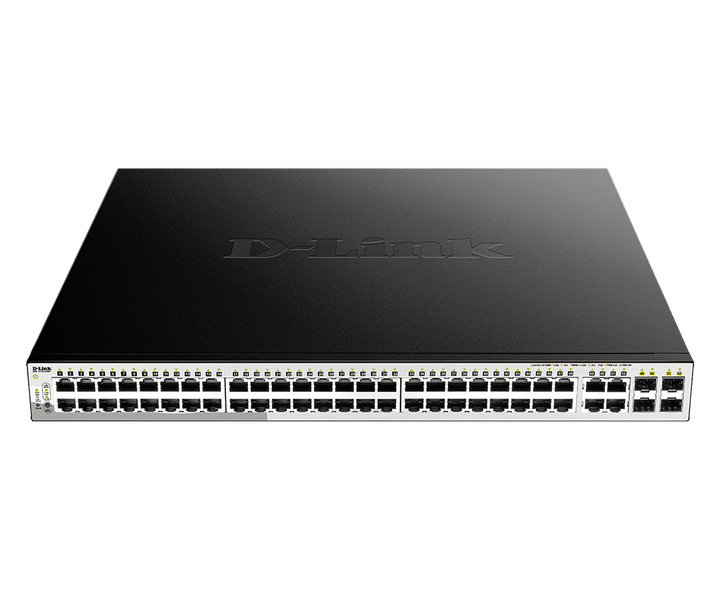

D-Link DGS-1210-52MP 52-Port Gigabit PoE Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DGS-1210-52MP 52-Port Gigabit PoE Smart Managed Switch (DGS-1210-52MP) - 5 Years Local Warranty
48 PoE+ Ports with a 370 W Budget
The D-Link DGS-1210-52MP is the 52-port PoE model of the DGS-1210 Gigabit Smart Managed series: 48 x Gigabit PoE ports (IEEE 802.3af/at) sharing a 370 W PoE budget, plus 4 x Combo Gigabit RJ45/SFP uplinks.
Gigabit Performance
D-Link rates it at 104 Gbps switching capacity and 77.4 Mpps forwarding, with a 16K MAC table, 12 Mbit buffer and jumbo frames up to 10,000 bytes.
L2+ Smart Managed, Built for Surveillance and Voice
L2+ static routing (124 IPv4 / 50 IPv6 routes), IPv4/IPv6 dual stack, 802.1X and ACLs sit alongside an optional Surveillance Mode web interface, Auto Surveillance VLAN (ONVIF cameras), Auto Voice VLAN and time-based PoE scheduling.
Need help choosing? Email sales@sourceit.com.sg with your PoE device count and uplink needs and we will size it for you.
D-Link DGS-1210-52MP Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1210-52MP 52-Port Gigabit PoE Smart Managed Switch |
| Part Number | DGS-1210-52MP |
| Series | DGS-1210 Gigabit Smart Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 48 x 10/100/1000BASE-T (ports 1-48) |
| Combo Ports | 4 x Combo 100/1000 Mbps RJ45 / SFP |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 370 W |
Performance
| Switching Capacity | 104 Gbps |
| Maximum Forwarding Rate | 77.4 Mpps (64-byte packets) |
| MAC Address Table | 16K entries |
| Packet Buffer | 12 Mbits |
| Jumbo Frames | Up to 10,000 bytes |
Physical & Environmental
| Dimensions | 440 x 430 x 44 mm |
| Weight | 6.26 kg |
| Cooling | 3 fans (52.4 dB(A) high speed / 47.6 dB(A) low speed) |
| Power Consumption | Standby 32 W (100 V) / 31.6 W (240 V); PoE enabled 478.9 W / 454.1 W; PoE disabled 54 W / 54.4 W |
| Operating Temperature | -5 to 50 °C |
| Operating Humidity | 0% to 95% RH |
| MTBF | 236,406 hours |
Certifications
| EMI | CE Class A, VCCI Class A, FCC Class A, BSMI, CQC (model-specific) |
| Safety | CB, UL, BSMI, LVD, CQC (model-specific) |
Compatibility & Software Support
Layer 2 / L2+
802.1Q VLAN (256 static groups), Auto Voice VLAN, Auto Surveillance VLAN, 802.3ad link aggregation (up to 16 groups on the 52-port model), 802.1D/w/s STP/RSTP/MSTP, IGMP Snooping v1/v2 (v3 awareness), MLD Snooping v1/v2, 802.1p QoS with 8 queues, static routing (124 IPv4 / 50 IPv6 entries) on 4 IP interfaces.
Security
802.1X port-based access control, ACLs (50 lists / 768 rules), port security (64 MACs per port), ARP spoofing prevention, DHCP server screening, IP-MAC-Port Binding with DHCP snooping, storm control, D-Link Safeguard Engine, SSH and DoS attack prevention.
Management
Multi-lingual web UI with optional Standard or Surveillance mode, compact CLI via Telnet, SNMP v1/v2c/v3, D-Link Network Assistant Utility and D-View 8 (built-in SNMP MIB). Green features: link-status detection, port shut-off, system hibernation, time-based PoE.
Optional SFP Modules (per D-Link)
DGS-712, DEM-310GT, DEM-311GT, DEM-312GT2, DEM-314GT, DEM-330T/R, DEM-331T/R and others listed in the datasheet.
Package Contents & DGS-1210 PoE Ordering Information
DGS-1210 PoE Models
| Model | Ports | PoE Budget | Part No. |
| DGS-1210-10P | 8 x GE PoE + 2 x SFP | 65 W | DGS-1210-10P |
| DGS-1210-10MP | 8 x GE PoE + 2 x SFP | 130 W | DGS-1210-10MP |
| DGS-1210-28P | 24 x GE PoE + 4 x Combo GE/SFP | 193 W | DGS-1210-28P |
| DGS-1210-28MP | 24 x GE PoE + 4 x Combo GE/SFP | 370 W | DGS-1210-28MP |
| DGS-1210-52MP (this listing) | 48 x GE PoE + 4 x Combo GE/SFP | 370 W | DGS-1210-52MP |
| DGS-1210-52MPP | 48 x GE PoE + 4 x SFP | 740 W | DGS-1210-52MPP |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-1210 Series (F) Datasheet (PDF) |
| D-Link product page | DGS-1210-52MP on dlink.com |
| D-Link PoE guide | PoE Power Capacity Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1210-52MP.
Frequently Asked Questions — D-Link DGS-1210-52MP
How much PoE power does it provide?
370 W in total across 48 PoE ports, using IEEE 802.3af and 802.3at (PoE+). For 740 W, see the DGS-1210-52MPP.
Does it have fibre uplinks?
Yes, four Combo ports accept either Gigabit RJ45 or SFP modules.
Is it fanless?
No. D-Link lists 3 fans.
Can it route between VLANs?
It supports L2+ static routing (124 IPv4 / 50 IPv6 static routes, 4 IP interfaces). It does not run dynamic routing protocols.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
