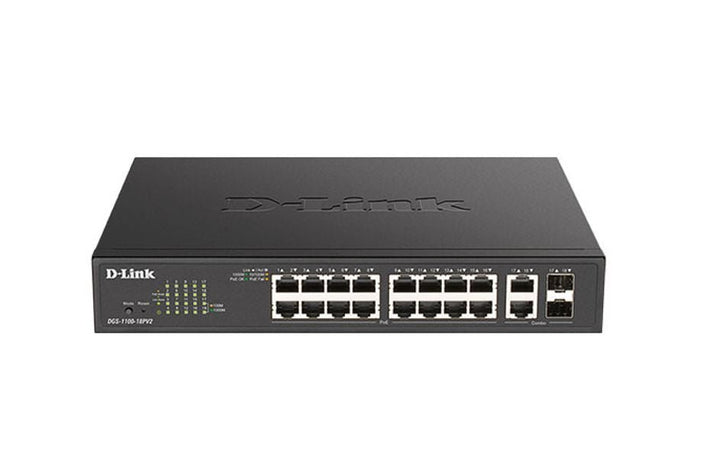

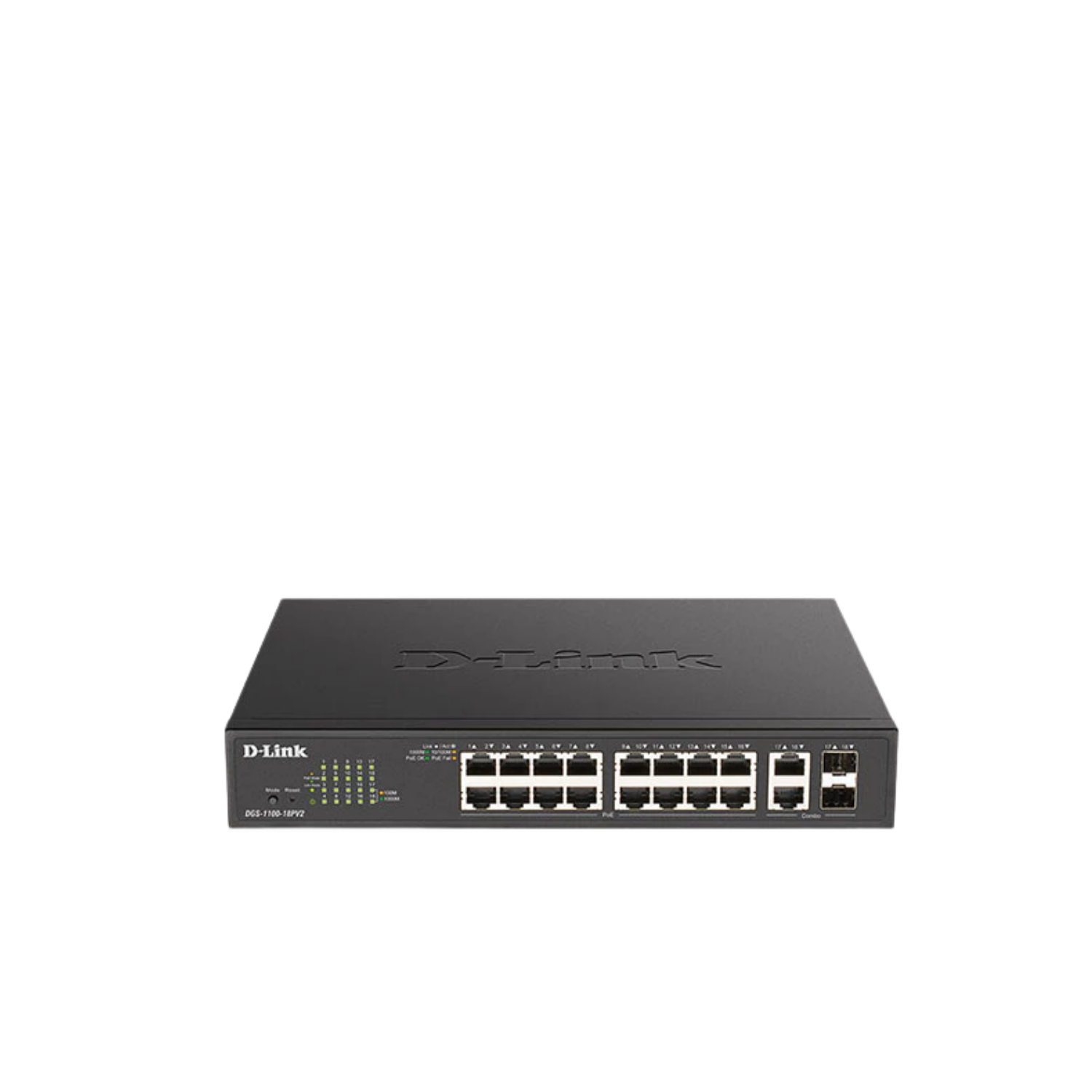

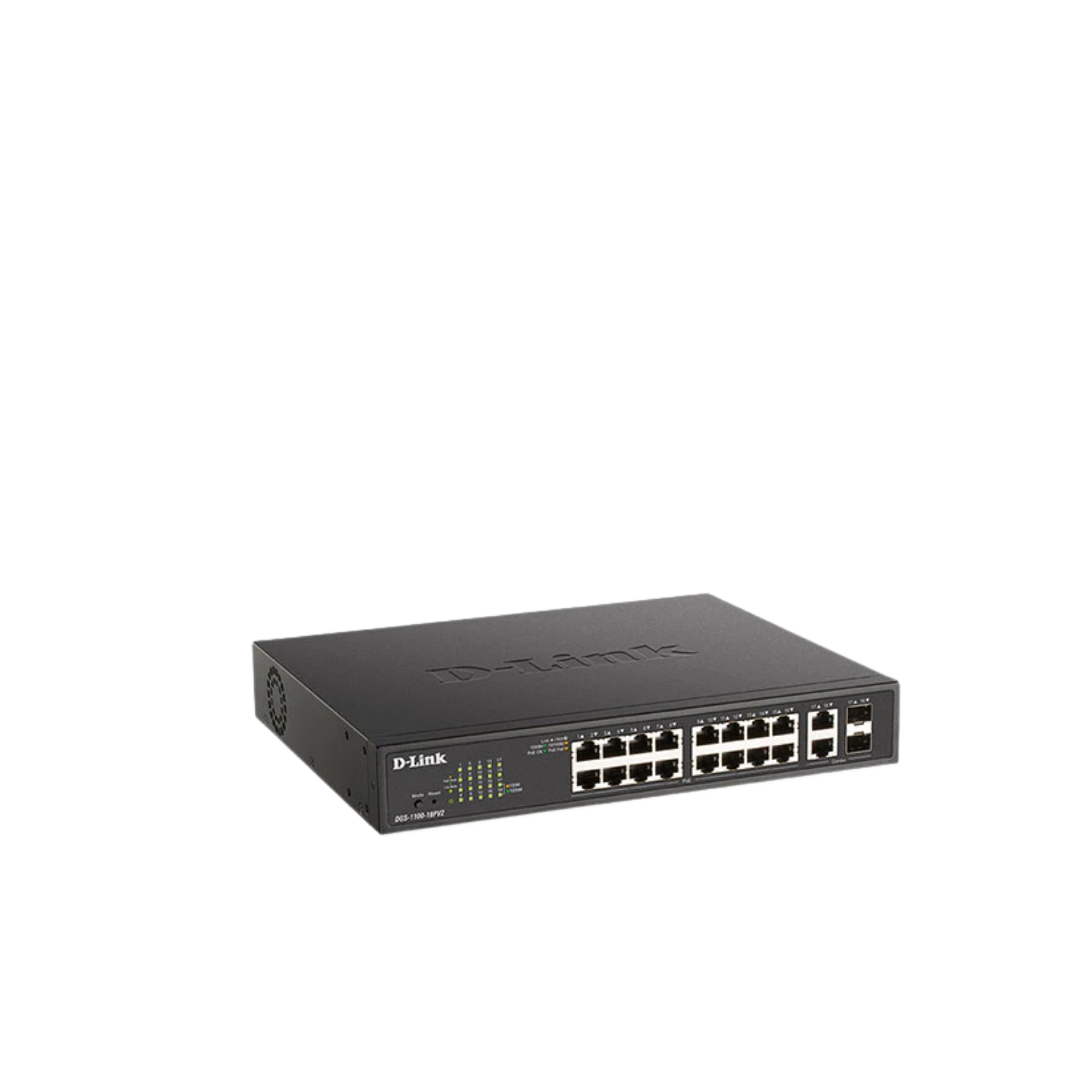

D-Link DGS-1100-18PV2 18-Port Gigabit PoE Smart Managed Switch, 16x PoE 130W, 2x Combo SFP
PRODUCT DESCRIPTION
D-Link DGS-1100-18PV2 18-Port Gigabit PoE Smart Managed Switch (DGS-1100-18PV2) - 5 Years Local Warranty
16 PoE Ports and a 130 W Budget in a Smart Managed Switch
The D-Link DGS-1100-18PV2 is an 18-port member of D-Link's DGS-1100 V2 Gigabit Smart Managed series. It provides 16 x Gigabit PoE ports plus 2 x Combo Gigabit RJ45/SFP uplinks, with IEEE 802.3af/at PoE on ports 1–16 and a total PoE budget of 130 W for IP cameras, wireless access points and VoIP phones.
Gigabit Performance
D-Link rates the switch at 36 Gbps switching capacity and a 26.78 Mpps maximum forwarding rate, with an 8K-entry MAC address table, 4.1 Mbit packet buffer and jumbo frames up to 10,000 bytes.
Built for Surveillance and Voice
Surveillance VLAN and bandwidth control keep camera and voice traffic separated and prioritised, while Quality of Service and IGMP Snooping reduce congestion on busy networks. D-Link also builds in easy-troubleshooting features for faster fault finding.
Simple Web Management
The DGS-1100-18PV2 is configured through a web-based GUI supporting IPv4 and IPv6, with VLAN, link aggregation, port mirroring and port statistics. D-Link Green power-saving technology reduces energy use on idle and short cable runs.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs and we will size it for you.
D-Link DGS-1100-18PV2 Datasheet — Technical Specifications
General
| Product Name | D-Link DGS-1100-18PV2 18-Port Gigabit PoE Smart Managed Switch |
| Part Number | DGS-1100-18PV2 |
| Series | DGS-1100 V2 Gigabit Smart Managed Switches |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Gigabit PoE Ports | 16 x 10/100/1000BASE-T (ports 1–16) |
| Combo Ports | 2 x Combo Gigabit RJ45 / SFP |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Budget | 130 W |
Performance
| Switching Capacity | 36 Gbps |
| Maximum Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer | 4.1 Mbits |
| Jumbo Frames | Up to 10,000 bytes |
Physical & Environmental
| Dimensions | 280 x 230 x 44 mm |
| Weight | 2.1 kg |
| Cooling | Fixed fan |
| Power Consumption | Standby 10 W; max 166.7 W (PoE on) / 18.3 W (PoE off) |
| Operating Temperature | -5 to 50 °C |
| MTBF | 343,695 hours |
Certifications
| EMI | FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI |
| Safety | cUL, CE LVD, CB, BSMI |
Compatibility & Software Support
Management
Web-based GUI (IPv4 / IPv6). Software feature groups per D-Link: VLAN, Layer 2 features, Quality of Service, Security, Management, Green Technology and MIB/RFC standards.
Typical Use
Small and medium business networks powering up to 16 PoE devices such as IP cameras, access points and IP phones, with SFP uplink to a core switch or fibre run.
Package Contents & DGS-1100 V2 PoE Ordering Information
DGS-1100 V2 PoE Models
| Model | Ports | PoE Budget | Part No. |
| DGS-1100-08PV2 | 8 x GE PoE | 64 W | DGS-1100-08PV2 |
| DGS-1100-18PV2 (this listing) | 16 x GE PoE + 2 x Combo GE/SFP | 130 W | DGS-1100-18PV2 |
| DGS-1100-24PV2 | 12 x GE PoE + 12 x GE | 100 W | DGS-1100-24PV2 |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DGS-1100 V2 Series Datasheet (PDF) |
| D-Link product page | DGS-1100-18PV2 on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DGS-1100-18PV2.
Frequently Asked Questions — D-Link DGS-1100-18PV2
How much PoE power does it provide?
130 W in total across PoE ports 1–16, using IEEE 802.3af and 802.3at (PoE+).
Is the DGS-1100-18PV2 fanless?
No. D-Link lists a fixed fan for this model (the 8-port and 24-port PoE V2 models are fanless).
Does it have fibre uplinks?
Yes, two Combo ports accept either Gigabit RJ45 or Gigabit SFP modules.
How is it managed?
Through a web-based GUI supporting IPv4 and IPv6.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
