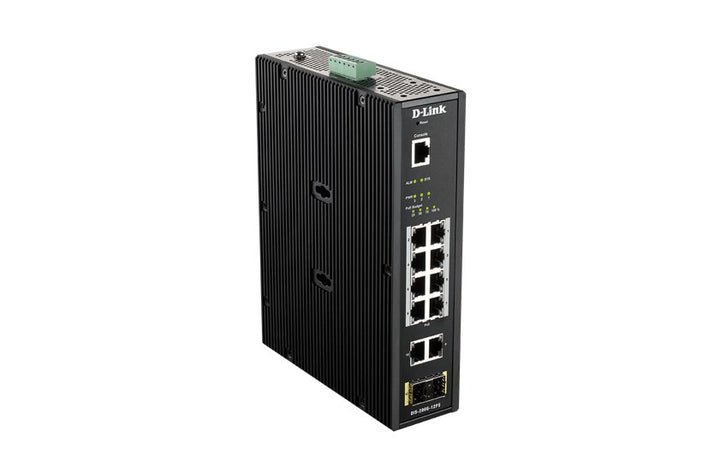

D-Link DIS-200G-12SW Industrial Gigabit Smart Managed Switch, Wide Temp
PRODUCT DESCRIPTION
D-Link DIS-200G-12SW 12-Port Gigabit Smart Managed Industrial Switch, Wide Temp (DIS-200G-12SW) - 5 Years Local Warranty
Managed Gigabit Switching for Harsh Environments

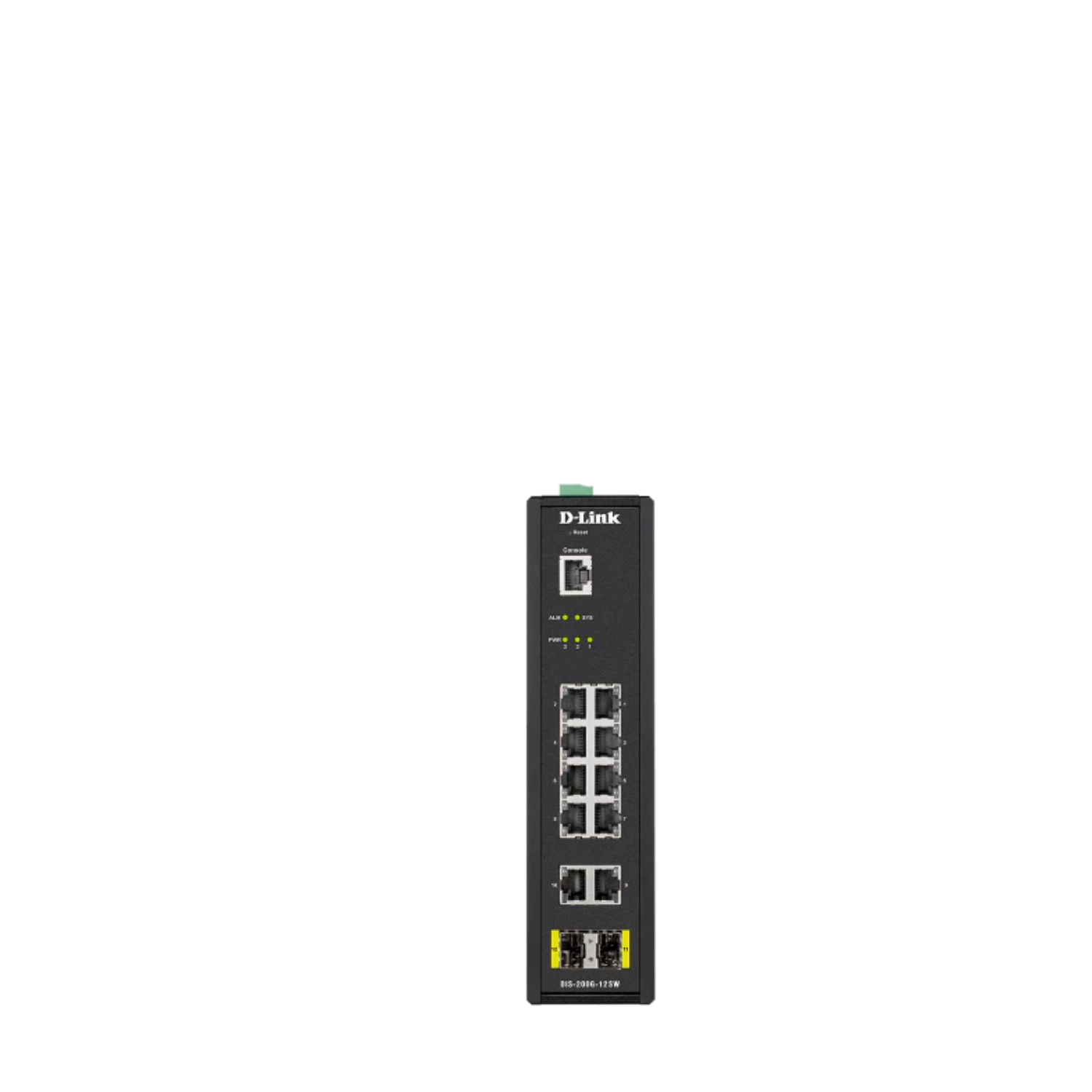

The D-Link DIS-200G-12SW is an industrial smart managed switch with 10 x 10/100/1000BASE-T ports, 2 x SFP ports and an RJ-45 console port, delivering 24 Gbps of switching capacity for control, surveillance and transport networks.
Wide-Temperature, Fanless Design

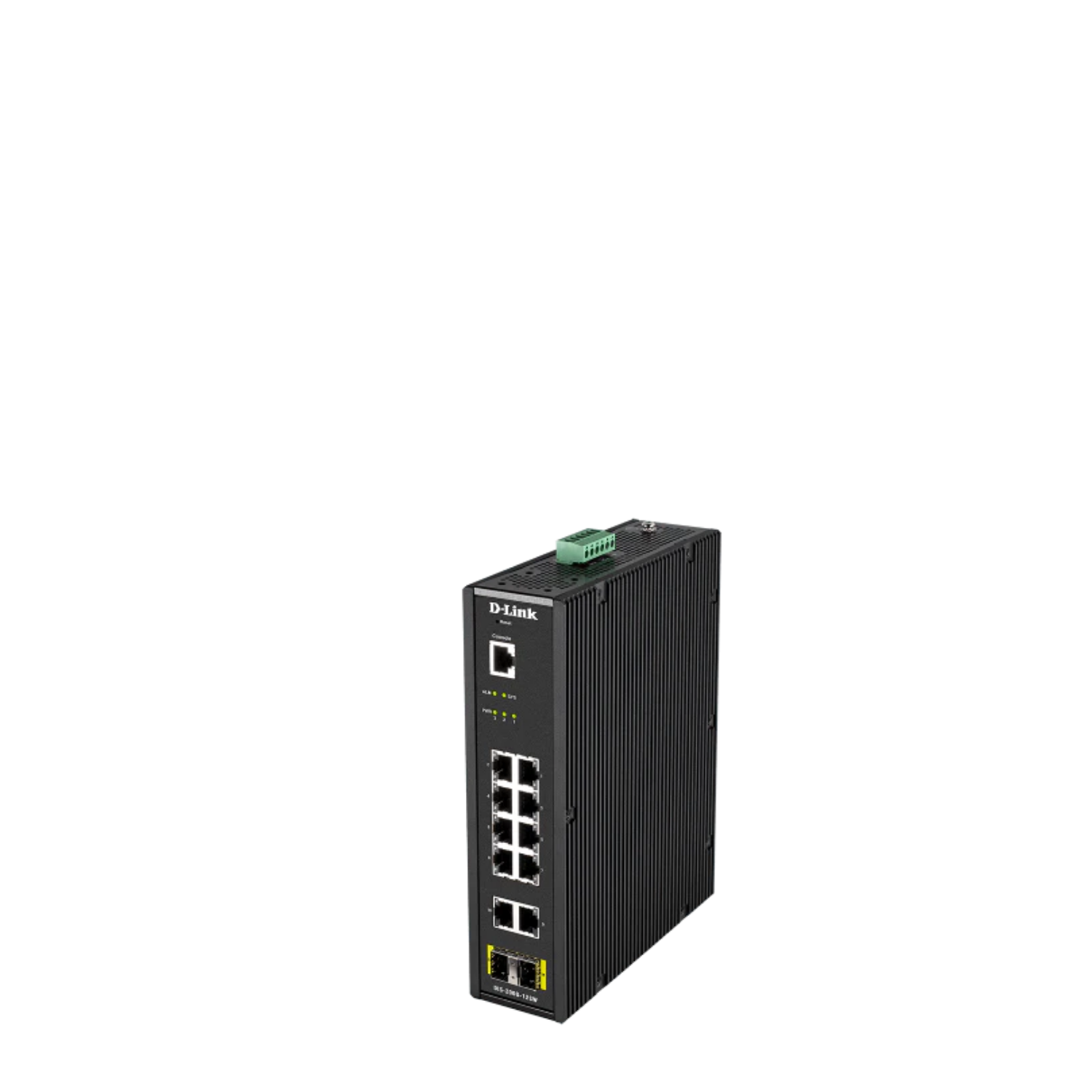

An IP30-rated fanless metal casing operates from -40 to 75 °C and is tested for shock (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibration (IEC 60068-2-6). It mounts on a DIN rail or wall, or in a 19-inch rack with the optional rack kit.
Resilient Networking
G.8032 ERPS ring, STP/RSTP/MSTP and 802.3ad link aggregation keep links up, with 6 kV surge protection on the Ethernet ports and redundant dual 12–48 VDC inputs.
Easy Management
Manage it through a web UI (IPv4/IPv6), D-Link Network Assistant, CLI or SNMP v1/v2c/v3, with Auto-Surveillance VLAN 2.0, cable diagnostics and SFP digital diagnostics monitoring.
Need help choosing? Email sales@sourceit.com.sg with your port count, fibre distances and power source and we will recommend the right switch, SFPs and power supply.
D-Link DIS-200G-12SW Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-200G-12SW 12-Port Gigabit Smart Managed Industrial Switch, Wide Temp |
| Part Number | DIS-200G-12SW |
| Series | DIS-200G Industrial Gigabit Smart Managed Switches (hardware A1) |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Copper Ports | 10 x 10/100/1000BASE-T |
| SFP Ports | 2 x SFP |
| Console | 1 x RJ-45 |
| PoE | Not supported |
Performance
| Switching Capacity | 24 Gbps |
| Max. Forwarding Rate | 17.85 Mpps |
| MAC Address Table | Up to 8K entries |
| Transmission Method | Store-and-forward |
| Jumbo Frames | Up to 9600 bytes |
| CPU / DRAM / Flash | 416 MHz / 128 MB / 32 MB |
Power

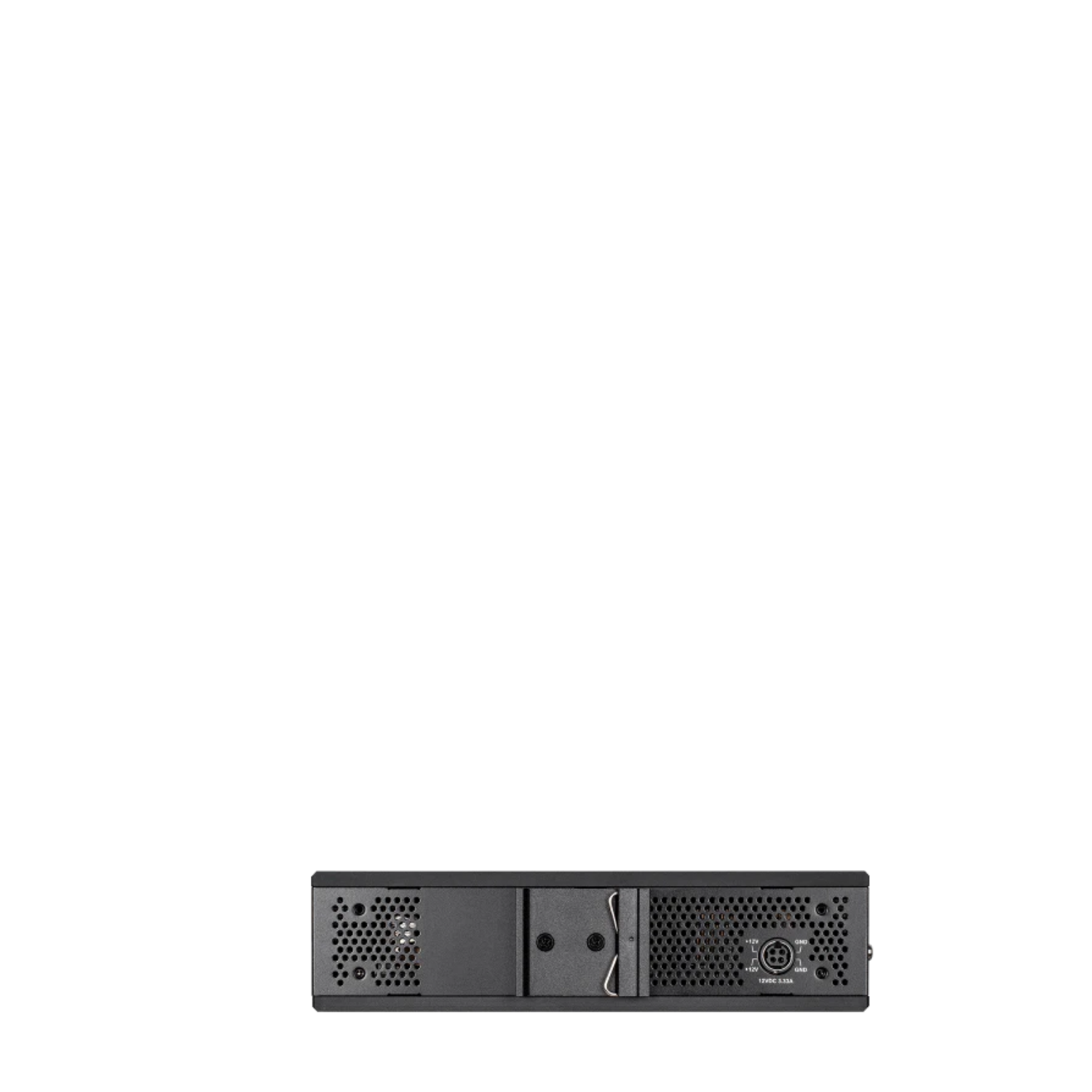

| Input | 12–48 VDC redundant dual inputs (terminal block) or 12 VDC via 4-pin DIN |
| Max. Power Consumption | 10.26 W |
| Standby Power | 5.94 W |
| Heat Dissipation | 35.01 BTU/hr |
| Surge Protection | 6 kV Ethernet; 2 kV power |
Physical & Environmental
| Dimensions | 210 x 171.2 x 53 mm |
| Weight | 1.63 kg |
| Enclosure | IP30-rated metal casing, fanless |
| Mounting | DIN rail / wall / rack (with optional kit) |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 0% to 95% RH, non-condensing |
| MTBF | 219,314 hours |
Certifications
| Safety | UL 60950-1 |
| EMC / EMI | CE, FCC, BSMI; CISPR 22, FCC Part 15B Class A |
| EMS | EN 61000-4-2 / -4-3 / -4-4 / -4-5 / -4-6 / -4-8 |
| Mechanical | IEC 60068-2-27 shock, IEC 60068-2-32 free fall, IEC 60068-2-6 vibration |
| Environmental | RoHS 6 |
Compatibility & Software Support
Management
Web UI (IPv4/IPv6), D-Link Network Assistant (DNA), industry-standard CLI, SNMP v1/v2c/v3 with traps, Telnet server, SNTP, DHCP client, TFTP client, system log, D-Link Discovery Protocol and dual firmware images.
Layer 2 & Security Features
IEEE 802.1Q VLANs (128 static groups, 4094 VIDs), Auto-Surveillance VLAN 2.0, voice and asymmetric VLAN, GVRP; STP/RSTP/MSTP; G.8032 ERPSv1 single ring; 802.3ad link aggregation (6 groups, 8 ports each); IGMP/MLD snooping (256 groups); port mirroring; loopback detection; 802.1p QoS with 4 queues, SPQ/WRR and bandwidth control; D-Link Safeguard, traffic segmentation, storm control, SSH/SSL, port security, DoS prevention, web-based access control and RADIUS; cable diagnostics, SFP DDM and LLDP; 802.3az EEE.
Optional Accessories (per D-Link)
DIS-PWR40AC/M 40 W, 100–240 VAC in / 12 VDC out power adapter; DIS-200G-RPK40 rack kit with 40 W power supply; DIS-RK200G 19-inch rack kit; industrial SFP modules such as DIS-S301SX and DIS-S310LX.
Package Contents & DIS-200G Ordering Information
DIS-200G Models
| Model | Ports | PoE / Temp |
| DIS-200G-12PS | 8 x GE PoE + 2 x GE + 2 x SFP | 240 W / -40 to 65 °C |
| DIS-200G-12PSW | 8 x GE PoE + 2 x GE + 2 x SFP | 240 W / -40 to 75 °C |
| DIS-200G-12SW (this listing) | 10 x GE + 2 x SFP | — / -40 to 75 °C |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Power supply, rack kit and SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DIS-200G Series Datasheet (PDF) |
| D-Link product page | DIS-200G-12SW on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-200G-12SW.
Frequently Asked Questions — D-Link DIS-200G-12SW
Does it supply PoE?
No. For PoE choose the DIS-200G-12PS or DIS-200G-12PSW (8 PoE ports, 240 W).
What power does it need?
12–48 VDC on redundant terminal-block inputs, or 12 VDC through the 4-pin DIN socket. D-Link's DIS-PWR40AC/M adapter provides 12 VDC from AC mains.
What temperatures can it handle?
-40 to 75 °C operating, in a fanless IP30 metal housing.
Does it support ring redundancy?
Yes, G.8032 ERPS (single ring) plus STP, RSTP and MSTP.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
