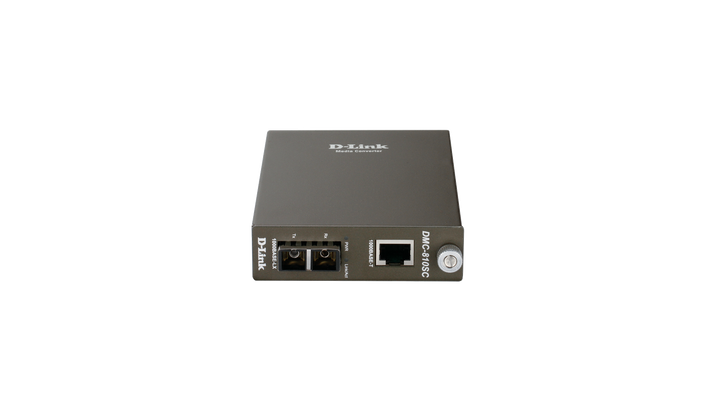

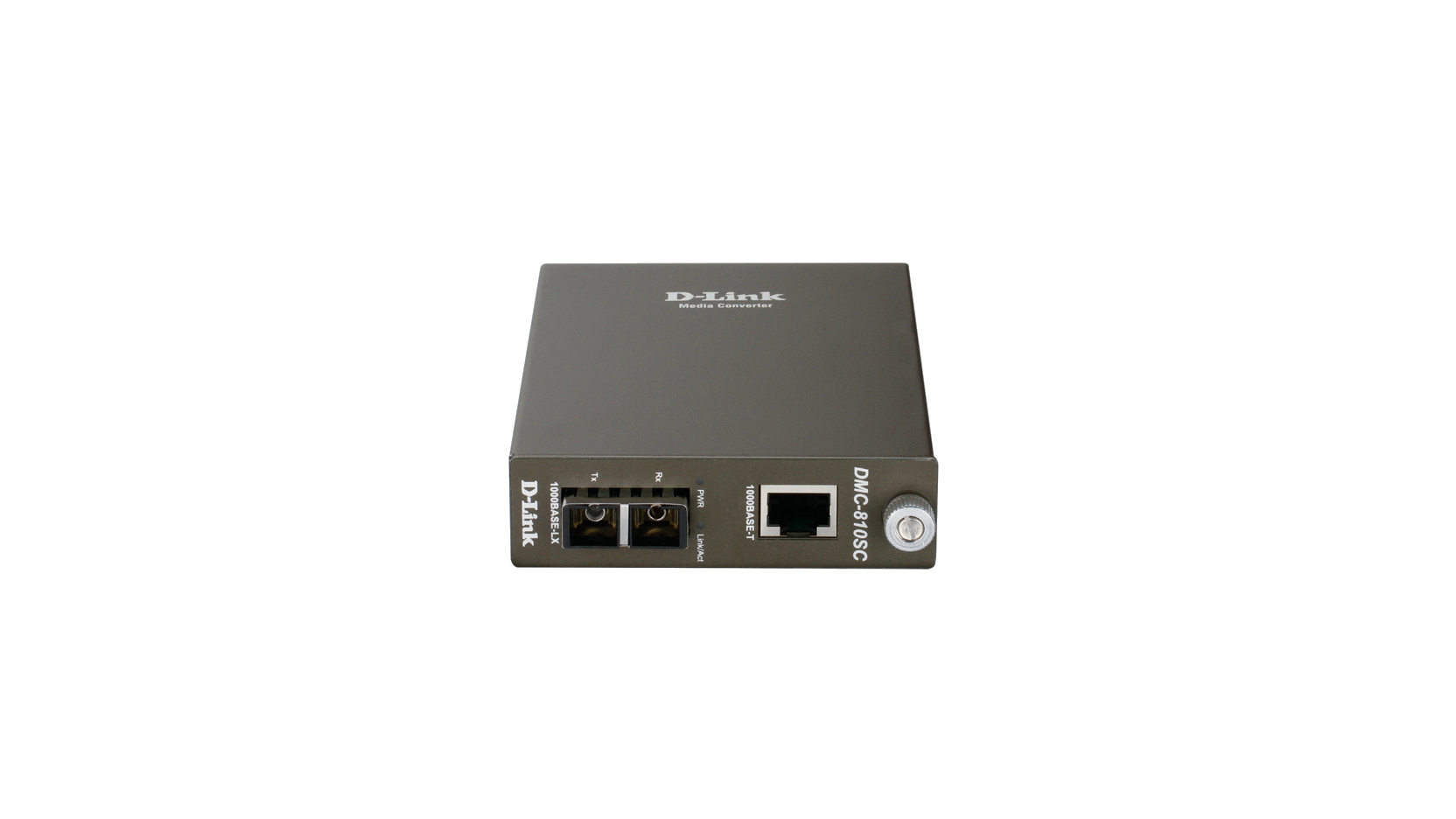

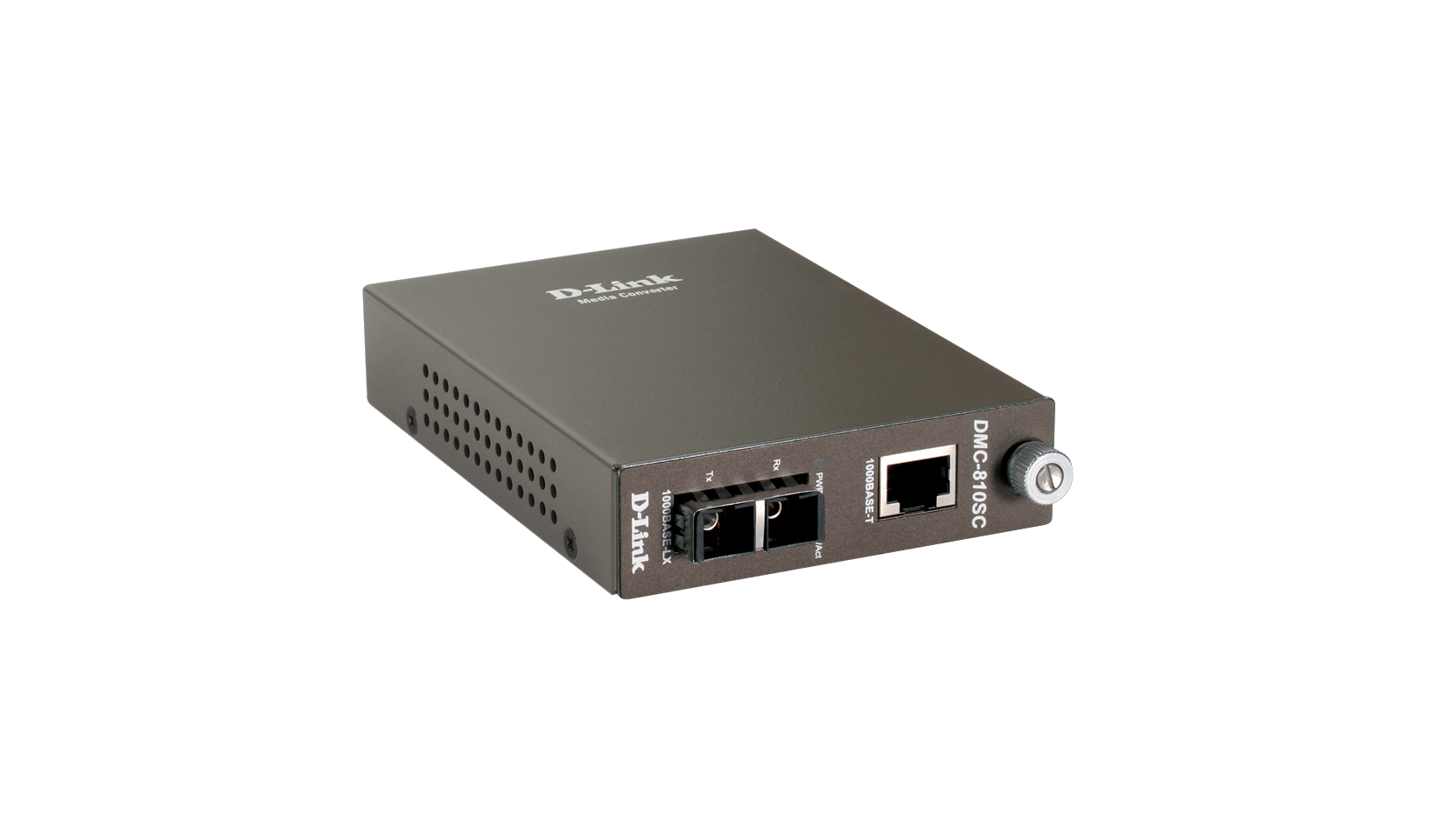

D-Link DMC-810SC/E Gigabit to 1000BASE-LX Single-Mode SC Media Converter
PRODUCT DESCRIPTION
D-Link DMC-810SC/E 1000BASE-T to 1000BASE-LX (SC) Single-Mode Media Converter (DMC-810SC/E) - 5 Years Local Warranty
Gigabit Copper to Single-Mode Fibre
The D-Link DMC-810SC converts 1000BASE-T copper to 1000BASE-LX single-mode fibre (and vice versa) to IEEE 802.3ab and 802.3z, using an SC connector at 1310 nm, with 2000 Mbps full-duplex throughput at full wire-speed.
Standalone or Chassis-Mounted
Run it as a standalone desktop converter with its external power adapter, or install it in the D-Link DMC-1000 16-slot chassis, which lists the DMC-810SC as a compatible module.
Plug-and-Play Link Extension
No software is needed. Auto MDI/MDIX on the copper port and two DIP switches for fibre mode and Link Loss Return make it simple to deploy between buildings or floors.
Need help choosing? Email sales@sourceit.com.sg with your fibre type and link distance and we will confirm the right converter.
D-Link DMC-810SC/E Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-810SC 1000BASE-T to 1000BASE-LX (SC) Single-Mode Media Converter |
| Part Number | DMC-810SC/E |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces & Standards
| Copper Port | 1 x 1000BASE-T RJ-45, Auto MDI/MDIX |
| Fibre Port | 1 x 1000BASE-LX SC, single-mode |
| Standards | IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-LX) |
| Wavelength | 1310 nm |
| Fibre Distance | Up to 20 km single-mode per the 2019 DMC series datasheet and D-Link product guide (the dlink.com UK product page states 10 km) |
Performance & Features
| Data Rate | 2000 Mbps (full-duplex) |
| Forwarding | Store-and-forward, full wire-speed |
| DIP Switches | SW1: forced mode / auto-negotiation; SW2: Link Loss Return (LLR) enable / disable (per D-Link FAQ) |
| LEDs | PWR, LINK/ACT |
Power

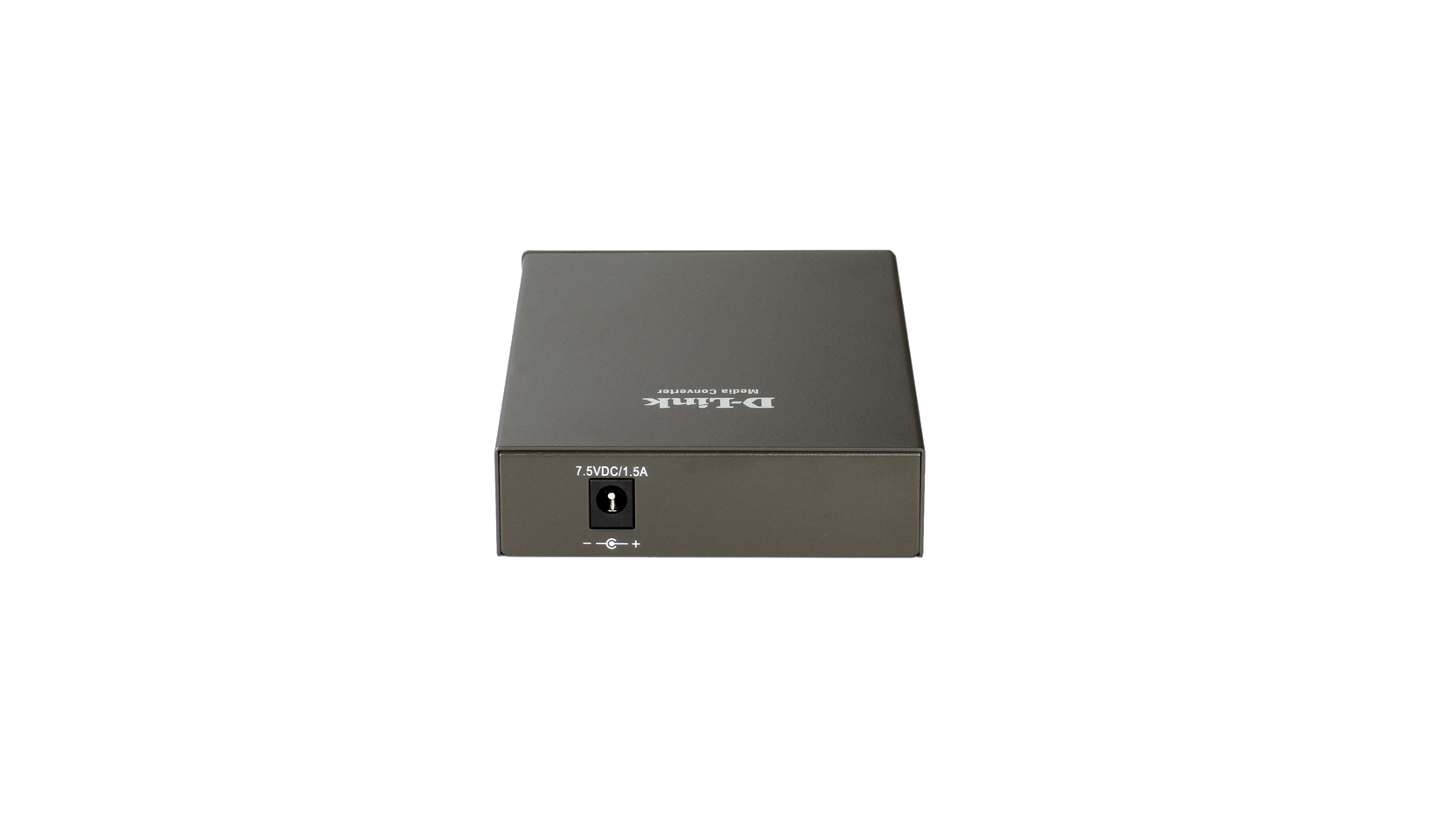

| Power Input | External AC power adapter: 7.5 V / 1.5 A per D-Link product page (the 2019 DMC series datasheet lists 5 V / 1 A) |
| Power Consumption | 5.5 W max. (per D-Link 700/800 series user guide) |
Physical & Environmental
| Dimensions | 120 x 88 x 25 mm |
| Weight | 302 g |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -25 to 70 °C |
| Humidity | 10% to 90% non-condensing |
| Chassis Option | D-Link DMC-1000 16-slot chassis |
Certifications
| EMI | FCC Class B, VCCI Class B, CE Class B, C-Tick per product page (the 2019 datasheet lists FCC / CE / VCCI Class A) |
Specifications from D-Link's DMC series datasheet (updated February 2019), the DMC-810SC product page on dlink.com (hardware revision B) and D-Link's 1000BASE-TX to 1000BASE-SX/LX user guide. Where D-Link sources differ, both figures are shown.
Compatibility & Software Support
Fibre
Single-mode fibre with SC connectors at 1310 nm (1000BASE-LX). Pair it with another 1000BASE-LX device, such as a second DMC-810SC or a switch with a 1000BASE-LX port. For multi-mode links, see the DMC-700SC.
Chassis
Listed by D-Link as a compatible module for the DMC-1000 16-slot chassis; the optional DMC-1002 module adds SNMP / web monitoring of chassis-installed converters.
Management
Plug-and-play; no software required. The converter itself is unmanaged.
Package Contents & DMC Media Converter Ordering Information
DMC Chassis-Compatible Converter Ordering Information
| Model | Description | Part No. |
| DMC-810SC/E (this listing) | 1000BASE-T to 1000BASE-LX, single-mode SC | DMC-810SC/E |
| DMC-700SC/E | 1000BASE-T to 1000BASE-SX, multi-mode SC, up to 550 m | DMC-700SC/E |
| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
| DMC-1000/E | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 | SNMP / web management module for DMC-1000 | DMC-1002 |
D-Link does not publish a package-contents list for the DMC-810SC; the unit runs from an external power adapter when used standalone. Contact us to confirm what ships in the box.
Datasheet & Downloads
| D-Link datasheet | DMC Series Datasheet (PDF) |
| D-Link user guide | 1000BASE-TX to 1000BASE-SX/LX Media Converter User's Guide (PDF) |
| D-Link FAQ | What do the two switches on the DMC-700SC and DMC-810SC control? |
| D-Link product page | DMC-810SC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-810SC/E.
Frequently Asked Questions — D-Link DMC-810SC/E
How far can it reach?
D-Link's DMC series datasheet and product guide give up to 20 km on single-mode fibre, while the dlink.com UK product page states 10 km. For links beyond 10 km, contact us with your fibre details before ordering.
What fibre does it need?
Single-mode fibre with SC connectors (1000BASE-LX, 1310 nm). The far end needs a matching 1000BASE-LX device, such as a second DMC-810SC.
Can it go in a chassis?
Yes. It works standalone or in the DMC-1000 16-slot chassis.
What do the DIP switches do?
Per D-Link's FAQ, switch 1 selects forced or auto-negotiation fibre mode (both ends must match) and switch 2 enables Link Loss Return; only one converter in a pair needs LLR enabled.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
