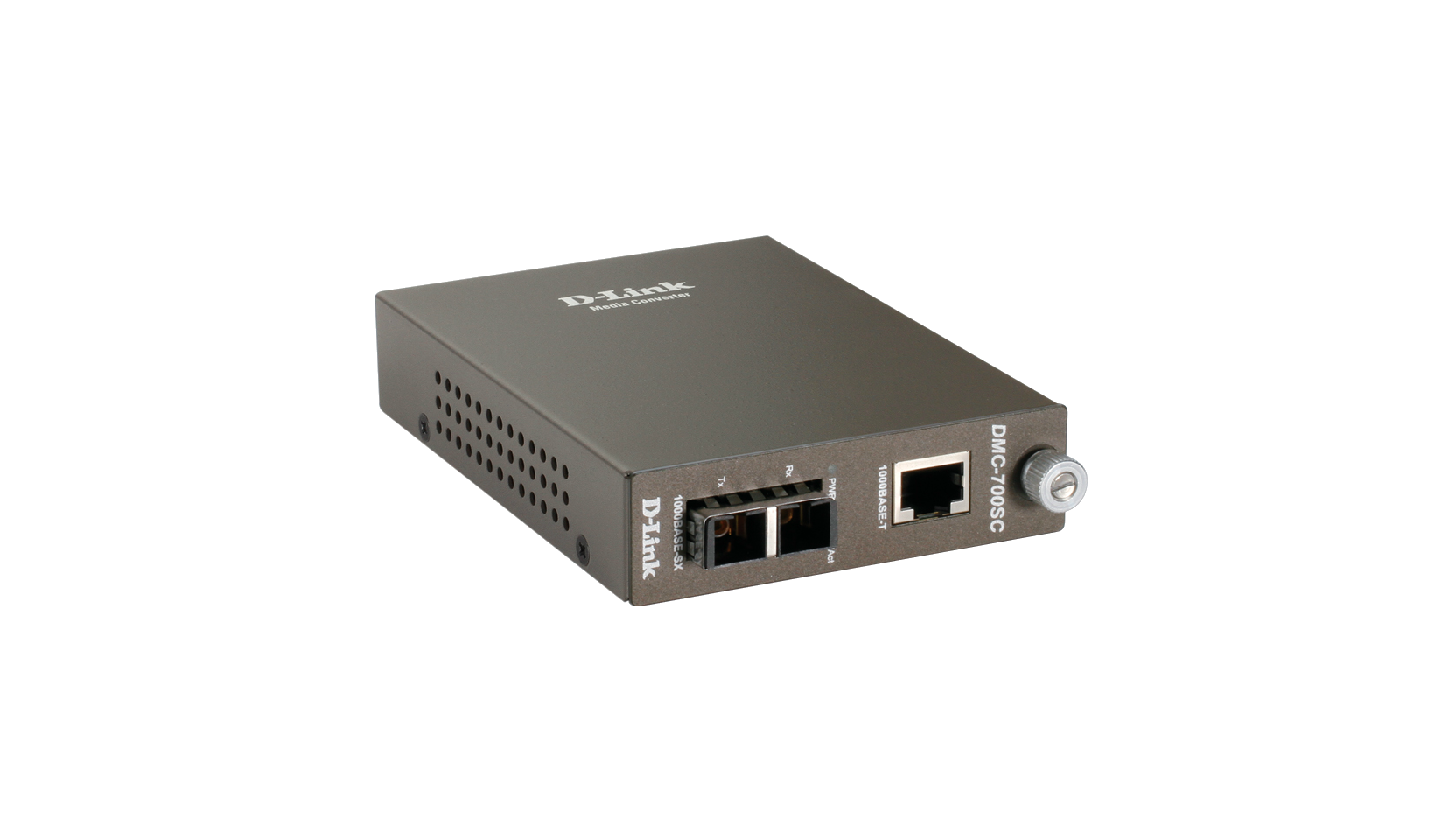

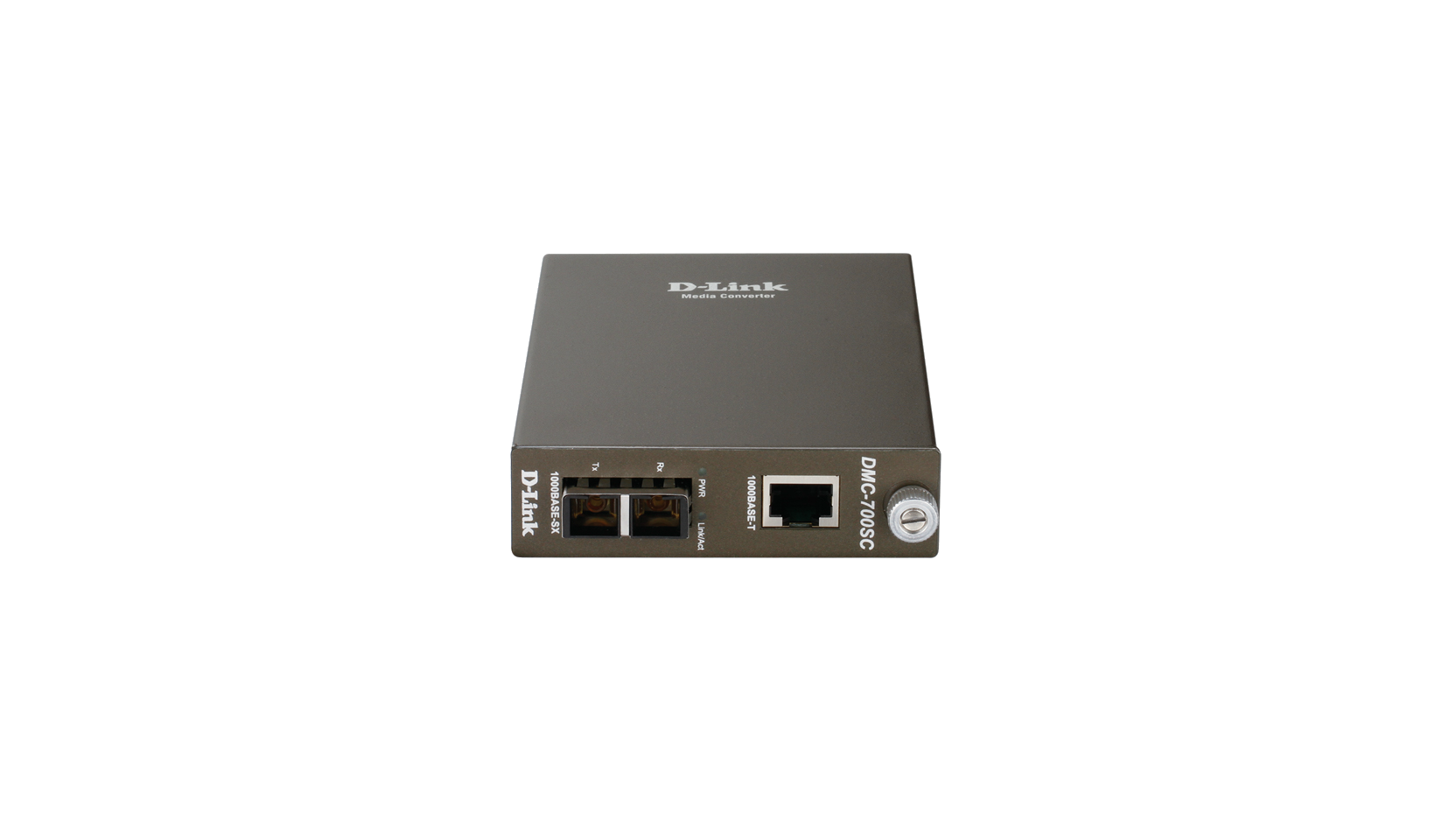

D-Link DMC-700SC/E Gigabit to 1000BASE-SX Multi-Mode SC Media Converter
PRODUCT DESCRIPTION
D-Link DMC-700SC/E 1000BASE-T to 1000BASE-SX (SC) Multi-Mode Media Converter (DMC-700SC/E) - 5 Years Local Warranty
Gigabit Copper to Multi-Mode Fibre up to 550 m
The D-Link DMC-700SC converts 1000BASE-T copper to 1000BASE-SX fibre (and vice versa) to IEEE 802.3ab and 802.3z, using multi-mode fibre with an SC connector at 850 nm. D-Link rates it for up to 550 m on multi-mode fibre, at full wire-speed with 2000 Mbps full-duplex throughput.
Standalone or Chassis-Mounted
Use it as a standalone desktop converter with its external power adapter, or slot it into the D-Link DMC-1000 16-slot chassis, where it is hot-swappable.
Link Loss Handling via DIP Switches
Two DIP switches set the fibre mode (forced or auto-negotiation) and enable Link Loss Return (LLR); Link Pass Through (LLCF) is the default behaviour, so a lost fibre link is reflected on the copper side.
Need help choosing? Email sales@sourceit.com.sg with your fibre type and link distance and we will confirm the right converter.
D-Link DMC-700SC/E Datasheet — Technical Specifications
General
| Product Name | D-Link DMC-700SC 1000BASE-T to 1000BASE-SX (SC) Multi-Mode Media Converter |
| Part Number | DMC-700SC/E |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces & Standards
| Copper Port | 1 x 1000BASE-T RJ-45, Auto MDI/MDIX |
| Fibre Port | 1 x 1000BASE-SX SC, multi-mode |
| Standards | IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX) |
| Wavelength | 850 nm |
| Copper Cable | 4-pair Cat. 5 STP, up to 100 m |
| Fibre Distance | Up to 550 m multi-mode (user guide: 50/125 µm up to 550 m; 62.5/125 µm up to 220 m) |
Performance & Features
| Data Rate | 2000 Mbps (full-duplex) |
| Forwarding | Store-and-forward, full wire-speed (1,488,000 pps per user guide) |
| DIP Switches | SW1: forced mode / auto-negotiation; SW2: Link Loss Return (LLR) enable / disable |
| Link Loss | Link Pass Through (LLCF) by default |
| LEDs | PWR, LINK/ACT |
Power

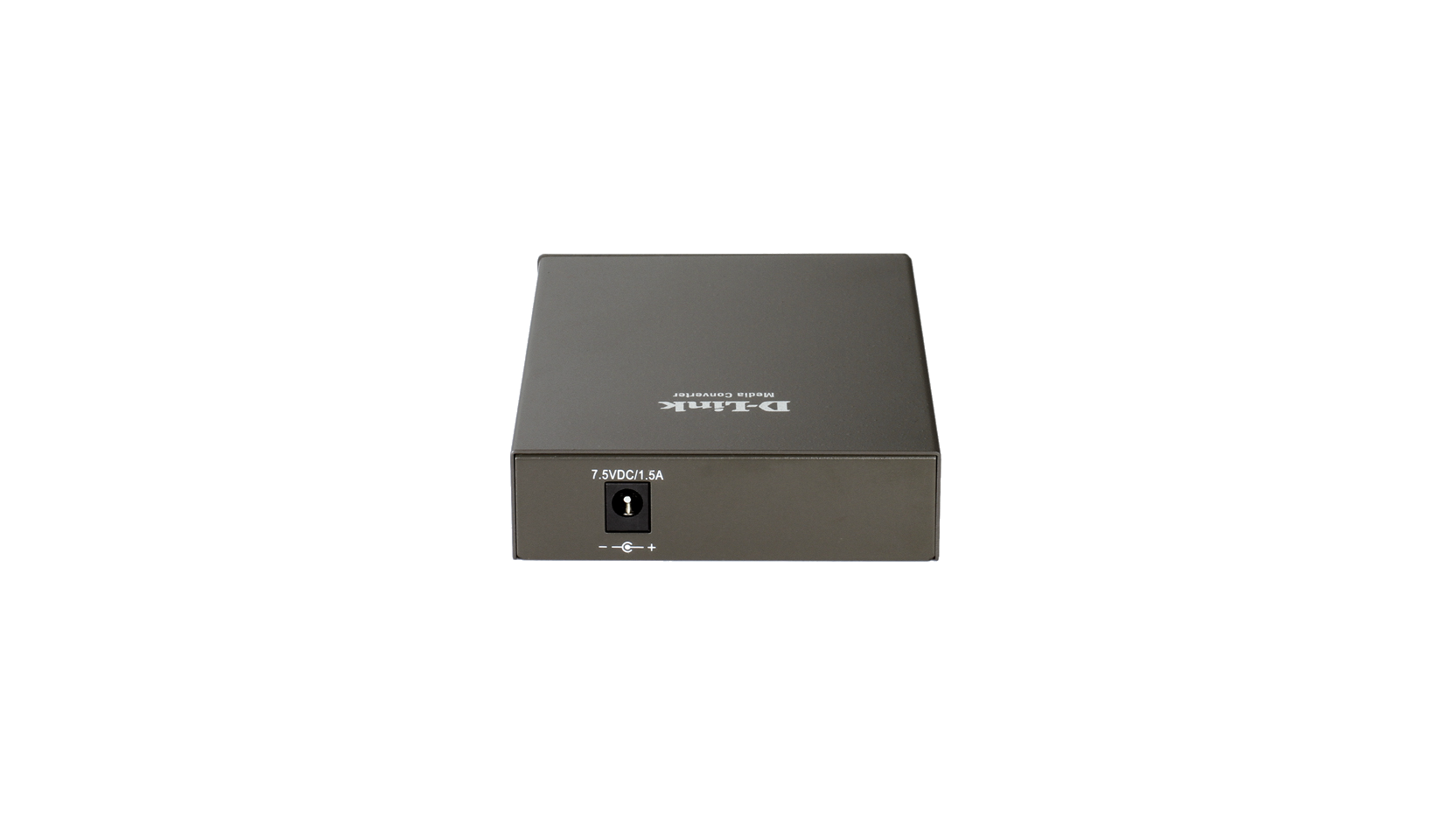

| Power Input | External AC power adapter: 7.5 V / 1.5 A per D-Link product page and user guide (the 2019 DMC series datasheet lists 5 V / 1 A) |
| Power Consumption | 5.5 W max. (per user guide) |
Physical & Environmental
| Dimensions | 120 x 88 x 25 mm |
| Weight | 302 g (user guide: 305 g) |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -25 to 70 °C |
| Humidity | 10% to 90% non-condensing |
| Chassis Option | D-Link DMC-1000 16-slot chassis (hot-swappable) |
Certifications
| EMI | FCC Class B, VCCI Class B, CE Class B, C-Tick per product page (the 2019 datasheet lists FCC / CE / VCCI Class A) |
Specifications from D-Link's DMC series datasheet (updated February 2019), the DMC-700SC product page on dlink.com and the D-Link 1000BASE-TX to 1000BASE-SX/LX user guide. Where D-Link sources differ, both figures are shown.
Compatibility & Software Support
Fibre
Multi-mode fibre with SC connectors at 850 nm (1000BASE-SX). Pair it with another 1000BASE-SX device, such as a second DMC-700SC or a switch with a 1000BASE-SX port. For single-mode links, see the DMC-810SC.
Chassis
Listed by D-Link as a compatible module for the DMC-1000 16-slot chassis. The optional DMC-1002 module adds SNMP / web monitoring of chassis-installed converters.
Management
Plug-and-play; no software required. The converter itself is unmanaged.
Package Contents & DMC Media Converter Ordering Information
DMC Chassis-Compatible Converter Ordering Information
| Model | Description | Part No. |
| DMC-700SC/E (this listing) | 1000BASE-T to 1000BASE-SX, multi-mode SC, up to 550 m | DMC-700SC/E |
| DMC-810SC/E | 1000BASE-T to 1000BASE-LX, single-mode SC | DMC-810SC/E |
| DMC-300SC/E | 10/100BASE-TX to 100BASE-FX, multi-mode SC, up to 2 km | DMC-300SC/E |
| DMC-515SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 15 km | DMC-515SC/E |
| DMC-530SC/E | 10/100BASE-TX to 100BASE-FX, single-mode SC, up to 30 km | DMC-530SC/E |
| DMC-1000/E | 16-slot 19" rack-mount chassis | DMC-1000/E |
| DMC-1001 | Redundant power supply for DMC-1000 | DMC-1001 |
| DMC-1002 | SNMP / web management module for DMC-1000 | DMC-1002 |
D-Link does not publish a package-contents list for the DMC-700SC; the unit runs from an external power adapter when used standalone. Contact us to confirm what ships in the box.
Datasheet & Downloads
| D-Link datasheet | DMC Series Datasheet (PDF) |
| D-Link user guide | 1000BASE-TX to 1000BASE-SX/LX Media Converter User's Guide (PDF) |
| D-Link FAQ | What do the two switches on the DMC-700SC and DMC-810SC control? |
| D-Link product page | DMC-700SC on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DMC-700SC/E.
Frequently Asked Questions — D-Link DMC-700SC/E
What fibre does it need?
Multi-mode fibre with SC connectors (1000BASE-SX, 850 nm). D-Link rates it for up to 550 m; its user guide gives 550 m on 50/125 µm and 220 m on 62.5/125 µm fibre.
Do I need a pair?
The far end needs a 1000BASE-SX multi-mode device: a second DMC-700SC or a switch with a matching SX port. D-Link's FAQ notes both ends must use the same fibre mode setting, and only one converter in a pair needs LLR enabled.
Can it go in a chassis?
Yes. It works standalone or in the DMC-1000 16-slot chassis.
Is the DMC-700SC still current?
D-Link's UK site lists the DMC-700SC as End of Life (phased out 28/09/2023), while other D-Link regional pages still show it as live and it remains in D-Link Singapore's current commercial price list. Contact us to confirm availability before ordering.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
